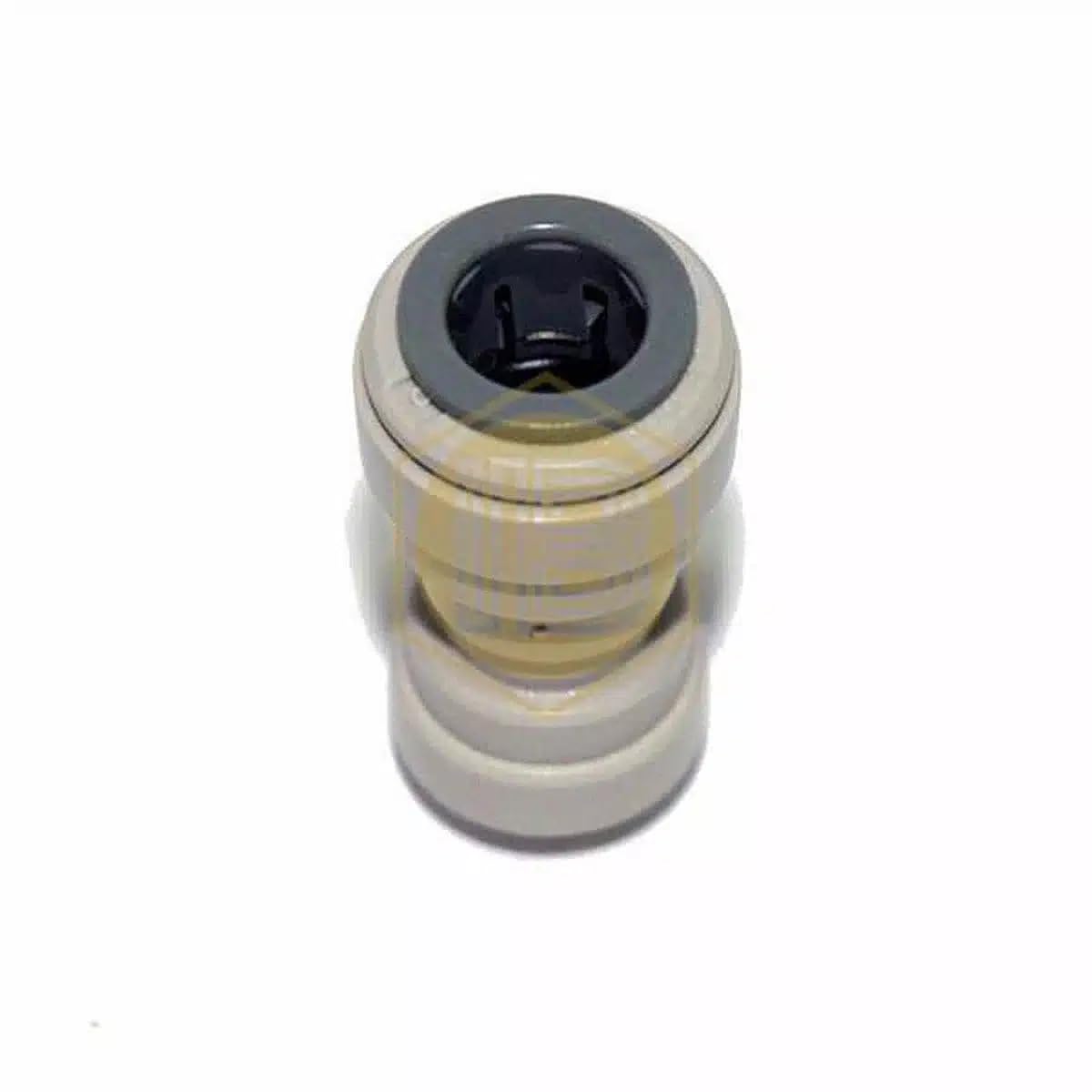

JOHN GUEST REDUCING STRAIGHT CONNECTOR. Push-fit Tube O.D. 3/8" to 1/4" Push-fit Tube O.D. Speedfit Part No PI201208S. Inch Size Quick-Connect Acetal Fittings for Drinks Dispensers and Pure Water.

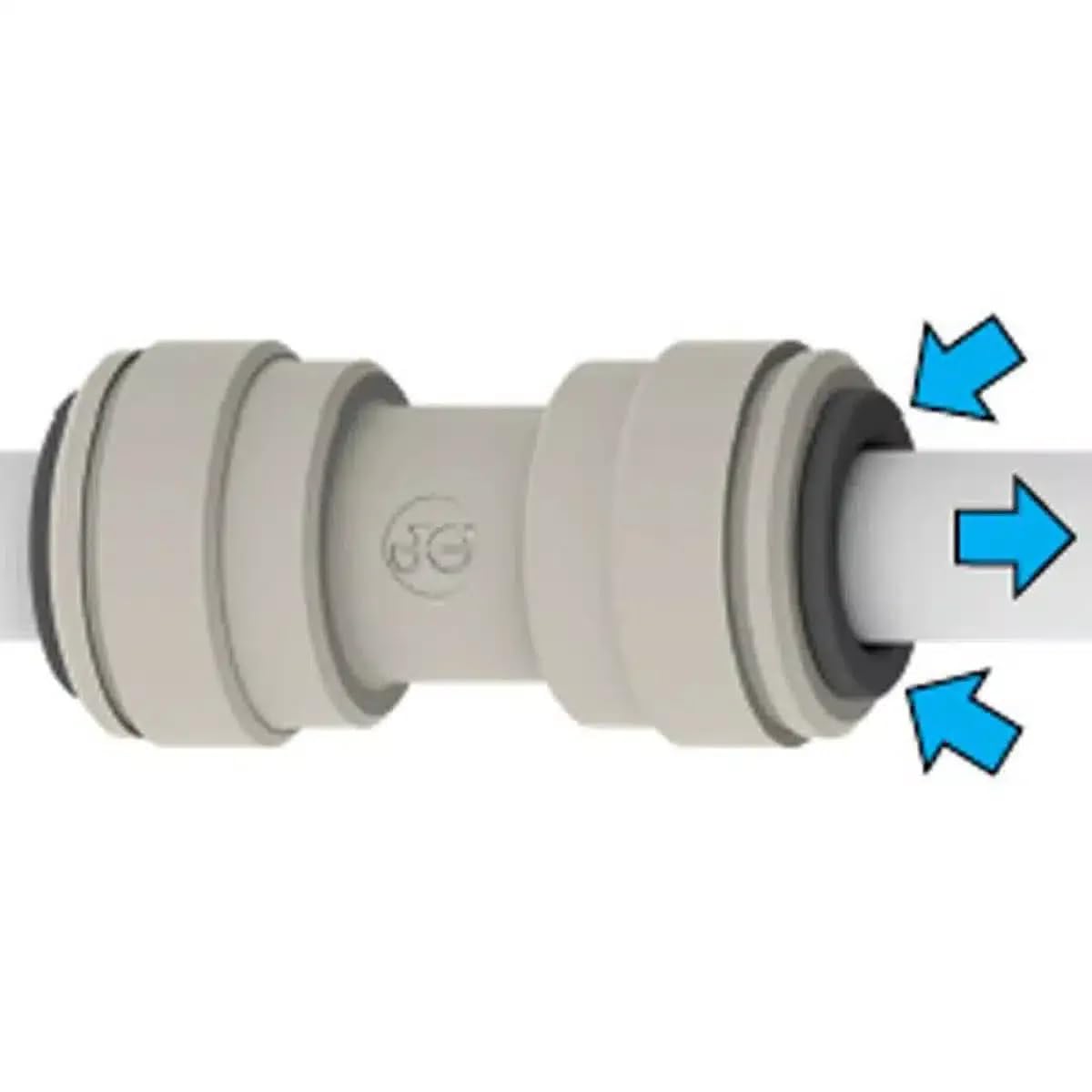

• Push-fit technology
• Quick disconnection without the need for tools
• Food Quality and suitable for potable liquids
• Suitable for soft metal or plastic tubes
• Superior flow characteristics

Accepted by almost all the world’s beer and beverage producers and by the manufacturers of drinks dispense equipment, John Guest products have quality and performance approvals from leading testing and acceptance authorities. Super Speedfit fittings and related products are not recommended for use with explosive gases, petroleum spirits, and other fuels or for central heating systems. Working Pressure and Temperature Range for Potable Liquids and Air Super Speedfit fittings are suitable for the following pressures and temperatures 10 Bar - 16 Bar @ +1°C 10 Bar - 16 Bar @ +20°C 07 Bar - 10 Bar @ +65°C Maintenance and Replacement Intervals John Guest products generally require little maintenance but as a minimum we recommend routine visual inspection. Frequency of visual inspection will depend on severity of application and risk of failure. If after visual inspection John Guest products appear damaged, cracked, charred, discoloured, heat distorted or corroded they should be replaced. Any product that is or appears to be leaking should be replaced. Product life is affected by the severity of the application, the hostility of the working environment and contact with aggressive chemicals or liquids. It is therefore important that specific replacement intervals be considered by specifiers/users/customers based on previous service life or when failure could result in unacceptable downtime, damage or injury risk. Super Speedfit push-in fittings have been designed for a wide range of industrial applications. They provide a fast and secure way of connecting tubes and offer considerable advantages over conventional fittings. Complex tubing systems can be assembled more rapidly than with traditional methods and because Super Speedfit fittings are easy to disconnect, fault finding and maintenance become a much easier operation.
