Carkio High Torque Clock Movement,1-1/5 Inch Long Shaft Clock Movement Mechanism with Hands,DIY Repair Quartz Wall Clock Movement Kit,Black

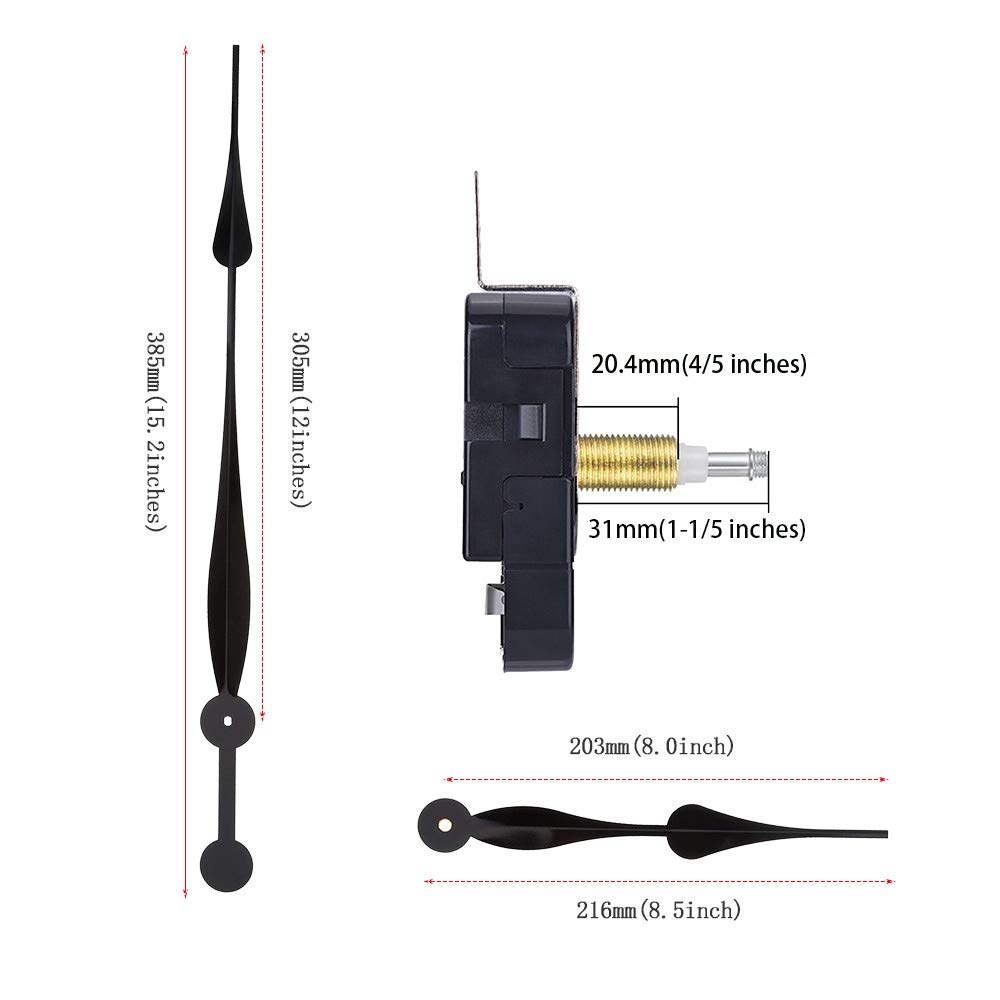

• 👉 👉Clock Movement Size: Shaft length is 31 mm (1-1/5 inch); Thread length is length is 20.4 mm (4/ 5 inch);Jump second movement, suitable for 12-16 mm (12/ 25 - 5/ 8 inch) thickness clock panel.
• 👉 👉This clock movement is a continuous motion, high torque motion that provides an ultra-quiet, high-torque motor. Do not put too much pressure on the installation, and do not bend it. Please gently press the clock hands at 12 o'clock.

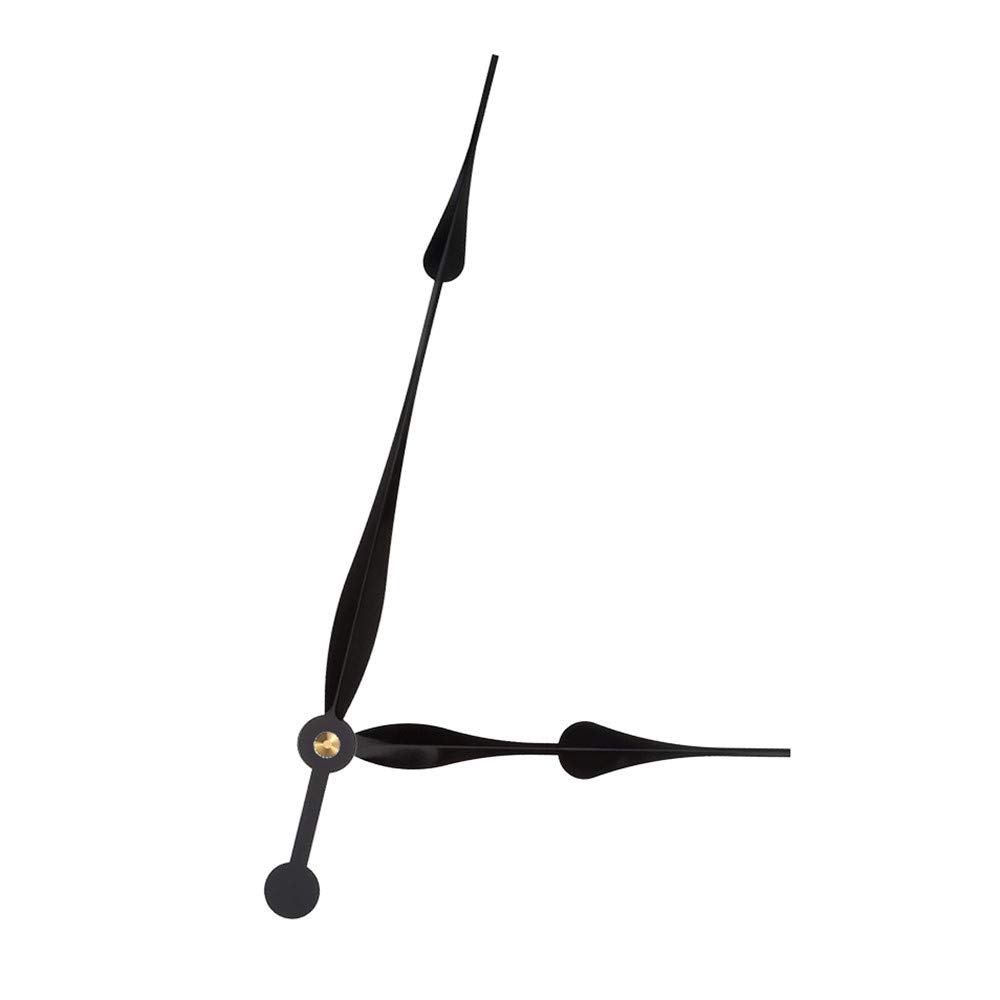

• 👉 👉Since the high torque long shaft clock movement is a square hole, the minute hand in the clock is a square hole that matches your clock and is easy to install. These replacement parts are designed to be simple and elegant, and are suitable for different styles of timepiece frames.
• 👉 👉Applicable Scope:The high torque long shaft clock movement is very suitable for DIY quartz wall clock replacement movement, etc. It is also suitable for cross stitch, three-dimensional embroidery, craft clock, frameless clock.
• 👉 👉JJDD is focused on providing high quality products and first class service at a reasonable price. A three-month warranty is provided to you. If you are not satisfied with our products,please feel free to contact us and we will resend or refund.

Specifications: Movement shaft length: total shaft length 31mm, thread height 20.4mm, Compatible with panel thickness of about 12-16mm. Product Name:High Torque Hook Quartz Clock Movement Material: aluminum,copper,plastic Hour Hand and Minute Hand Color:black Type: Jump seconds Feature: 1.Made of high quality material,it is wear-resistant,rust-proof, corrosion-resistant, durable and can be used for long time. 2.Ideal for DIY quartz wall clock replacement movement, etc. Also Compatible with cross stitch, three-dimensional embroidery, craft clock, frameless clock. Instructions For Use: 1. Place the plastic washer on the shaft,Insert the through hole of the clock surface. 2. Insert the shaft through the clock face,place dial brass washer on the shaft. 3. Fix the brass hex nut with the dial,Grasp the hour hand and gently press. 4. Attach minute hand,lightly screw minute nut in place,press second hand in place . Tips: Keep the hour and minute hands parallel when installing. Since some parts are made of aluminum, do not press hard to install or bend. Package include: 1 x Quartz clock movement 1 x Minute hand 1 x Hour hand 1 x Close nut 1 x Plastic washer 1 x Brass washer 1 x Brass nut 1 x Metal hook Note: 1.Please check the size of the check carefully before purchasing. Since these replacement parts are relatively small, please keep them away from children to avoid eating. 2.Due to light shooting and different displays may cause the color of the item in the picture a little different from the real thing.Please understand! The measurement allowed error is +/- 1-5mm.
