Jeylly Gas Spring, 200N Gas Strut Lid Support Stay Bar Kitchen Cabinet Cupboard Box Spring Hinge (4 Set)

• Force:45 Lbs/200 N(Per Strut),Length of gas spring --- 268 mm extended / retracted 190 mm
• Ideal for supporting the door/lid to keep it open,Support opens lids to a maximum angle of 150 degrees,it fit for the door/lid which the SIDE LENGTH is between 20 and 32 inch , the WEIGHT is between 18 and 35 lbs
• Superior material made for the shaft, durable and practical, Plastic installing top, rotatable and easy to adjust, Silence and soft with cabinet doors close
• Each Gas strut included Screws
• Every package come with 4 set 200N soft close gas struts for slowly opening/closing heavy duty flap door or storage box lid

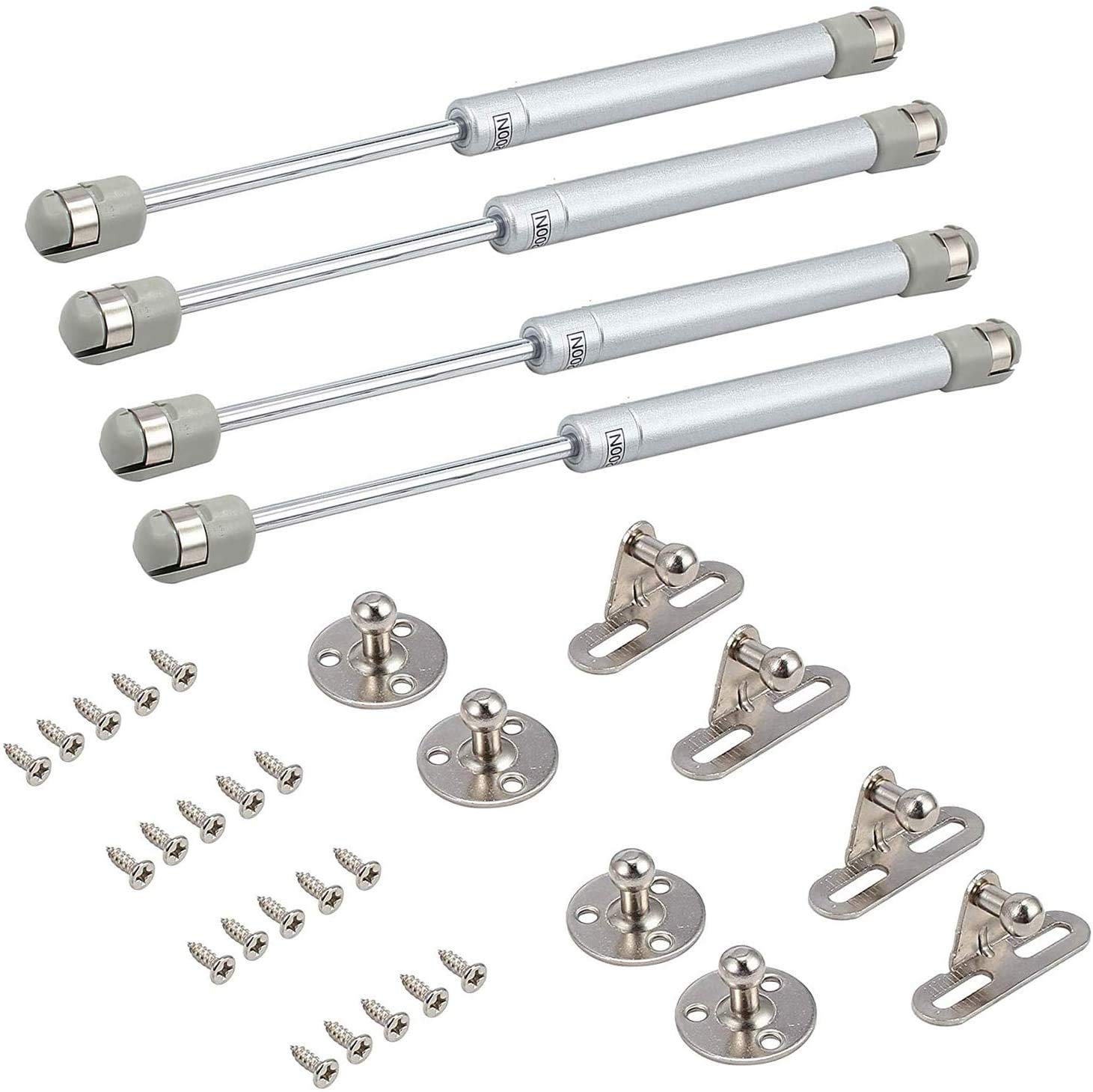

How to use 1. First install the thick body part of the gas spring on the cabinet door to be supported 2. Keep the cabinet door open at 90 degrees to allow the air bar to stretch freely 3. Finally, the screw support portion of the pneumatic rod is fixed to the cabinet door frame Specification: Material: ABS brace + zinc alloy plus iron Color: Silver gray Opening angles: 80, 90 or 100 degrees (according to the installing position) Pressure: 200N Package Included: 4 X 200 N/45 lbs gas struts 8 x Metal mounting disk 20 x Screws
