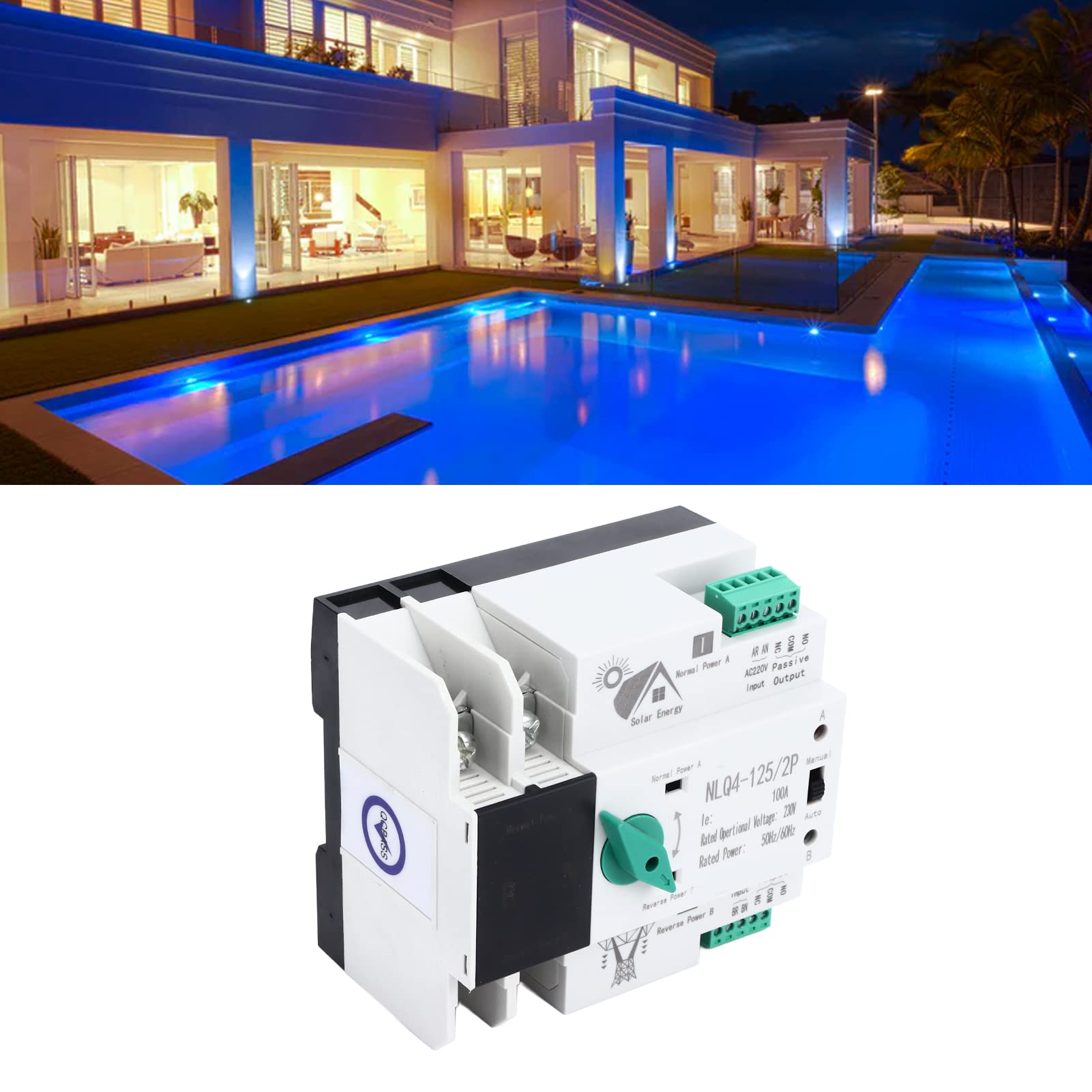

Jenngaoo 2P 100A 230V AC 50/60Hz Automatic Transfer Switch DIN Rail Mounted Dual Power with Manual & Auto Operation, Fast Switching Controller for Home, Factory, Commercial Use

• DIN Rail Mounting & Universal Compatibility: Specially designed for 100A 230V AC 50/60Hz systems with compact dimensions for effortless installation in homes, factories, and commercial spaces. Features flame-retardant housing and self-return isolation for enhanced grid safety.
• Instant Power Failure Response: Automatically activates backup supply within seconds during mains failure to maintain continuous operation. Manual override option ensures uninterrupted power for critical equipment in hospitals, farms, and shopping centres.
• Dual-Mode Operation & Rapid Switching: Seamlessly transitions between manual/auto modes with switching time under 4 seconds. Rugged 2P design ensures stable power transmission for refrigeration systems, security devices, and industrial machinery.
• High-Capacity Performance: Robust 125A-rated contacts with excellent isolation capabilities handle demanding loads from solar inverters, workshop tools, and agricultural equipment. Compliance with IEC60947-6-1 standards guarantees reliability.
• Space-Saving Safety Solution: Vertical DIN rail mounting saves cabinet space while maintaining 20mm separation between live parts. Overload protection and IP40 enclosure prevent arc faults in humid environments like greenhouses and food processing plants.

Specification: Item Type: Transfer Switch Product model: NLQ4-125/2P Switch Type: Secondary Power Distribution Rated Current: 100A Rated Voltage: 230V AC Insulation Voltage: 690V AC Rated Frequency: 50Hz 60Hz Electrical Grade: PC grade isolation type. Rated Impulse Withstand Voltage: 8KV Package List: 1 x Transfer Switch Note: 1. The maximum ambient temperature should not exceed 40℃, the minimum should not be lower than -5℃, and the average temperature within 24 hours should not be higher than 35℃. 2. The altitude of the installation site should not be higher than 2000m. 3. When the maximum temperature reaches 40℃, the relative humidity of the installation site should not exceed 50%. When the temperature is the lowest temperature of -5℃, the relative humidity is higher, for example, if the temperature is 25℃, the relative humidity is 90%. Special measures should be taken to deal with occasional condensation on product surfaces due to temperature changes.
