Jeanoko 1 Channel Optocoupler Relay Module Stable High Low Trigger Isolated Strong Driving Ability 5mA for Circuits AC 250V/10A DC 30V/10A (12V)

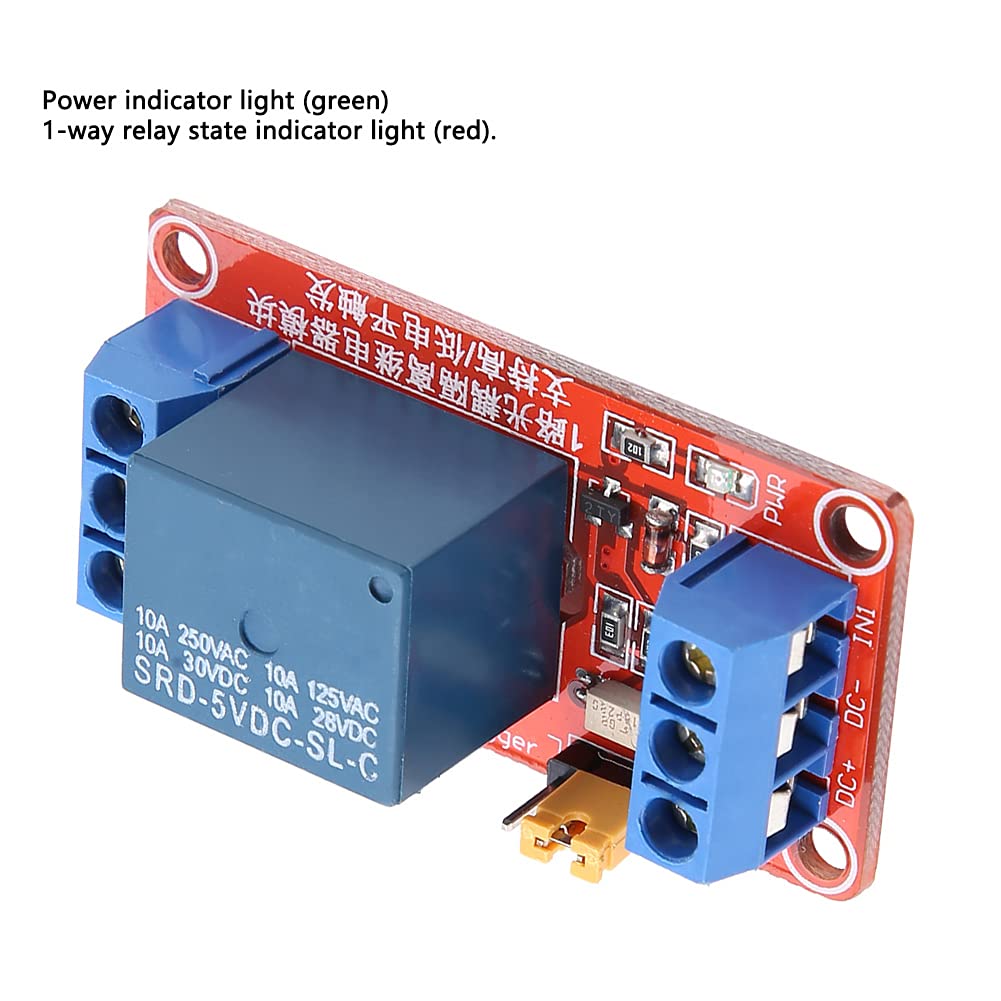

• Status indication :The relay module adopts LED status indicator ,power indicator (green) ,4 relay status indicator (red)
• Stable performance :The relay module adopts patch optocoupler isolation ,strong driving ability ,stable performance ,and the trigger current is 5mA
• Trigger condition :Each channel of The1 channel optocoupler relay module can be triggered by high or low level by jumper setting
• Terminal link :All interfaces of The relay module can be directly connected through terminal blocks ,which is very convenient ,and provides four fixing bolt holes
• Fault tolerant design :The relay module has a fault tolerant design even if the control line is broken ,the relay will not act

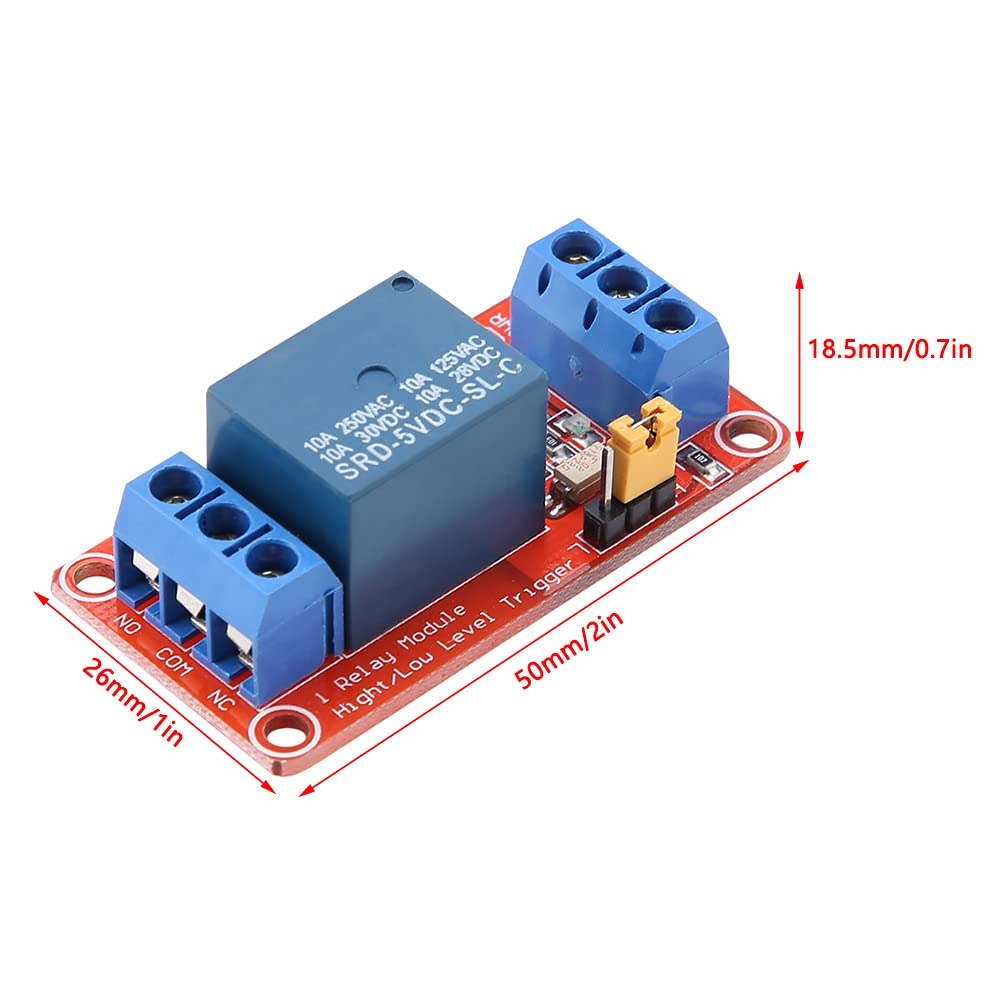

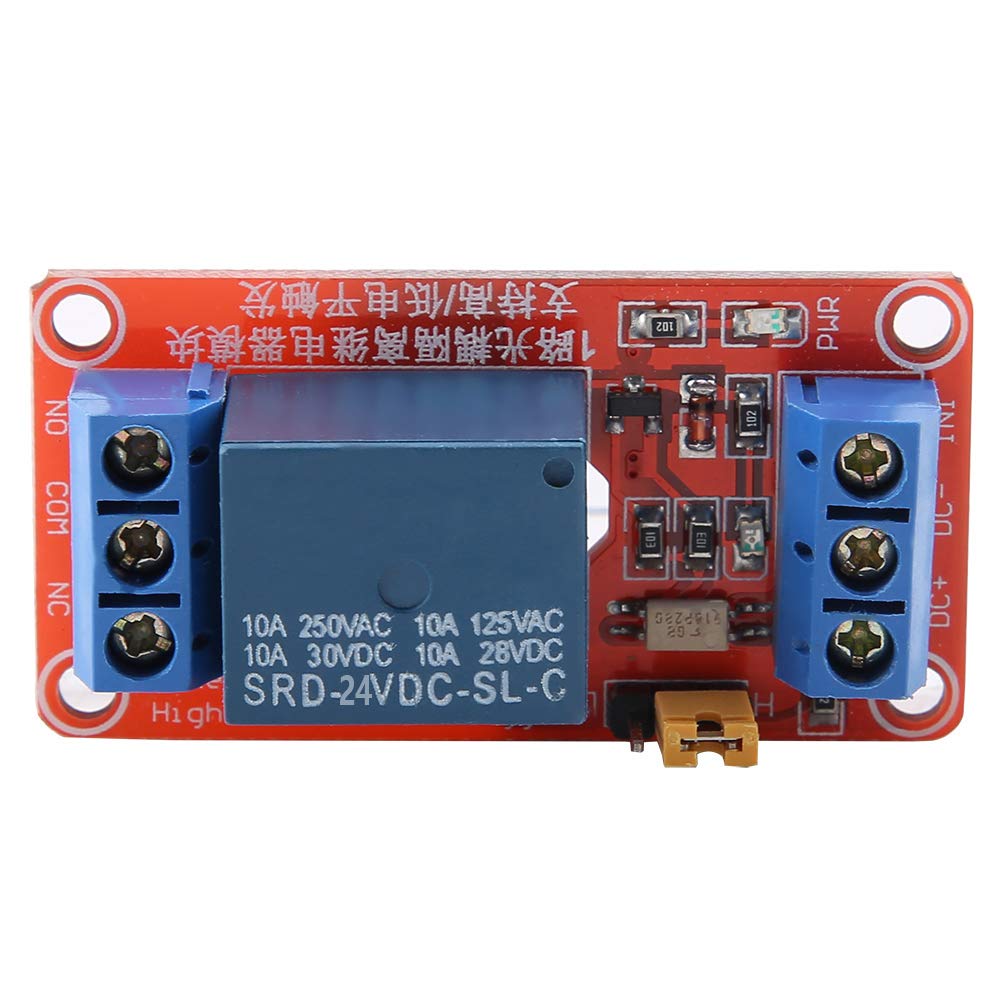

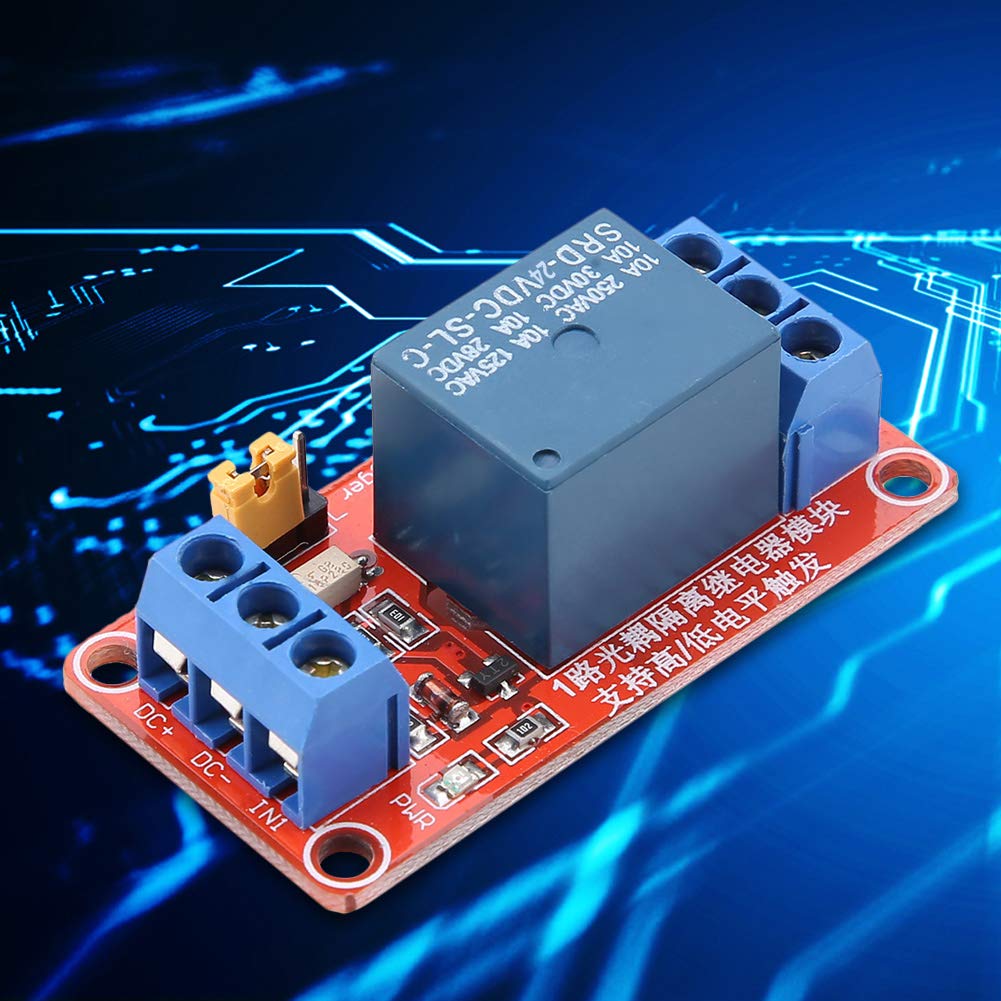

Features: Adopt patch photocoupler isolation, strong driving ability, stable performance. Trigger current is 5mA. Module operating voltage is 5V,12V,24V for choice. Each path of the module can be triggered by the high level or low level through a jumper setting.  Fault-tolerant design,even if the control line breaks,the relay will not move.  Power indicator light (green), 4-way relay state indicator light (red). Humanized interface design, all interfaces can be directly connected through the terminal lead, very convenient. Four fixing bolt holes are provided. Specification: Weight: 18g/0.6oz Common interface load: AC 250V/10A, DC 30V/10A Module Size (L*W*H): 50*26*18.5mm/2*1*0.7inch Bolt Hole: 3.1 mm; 44.5*20.5mm (spacing) Voltage: 5V, 12V, 24V (Optional) Module interface: 1. DC + : connected to the positive pole of power supply (voltage is required for relay, 5V, 12V and 24V for choice) 2. DC- : connect to the power negative pole. 3. IN: high or low level control relay suction  Relay output terminal:  1. NO: relay changeover interface,relay suction front suspension, suction and COM short connection.  2.COM: Relay common interface. 3.NC: Relay normally closed interface,relay suction and COM short joint, suction clearance.  High and low level trigger selection terminal: 1. When jumper is connected with LOW short circuit, it is triggered by LOW level; 2. High level is triggered when jumper is connected with high short circuit; Package List: 1 x Relay Module
