JCP PRO uPVC Door Handle Pair Set Sprung 92 PZ 92mm, Backplate 212mm x 34mm (122mm Screw Centres, White)

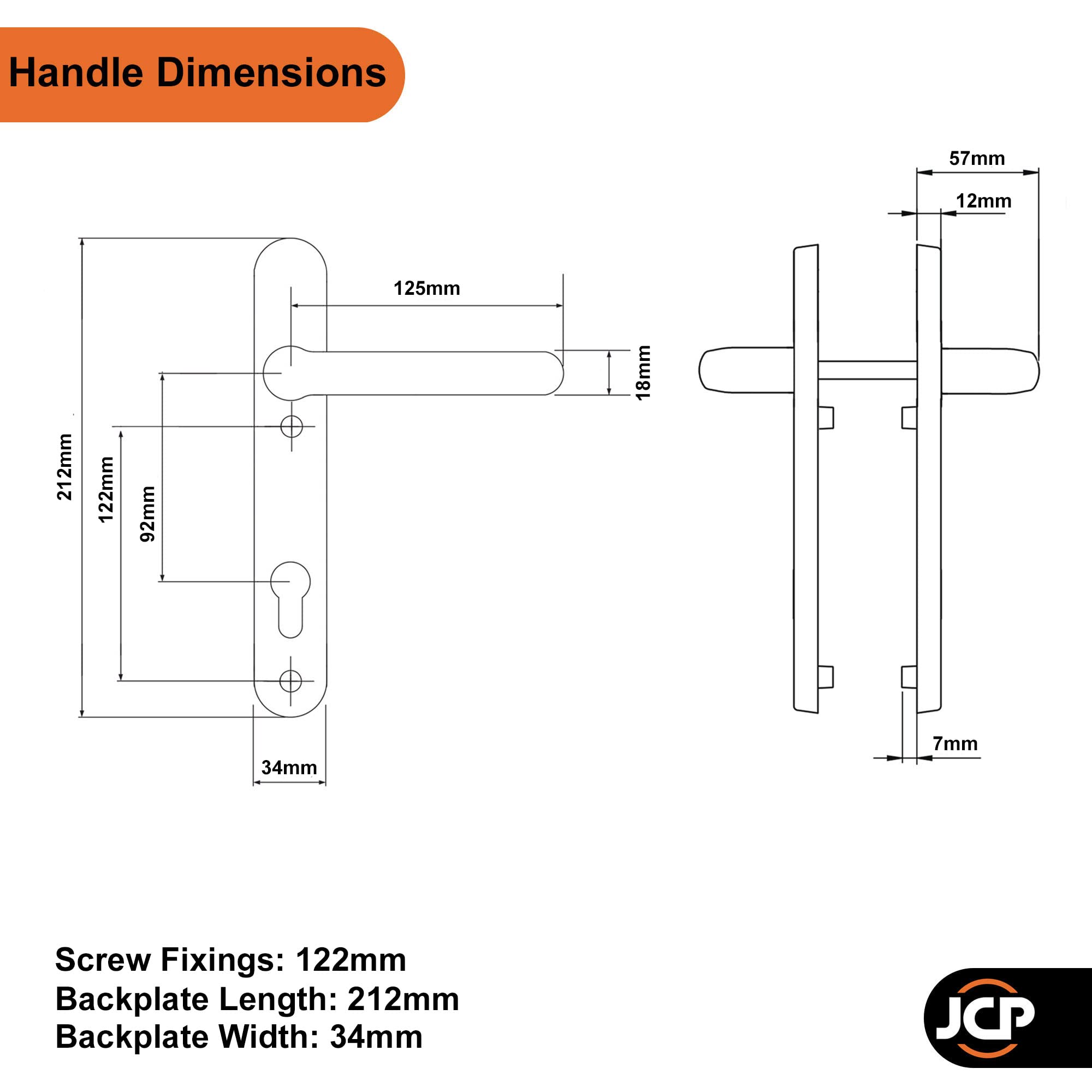

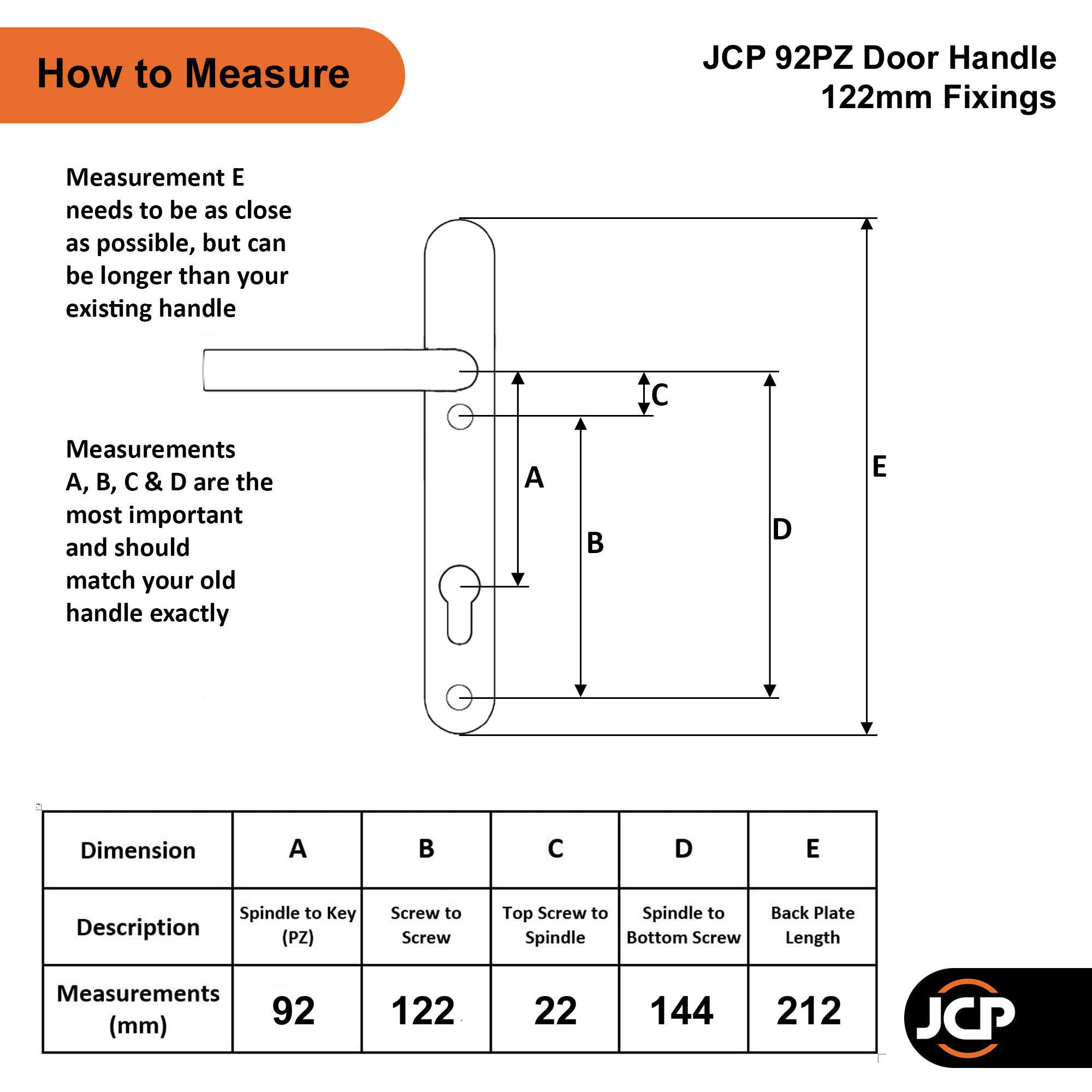

• Uses: Fits door thickness 60-72mm (the spindle and screws may need to be cut to fit some door thicknesses), with 122mm screw fixing centres and 92mm PZ centres (the distance from the centre of the handle spindle to the centre of the lock cylinder). Handles are non-handed and can be fully rotated to fit right or left-opening doors. For use on doors with a Lift Lever operation and an 8mm handle spindle.

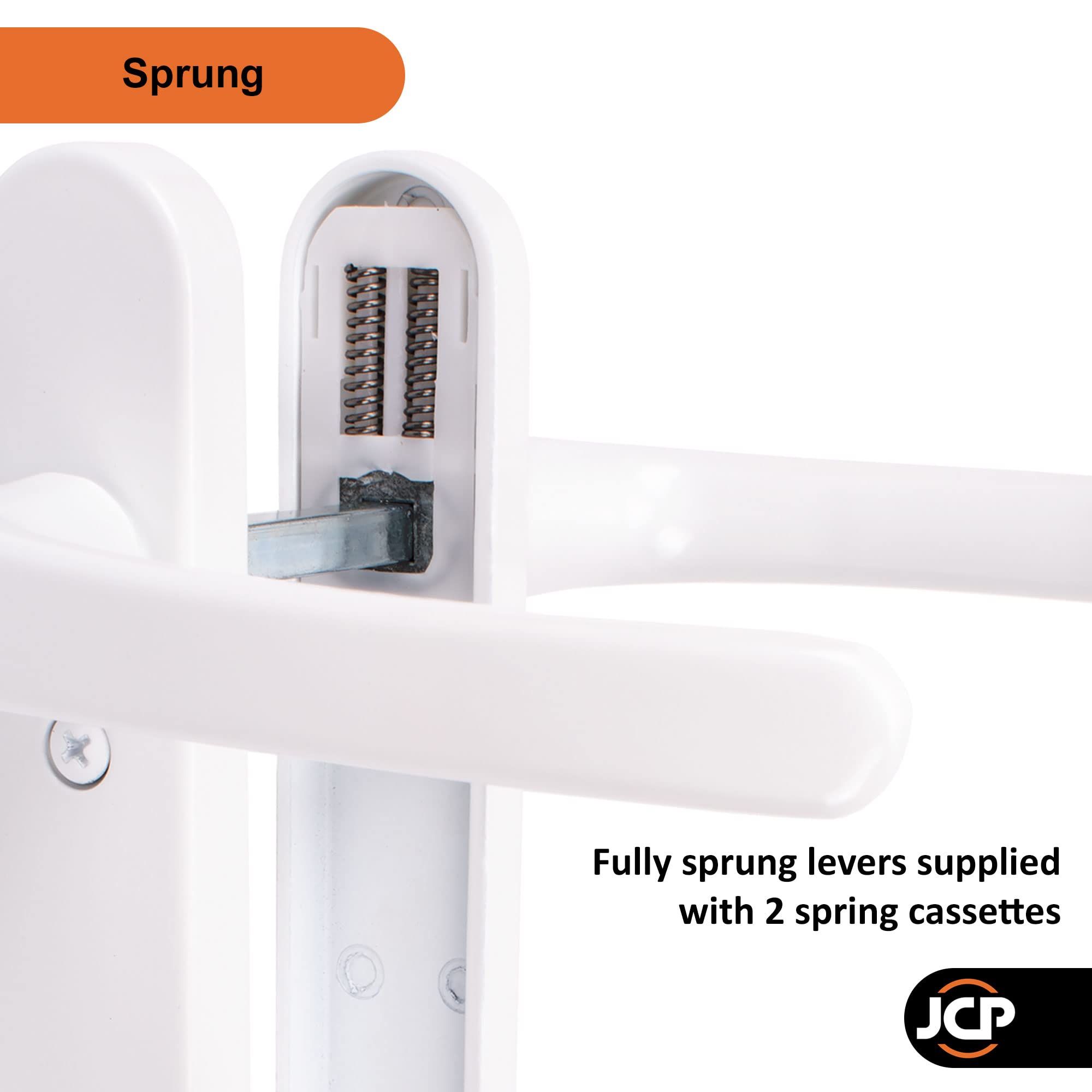

• Features: Our door handle set comes complete as an Internal / external handle set. Supplied with 1 x 8mm handle spindle (125mm in length). Supplied with 4 x screw fixings 2 x 75 mm and 2 x 85mm. Spring cassettes are provided to place over the spindle to return the handle to a 90 degree horizontal position.

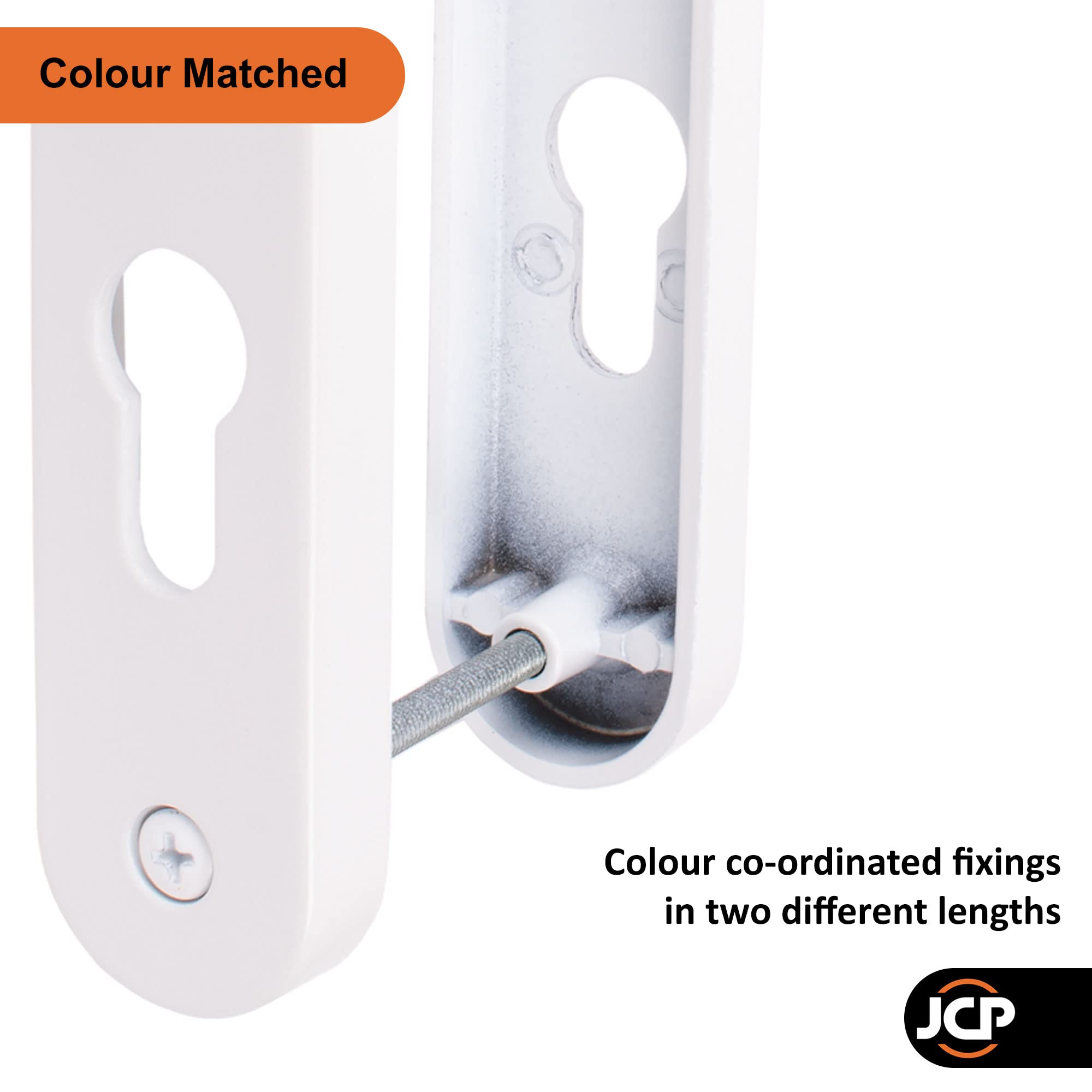

• Security: Comes complete with 2 x 75 mm and 2 x 85mm colour co-ordinated screw fixings, with reinforced bosses for extra security. The handle is screw fixed from the inside for enhanced security.
• Easy to install: Installation of our face-mounted door handle set is made by using 2 x Screw fixings provided. The screws pass through the internal handle fixing holes and screw into the threaded external handle back plate.
• Quality: Handle backplate and levers are manufactured in Zinc alloy for robustness and durability. Cycle tested to 50,000 cycles.

This contemporary white door handle design, the JCP PRO door handle features an elegant sprung handle and enhanced levers giving a comfortable easy grip. The levers are fixed to the backplate and by design, the handles are fully reversible. Spring cassettes are provided to place over the spindle to allow the levers to be sprung. Lever set on the backplate for exterior doors, to suit most 92PZ multipoint locks. Fixing lugs are supplied on both backplates for a secure fit. Supplied with return springs, spindle, colour co-ordinated fixing screws to suit door thickness from 60mm up to 72mm. Features: Fits door thickness 60 - 72mm, with 122mm screw fixing centres and 92mm PZ centres (the distance from the centre of the handle spindle to the centre of the lock cylinder). The handles are non-handed and can be fully rotated to fit right or left-opening doors. designed for use on doors with a lift - lever operation. Comes complete as an Internal / external handle set. Supplied with 1 x 8mm handle spindle (125mm in length) and 4 x screw fixings (2 x 75 mm and 2 x 85mm). Spring cassettes are provided to place over the spindle to return the handle to a 90 degree position. Installation of our face-mounted door handle set is made by using 2 x screw fixings, the screws pass through the internal handle fixing holes and screw into the threaded bosses of the external handle back plate. Handle backplate and levers are manufactured in Zinc alloy for robustness and durability. Dimensions: PZ Centres: 92mm critical dimension from centre of handle spindle to centre of barrel (the most common size) Backplate length: 212mm Backplate width: 34mm Backplate depth: 12mm Distance between screw hole centres: 122mm Spindle Size: 8mm Fits 60mm to 72mm door thickness
