Jayron Snap-in LCD Hour Meter Gauge AC/DC 5-277V Voltage,Resettable Maintenance Reminder Waterproof for Small Engines,such as Lawn Mower Generator Air Compressor Motorcycle(HM038AGH2)

• HOUR METER---- The initial data is 0, the TOT range is 0-99999H, 0.1/1H accuracy. It cannot be reset, but when the maximum value is exceeded, the timer will reset automatically.

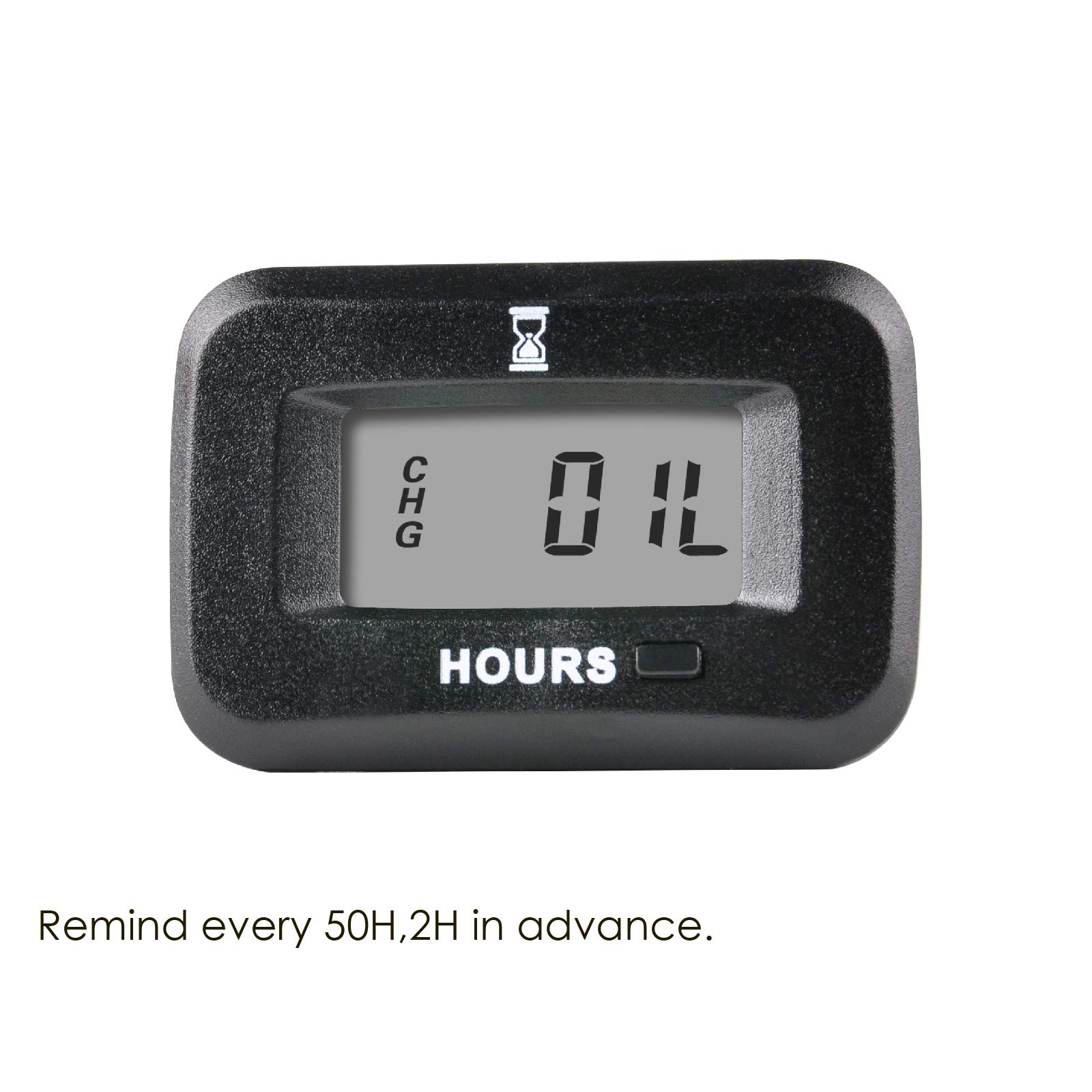

• MAINTENANCE TIMER----The default value of the countdown maintenance reminder is 50H, Start reminding 2H in advance,which can be used to change the oil, and the maintenance timer can be reset.

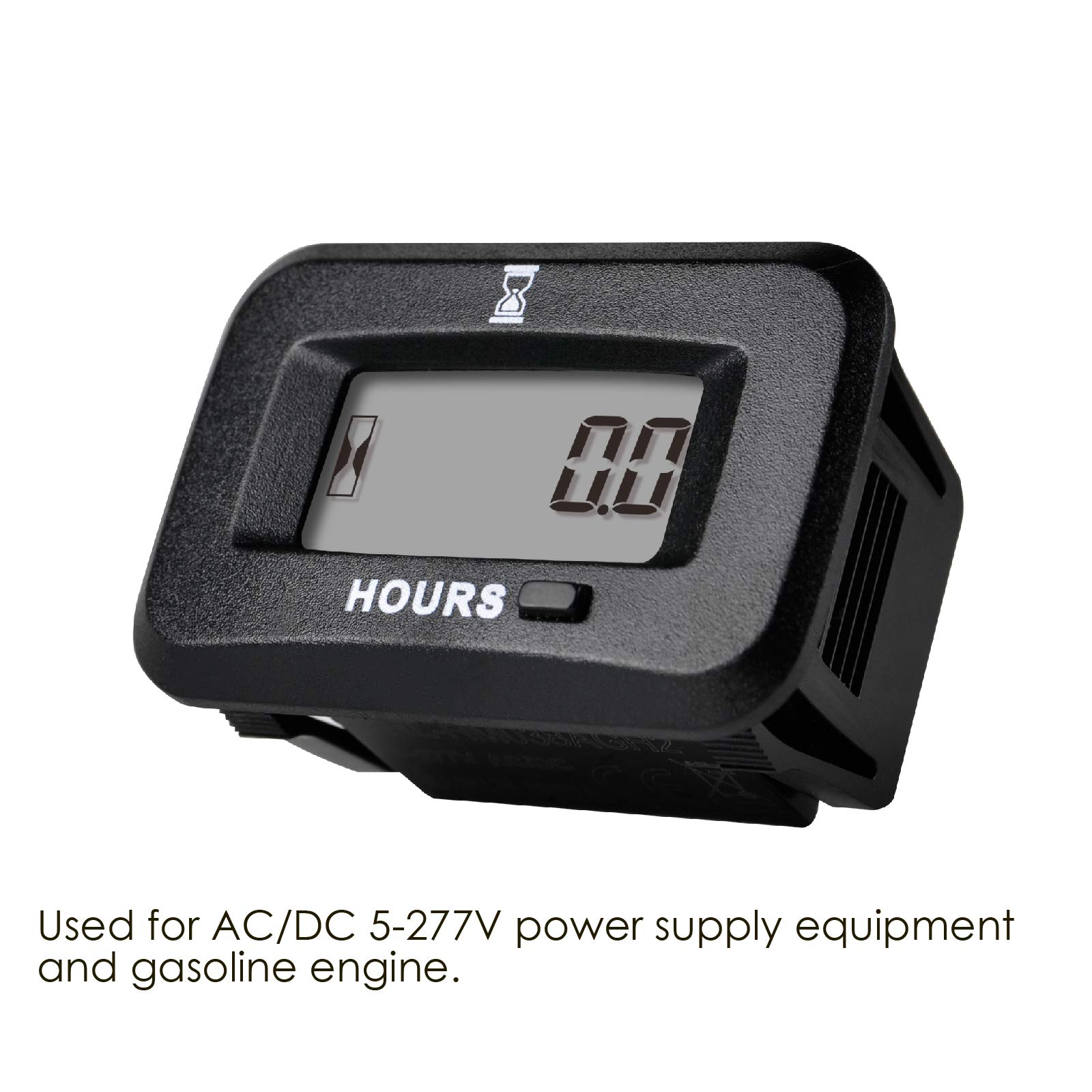

• APPLICATION ---- Suitable for most AC/DC power supply equipment and lawn mowers: 6V 12V 24V 36V 48V 72V 110V 120V 230V. Wide voltage range: AC/DC 5-277V.

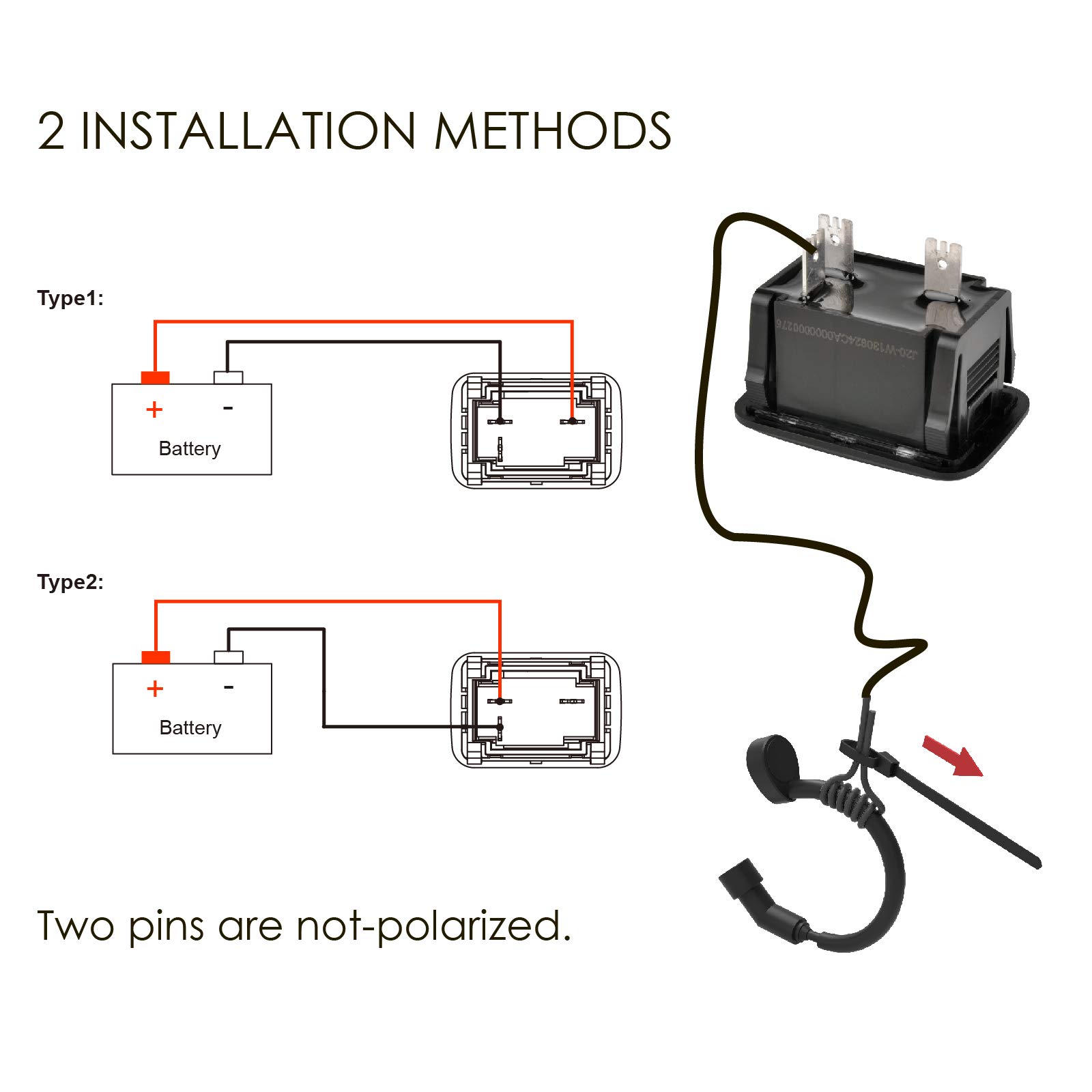

• INSTALLATION----Two signal triggering methods: voltage signal (no-polarized) and gasoline engine signal connection.

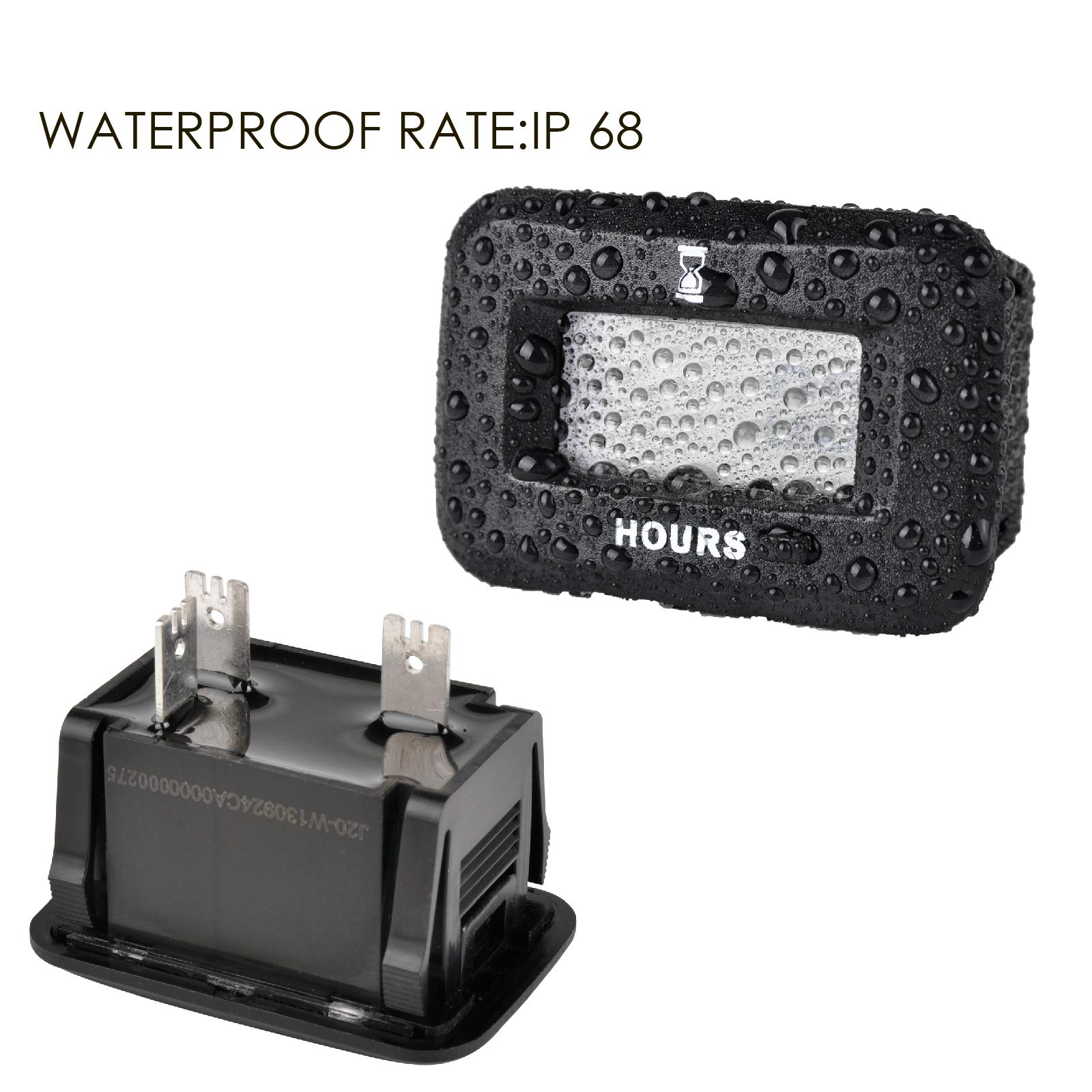

• OTHER----Waterproof rate: IP68; 2-year warranty; CE RoHS certification, including detailed user instructions.

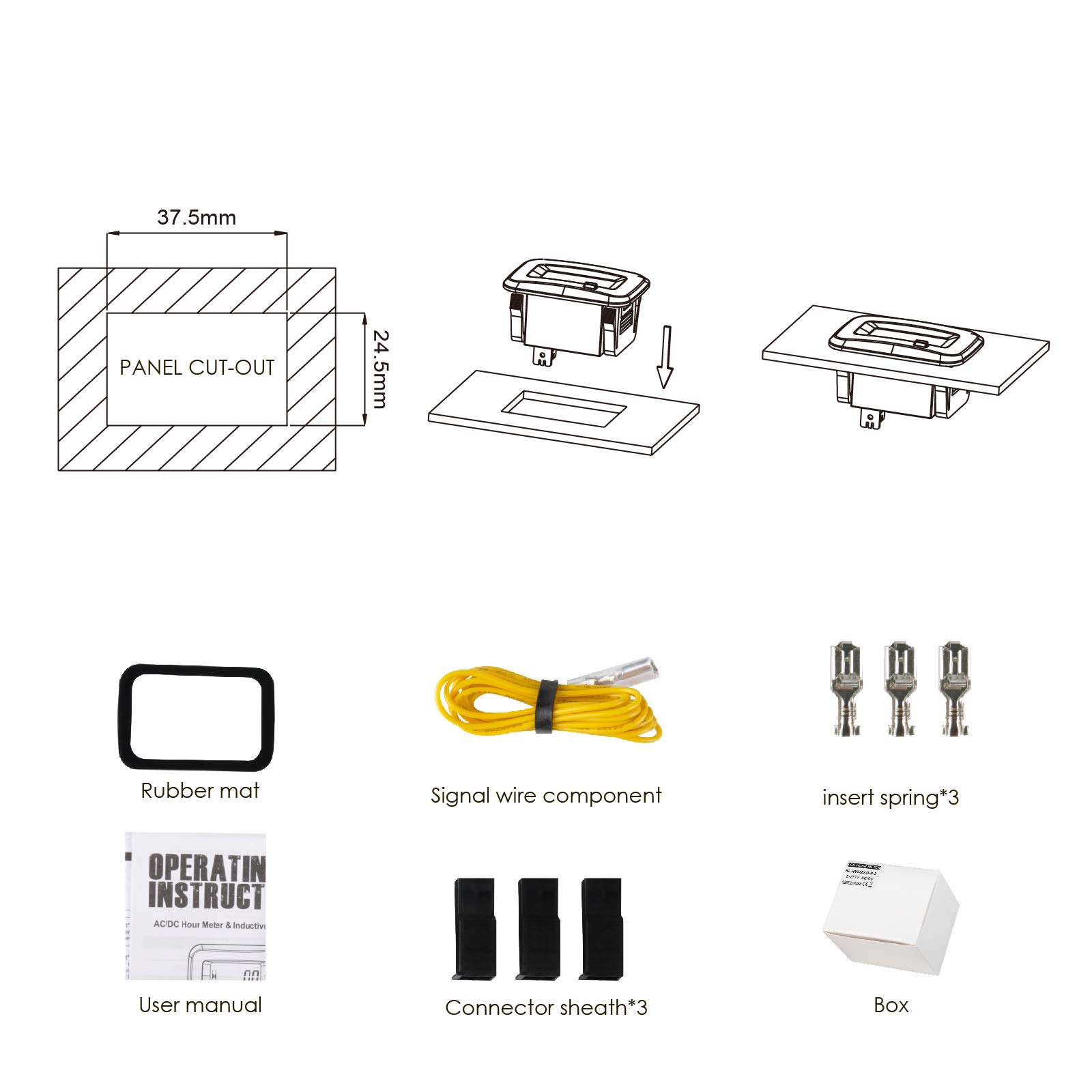

Product :HM038AGH2 Fixing method: Snap-in design Attachment :Product；User manual；Rubber mat；Signal wire component；Connector sheath*3；Connector*3；Cut-out label；Box Product Features: 1 Hour Meter ▶ The total running time of the display engine will be displayed and remain visible. ▶ Total Hours reading displays from 0 to 9999.9 Hours,0.1H accuracy;The timing exceeds 9999.9H,1H accuracy. ▶ TOT hours are non-resettable.If it exceeds the maximum speed of 99999H, it will reset automatically. ▶ Turn on the external power supply/gasoline engine, when the hourglass flashes, it means the product is installed successfully. ▶ The default value of maintenance reminder is 50H. ▶ Maintenance reminder interval(CHG OIL) can be reset. ▶ When reminding 2H in advance, CHG OIL and IN+ (remaining countdown time) flash three times, these two interfaces display 2H automatically ▶ When the maintenance time is up, CHG OIL and NOW will flash three times, and the two interfaces will display 2H automatically ▶ Record engine work times. 2 Other ▶ Built-in CR2050 battery, battery life up to 6 years, data retention up to 25 years. ▶ Product size:46*31*35mm. ▶ LCD screen size:12.5mm × 24.5mm. ▶ Panel Cutout Size:Approx 37.5×24.5mm(1.5×1 Inch). ▶ CE RoHS certification. ▶ Waterproof rate: IP68. 3 Works on Suitable for outdoor power equipment, vehicles, boats, generators, agricultural equipment, construction machinery, etc. Such as: garden lawn mower tractor riding mower blade blower high pressure cleaning electric saw snow blower brush mower line trimmer wire cutting machine high pressure cleaner portable inverter generator motorcycle Dirtbike ATV UTV scooter Paramotor Harley double Sport bike board Jetski Pontoon boat Mercury Raceboat Hovercraft etc.
