Jayron Resettable Hour Meter DC 4.5 to 90V LCD Digital Display No Battery,Used for Lawn Mower Generator ATV UTV Chainsaw Snowmobile and Most DC Powered Equipment

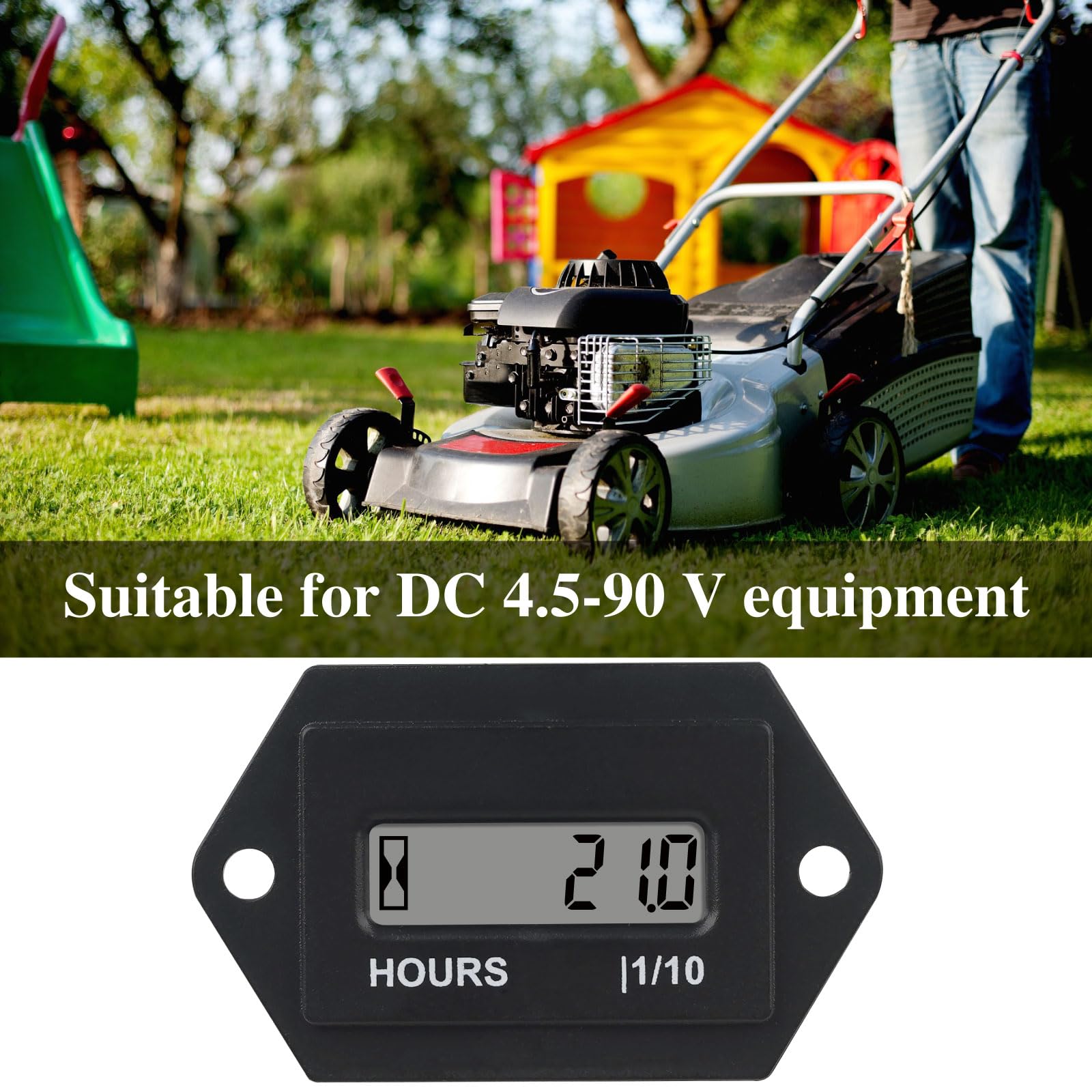

• Working Voltage ---- Suitable for DC 4.5-90 V voltage battery-powered equipment，e.g. lawn mowers, generators, air compressors.

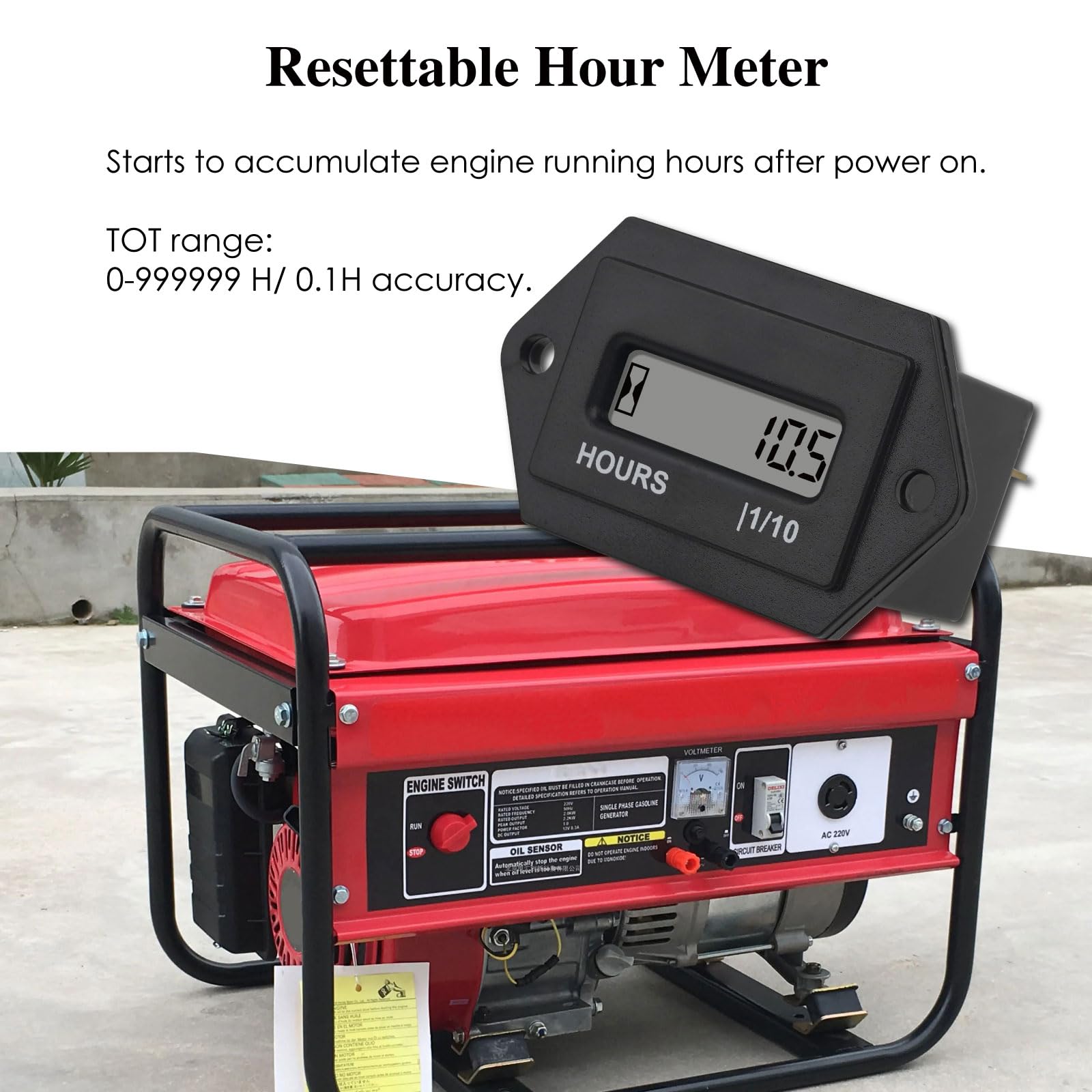

• Hour Meter ---- Accumulated total engine running hours，resettable total hours,TOT range:0-999999H, 0.1H accuracy.

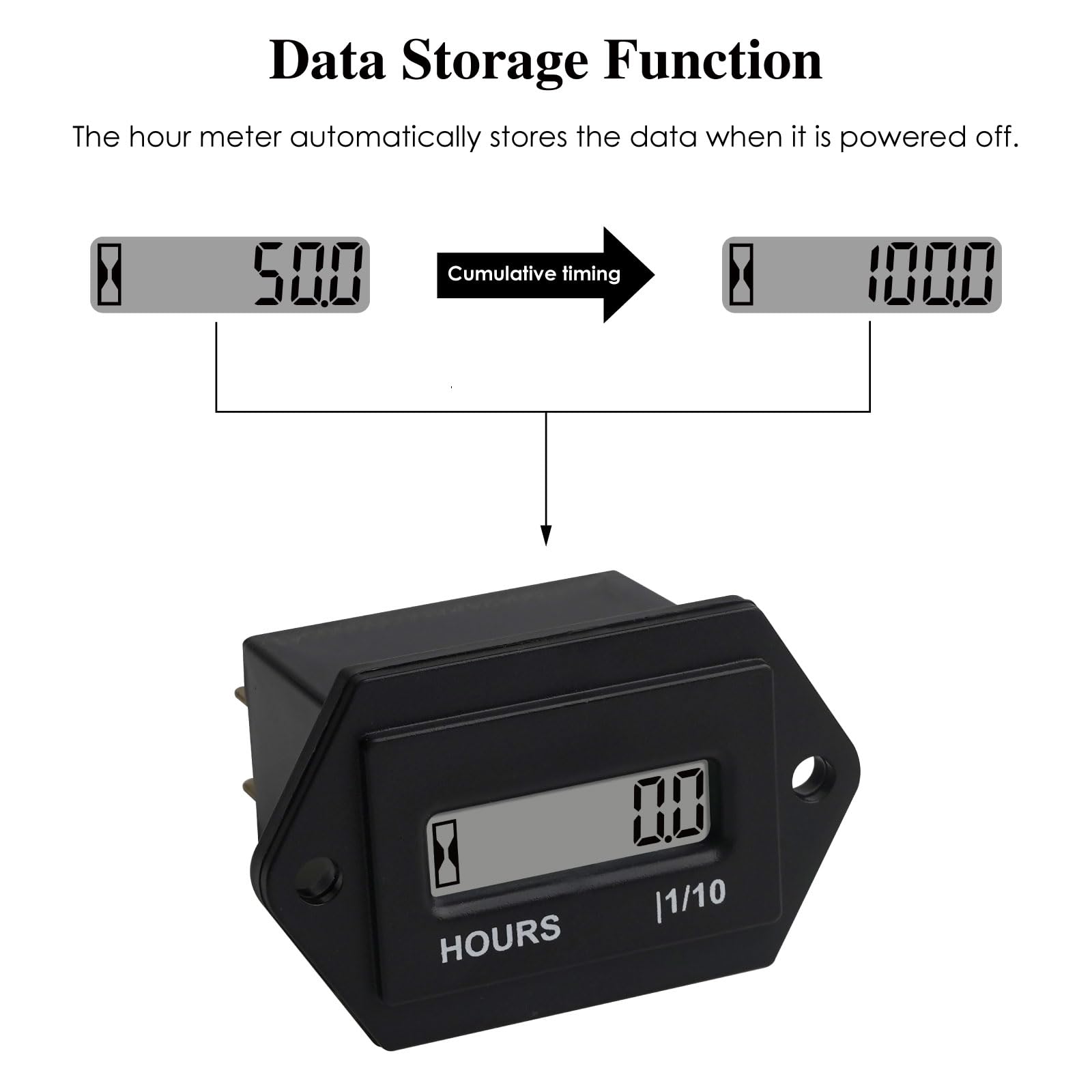

• Data Storage Function ---- No battery, automatic data storage when the external power supply is turned off, data retained up to 25+ years.

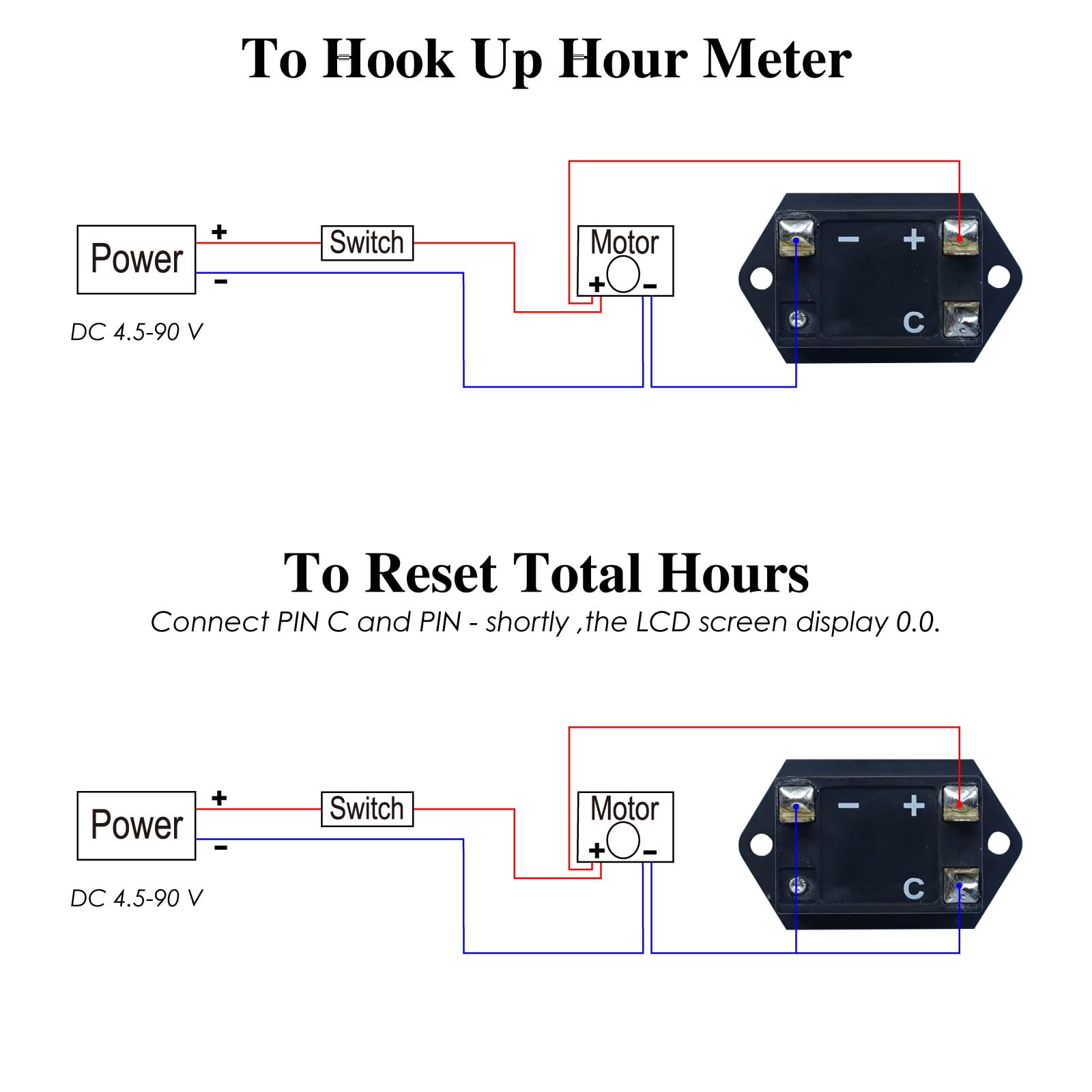

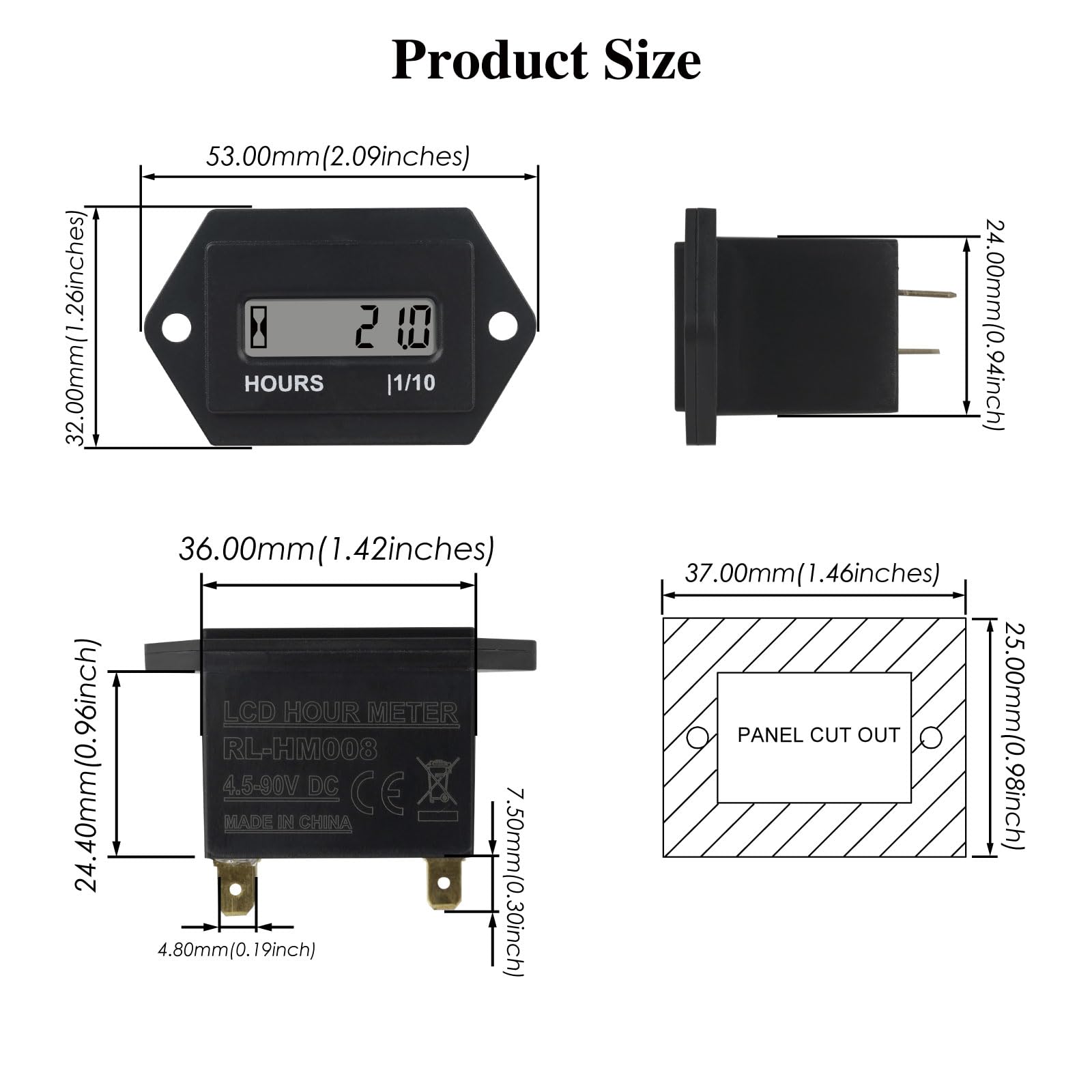

• Connection&Installation ---- Positive and negative pins, Snap-in installation, the standard panel cut-out size is 37.5x24.5mm (1.5x1 in).
• Others ---- Contains CE certification, in addition, we will provide a two-year warranty.

Product : JR-HM008 Snap-in design: Connect the key-switch to turn the meter display on or off . Attachment provided: user manual;Screw*2;Screw nut *2;insert spring*3;insert spring sheath*3 Product Features supplement: 1. The hourglass icon flashes to indicate that the timer is working 2. If the maximum value is exceeded, it will be automatically cleared and enter the next cycle 3. The “C” pin can be connected to reset the total hours 4. There is no button design, eliminating the annoying gear and motor noise 5. 6-digit, 7 segment LCD display，Easy to read Specifications 1.Operation Voltage : DC 4.5-90V 50*60HZ 2. Storage and operating：-40℃ to +85℃ Temperature 3. Humidity : 95%RH+32C for 2 Hours 4. Digit Height : 7mm 5. Weight : 35g 6. Pins:"+" ; "-" ; "C" 7. Patent, CE ROHS certification Applications This product can be used for Lawn Mower Garden Tractor,Inverter generators,ATV,UTV,Airboat, Golf cart Club car Leaf Blower,Pressure washer,chainsaw,Snowblower,Motorcycle,Dirtbike,Outboard Jetski, Pontoon boat,Hovercraft and etc.
