Jayron Lead Acid Battery Indicator Meter Gauge/Waterproof Battery Capacity Meter,Universal LCD Digital Bat Discharge Alert,Use for Golf Cart,Fork Lifts,Star Car,Club Car,etc(12/24V)

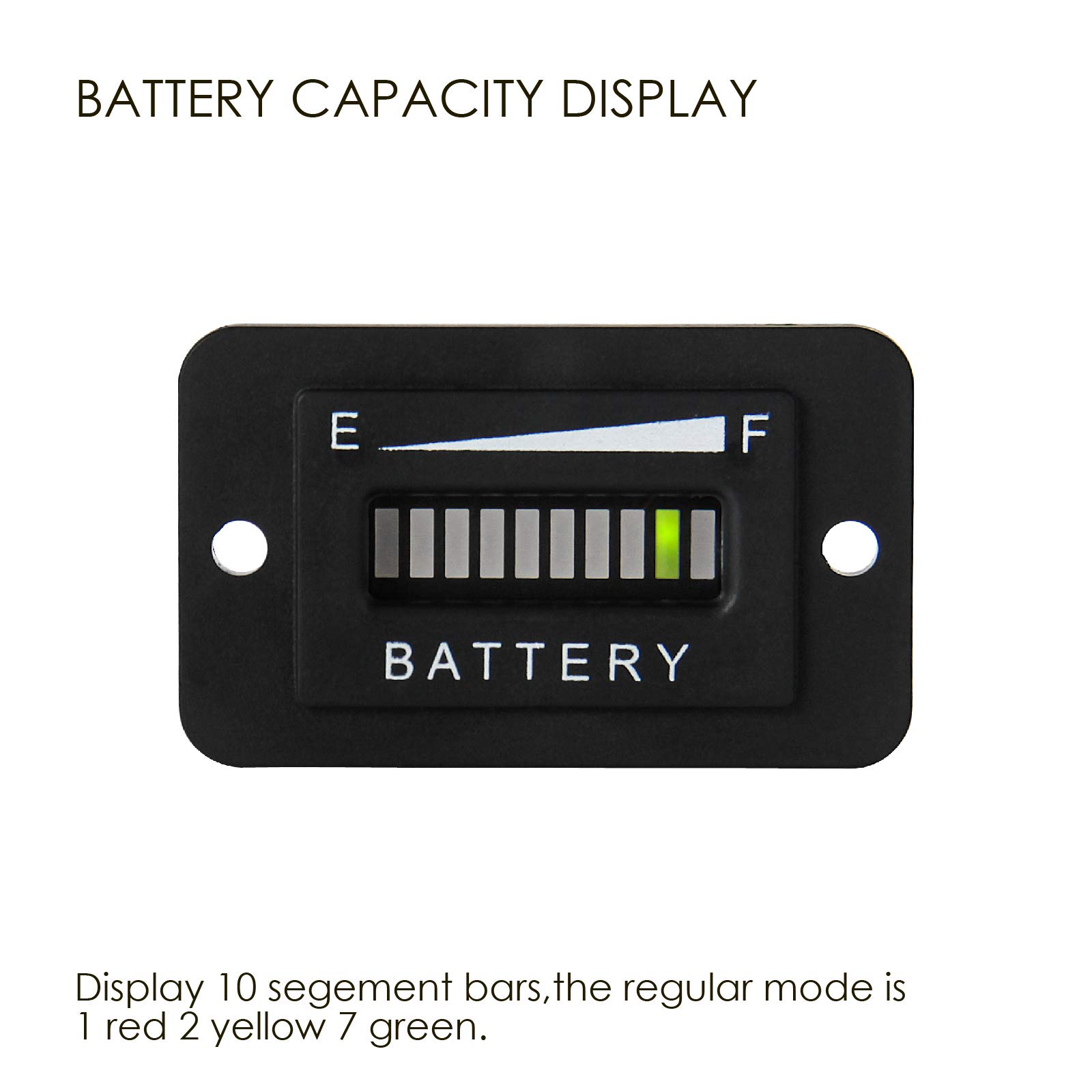

• BATTERY STATUS INDICATOR----The battery indicator is used to measure the remaining power of the vehicle or other equipment. The capacity displays three different meanings of colors (red, yellow, green). The multi-color 10-column LED chart displays the power status. The resolution: 10% per LED segment.
• BATTERY STATUS INDICATOR----The battery indicator is used to measure the remaining power of the vehicle or other equipment. The capacity displays three different meanings of colors (red, yellow, green). The multi-color 10-column LED chart displays the power status. The resolution: 10% per LED segment.

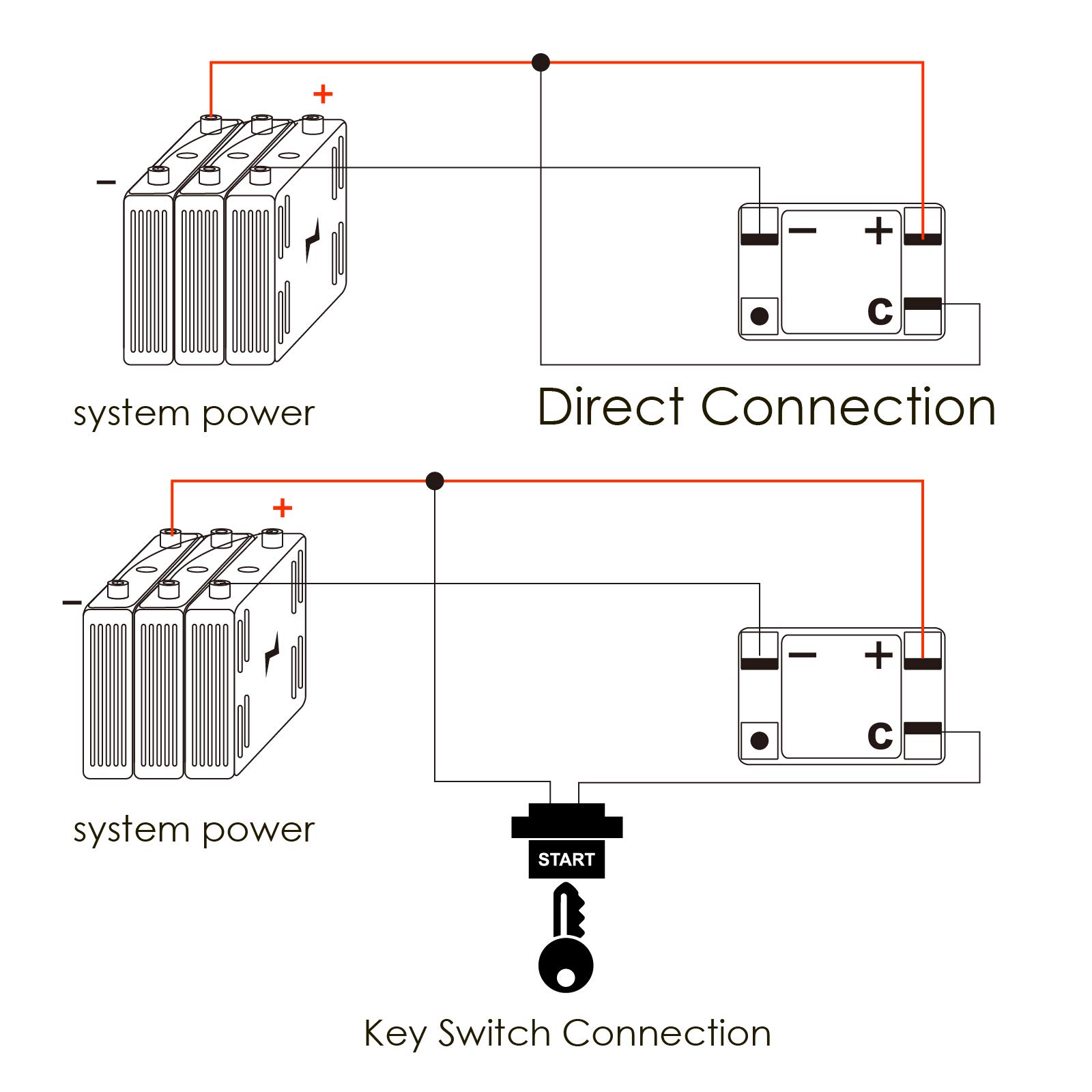

• 2 EASY INSTALLATION METHODS ----The battery capacity meter has 2 kinds connection methods(key switch,no key switch),The gauge led bar will scan from 'E'to'F' when the power supply is connected successfully,and then will stay in the right bar.
• MEMORY & PROTECTION ---- The memory option can recall the last power; Overcharge protection; Automatic identification of the battery is not properly charged

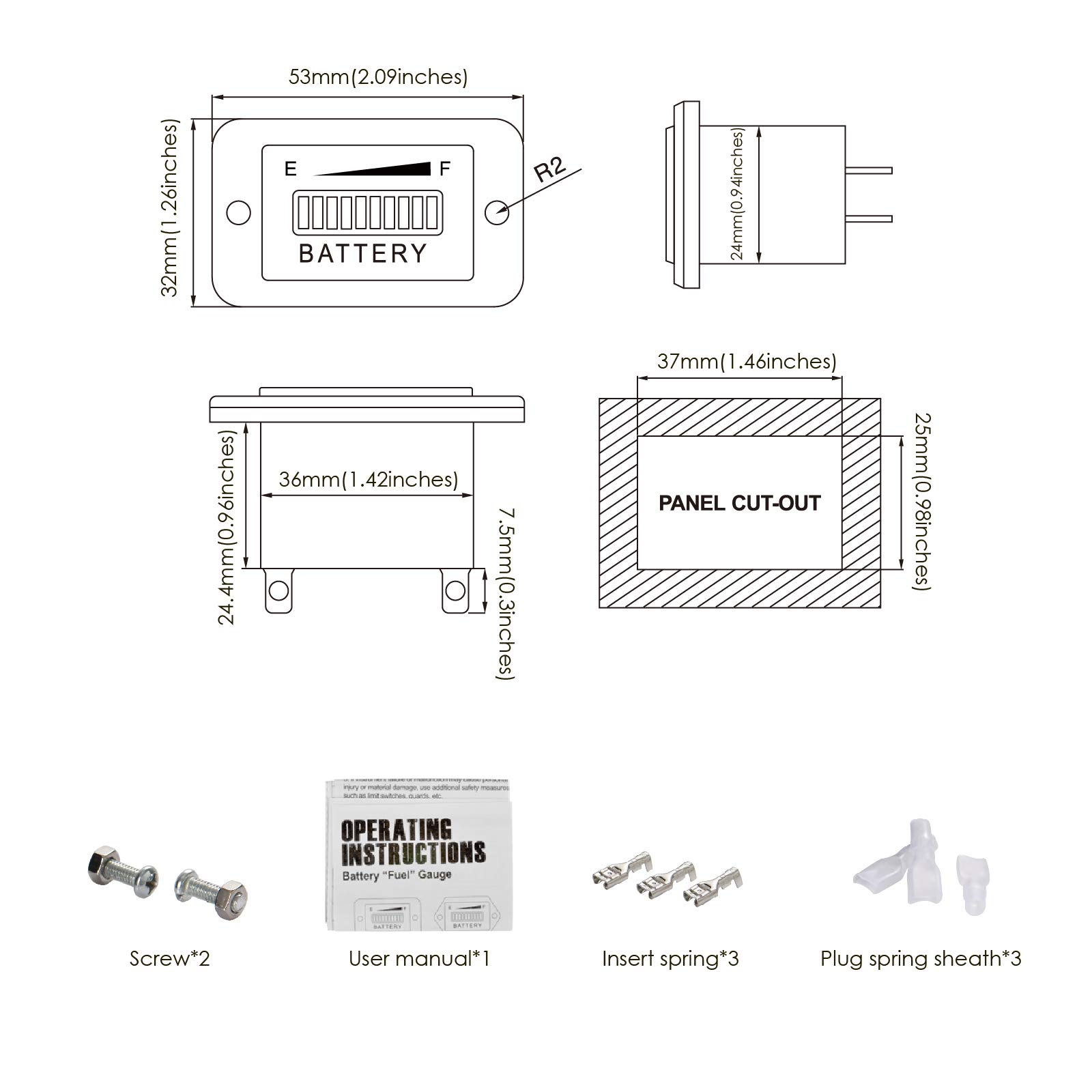

• OTHERS ---- Surface waterproof rate: IP65; Contains detailed installation instructions ; Patent, CE ROHS certification;2-year warranty

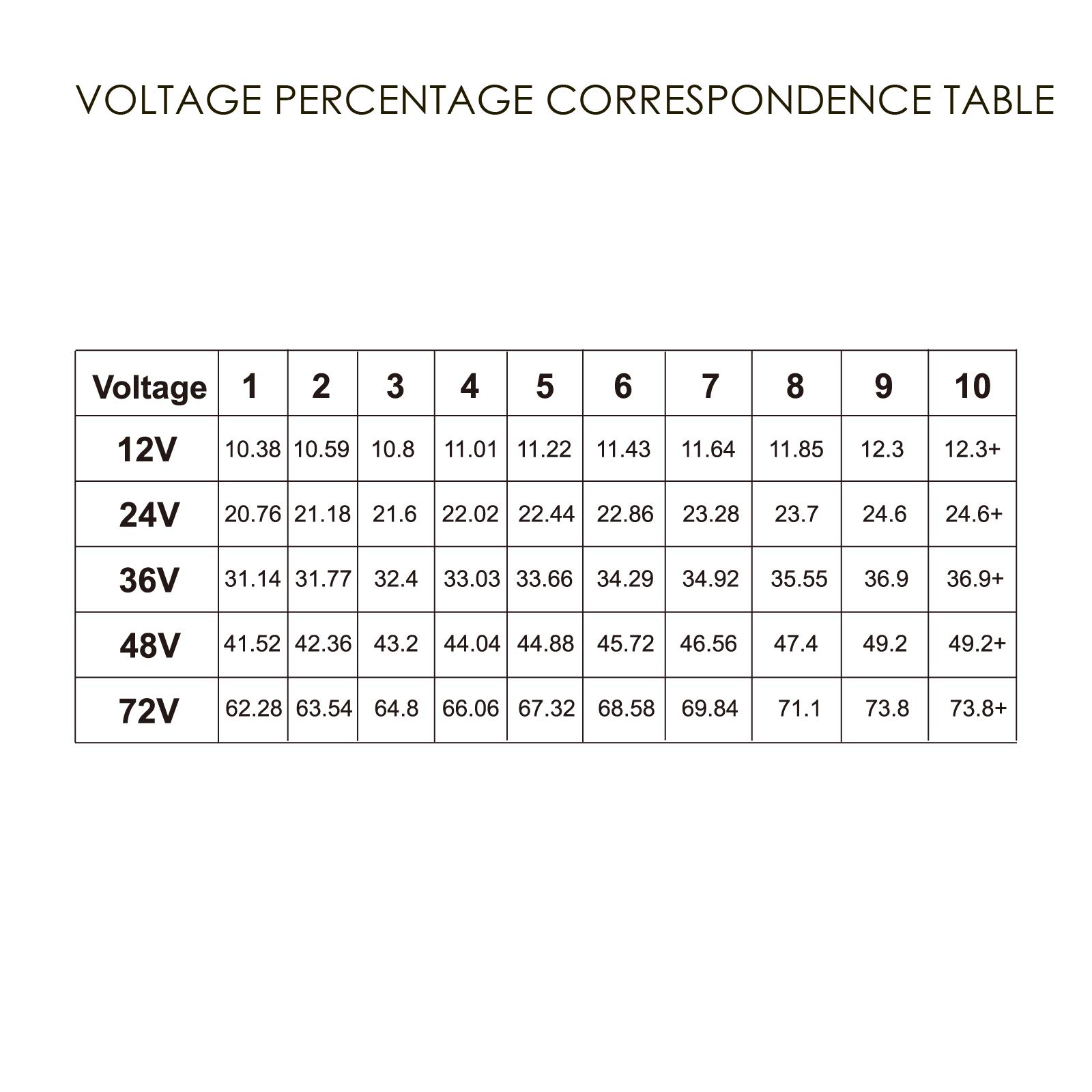

Jayron JR-BI003 battery discharge meter can be used to detect lead-acid batteries,it is suitable for voltage 12/24V, 36V, 48V.Three color indicator lights:1 red,2 yellow,7 green.Waterproof design.The electricity meter can be used for DC powered devices, such as fork lifts,golf carts,floor care and etc. Product Features: 1 Battery status indicator ▶Multi-color 10-bar LED displays the charging status,and each bar displays 10% ▶After the power is connected correctly,the LED bar will scan from "E" to "F" and finally stay at the actual voltage level ▶The third yellow LED on the left lights up to warn that the battery voltage has been discharged to 70% of its capacity ▶The first red LED on the left lights up,warning that the battery voltage has been discharged to 90% of its capacity.When the battery is discharged to 90%,the red and yellow LEDs flash alternately,indicating that the remaining voltage capacity is very low ▶When charging the battery,the LED will quickly and repeatedly scan from "E" to "F".After the battery is fully charged,only the 10th LED will light up ▶The battery indicator has a delay time to avoid incorrect display of the battery level;once the battery is fully charged,the meter will cycle for 6 minutes continuously and then remain in the "F" position 2 Battery indicator Installation----Connect the C pin to turn off the pin display ▶The battery fuel gauge has three pins:+/-/C ▶The battery fuel gauge has two kinds of connection methods (key switch,no key switch),refer to the manual 3 Battery indicator works on ▶Suitable for standard lead-acid batteries;according to your battery voltage to select the appropriate specifications please ▶12V discharge range: from 10.3V to 12.3V ▶24V discharge range: from 20.7V to 24.6V ▶36V discharge range: from 31.1V to 36.9V ▶48V Bdischarge range: from 41.5V to 49.2V
