Jayron Backlight LCD Tachometer Engine Oil Water Thermometer Gauge Digital Display Replaceable Battery for Motorcycle ATV Boat Marine Compressor Cleaners

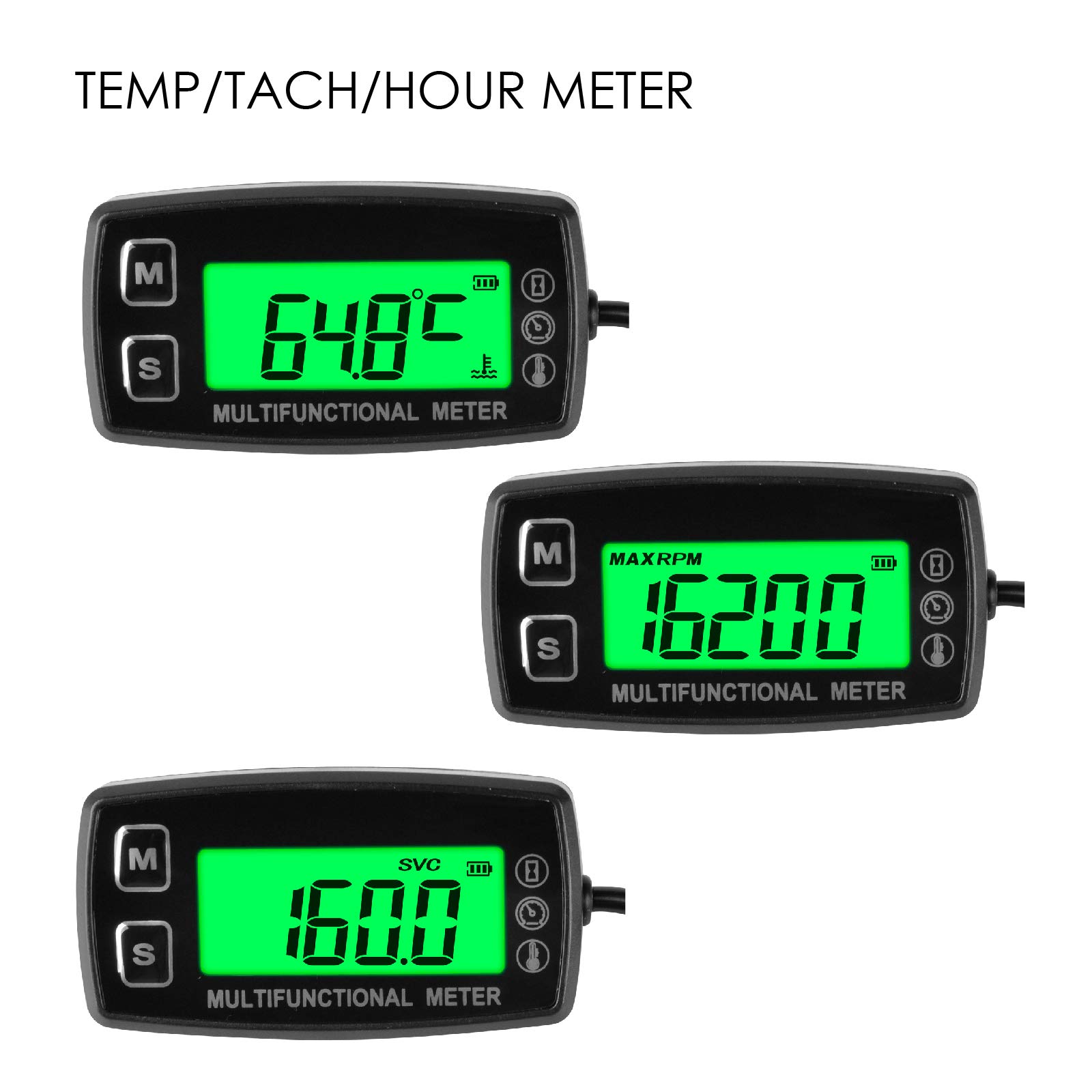

• HOUR METER----This new hour meter includes TOT,Resettable partial timer and Countdown maintenance reminder---This new hour meter includes TOT,Resettable partial timer and Countdown maintenance reminder
• TACHOMETER----Record the correct engine speed in real time, resettable RPM and overspeed alert settings, and provide 9 selectable spark plug patterns for different gasoline engines
• THERMOMETER----You Can choose the temperature unit of ℃/℉ according to the usage habits and set the over temp alert value to detect engine temp

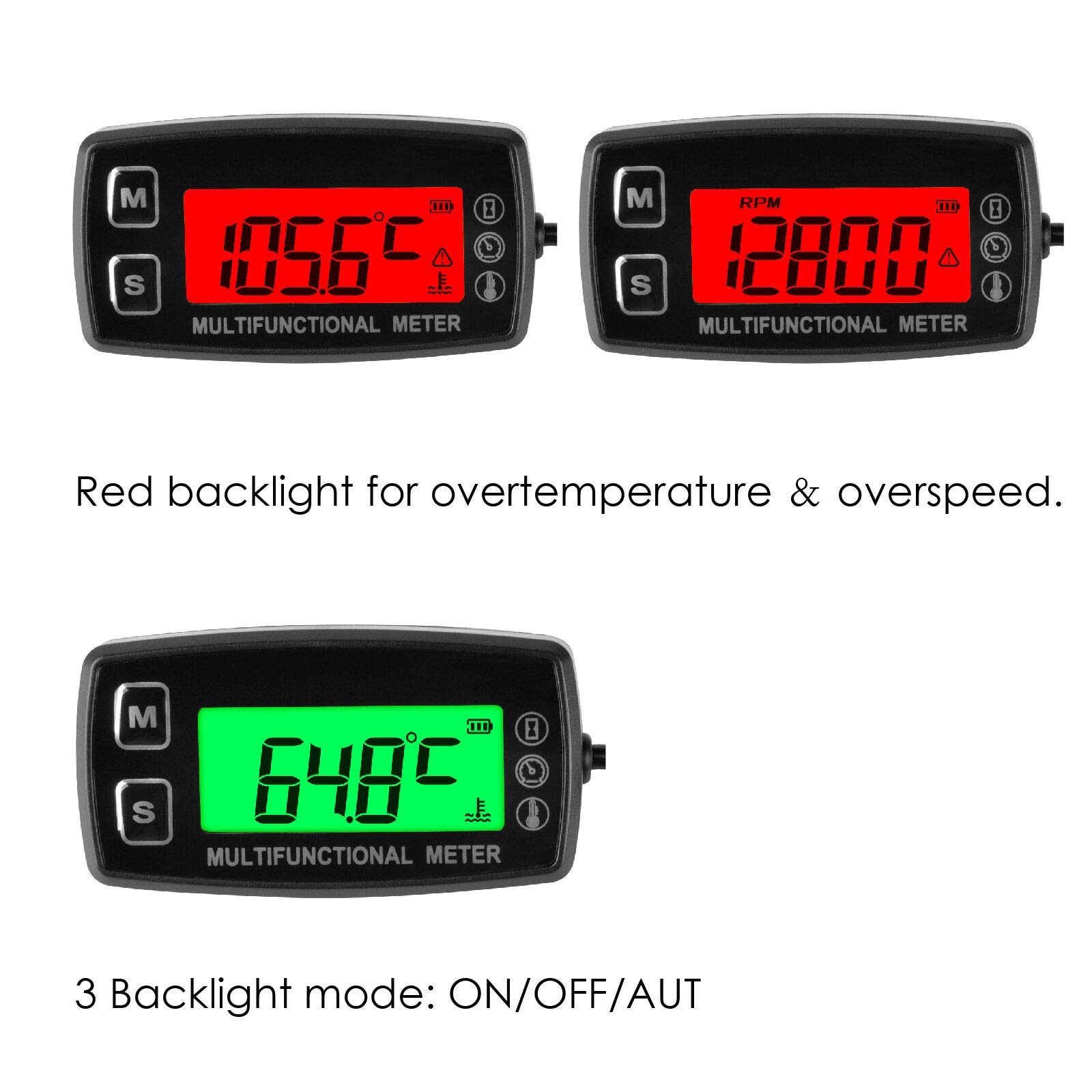

• BACKLIGHT----3 selectable backlight modes: ON/OFF/AUT, in addition, red backlight warning overspeed/over temperature

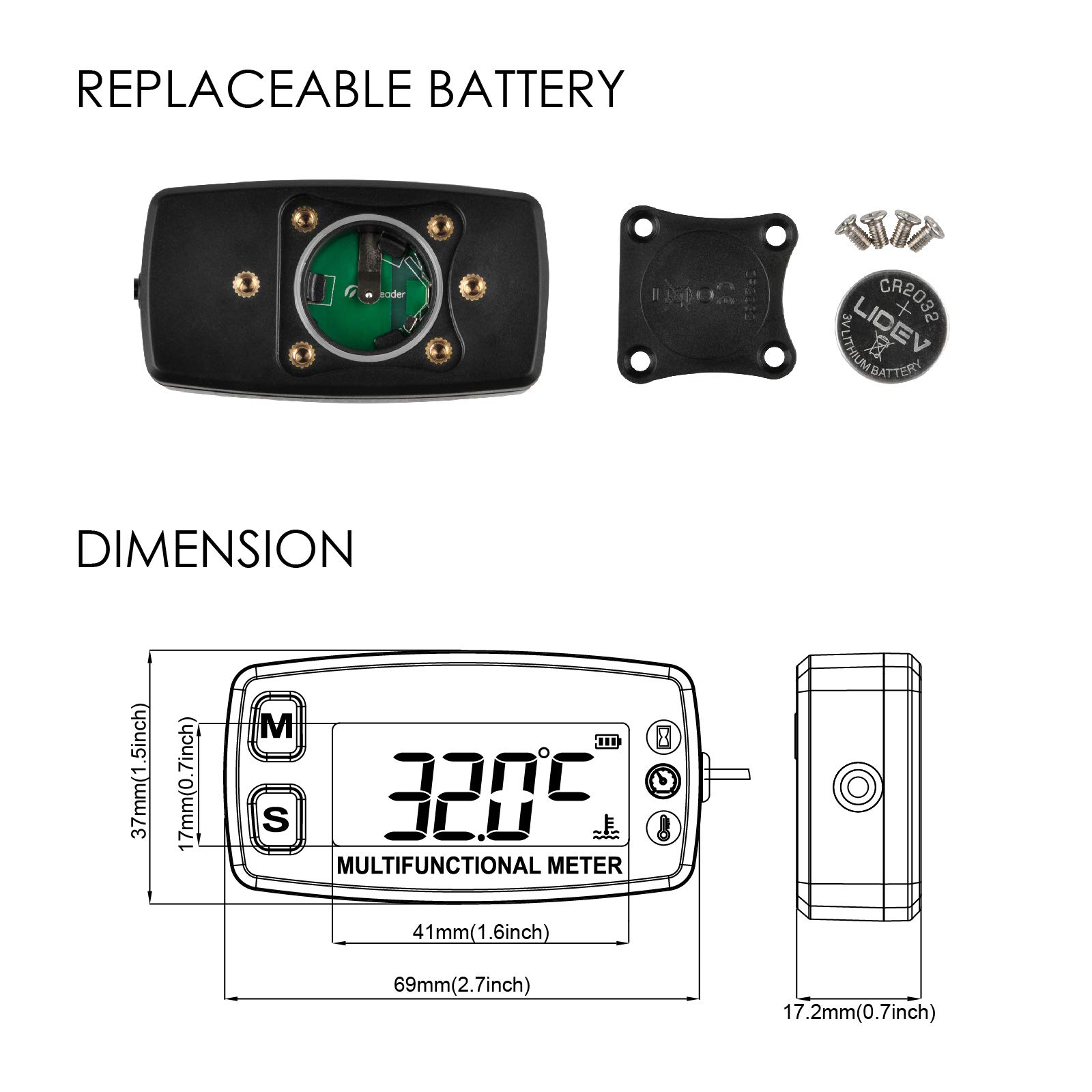

• OTHER----User shutdown; replaceable battery; epoxy resin process: prevent impact and wear, heat resistant, waterproof IP67; Accessories;provide Buyer support, two-year warranty

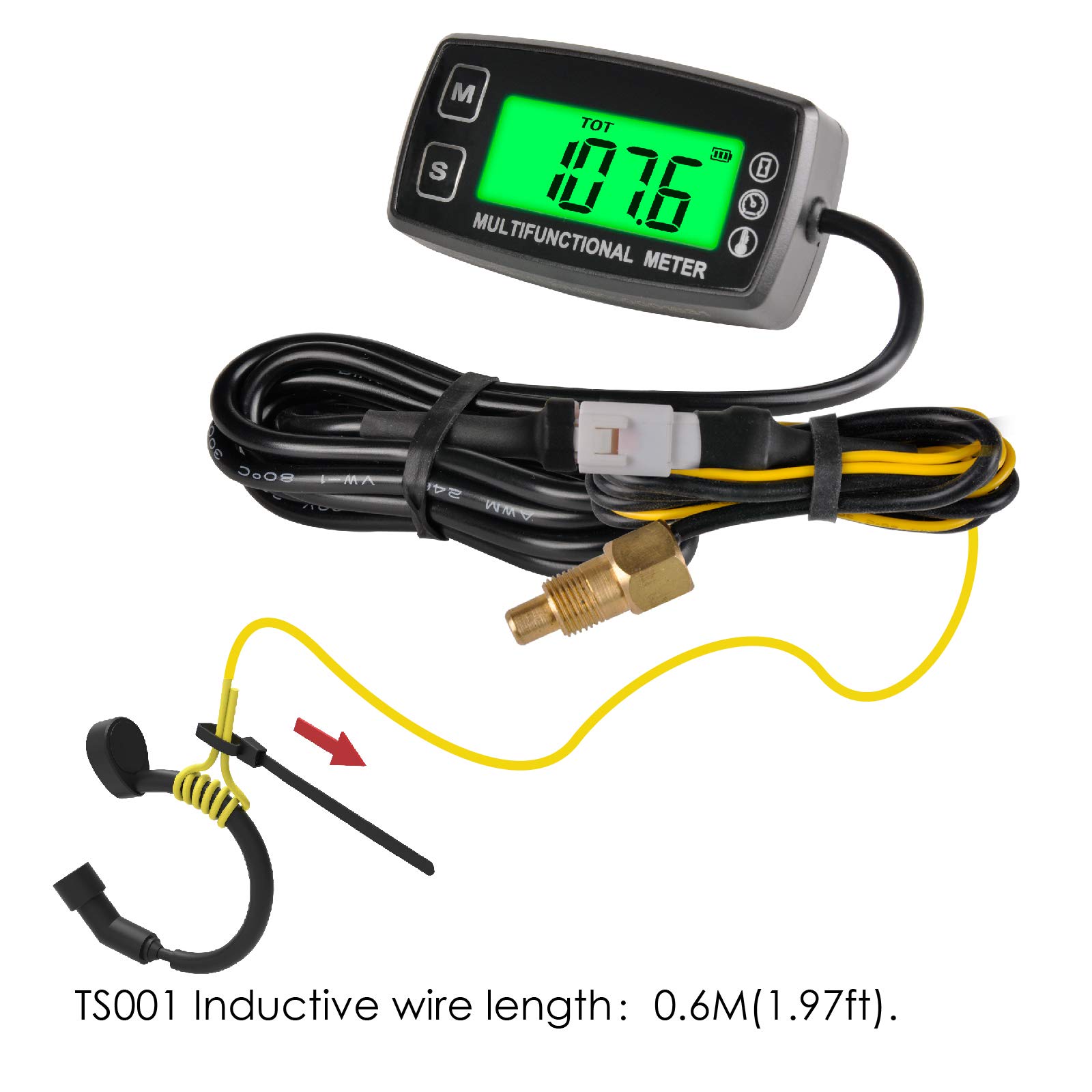

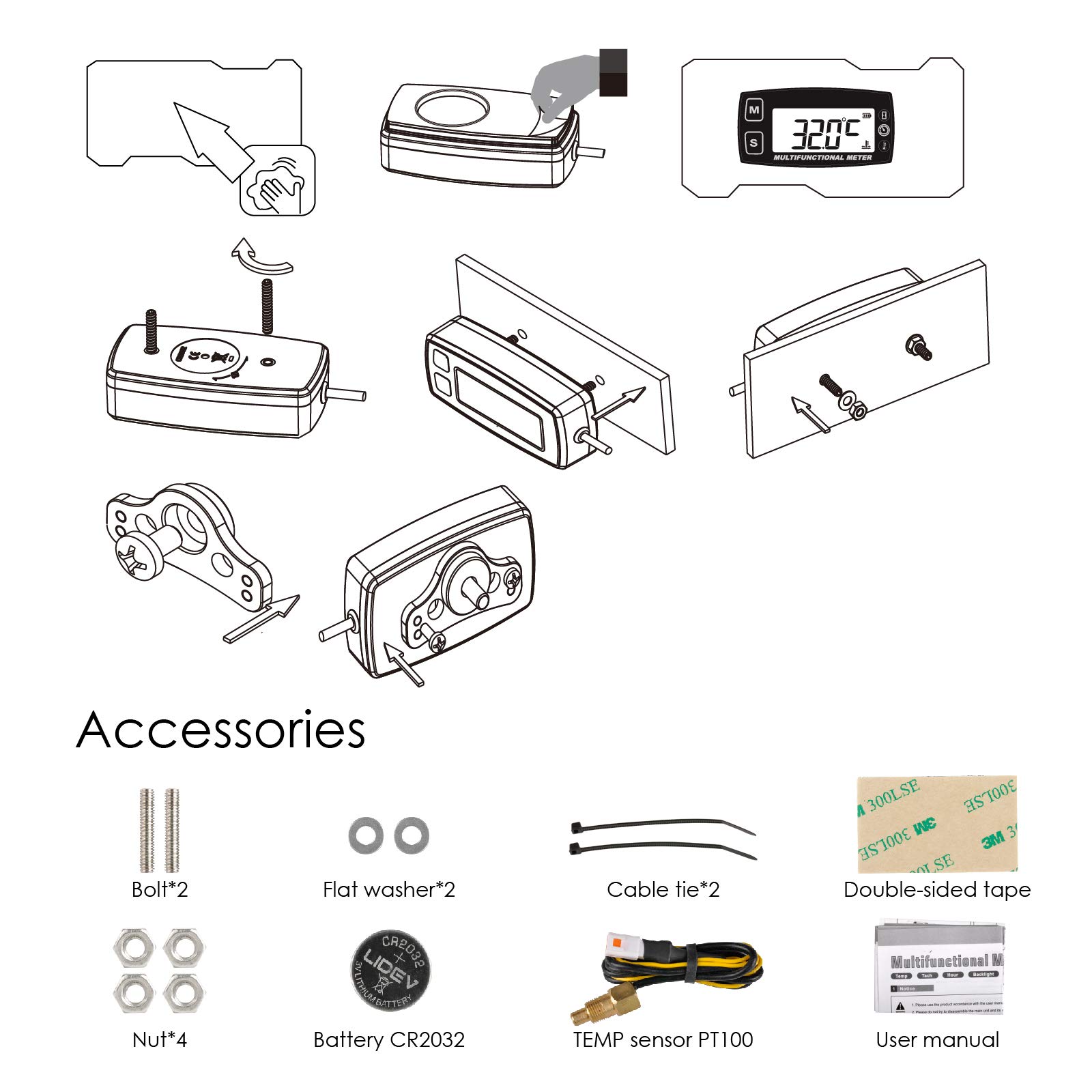

Product :JR-HM035T TS001 Sensor type: TS001 (temp range: -20-300℃), used to detect engine current oil temperature and water tank water through induction Attachment :Cable tie*2;TEMP sensor PT100;Double-sided tape;Bolt*2;Nut*4;Flat washer*2;Battery CR2032*1;User manual;Box Hour Meter function : ▶Total Hours reading displays from 0 to 99,999 Hours, 0.1/1 hours accuracy. ▶When the engine or the timer is turned off,the data retained automatically and will not be clear ▶Partial Timer(JOB) range is the same as the TOT, and can be reset ▶Countdown maintenance reminder interval range: 0-200, default value: 20 Tachometer function: ▶RPM range:1000-25000,10RPM accuracy ▶The overspeed setting range is consistent with the RPM, the default value is 8500 ▶3 programmable firing patterns:1P1R;1P2R;2P1R;3P1R;3P2R;4P1R;5P2R;6P1R;8P1R ▶Maximum RPM can be reset Thermometer function : ▶Temperature range: -20 to -+300 ℃(-4 to -+572 ℉),The default unit ℃ ▶When the warning temperature is exceeded, the backlight flashes red and the warning sign flashes ▶Max temperature value is viewable and resettable Other : ▶Built-in CR2032 210mAh battery, replaceable ▶3 product fixing methods: double-sided stickers / screws / aluminum frame bracket（not include） ▶3 Backlight mode: ON/OFF/AUT ▶Waterproof rate: IP67 ▶User shutdown;LCD screen size 41x17 mm(1.6x0.7inch) ▶ Wire length:1.75m (5.74ft) ▶Backlight color: red/green ▶CE,RoHS certification Works on : ▶ 2 Stroke 1 cylinder/2 stroke 2 cylinder/2 stroke 3 cylinder/4 stroke 1 cylinder/ 4 stroke 2 cylinder/4 stroke 3 cylinder/4 stroke 4 cylinder/4 stroke 5 cylinder/4 stroke 6 cylinder/4 stroke 8 cylinder/4 stroke 12 cylinder/4 stroke 16 cylinder Gas Engines.
