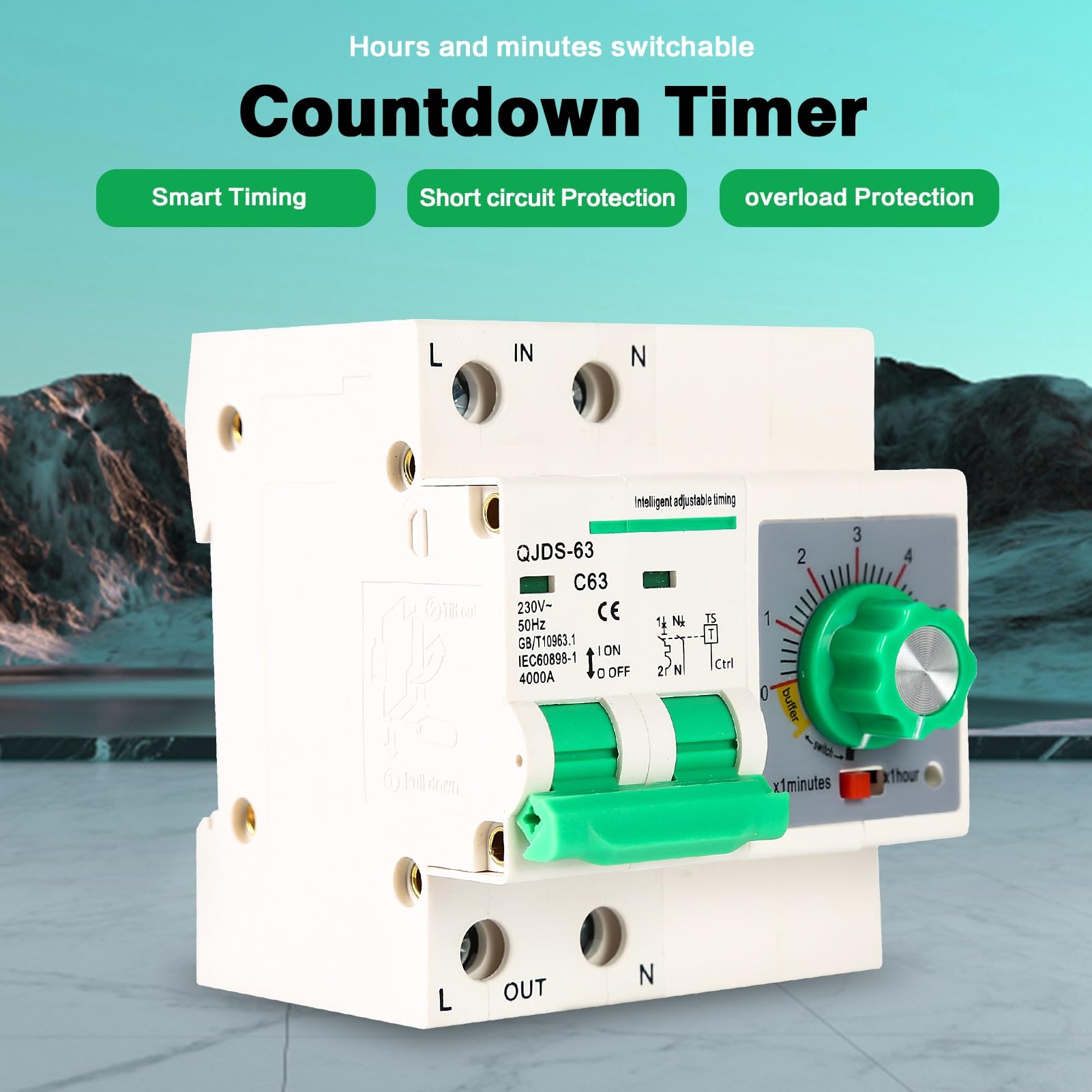

Jadeshay Intelligent Countdown Timer Switch, 2P AC230V 63A Time Relay, Black

• 【Main Purpose】The intelligent countdown timer switch can provide safety protection, time control and other functions, help users realize intelligent management and control of circuits, and improve electrical safety, energy saving effect and convenience of electricity consumption.
• 【High Precision】This circuit breaker panel is carefully designed to prevent electrical overload and short circuit. Timed circuit breaker with fast response, high breaking capacity, high accuracy and fast triggering.
• 【Easy To Set】The time delay switch adopts knob timing, one-button timing of the mechanical knob, two ranges of x1 minute and x1 hour are optional, and the time range can be set from 0 to 60 minutes and from 0 to 6 hours. (minimum scale value 2 minutes).
• 【Wide Application】Suitable for most 2-way circuits, the timer switch can be widely used in household appliances, farm irrigation, water pumps, pumps, fans, blowers and other scenarios.
• 【Memory Function】After the timing is completed, the power is automatically cut off, and when it is turned on again, it will automatically run according to the time set last time, without having to set it again. 35mm guide rail installation, suitable for installation in distribution boxes.

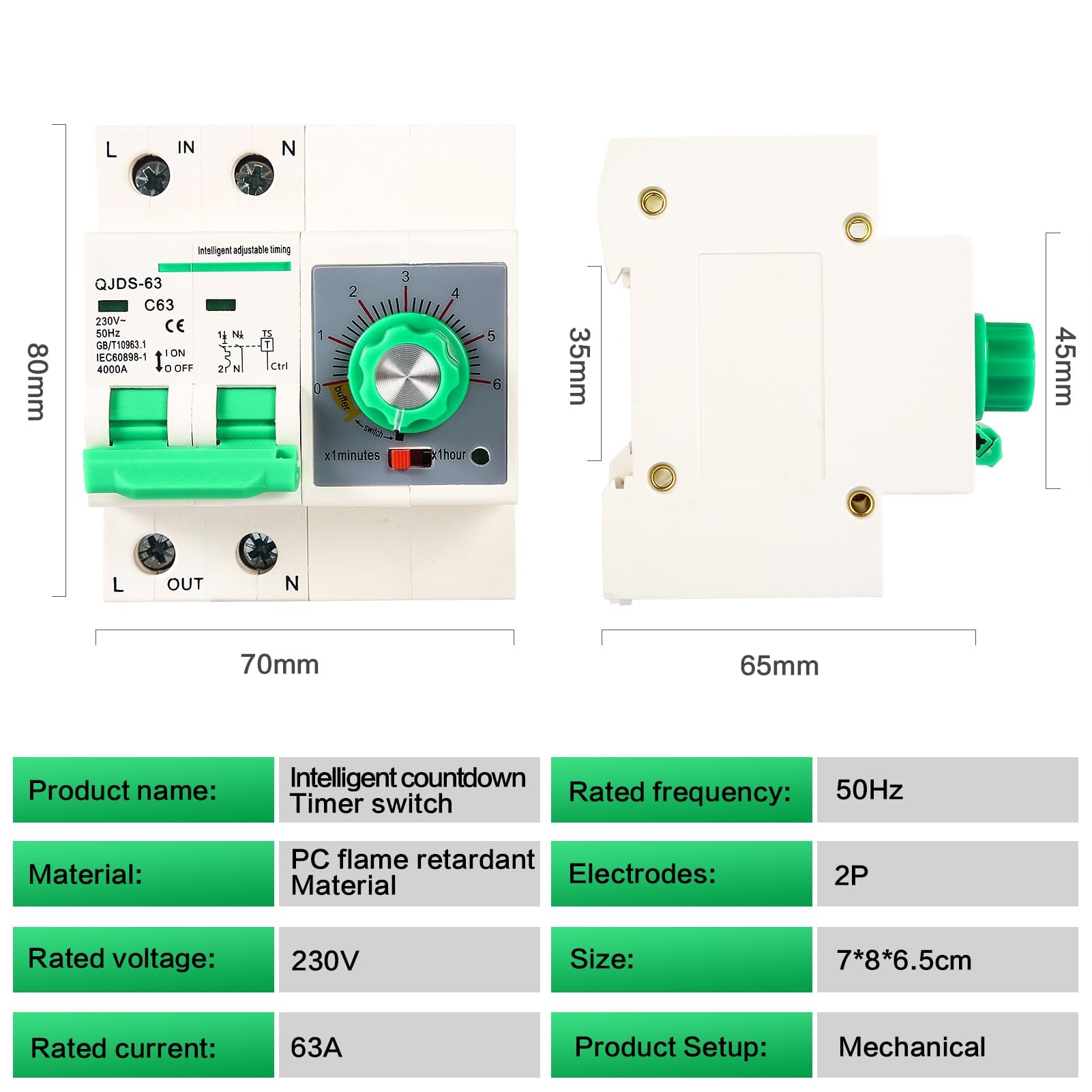

Specifications: Product name: Intelligent countdown timer switch Material: PC flame retardant material Rated voltage: 230V Rated current: 63A Rated frequency: 50Hz Time range: 0 to 60 minutes and 0 to 6 hours. (minimum scale value 2 minutes) Size: 7*8*6.5cm Product settings: Mechanical style 1. Dial to select the time range 2. Turn the knob to set the time 3. Closing starts countdown Notes: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Please allow 1-3cm measuring deviation due to manual measurement. Thank you for your understanding! Packing List: 1*Intelligent countdown timer switch 1*7cm DIN rail 35mm 2*Screws 1*Instruction manual
