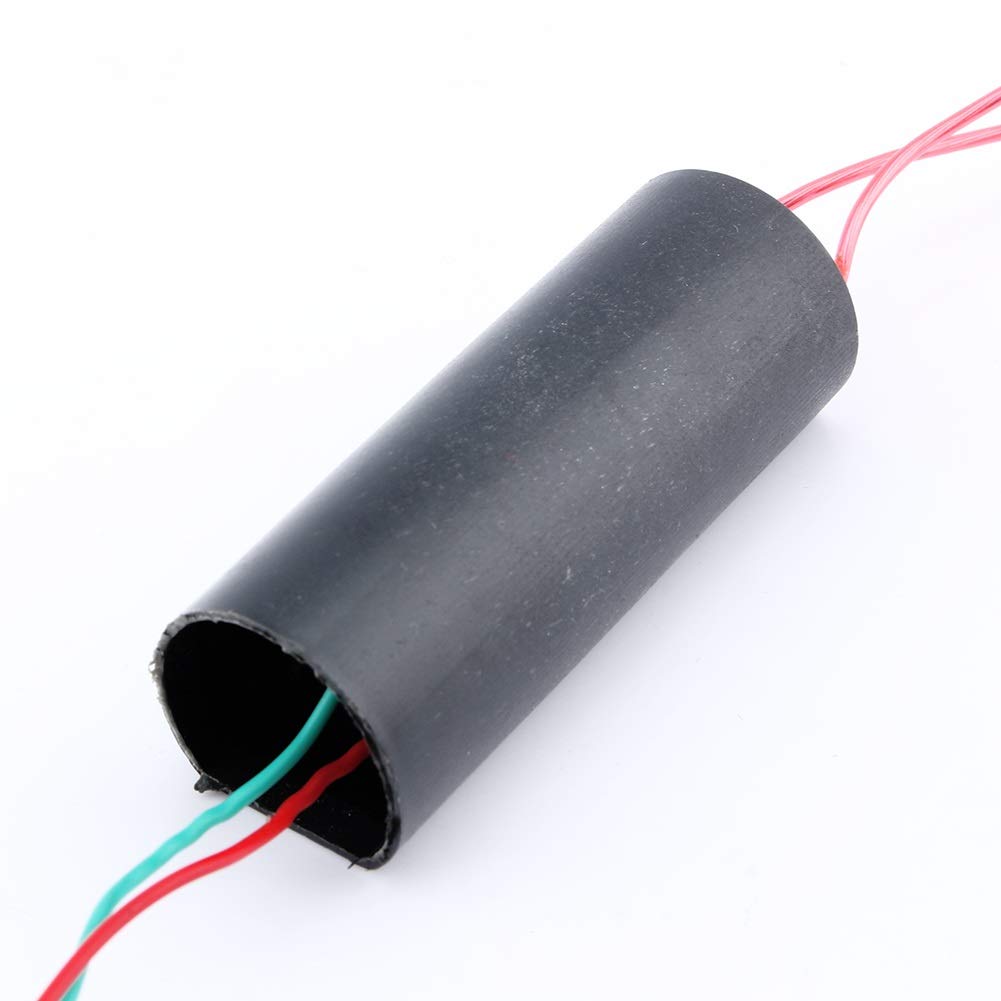

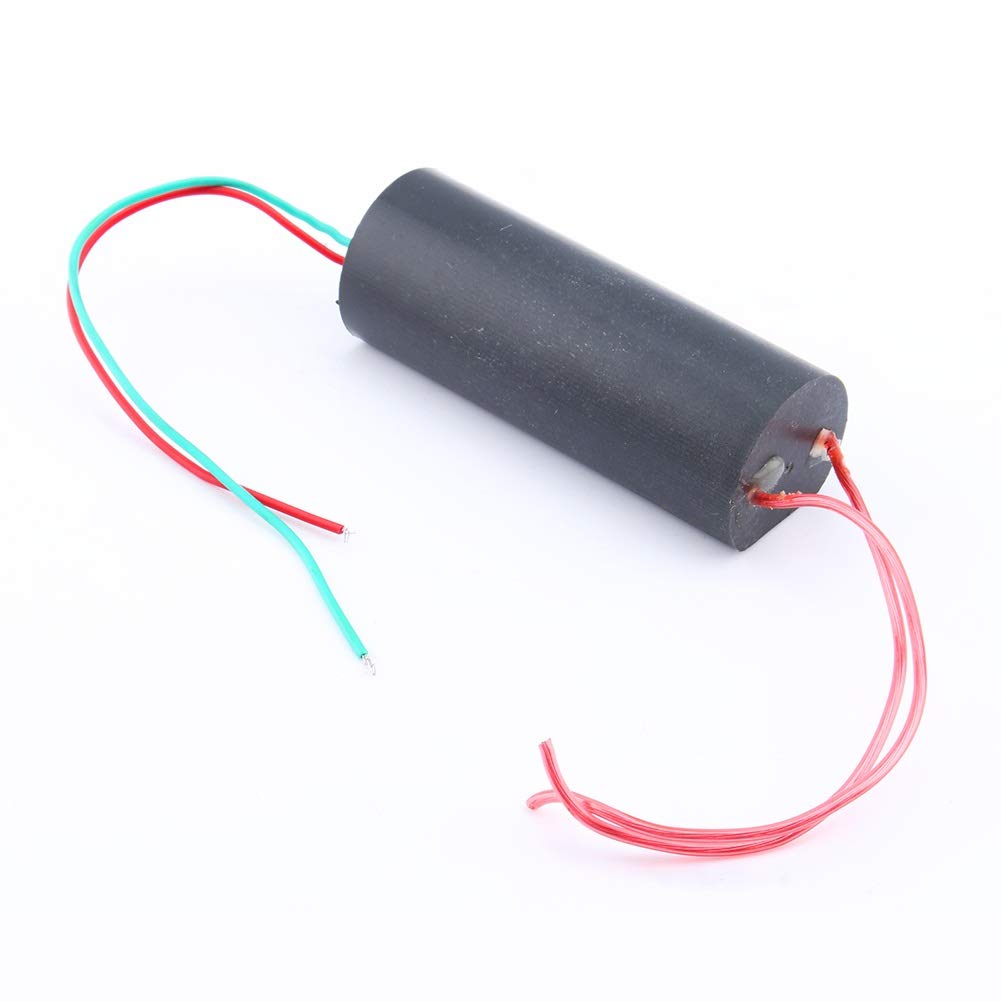

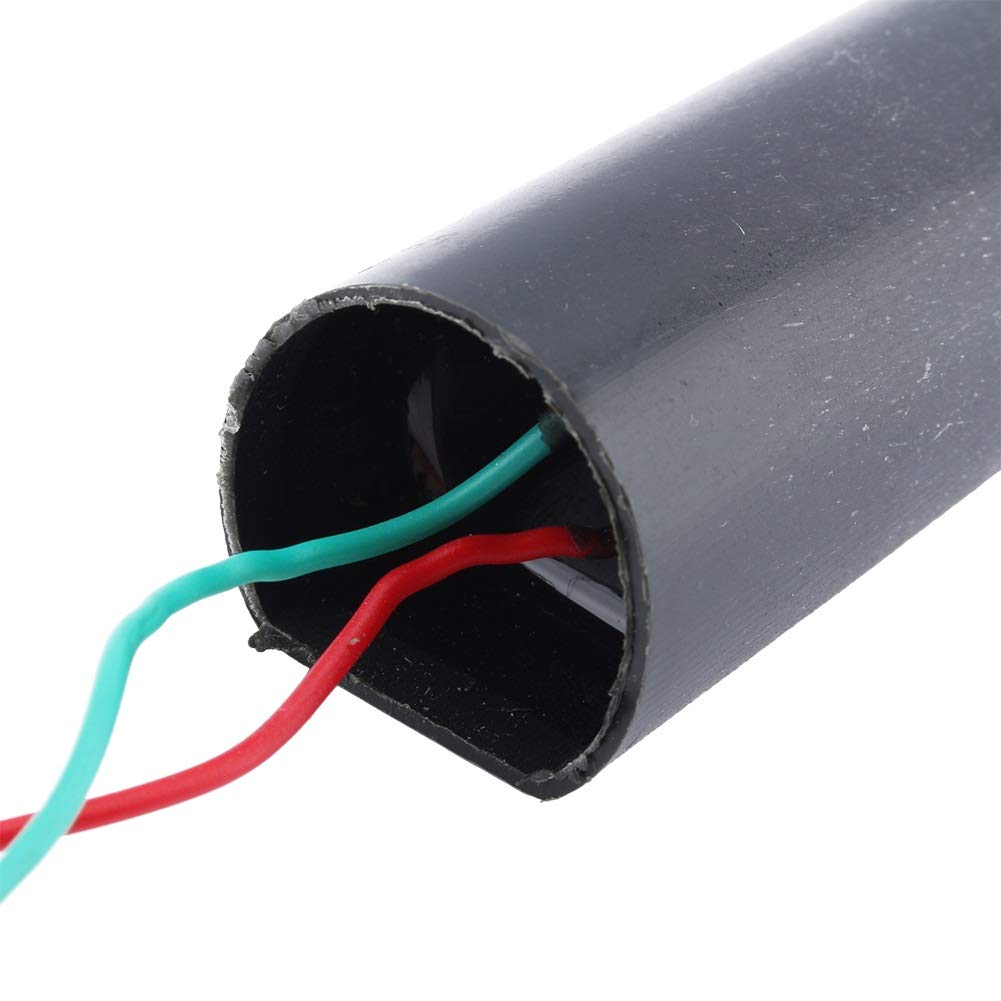

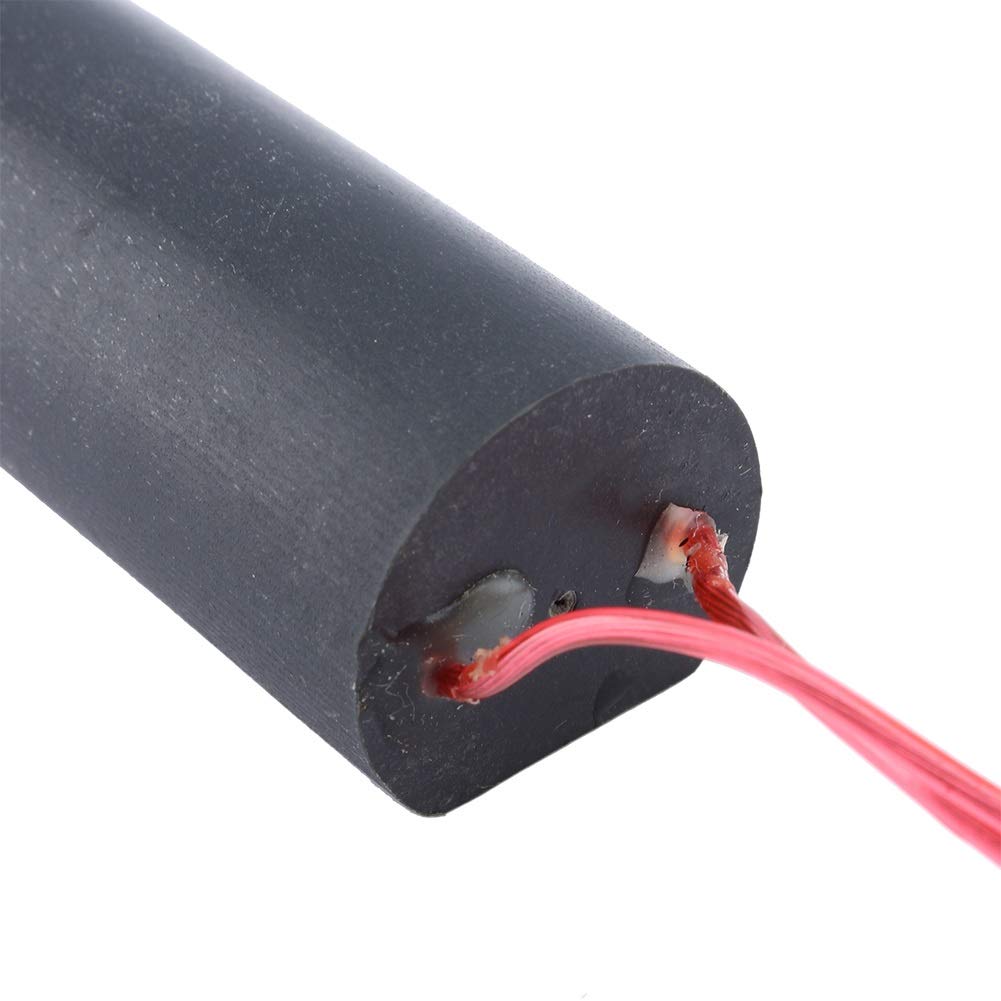

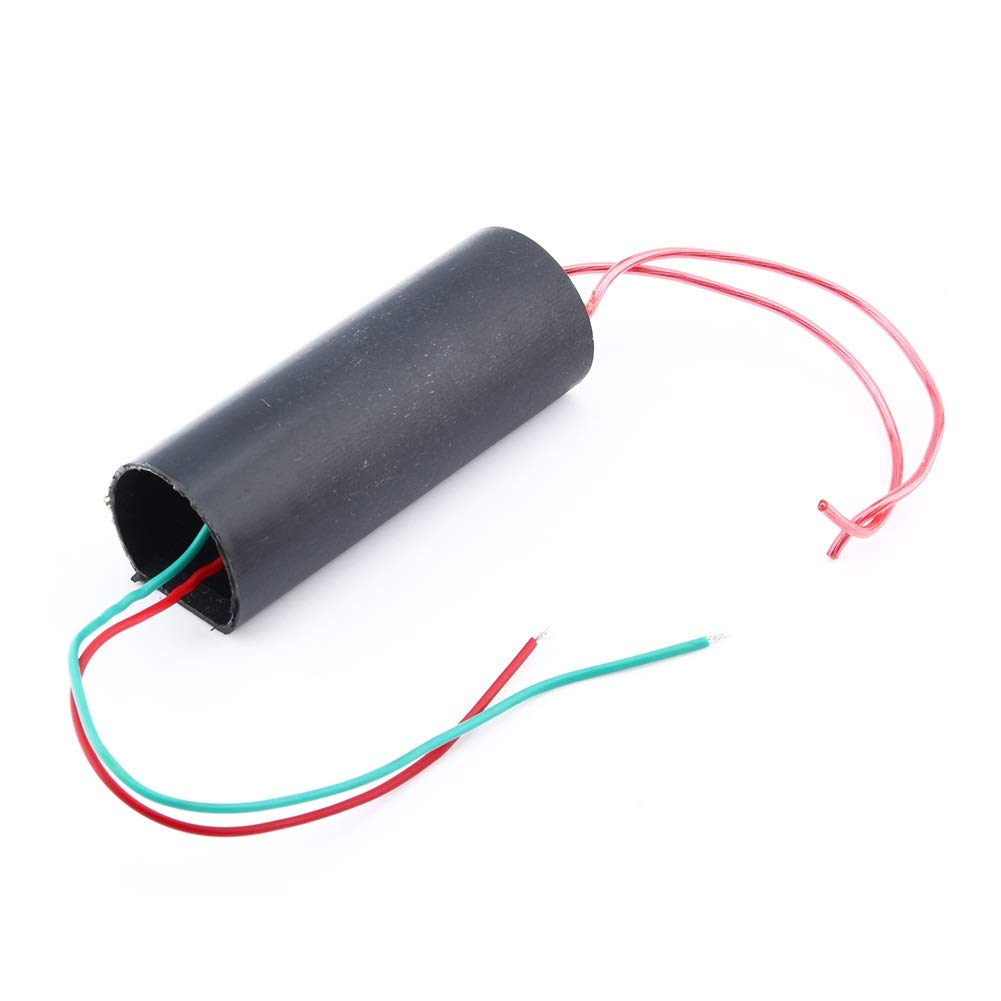

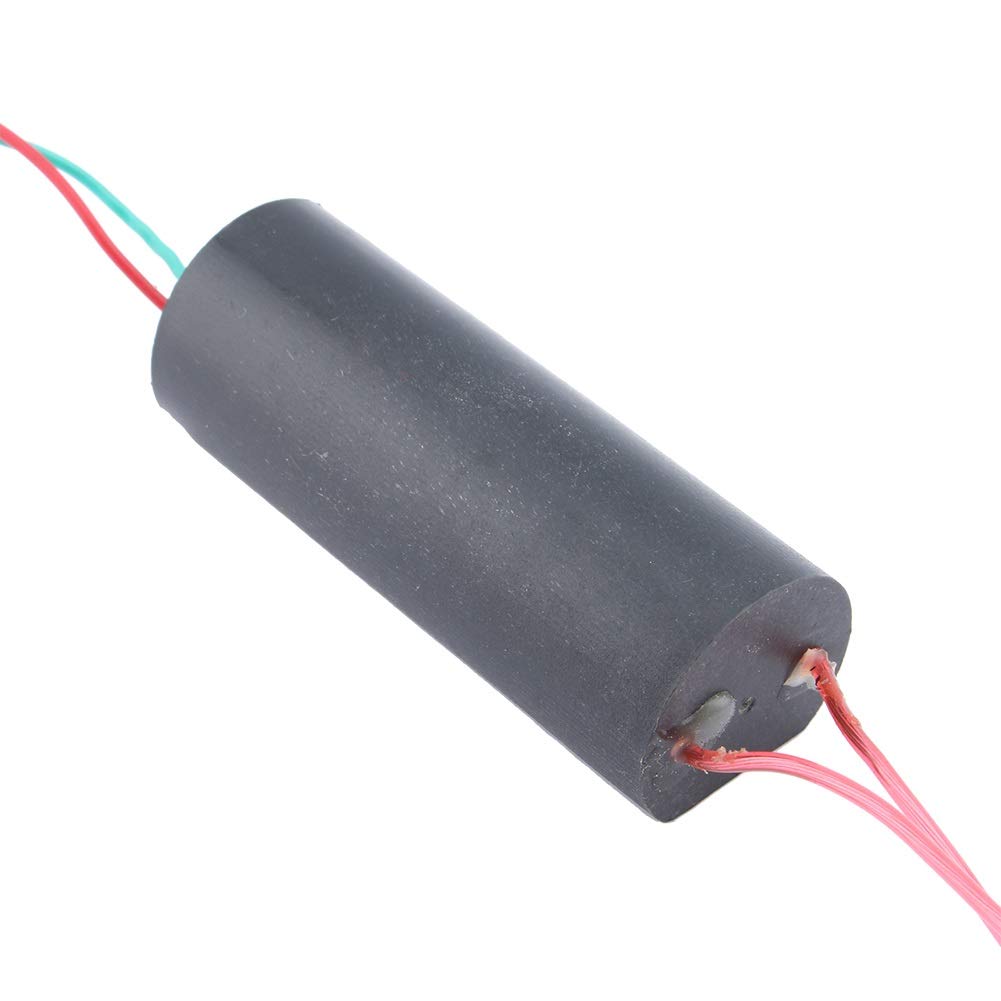

Jadeshay DC Transformer, 3v-6v to 400kV 400000V Boost Step-up Power Module, 5.0 Amps, Battery-Powered

Specifications: input voltage: DC 3 V to 6 V Input current: 2 A - 5 A High pressure type: the type of pulse current Output voltage: 400000 v(Please pay attention to safety) High pressure discharge distance between: 10 mm - 20 mm The output high voltage wire length: 100 mm Input power cord length: 100 mm (the red line is positive) Wiring: Red and green power connection red line:"+" green line "-" output: the other side ,same color cable Size:24x22x63mm Please notice: the high-voltage module should avoid the use of electricity in high voltage no-load . (Power must be adjusted to a suitable distance to the high-voltage output line , battery capacity is proportional to the distance and the use of the high-pressure arc ( not a voltage as high as possible , you must provide enough current ) . Experimental test of the arc distance from short to long , Do not exceed the maximum arc distance electricity, energy can not be released due to high pressure , can easily damage the module. ) Work: intermittent , continuous work does not allow more than 1 minute and the output side does not allow shorting . Improper voltage and long working hours easily damaged module Package included: 1 X High Voltage Transformer
