J-Tech Digital 4K 60HZ HDMI Audio Extractor Converter SPDIF + 3.5MM Output Supports HDMI 2.0, 18Gpbs Bandwidth, HDCP 2.2, Dolby Digital/DTS Passthrough CEC, HDR10 [JTD18G-H5CH]

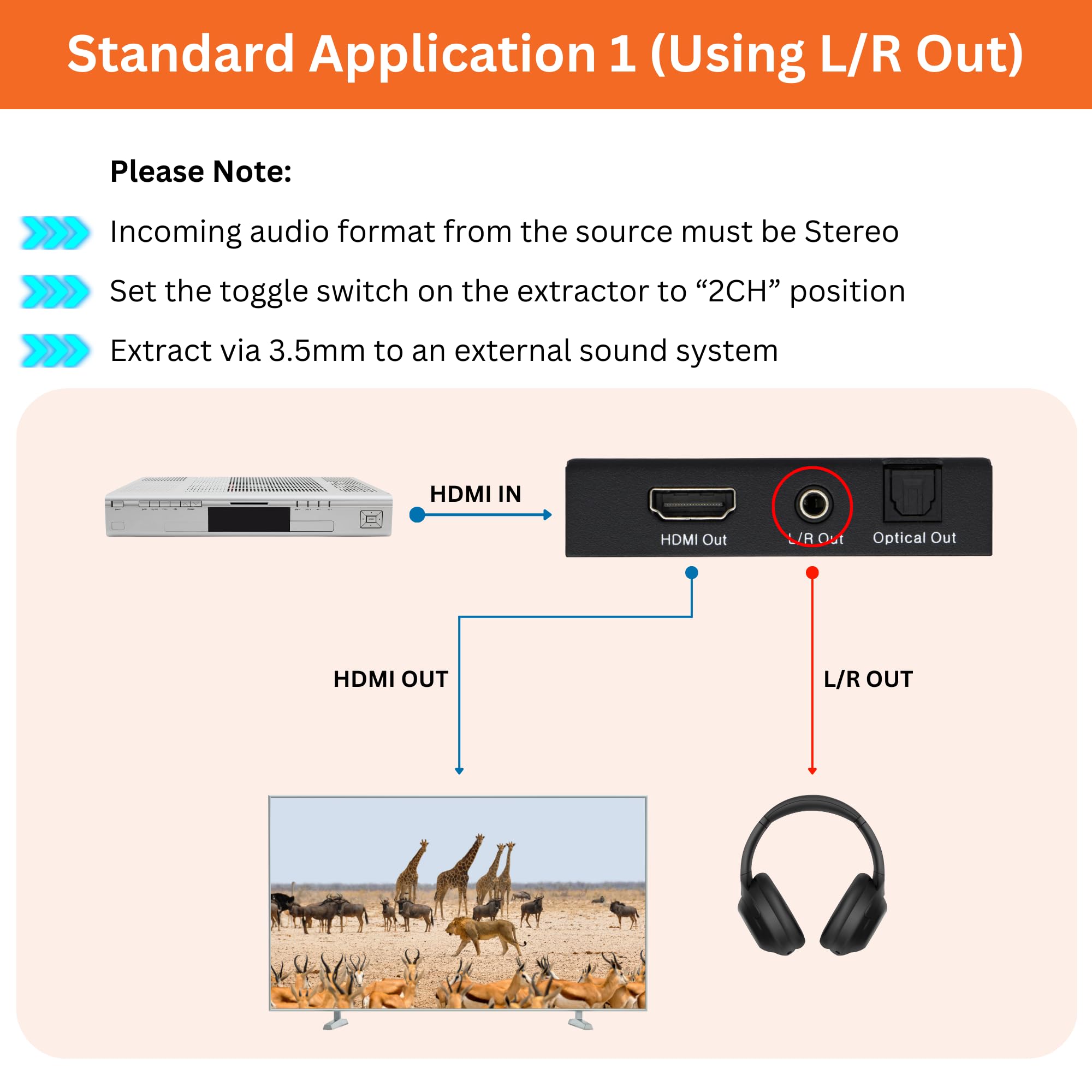

• Extract the digital HDMI audio signal from the HDMI input and convert it to 2-channel analog stereo output or multi-channel audio output (SPDIF). **NOTE: This unit will only pass Dolby Digital/DTS audio formats, it does not decode these formats for analog output. If using analog output, make sure your HDMI source is configured for PCM audio. and certain Comcast Xfinity boxes
• 4K 50/60HZ (YUV444Hz) ) Supports HDMI 2.0b (18Gbps) HDCP 2.2 and DVI Compatible; Supports HDR10 (suggest to use HDMI 2.0 certified cable to get HDR10 compatibility)

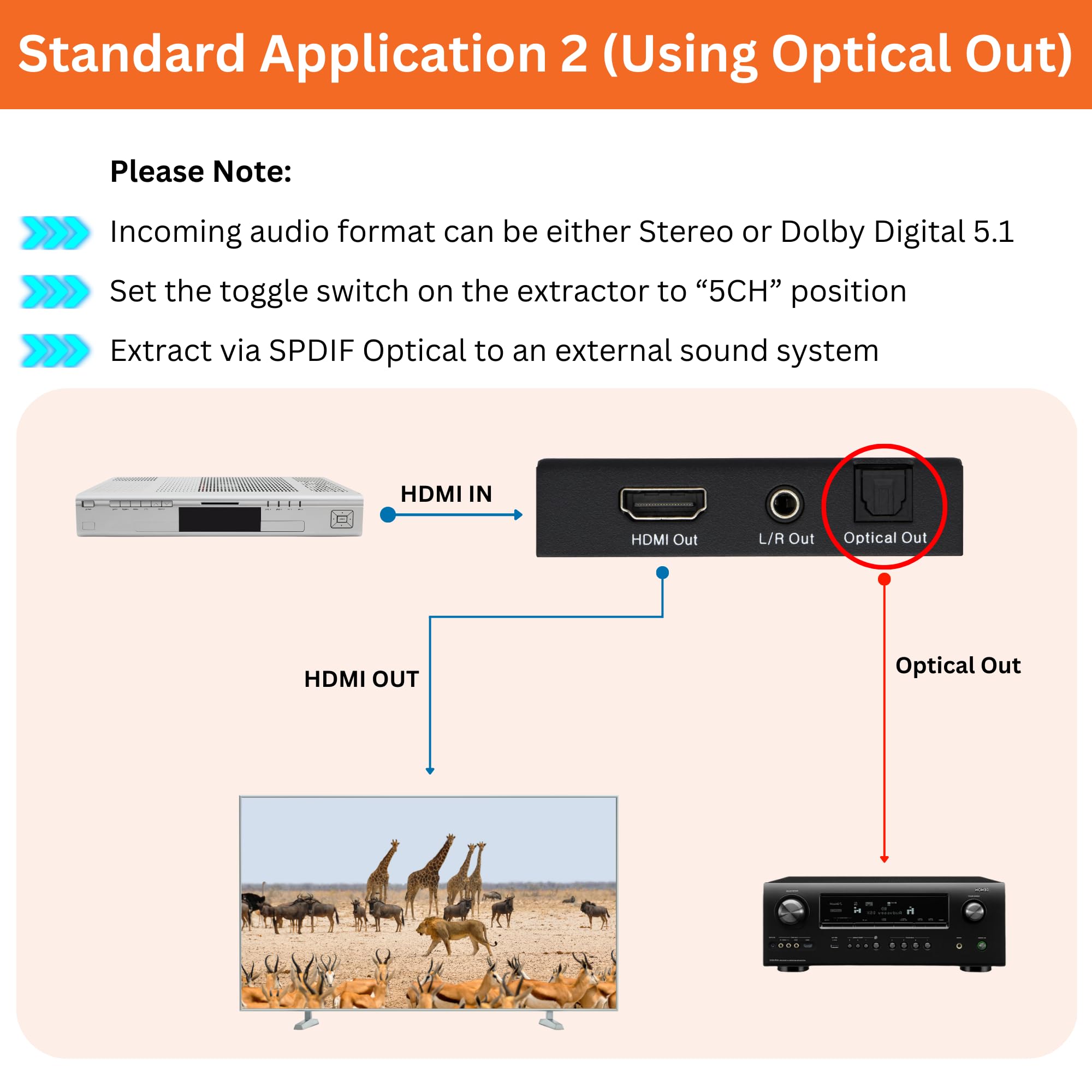

• 2 channels for stereo L/R or SPDIF output; 5.1 channel for stereo SPDIF output, support uncompressed audio like LPCM Supports DTS Digital/Dolby Digital passthrough (our device does not decode digital audio, you will still need a final screen compatible with these formats) Does not support arc function.
• Supports high bitrate HDMI audio pass-through; audio sample rates up to 192 kHZ; 10-bit HDR pass-through. Supports CEC bypass
• All J-Tech Digital products include a one-year manufacturer replacement warranty and free lifetime technical support from our customer support team located in Sugar Land, TX. Support is available from 9:00 AM to 6:00 PM GMT, Monday through Friday. Contact information available on our seller page.

J-Tech Digital ® is focused on providing high-quality products that integrate and distribute home entertainment for the residential and commercial markets. J-Tech Digital has played a major role in transforming whole-house audio, video and home theater. Overview: TheJTD18G-H5CH Audio Extractor could extract audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. Further, both input and output HDMI support video resolution up to 1080p, 4K2K@50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 KHz. HDCP 2.2 and CEC bypass are supported. This unit has the capability to extract digital HDMI audio signals from an HDMI compliant source, such as the new console systems, Xbox Series X/S, and the Playstation 5.**Note** This unit will only pass Dolby Digital/DTS audio formats, it will NOT decode these formats for the analog output. If using the analog output, make sure your HDMI source is set to PCM audio. Features HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant Video resolutions up to 1080P 144Hz, 1080P 120Hz, 4K2K@50/60Hz (YUV444) Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH• Supports HDMI High Bit Rate(HBR) audio pass through Audio sample rates up to 192kHz 10bits HDR (High Dynamic Range) pass through Supports CEC bypass Package Includes: 1 x Audio Extractor 1 x Power adapters 1 x User Manual Trouble Shooting： 1.Dolby/DTS Issue: check your display compatibility about those formats. Our device does not decode on
