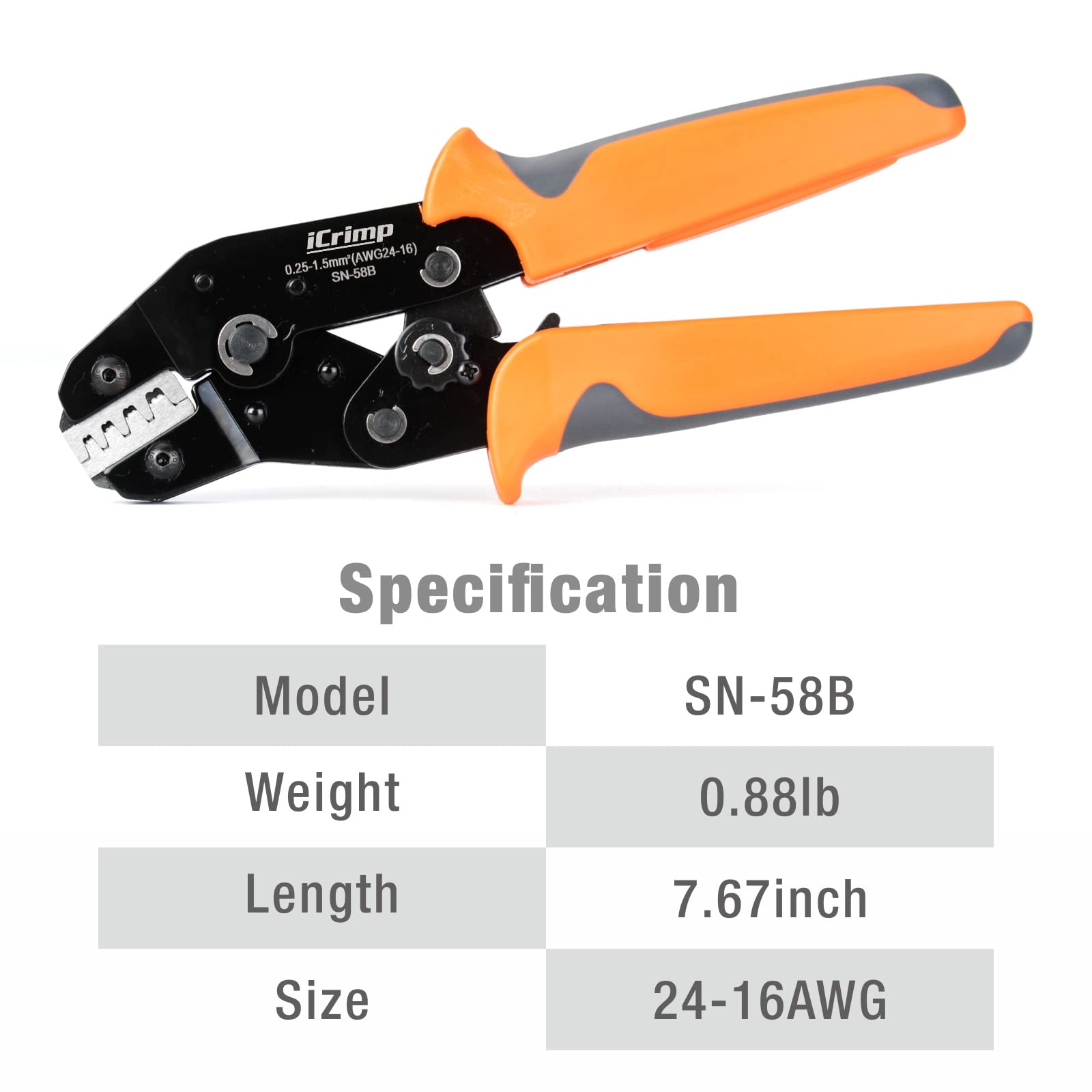

iCrimp SN-58B Hand Crimping Tool Crimper 0.25-1.5mm² for Crimping Non-Insulated Plug Connectors, Open Barrel Female Quick Disconnect

• Purpose:SN-58B crimper tool is designed to crimp 24-16 AWG non-insulated open barrel, OEM-style terminals and wire splices.
• Capability:SN-58B wire crimping tool has a wide range of crimping capacity. It’s capable of crimping 2.5mm, 2.54mm, 2.8mm, 3.96mm, 4.8mm and 6.3mm pitch open barrel terminals from JST, Dupont, Molex, Amon, Amphenol, etc.

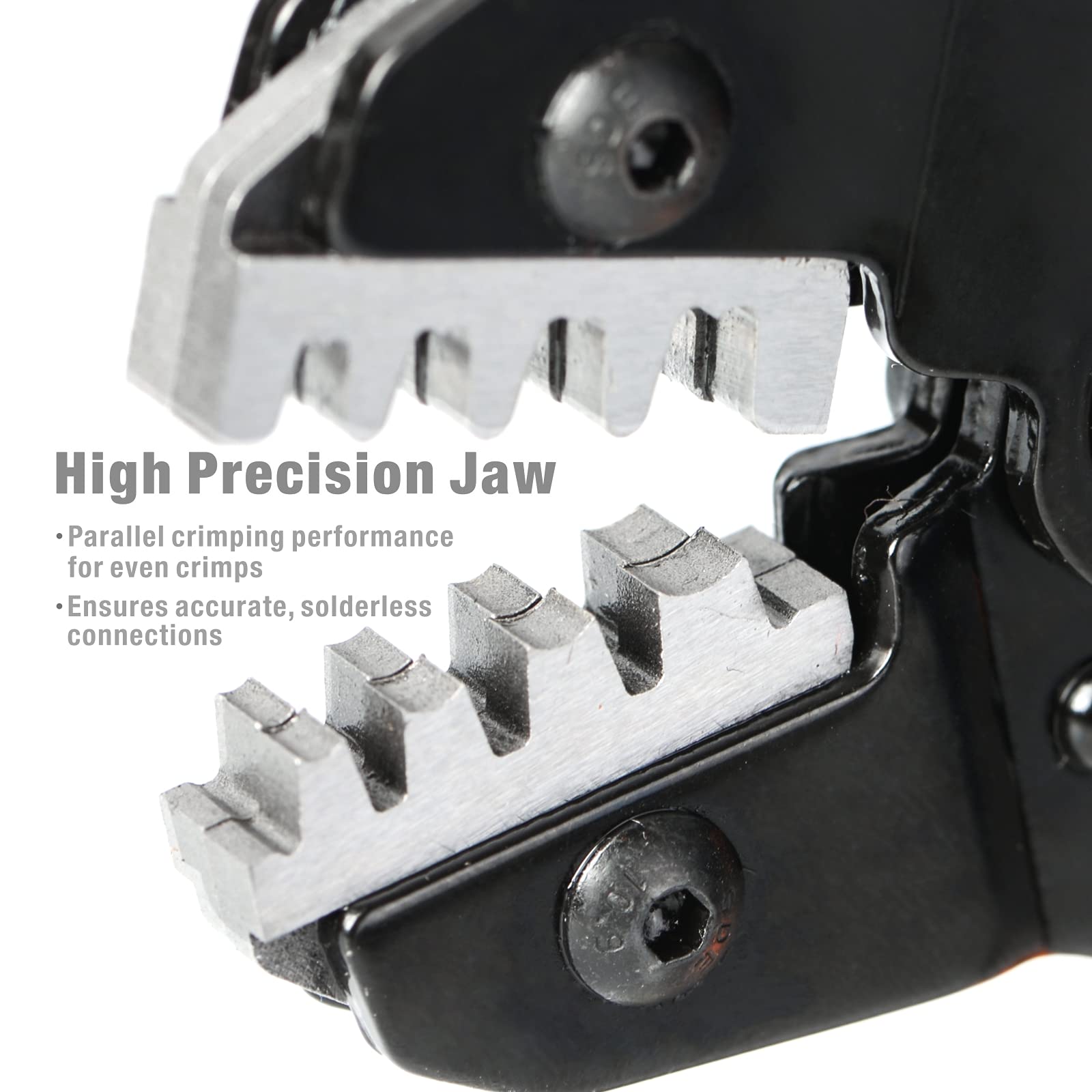

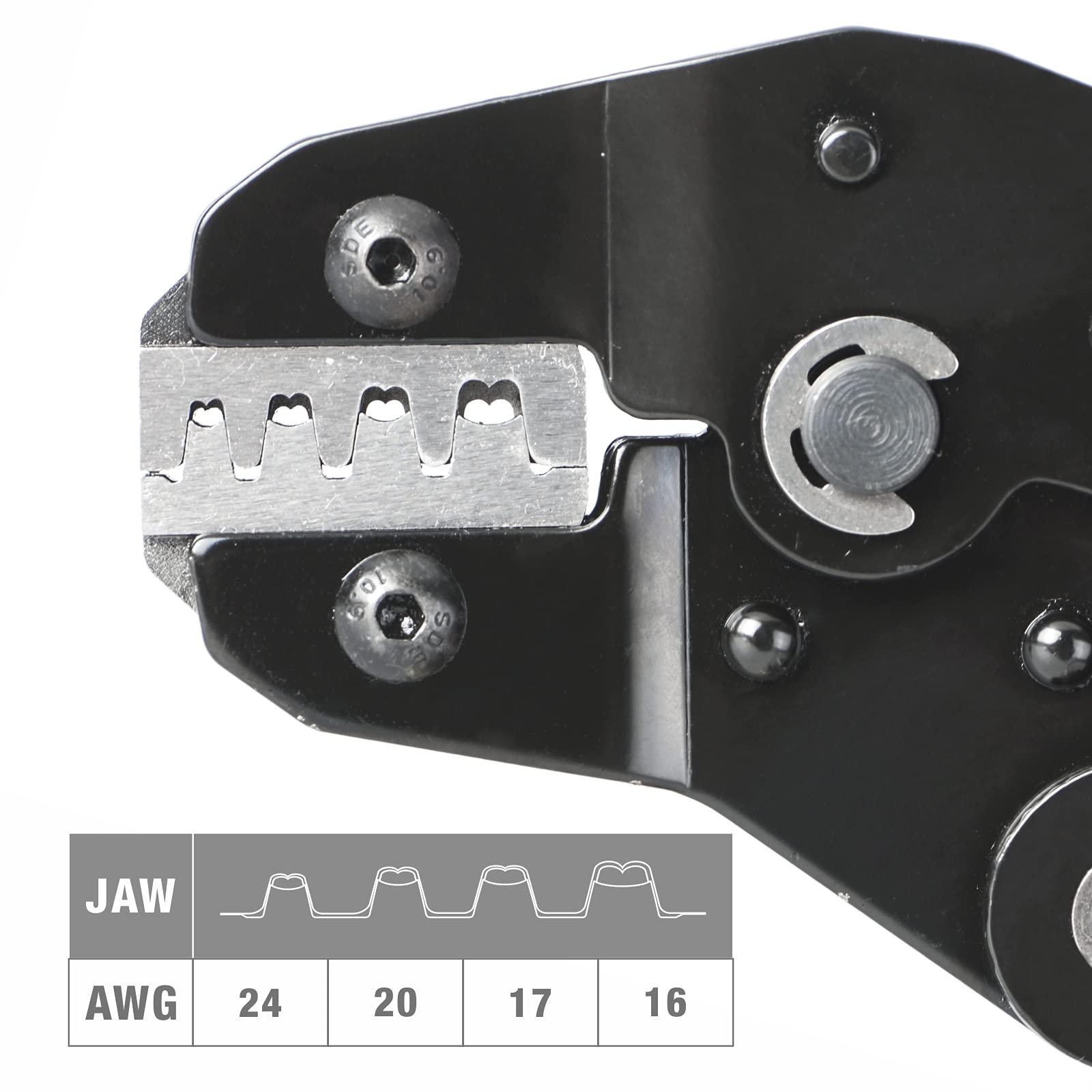

• Multiple Crimp Cavities: SN-58B is a combination of SN-28B and SN-48B crimping tools. It features 4 double crimp stations that simultaneously crimp the wire and insulation all in one action.

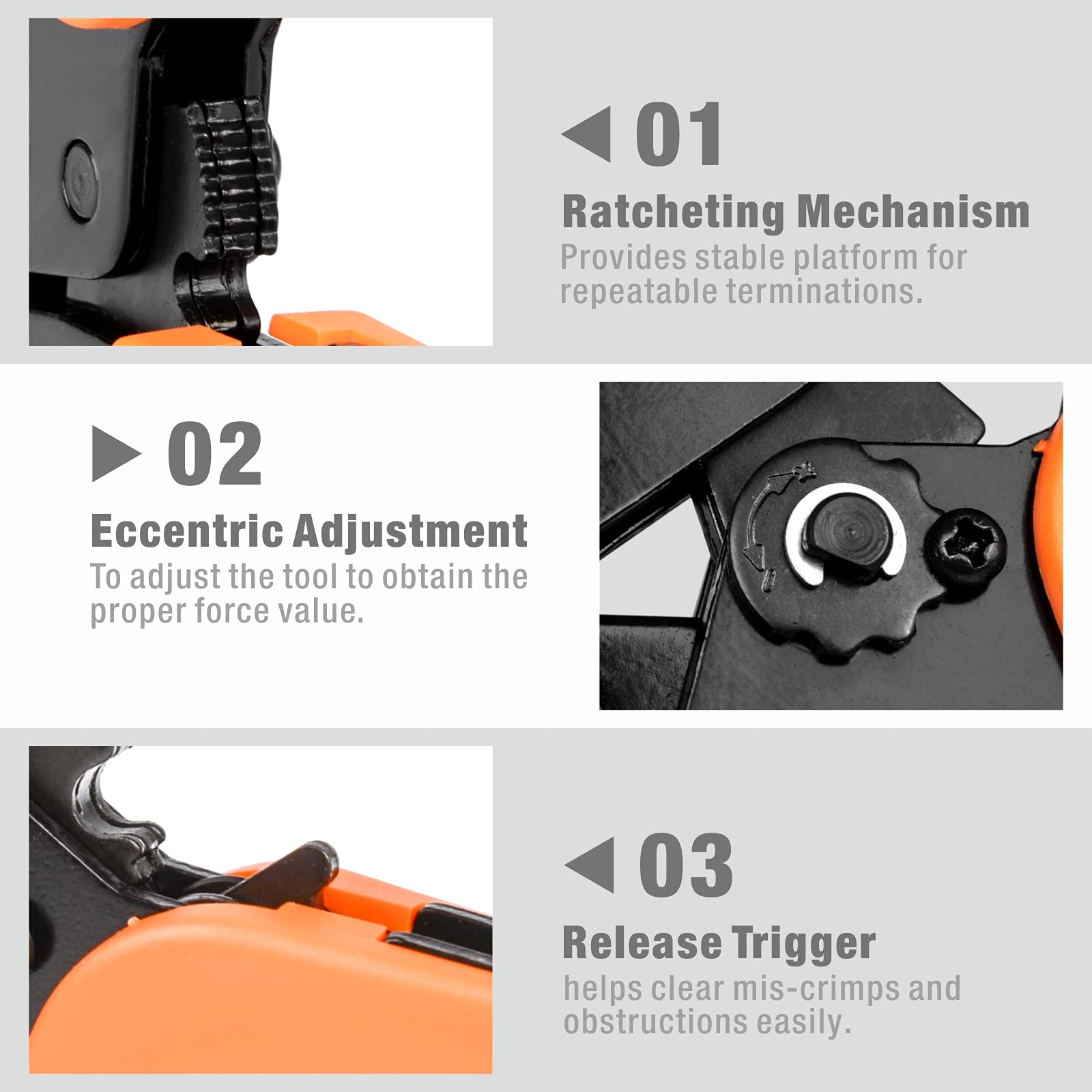

• Ratcheting Mechanism: To ensure a perfect crimp, the open barrel crimper will not disengage until a uniform crimp is completed or the quick release lever is triggered.
• Applications: Arduino, 3D printer, PCB, jumper wire and other electronic DIY projects.

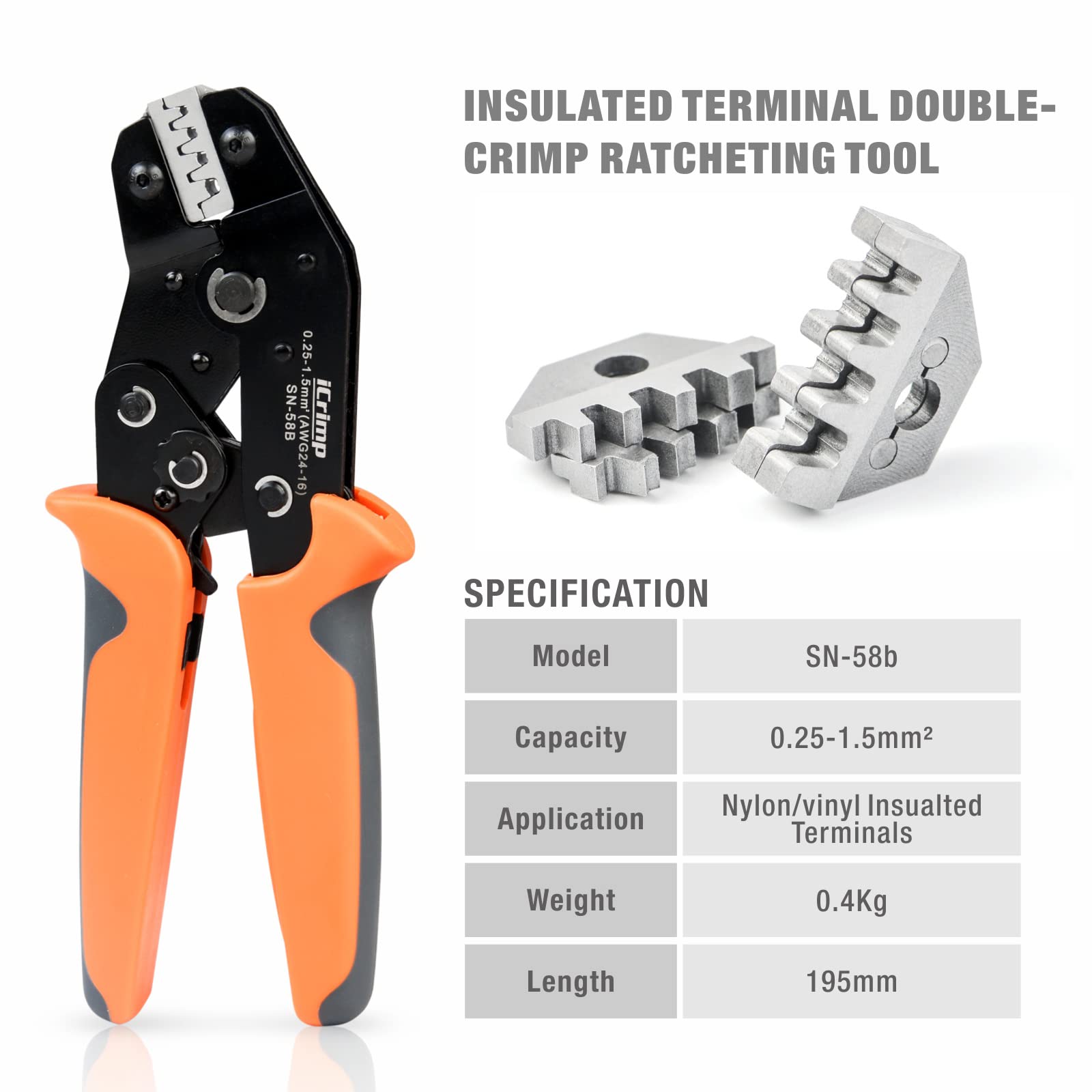

The tool features a tool frame with a stationary jaw and handle, a moving jaw, a moving handle, and an adjustable ratchet that ensures full contact crimping. The tool frame holds a die assembly with three crimping sections. The die assembly features a wire anvil, an insulation anvil, a wire crimper, and an insulation crimper. Attached to the outside of the frame is a locator assembly, which contains a locator, a spring retainer, and a contact support. Die retaining pins and die retaining screws are used to position and secure the dies in the tool frame. A nut is used on the upper die retaining screw to hold the locator assembly in place.
