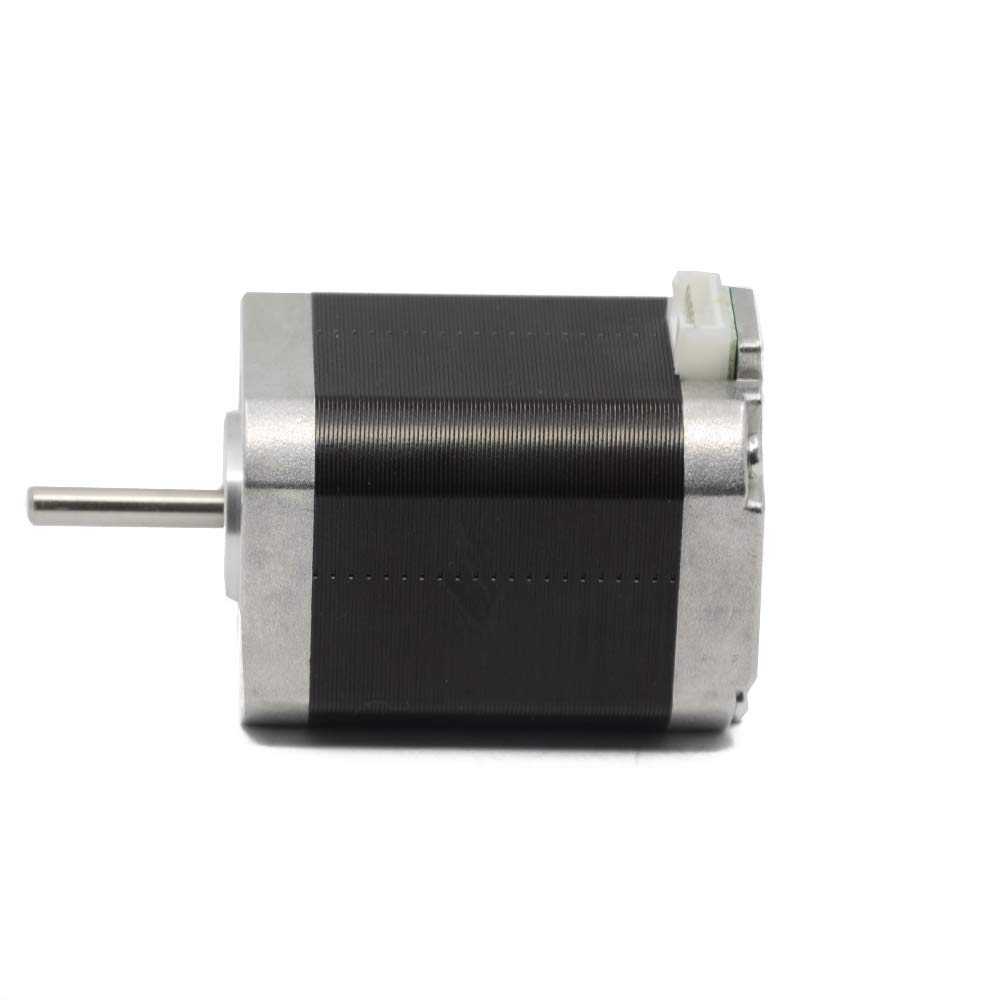

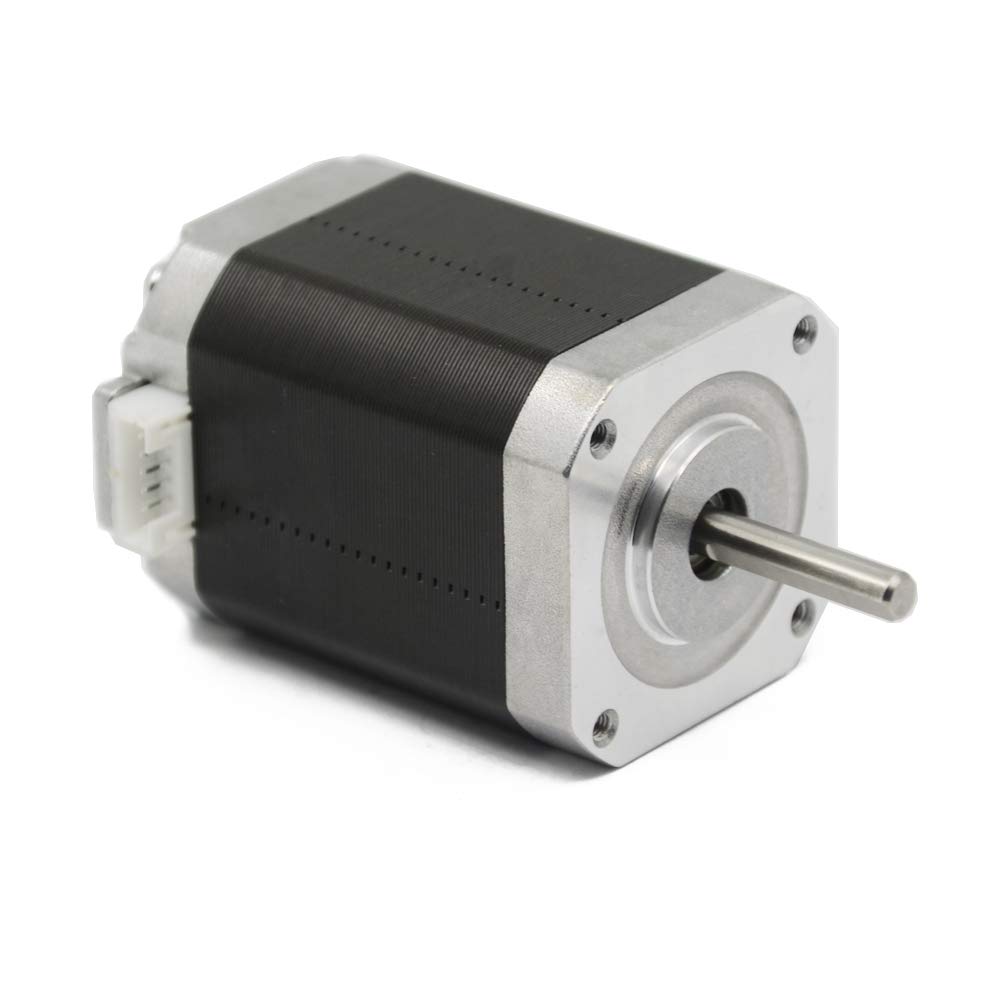

Iverntech 42 Nema 17 Stepper Motor 60mm Body 1.8 Stepper Angle 1.5A 2 Phase 4-Lead with 1M Cable for 3D Printer, CNC Machine and Robotics
About this item
- Please re-pin the wires as your demand, for not all machines are wired in the same way,42-60 nema 17 stepper motor, size 42 * 42 * 60mm

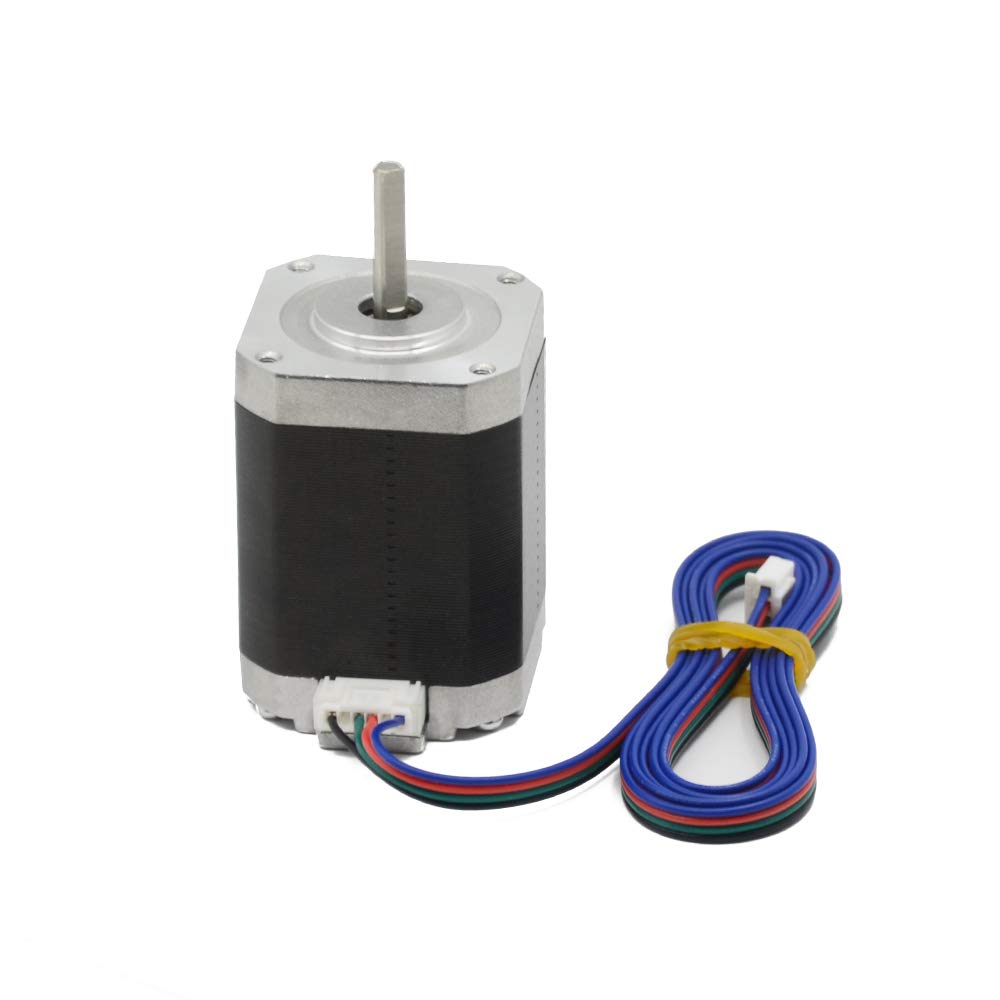

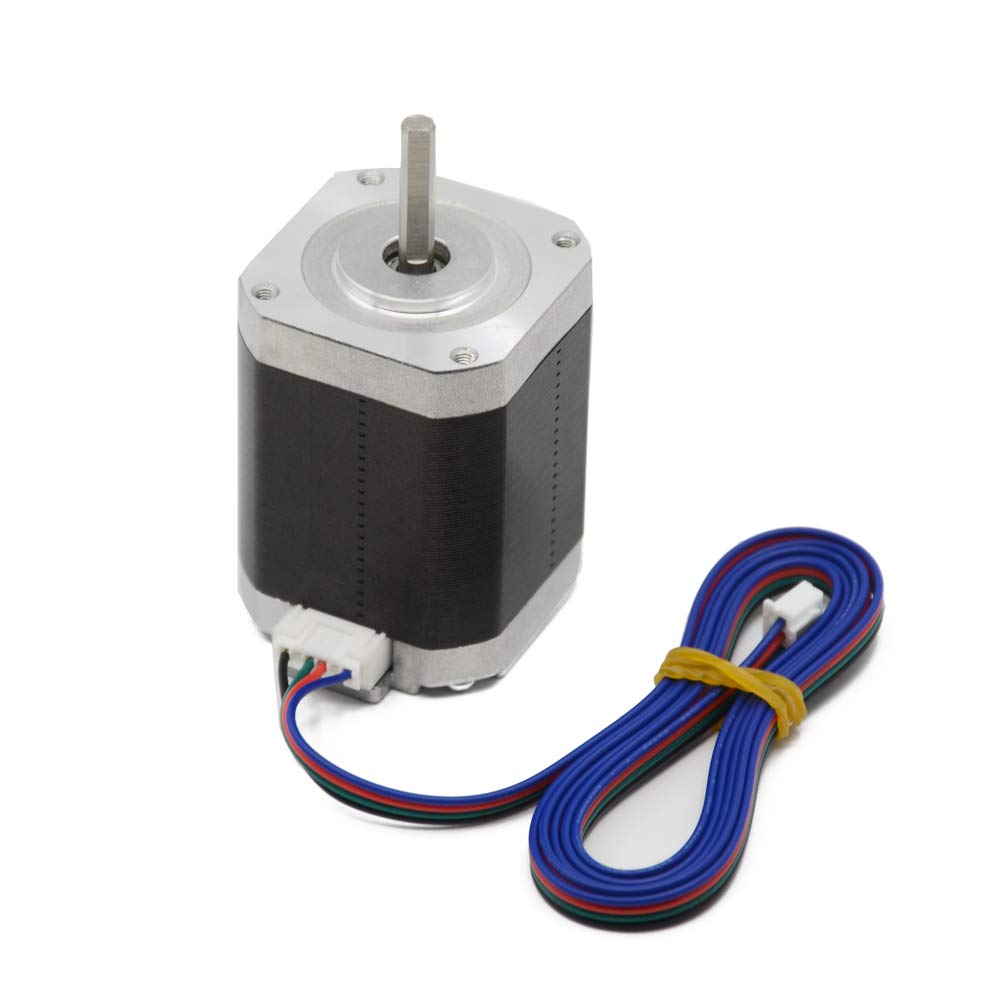

- Come with 1M (39.3") Cable
- High torque -Holding torque up to 0.7Nm. Low loss stators have better high speed performance
- Widely work for Most 3D Printer CNC Machine and Robotics
- For the sequence of the motor cable difference, you need swap middle two wires (the green and the red) of one end if you want use it for ender 3 series
Product description

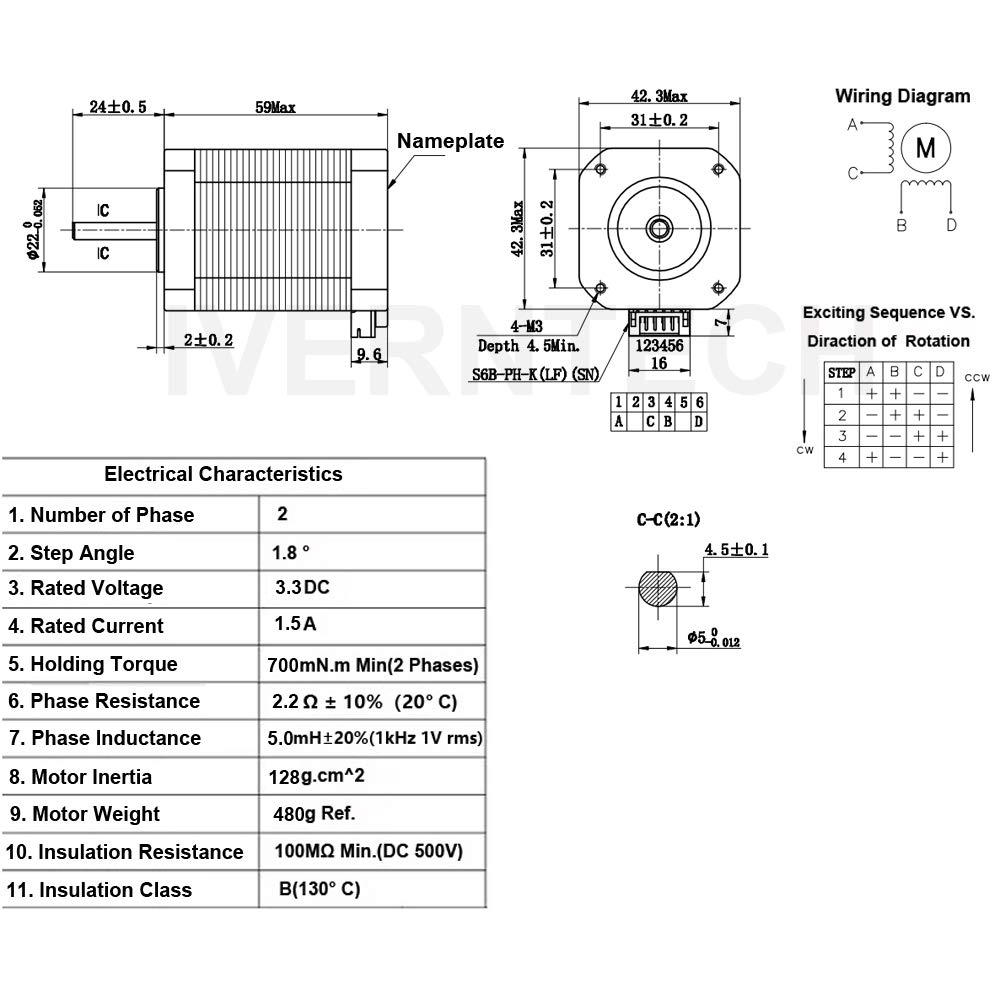

Iverntech 42-60mm Nema 17 stepper motor Motor Type: Bipolar Stepper Number of Phase: 2 Number of Leads: 4 Step Angle: 1.8 deg. Rated Voltage: 3.3V DC Rated Current: 1.5A Holding Torque: 700mN.m Min Phase Resistance: 2.2ohms±10%(20℃) Phase Inductance: 5.0mH±20%(1KHz) Rotor inertia: 128g.cm2 Item Weight: 480g Package List: 1 x 42-60mm Nema 17 Stepper Motor 1 x 1M motor cable
Product details
