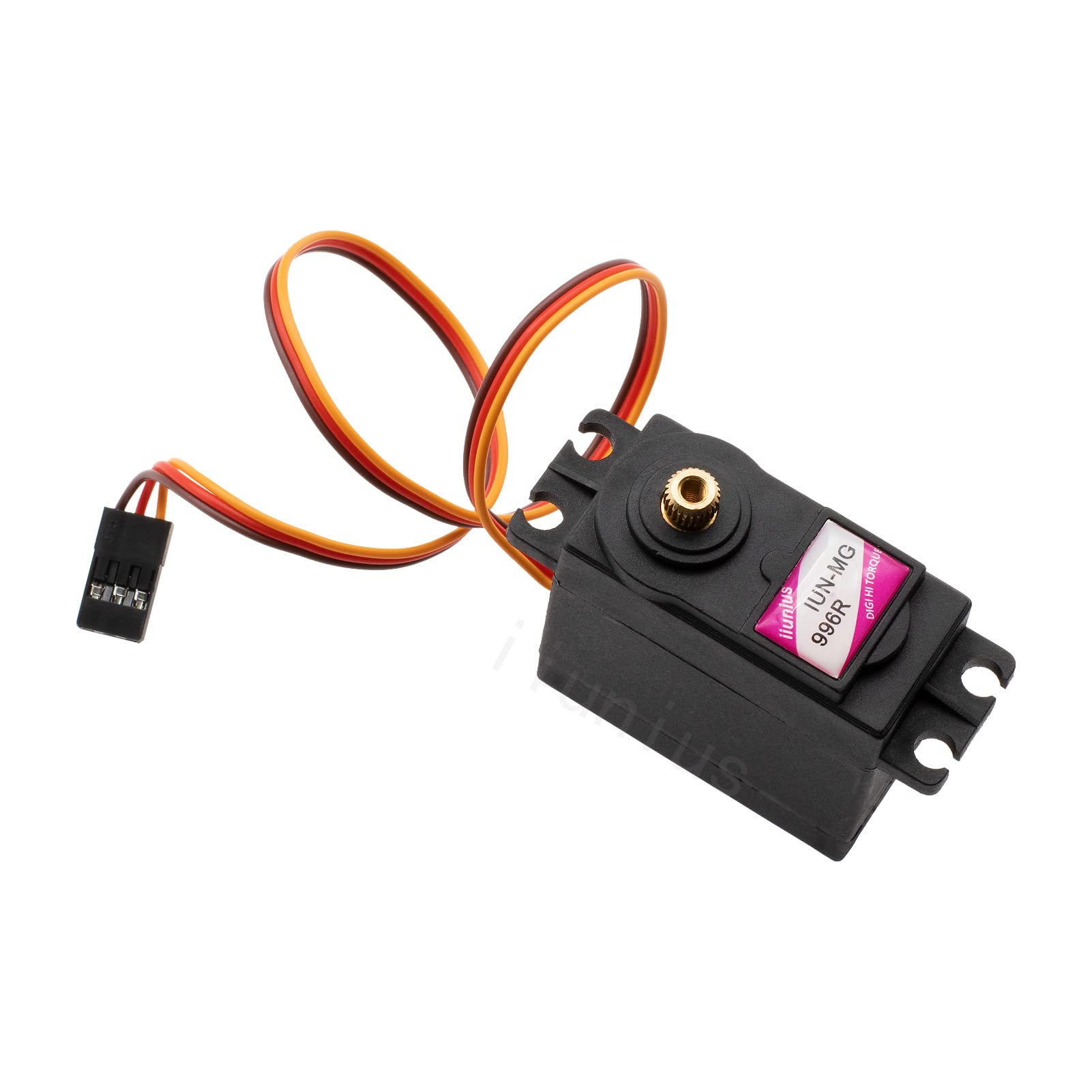

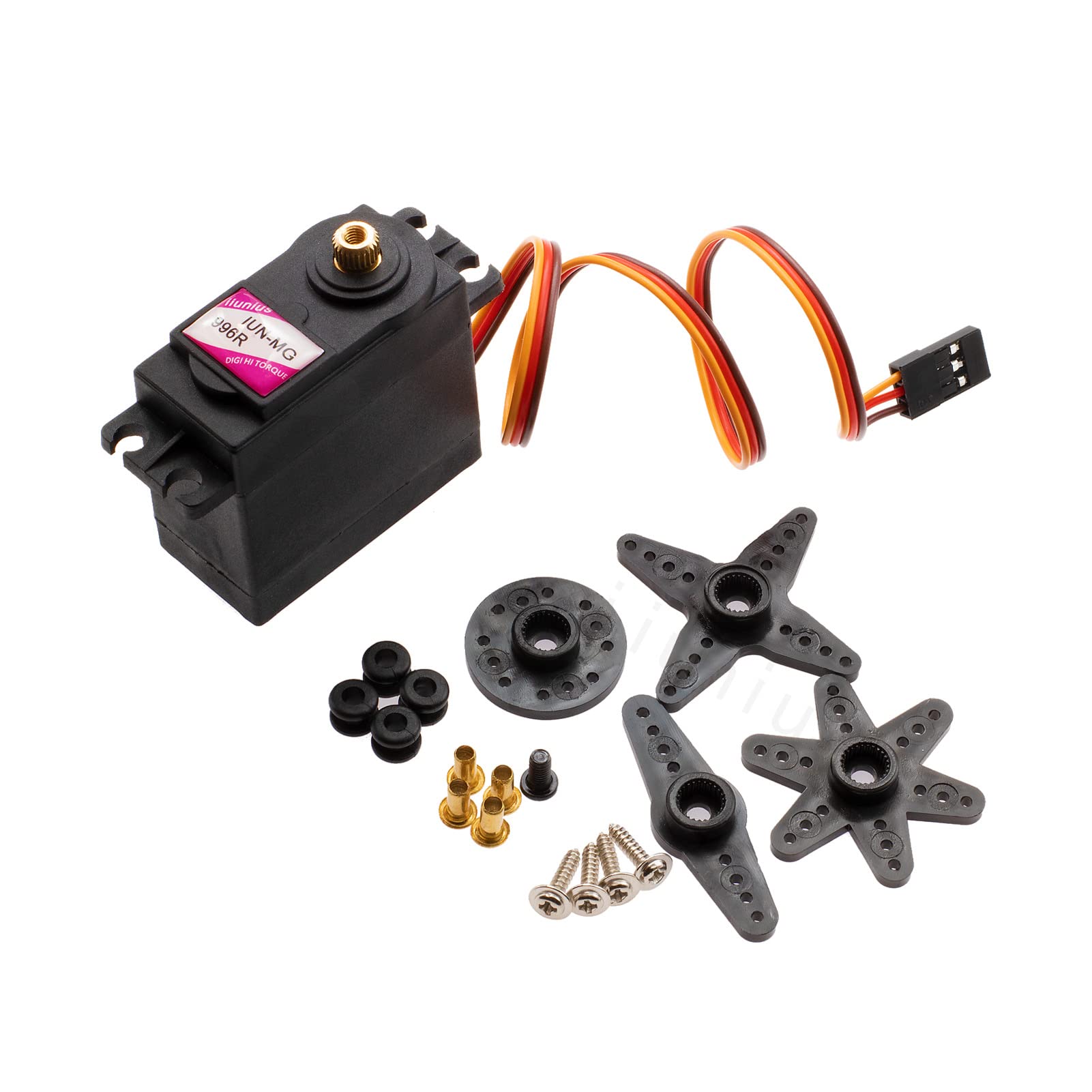

Iunius 4pcs MG-996 Servo Motor Metal Gear Torque Digital Motor Kit for RC Airplane Model Car Helicopter Robot Diving Equipment Smart Camera Racing Model

• Metal Servo motor with higher torque and quality. Angel: 180°
• Application Fields: remote control helicopters, micro robot, diving equipment, racing model,all kinds of R/C Toys etc
• Dimensions : 40.5 x 20 x 41 mm; Weight: 55g
• Stall Torque (4.8v): 11±0.10kg·cm.Dead band width: ≤5 usec
• Operating voltage: 4.8V~6.0V

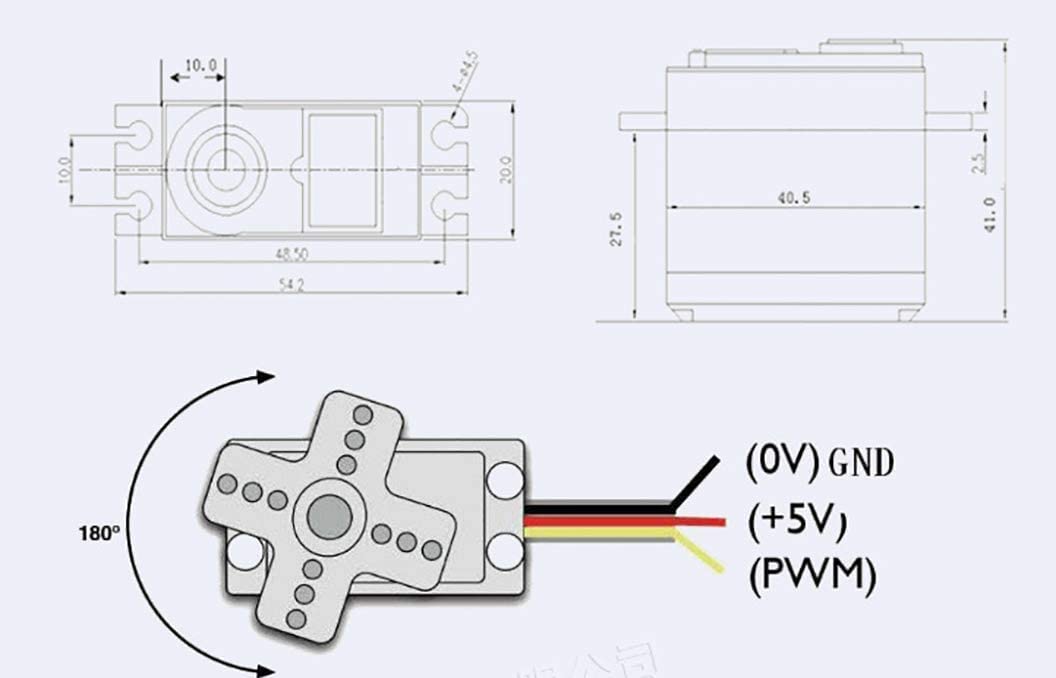

Apply Environmental Condition Storage Temperature Range: -20℃～50℃ Operating Temperature Range: -10℃～50℃ Operating Voltage Range: 4.8V～6.0V Appearance Inspection Dimensions:Please refer to the image 7. Electrical Specification (Function of the Performance) Operating speed (at no load) 0.12±0.01 sec/60°(4.8V ) 0.11±0.01 sec/60°(6V) Running current (at no load) 220±20mA (4.8V ) 250±20mA(6V) Stall torque (at locked) 11±0.10kg·cm (4.8V ) 13±0.10kg·cm(6V) Stall current (at locked) 2000±30mA (4.8V ) 2200±30mA(6v) Idle current (at stopped) 4±1mA (4.8V ) 4±1mA(6v) Control Specification Control system: Change the pulse width Amplifier type: Analog controller Operating trave:90°±3°(1000→2000 μsec) Left&Right travelling Angle deviation:≤3° Centering deviation:≤ 1° Neutral position:1500 μsec Dead band width: ≤5μsec Rotating direction:Counter Clockwise (1500→1000μsec) Pulse width range:800→2200 μsec Maximum travel:About 145°(800→2200 μsec) If you have any problem with using our products, just feel free contact to contact us for technical support and services via amazon, we surely will help solve.
