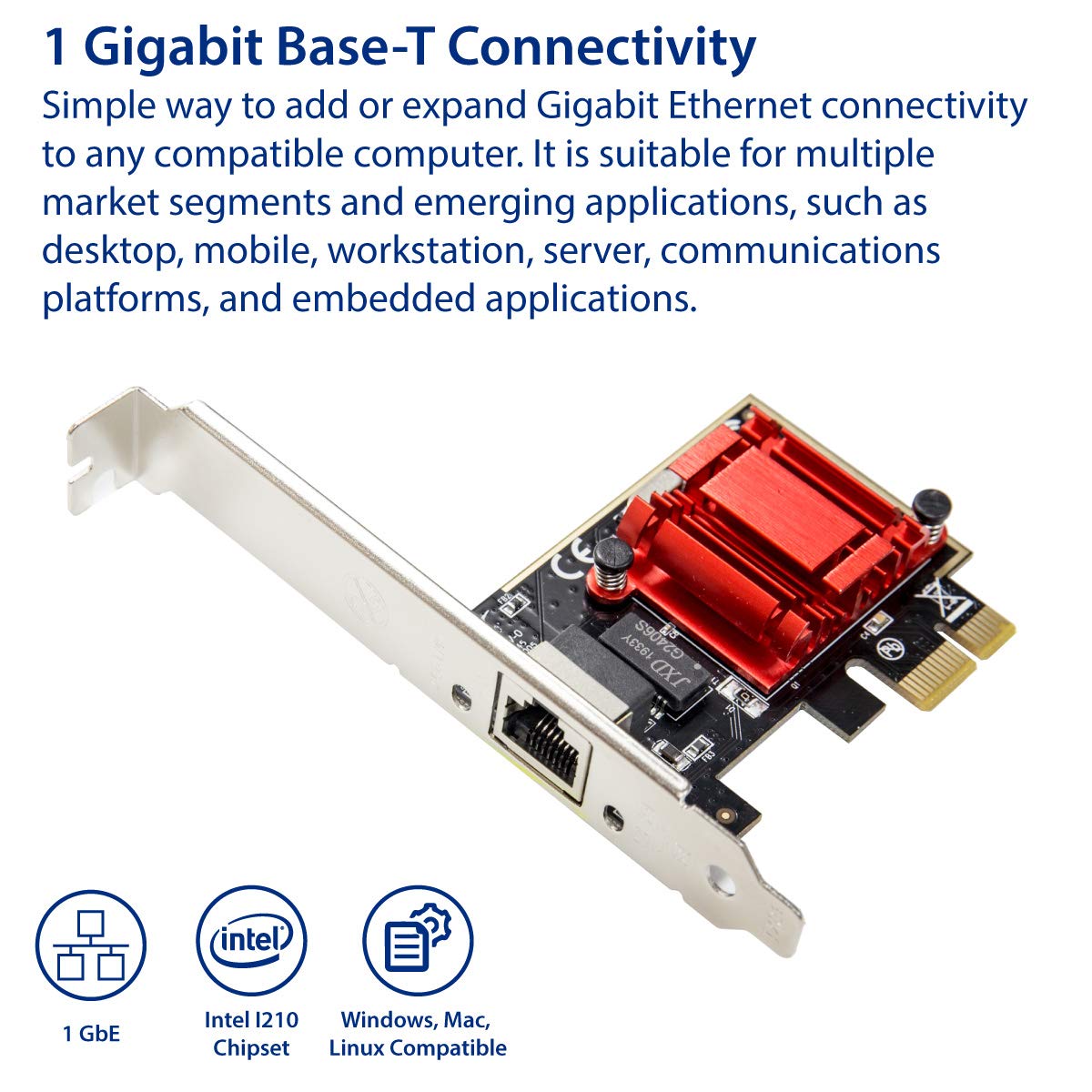

IO Crest Single Port Gigabit Ethernet PCI-e x1 Intel I211 Controller card

• low-halogen single-port pci-express 10/100/1000 ethernet adapter
• the power management features including energy efficient ethernet (eee), dma coalescing, ultra-compact design, and a unique ventilated bracket for increased efficiency and reduced power consumption
• ieee 802.1qav audio-video-bridging (avb) for tightly controlled media stream synchronization, buffering, and reservation
• high-performing design supporting pci express gen 2.1 2.5 gt/s

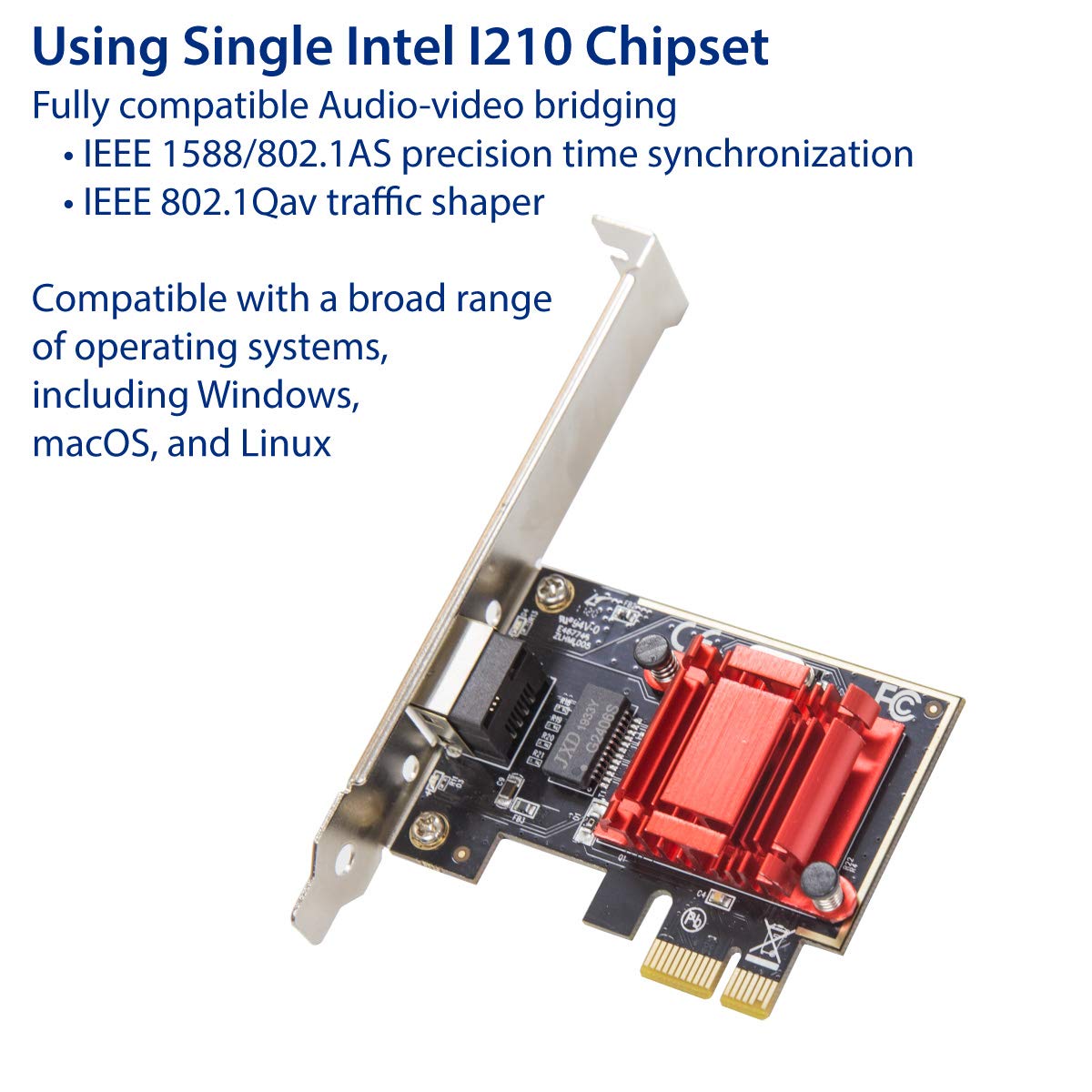

• based on the intel ethernet controller i210, this adapter represents the next step in the gigabit ethernet (gbe) networking evolution for the enterprise and data center offering audio-video-bridging (avb) support, along with power management technologies such as energy efficient ethernet (eee) and dma coalescing (dmac). the intel ethernet controller i210 (i210) is a single port, compact, low power component that supports gbe designs. the i210-at and it offer a fully-integrated gbe media access control (mac) and a physical layer (phy) port. the i210-is offers a fully-integrated mac and an sgmii/serdes port that can be connected to a backplane or an external phy. the i210 also supports pci express [pcie v2.1 (2.5 gt/s)].

Based on the Intel Ethernet Controller I210, this adapter represents the next step in the Gigabit Ethernet (GbE) networking evolution for the enterprise and data center offering Audio-Video-Bridging (AVB) support, along with power management technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC). The Intel Ethernet Controller I210 (I210) is a single port, compact, low power component that supports GbE designs. The I210-AT and IT offer a fully-integrated GbE Media Access Control (MAC) and a Physical Layer (PHY) port. The I210-IS offers a fully-integrated MAC and an SGMII/SerDes port that can be connected to a backplane or an external PHY. The I210 also supports PCI Express [PCIe v2.1 (2.5 GT/s)].
