IO Crest 2 Ports SATA III 6gb/s to M.2 NGFF A Key + E Key A+E Key 22x30 2230 mm JMicron JMB582

• Supports one lane of PCI Express.Support NGFF (M.2) 2230 key A/E.Complies with PCI Express Base Specification Revision 3.1a.Supports PCIe link layer power saving mode. Supports 2 SATA port. M.2 A+E Key.Supports Port
• Compliant with Serial ATA AHCI (advanced host controller interface) Specification Rev 1.0, Supports SATA 3.0 transfer rate up to 6Gbps. Maxium Sequencial Read / Write Speed 850 MB/s
• Jmicron JMB582 Chipset, Port Multiplier FIS-based and Command-based switching supported.Hot plug and Hot swap SATA ports. Support Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.
• Compatible with Windows XP/7/8/10/MAC/NAS/Linux OS. No driver installation is required. Support install Windows OS from Win10 PE.

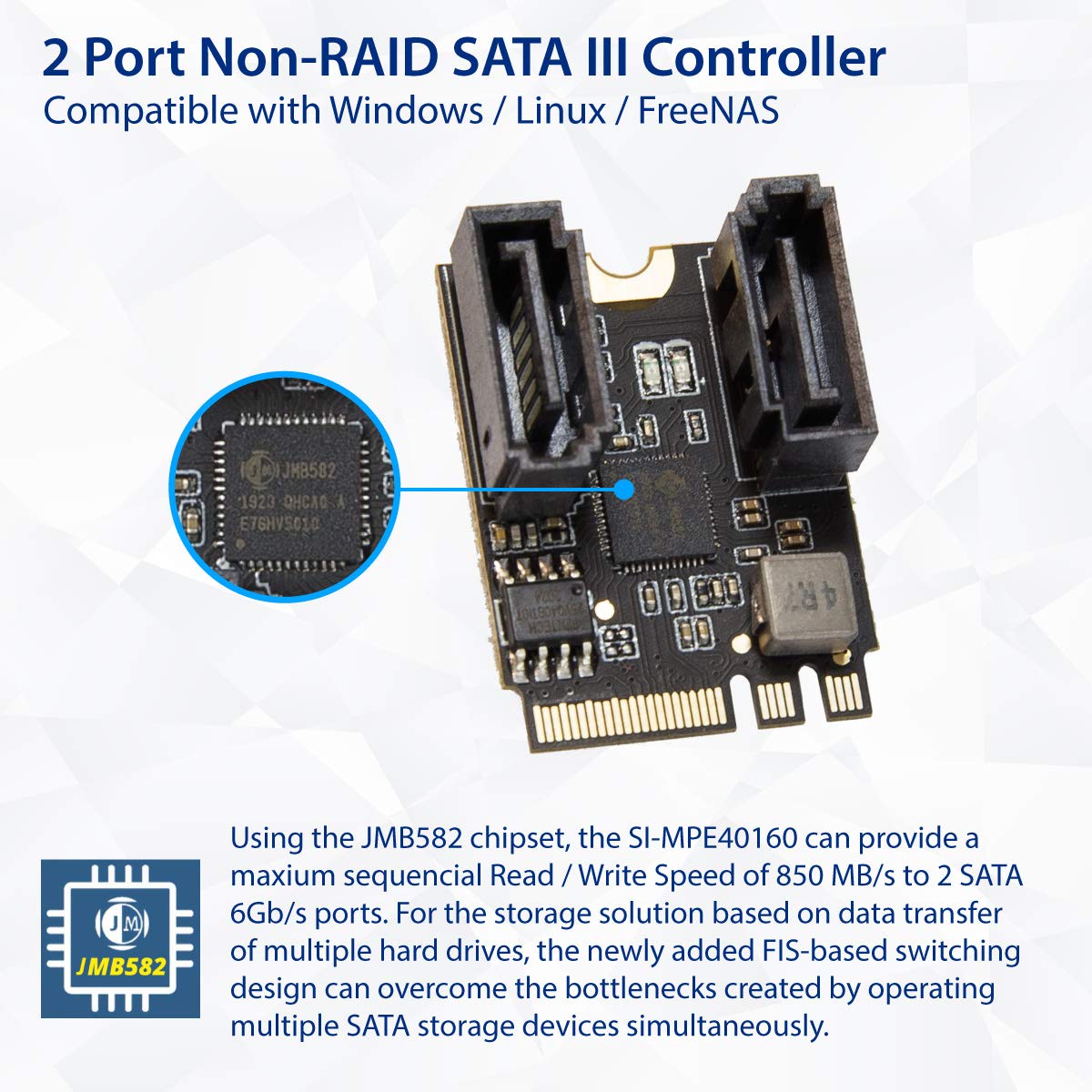

The IO Crest full height MiniPCIE to SATA III 2 ports card (SI-MPE40160 ) is the easiest way to update any computer with SATA ports with a free M.2 A+E Key 2230 mm slot. Once installed, this host card will add SATA ports with two independent channels. This allows support of two SATA devices at speeds of up to 6Gb/s whether it is a SATA hard drive or SATA device. Using the JMB582 chipset, theSI-MPE40160 can provide a maxium sequencial Read / Write Speed of 850 MB/s to 2 SATA 6Gb/s ports. For the storage solution based on data transfer of multiple hard drives, the newly added FIS-based switching design can overcome the bottlenecks created by operating multiple SATA storage devices simultaneously.
