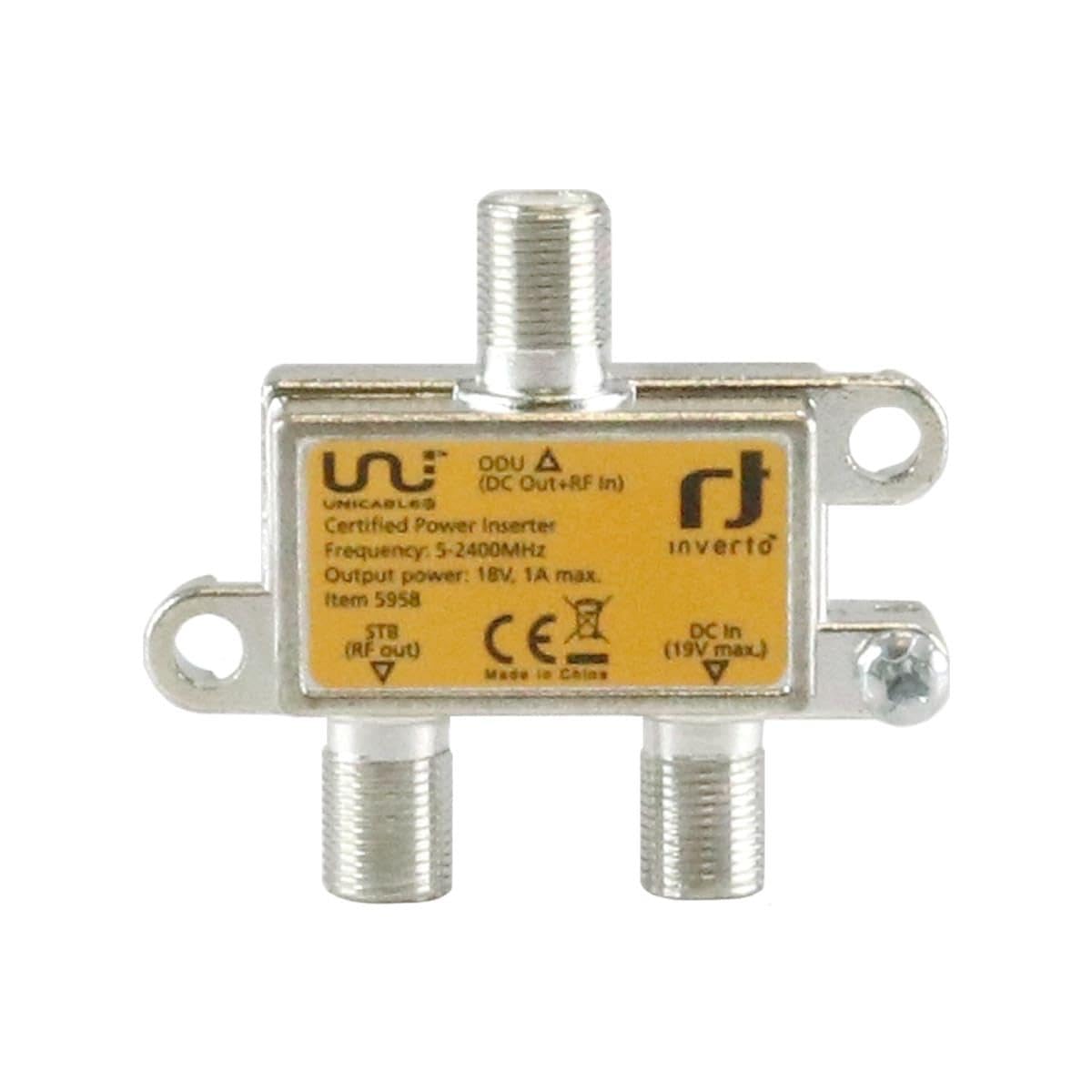

Inverto Unicable II Power Inserter 5-2400 MHz with Power Supply

• Frequency range: 5 - 2400 MHz.
• Voltage input 19 V/1 A, 1 x F-connection.

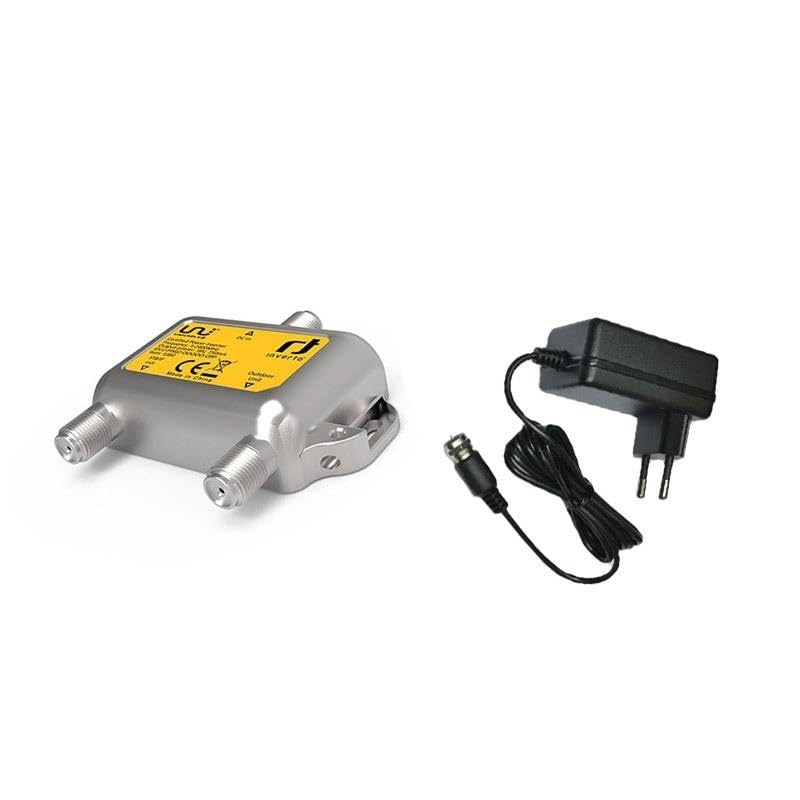

• Note: Comes with the power supply.
• Weight: 81 g.
• Dimensions: 65 x 75 x 17.3 mm.

This power inserter is designed for powering a Unicable II LNB or a multiswitch output port and the connected Quattro/Wideband LNB, should the connected STB be unable to provide the required power for the LNB/Multiswitch output port. A constant DC voltage is provided for the LNB/Multiswitch output port without straining the STB. The commands of the type DiSEqC / EN50494 / EN50607 are passed through to the LNB / Multiswitch output port. Technical data: Frequency range: 5 - 2400 MHz. Voltage input: 19 V, 1 A, 1 x F-connection. Input ODU 1 x F-connection. Output STB 1 x F-connection. Insertion loss 3 dB max. Input return loss -10 dB max. Output return loss -10 dB max. Maximum current: 750 mA. Operating temperature: -30 °C to +60 °C. Weight: 81 g. Dimensions: 65 x 75 x 17.3 mm. Note: without AC/DC power supply. Box contents: Unicable Power Inserter Power supply.
