insulation tester 1000v ◈ Resistance Meter, Akozon MS5203 Digital and Analog Display 50-1000V Insulation Resistance Tester Meter Automatic Calculation-AC and DC voltage Tester

• 【Measurement Mode】Gear selection, you can choose the measurement range you want, so you can use it in many situations. Powered by 6 AA batteries (NOT included). This earth resistance tester also has a maximum/minimum/average measurement function. It can also be used for AC/DC voltage measurement and continuity testing. Automatic calculation of PI (polarization index) and DAR (dielectric absorption ratio).
• 【High Quality Material】This PM 5203 Earth Resistance Tester is a professional instrument for detecting the earth resistance of electrical equipment. Upgraded from the traditional soil resistance meter with its circuit, structure and techniques. Now as fashionable, accurate and easy to use. Thanks to the robust housing and the compact internal structure, this resistance meter offers the perfect properties for drop resistance and super long life.
• 【Easy Reading】This digital megohm meter features a large digital LCD and a backlight on the meter that allows users to read the information on the LCD. Large Screen High Definition Backlight: Press the backlight button to turn on or off the backlight. And this earth resistance tester display: has analog bar and digital dual display function. Under voltage display. This ground resistance

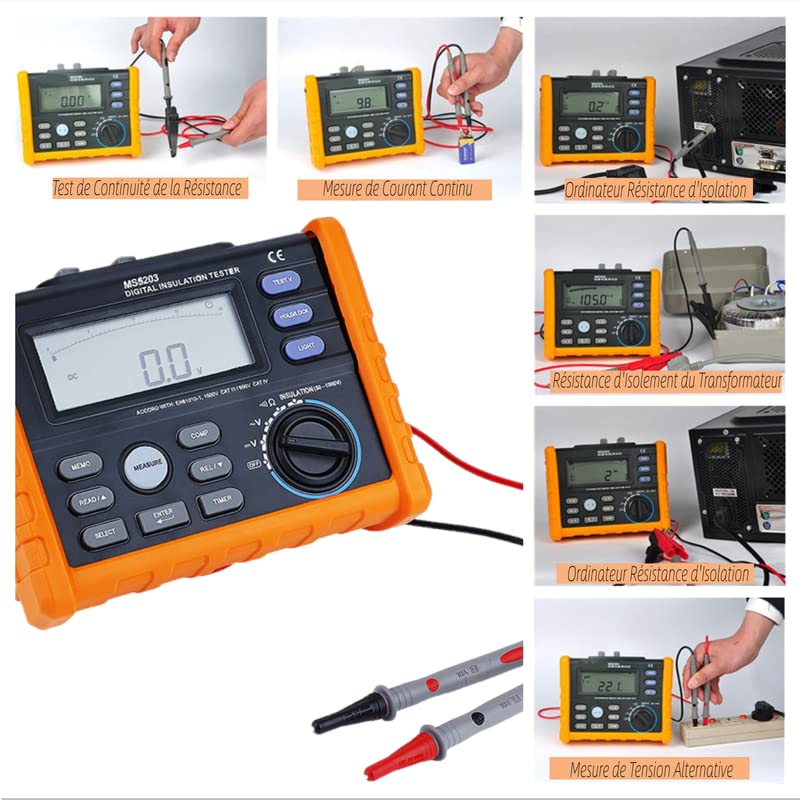

• 【Widely used】 Resistance meter is small and easy to carry. Applicable to shops, postal, railway, roommates, chemical, communications, mining and other departments to measure the earth resistance of various equipment, such as: B. for high voltage tower measurements, grid earth measurements and rod measurements. Check the insulation of high voltage electrical equipment such as motor, transformer, cable, etc.

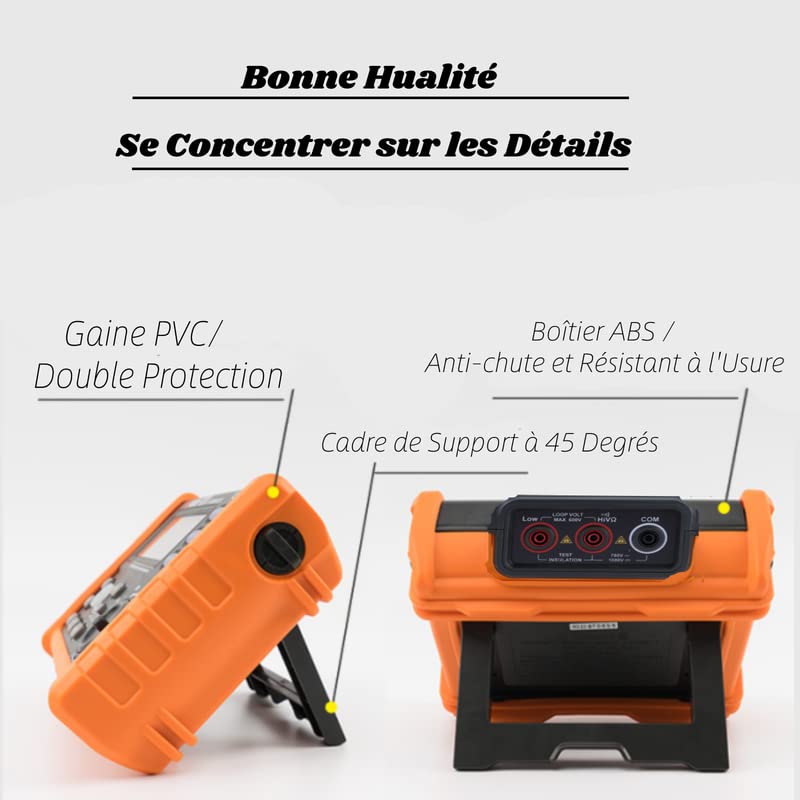

• 【Excellent Alignment】This earth resistance tester has double insulation for safer measurements. The card-like protective cover is tightly connected to the meter, so the meter is non-slip and anti-drop. The meter can store up to three 28 groups of measurement data. Lockout function: lockout data during insulation test. Timing Function: Timing function during insulation test. Automatic discharge: the meter discharges

Specification: Technical Parameter Insulation Test: Output Voltage:50V(0 %~+20%) ,Measuring Range:0.01MΩ~50MΩ ±(3%+5) Output Voltage:100V (0%~+20%),Measuring Range:0.01MΩ~100MΩ ±(3%+5) Output Voltage:250V (0%~+20%),Measuring Range:0.01MΩ~250ΩM ±(3%+5) Output Voltage:500V (0%~+20%),Measuring Range:0.01MΩ~500MΩ ±(3%+5), 1.00GΩ~5.00GΩ±(5%+0.1GΩ) Output Voltage:1000V (0%~+20%) ,Measuring Range:5.00GΩ~10.00GΩ±(10%+0.2GΩ) Multimeter Functions DC Voltage Test :Measuring Range:0.1~1000V±0.5% AC Voltage Test:Measuring Range:0.1~50V±1% Continuity Test:Measuring Range:0.01Ω~200Ω±0.5% Short Circuit Current:1.8mA Characteristics Auto Calculate PI and DAR Data Storage/Loading Data Comparision Auto Discharge for Capacitive Load Timer Function for Insulation Test Lock Function For Insulation Test Low Battery Indication DC/AC Voltage Test Continuity Test Auto Power Off Digital and Analog Display General Parameter Model :PM5203 Power Supply :6 x 1.5V AA Batteries (NOT included) Item Size :19*15*7cm / 7.48*5.91*2.76in Weight Approx.:1977g Safety Rating :CE CAT.III 1000V CAT IV 600V RoHS Package Includes: 1 x PM5203 Digital Insulation Tester 1 x User Manual 2 x Alligator Clips 2 x Test Leads 1 x Hand Bag 1 x Sling
