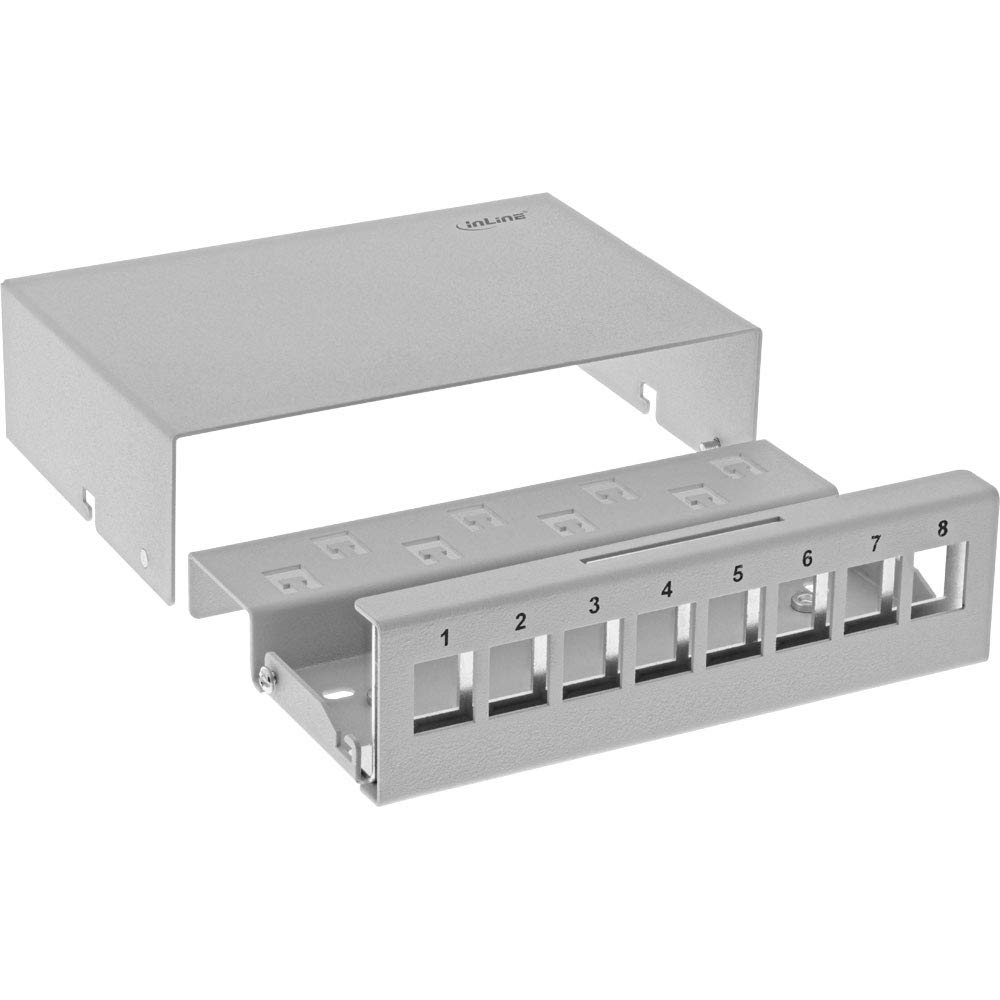

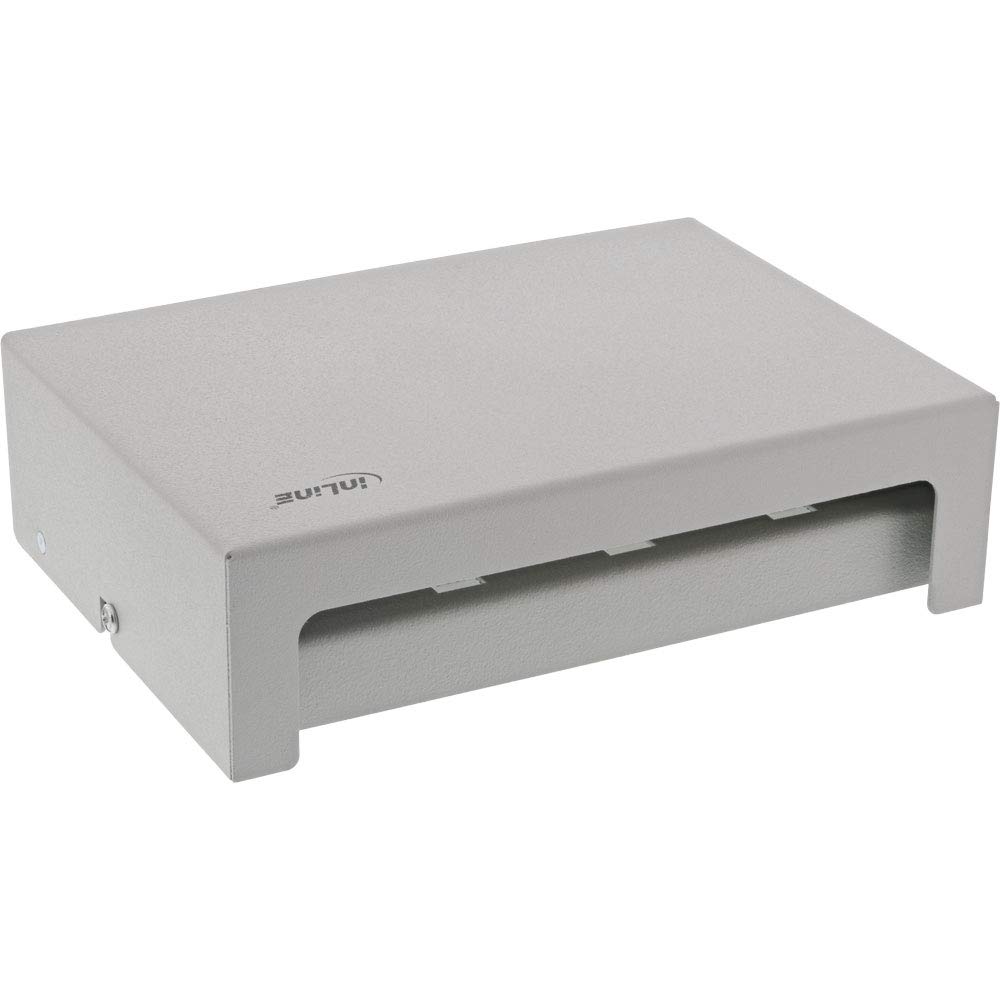

InLine® Surface-Mounted Patch Panel Socket for 8X Keystone RJ45 Metal Light Grey RAL7035

• No need to disassemble the consolidation point box during the installation of the DIN rail card.
• The Desk Mounted Consolidation Point field has two levels. This means that the modules are positioned flush with the front plate.
• Suitable for installing 8 RJ45 Keystone modules
• Robust steel housing with cable management
• Reserved earth wire connection screw
• Keystone modules are not included
• Front standard cut-out: 8 modules

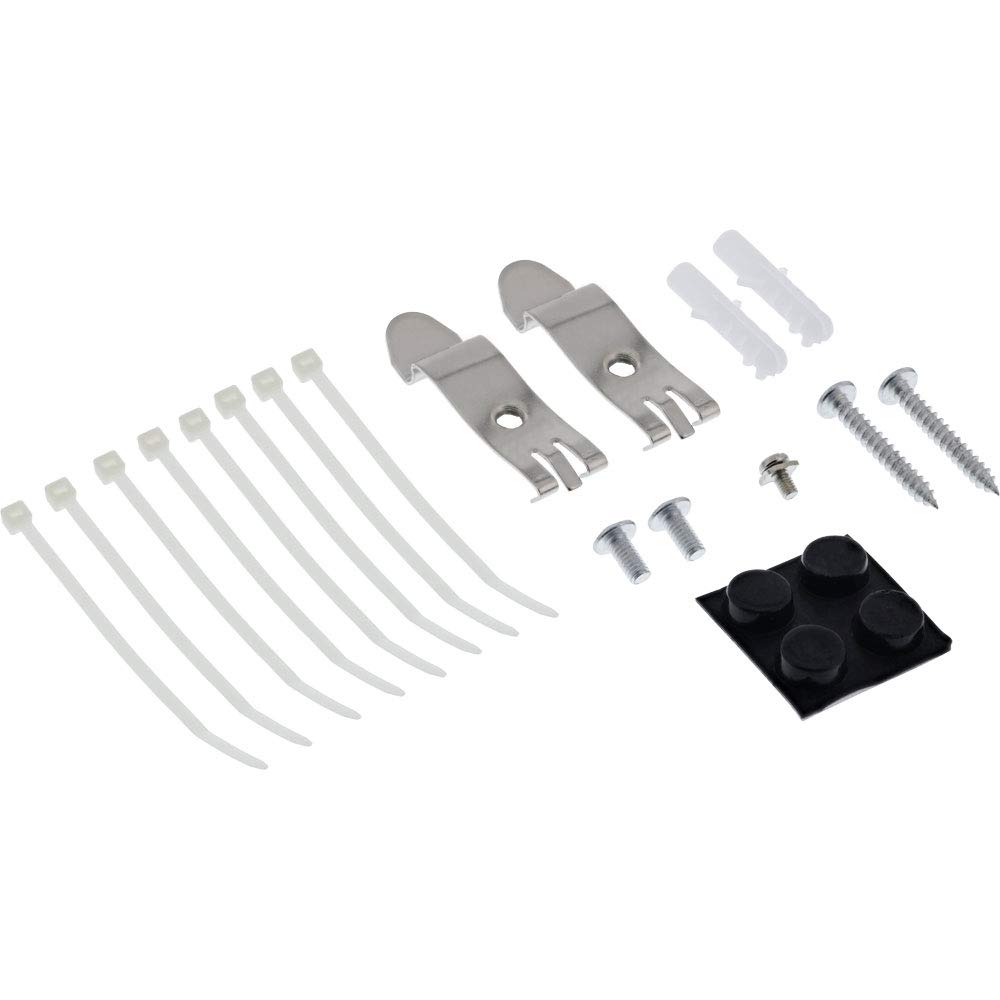

InLine® patch panel box surface-mounted for 8x keystone RJ45, metal, light grey RAL7035 desk mounted consolidation point box for RJ45 keystone modules, for use as consolidation panel, direct mounting or mounting on DIN top rails in electrical distribution systems. No need to disassemble the consolidation point box during the installation of the DIN rail card. The Desk Mounted Consolidation Point field has two levels. As a result, the modules are positioned flush with the front plate. Suitable for installing 8 RJ45 keystone modules. Robust steel housing with cable management. Reserved ground wire connection screw. Mounting material and keystone modules are not included. Front standard cut-out: 8 modules. Back: cable clamps. Housing material: SPCC steel. Cable attachment: via cable ties. Surface treatment: plastic powder coating. Operating / storage temperature: -40~+70? Operating / storage humidity: 10% ~ 85% connection class: IP20 included. Clip for top-hat rail mounting
