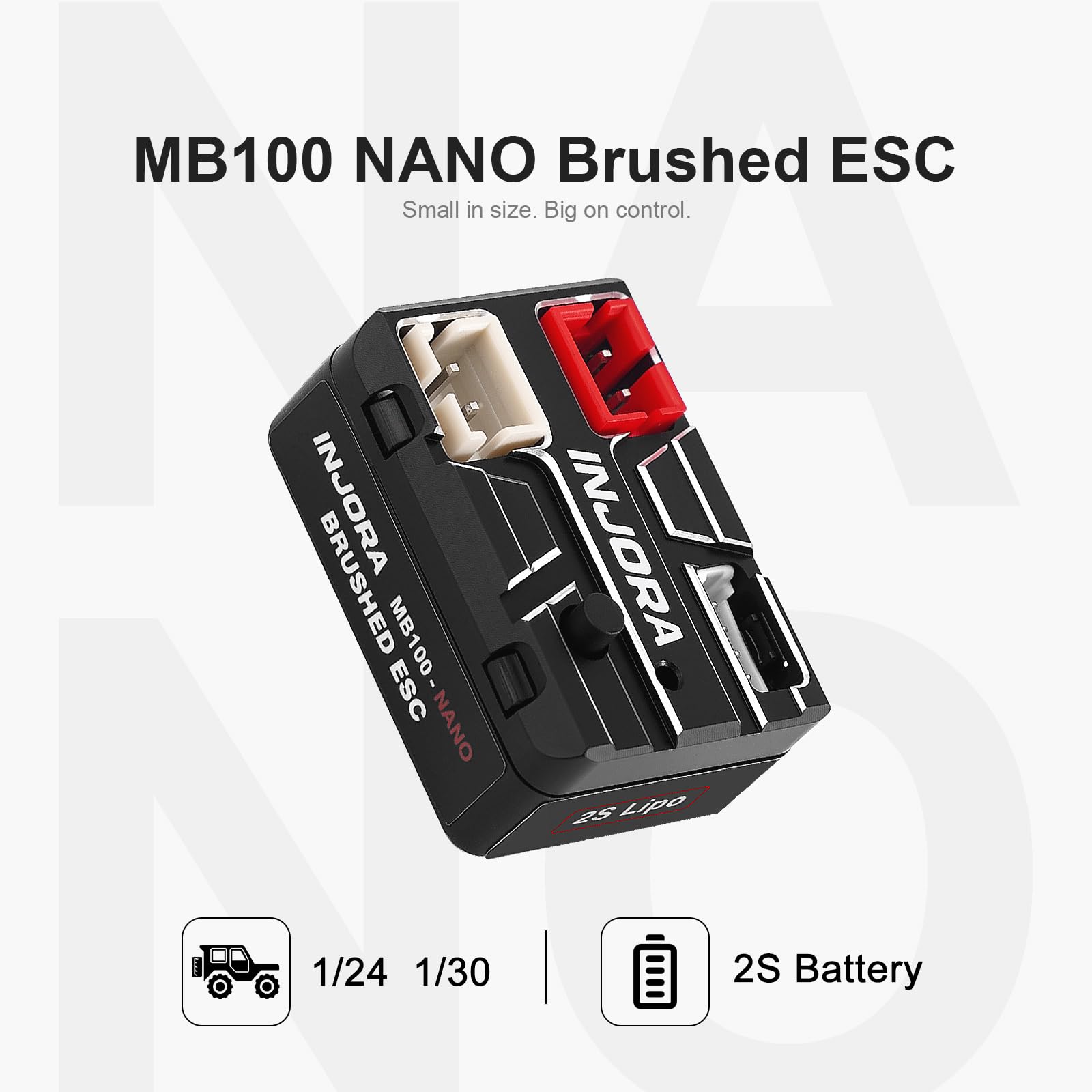

INJORA RC MB100 NANO Waterproof Brushed ESC 15A for SCX24 SCX30 1/24 1/30 1/32 RC Crawlers

• Note: No app support. Drag brake can be adjusted via the AUX channel. Compatible with SCX24, SCX30, etc. Not compatible with 370-size motors.
• IP67 waterproof design: Fully waterproof design to adapt to various climate conditions.
• Linear Throttle Control: An optimized control algorithm ensures consistent linear throttle response.
• AUX Mapping Function: Drag brake force is adjustable via the AUX channel. The signal range of 1000–2000μs corresponds to 0–100% drag brake force.
• Multiple protections: Low Battery / Undervoltage Protection: Issues a warning and limits power output when the battery voltage drops below the set threshold.
• Overheat Protection: Issues a warning and cuts off power output when the ESC temperature reaches the preset limit.
• Overvoltage Protection: Issues a warning and significantly limits or cuts off power output when the input voltage exceeds the ESC’s rated voltage range.
• Throttle Signal Loss Protection: Applies braking immediately when the receiver’s PWM signal continuously deviates from the normal range or is lost, preventing a runaway condition.

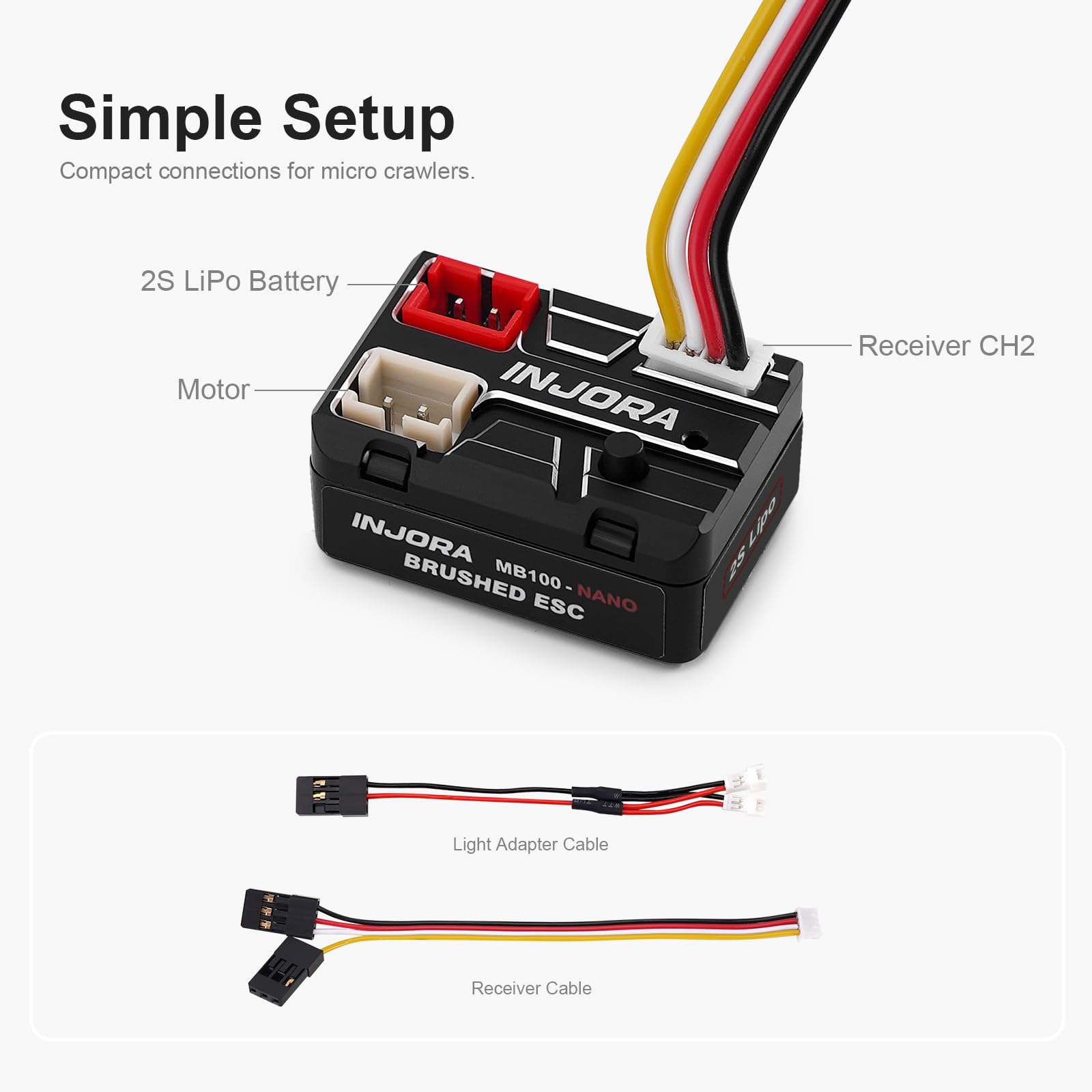

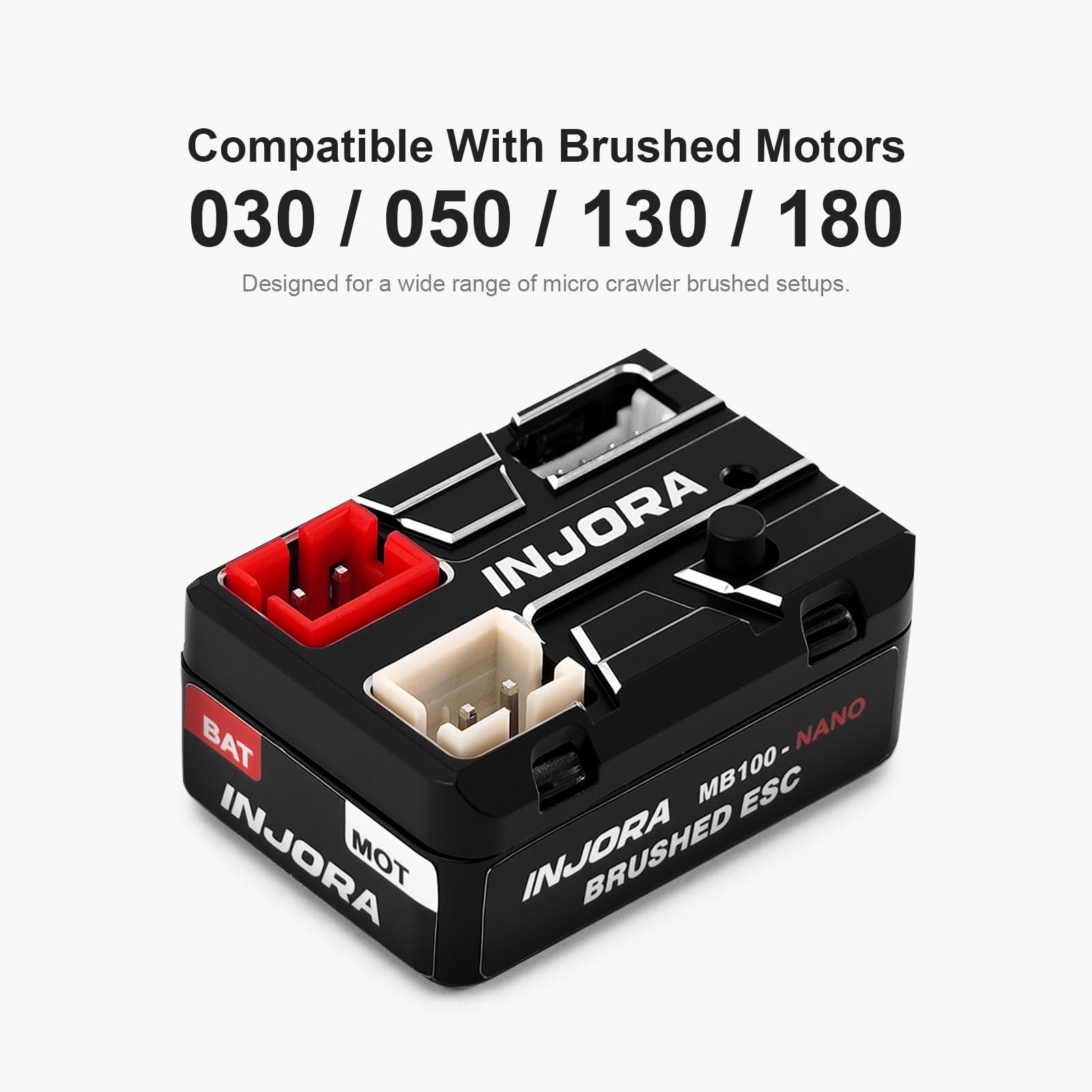

Product description Specifications: Model: MB100 NANO Continuous / Peak Current: 15A / 40A Motor Type Support: Brushed Motor (030 / 050 / 130 / 180) Main Applicable Scales: 1:32 / 1:30 / 1:24 Battery Cells: 2S LiPo BEC Output: 5.6V / 3A Size: 23×16.5×10.3mm Weight: 5.2g Package List: 1 × MB100 NANO ESC 1 × Receiver Connect Cable (JR Plug) 1 × Light Adapter Cable (JR Plug to JST-PH 2.0 Male) 1 × Instruction Manual Safety Warning Note: Suitable for over 14 years old. If the product has quality problems within 30 days, you can contact us, we will provide good after-sale service.
