INJORA Brushed Mini ESC 20A for 1/24 1/18 RC Crawler SCX24 AX24 TRX4M FCX24 FCX18 Upgrade (V3)

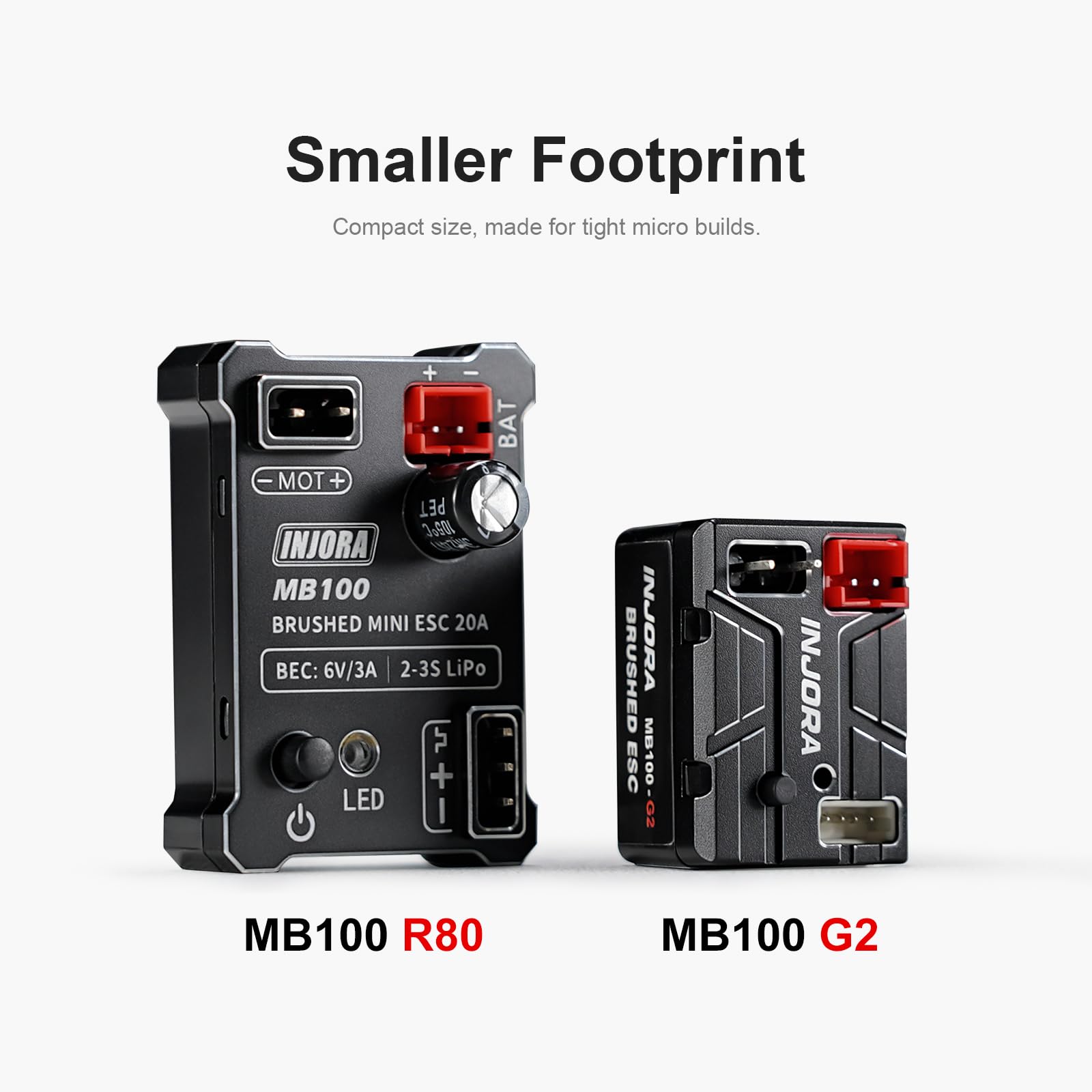

• More Compact Design: Smaller footprint for easier installation.
• App-Based Tuning: Adjust parameters via mobile app for a more customizable setup.

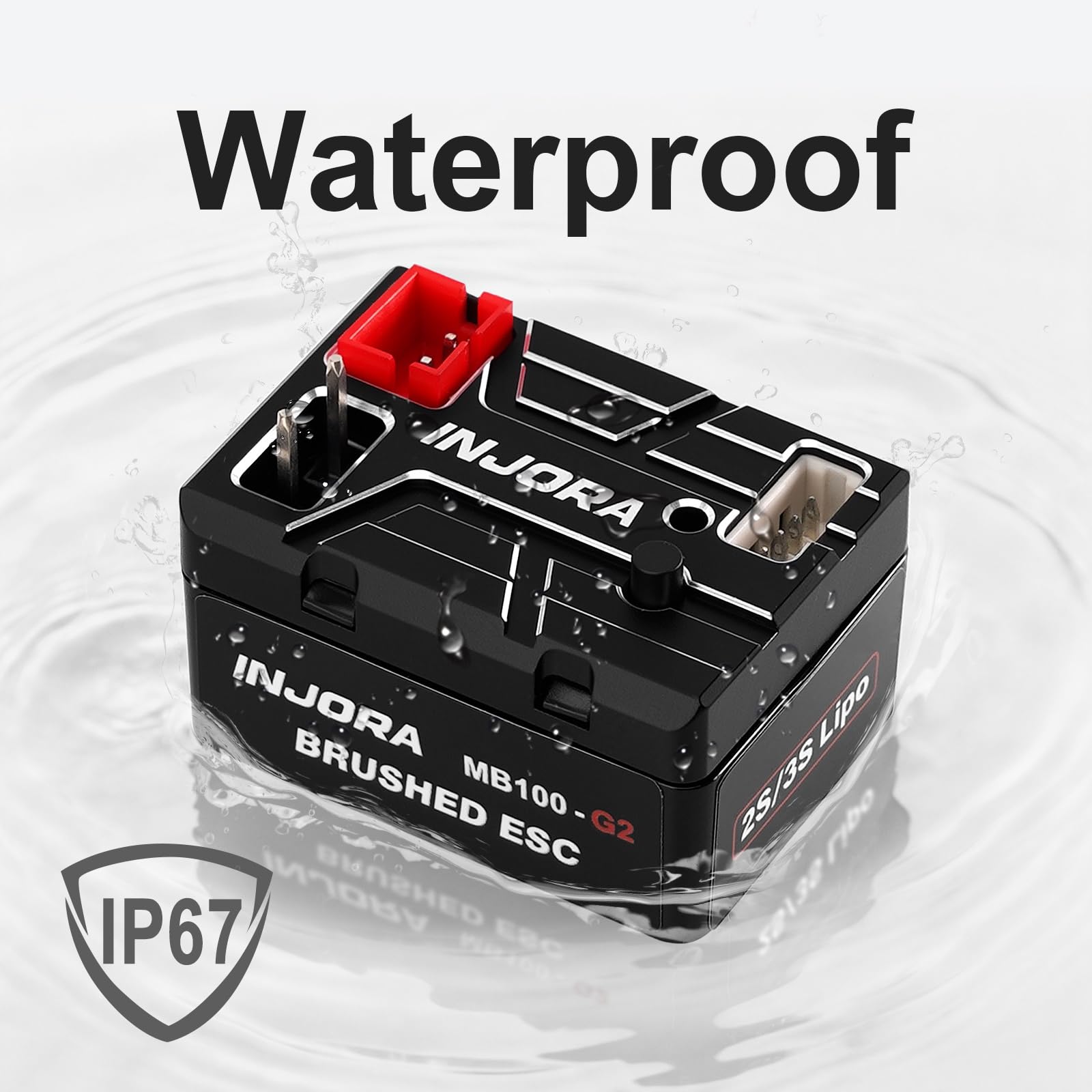

• IP67 waterproof design: Upgraded sealing for reliable performance in wet conditions. Fully waterproof design to adapt to various climate conditions. Note: After immersion, promptly clean and dry the ESC to prevent connector oxidation.

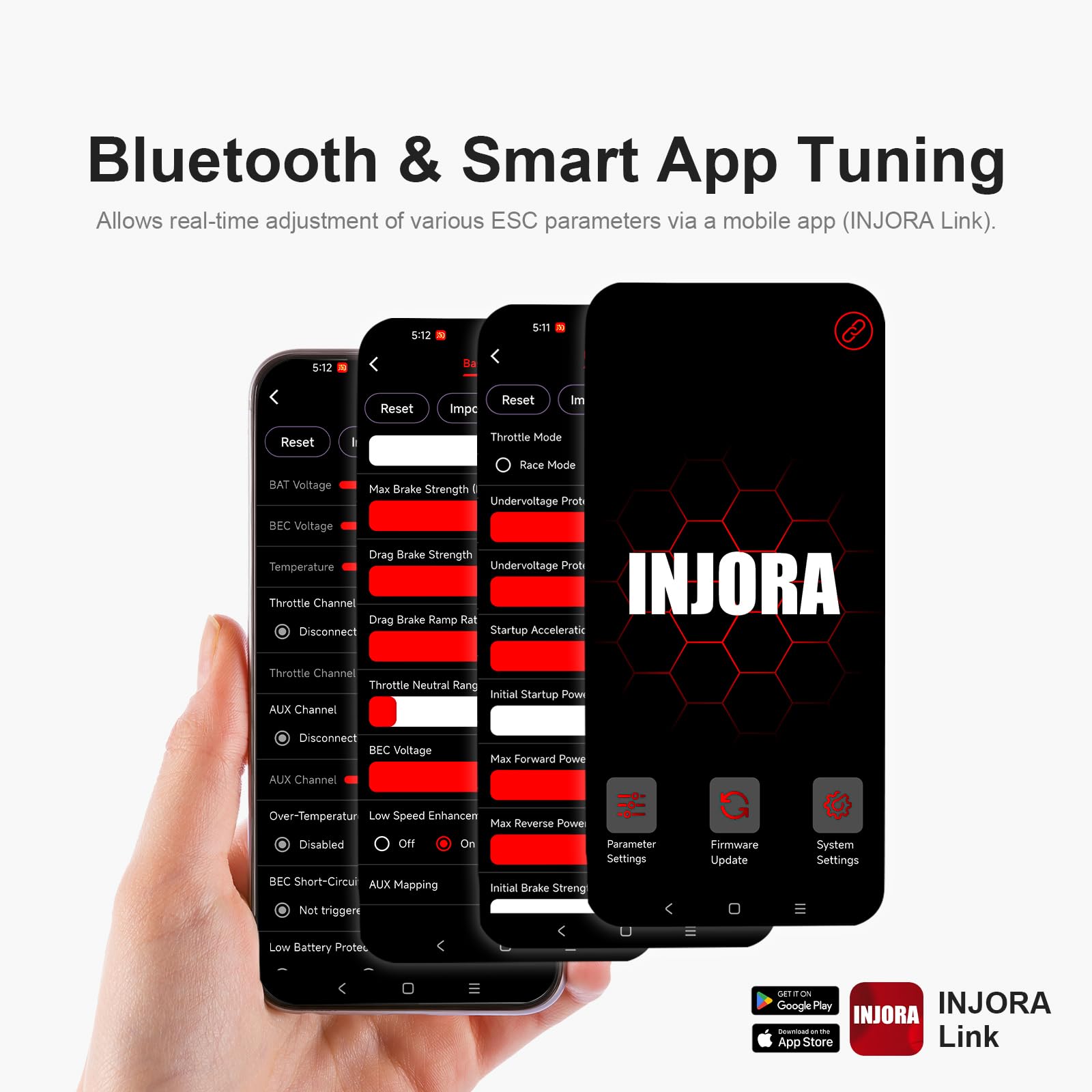

• Supports Bluetooth programming: Allows real-time adjustment of various ESC parameters via a mobile app (INJORA Link).
• Supports AUX parameter adjustment: Features AUX parameter adjustment via the auxiliary channel, allowing parameters to be mapped and adjusted in the app.
• Low Battery/Undervoltage Protection: Issues a warning and limits power output when the battery voltage drops below the set threshold.
• Overvoltage Protection: Issues a warning and significantly limits or cuts off power output when the input voltage exceeds the ESC's rated voltage range.
• Throttle Signal Loss Protection: Applies braking immediately when the receiver’s PWM signal continuously deviates from the normal range or is lost, preventing a runaway condition.

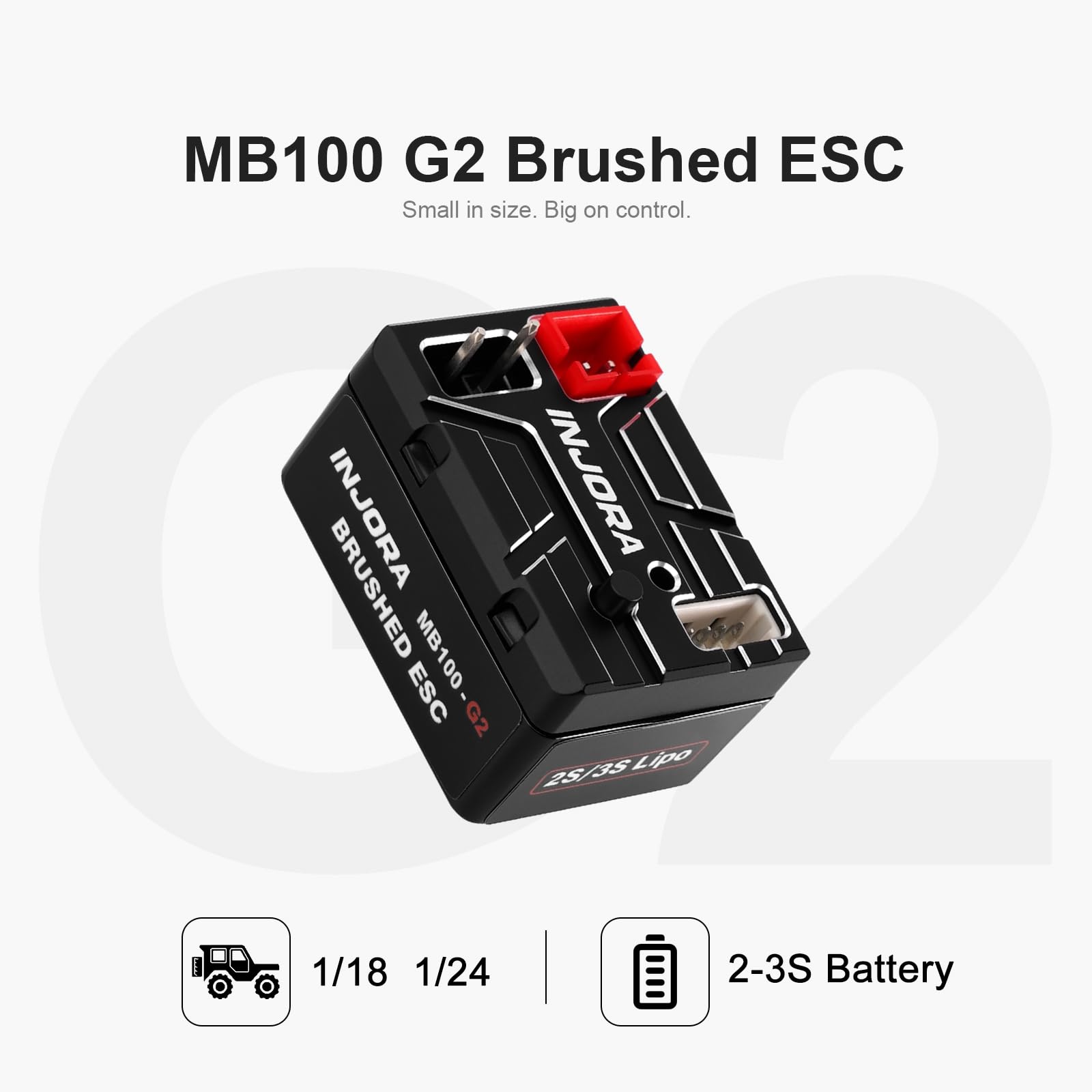

Product description Specifications: Model: MB100 G2 Waterproof: Yes Continuous / Peak Current: 40A / 100A Motor Type Support: Brushed Motor (030 / 050 / 130 / 180 / 370) Main Applicable Scales: 1:18 / 1:24 Battery Cells: 2–3S LiPo BEC Output: 3.0–8.4V, Continuous 3A / Peak 6A Size: 25.2×18.3×14.0mm Weight: 10g Package List: 1 × MB100 G2 ESC 1 × Receiver Connect Cable (JR Plug) 1 × Motor Adapter Cable (Female TRX4M to Male JST-PH 2.0) 1 × Battery Adapter Cable (Female JST-PH 2.0 to Male TRX-4M) 1 × Instruction Manual Safety Warning Note: Suitable for over 14 years old. If the product has quality problems within 30 days, you can contact us, we will provide good after-sale service.
