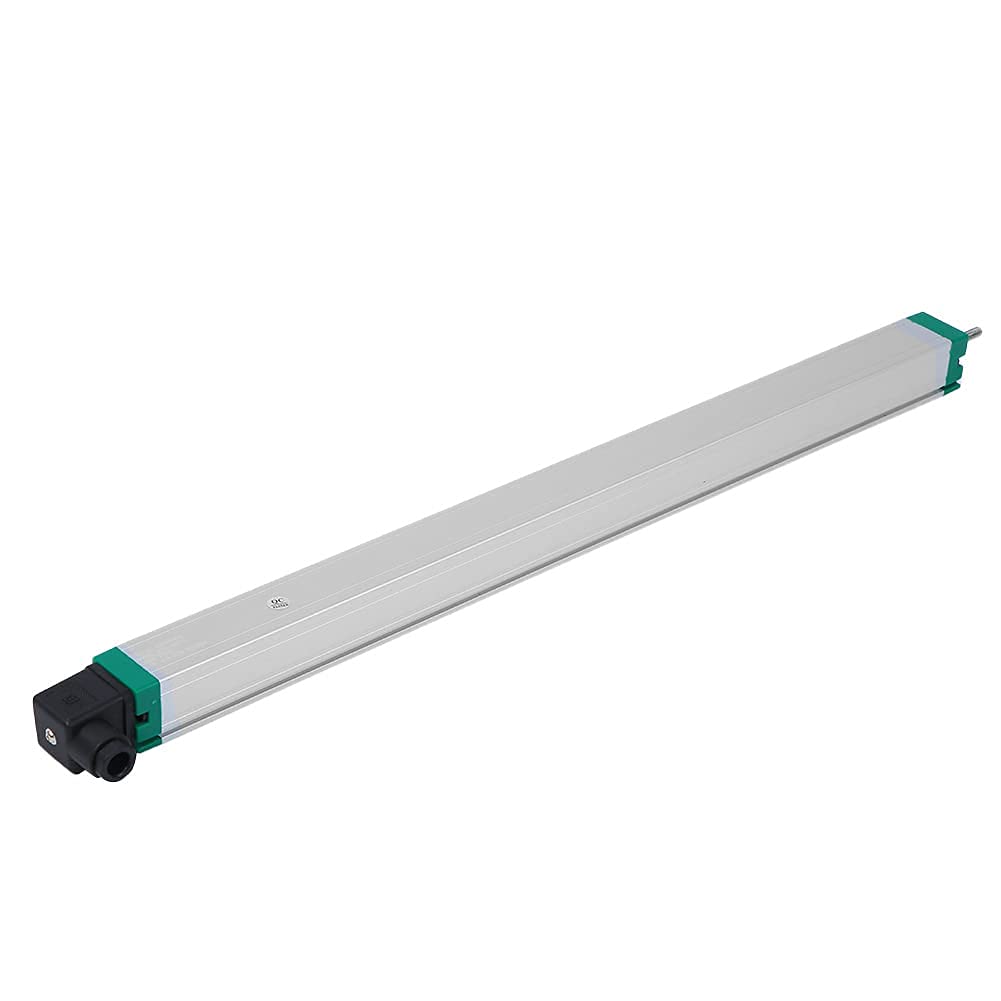

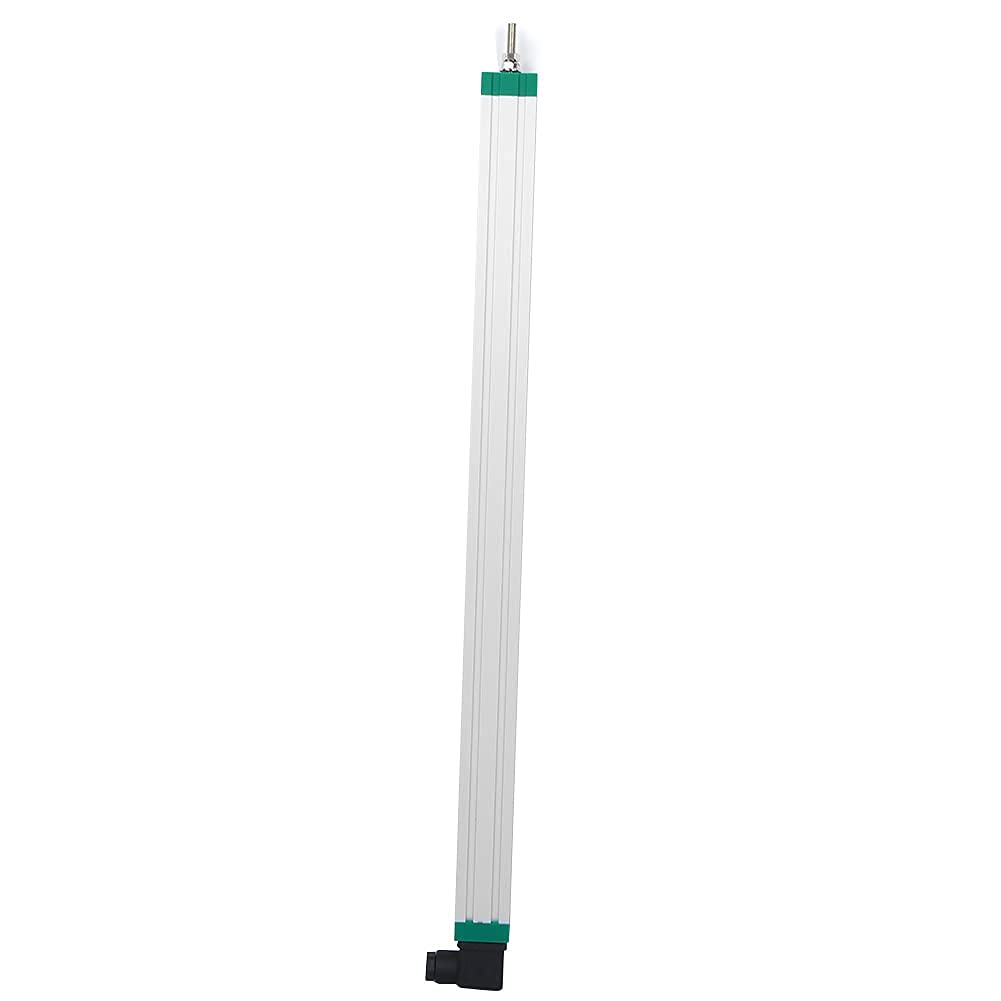

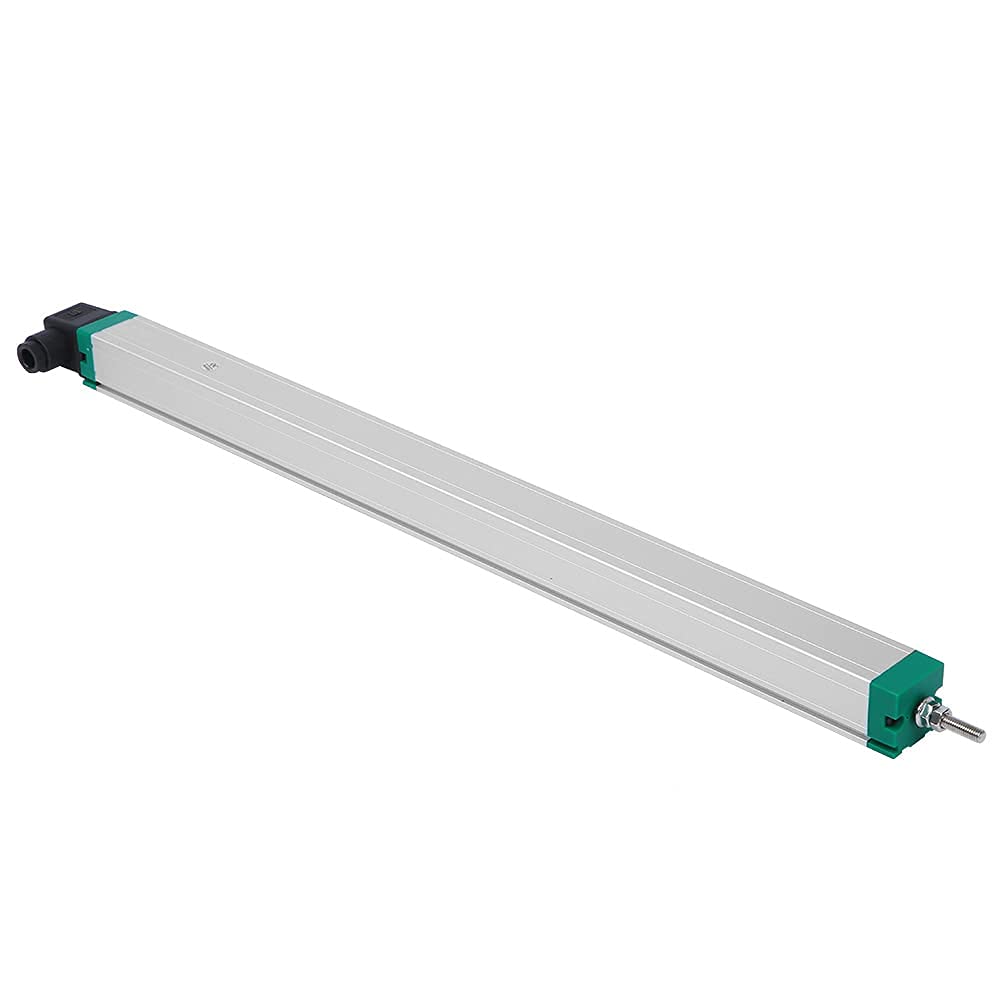

Injection Molding Electronic Ruler Pull Rod Displacement Sensor Stainless Steel Linear Position Sensor Universal Hardware Parts(KTC-450)

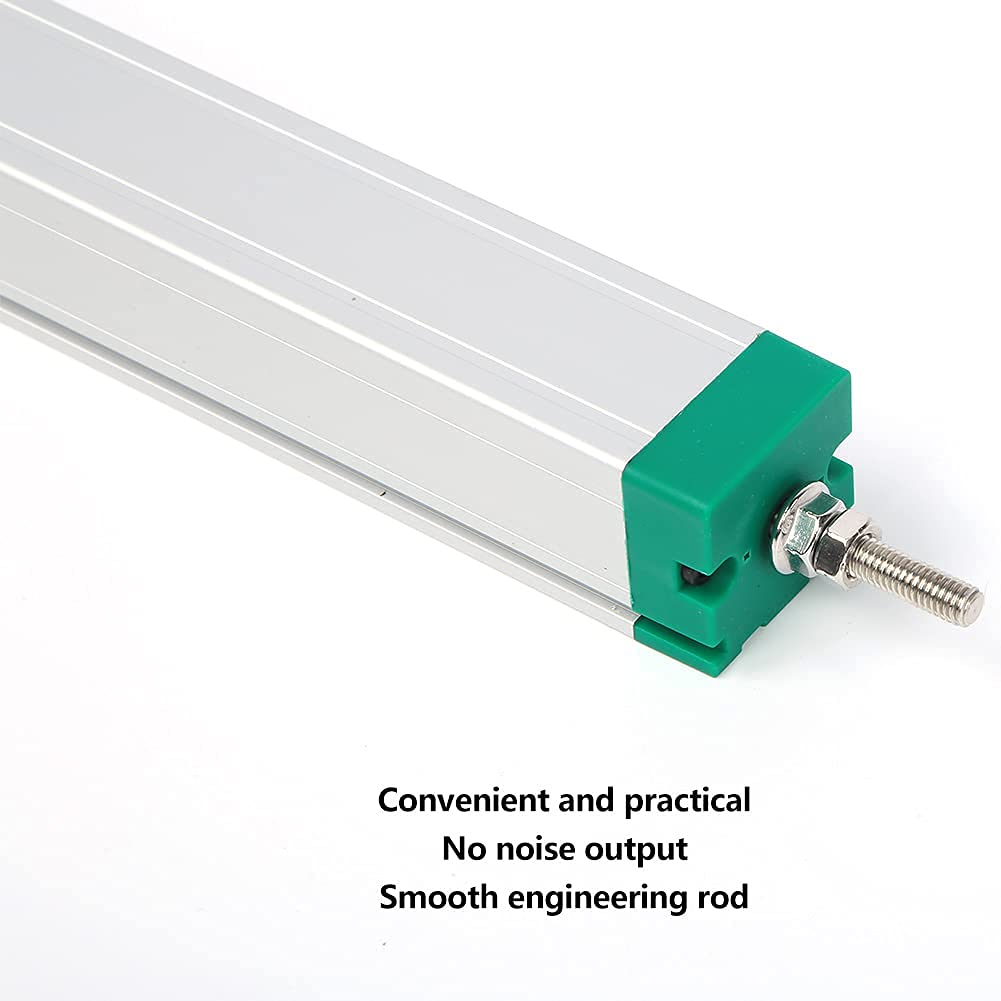

• PRACTICAL: This electronic ruler adopts plug type, convenient and practical, no noise, with smooth output engineering rod, resolution: Infinite uninterrupted analysis, repeatability: 0.01mm.

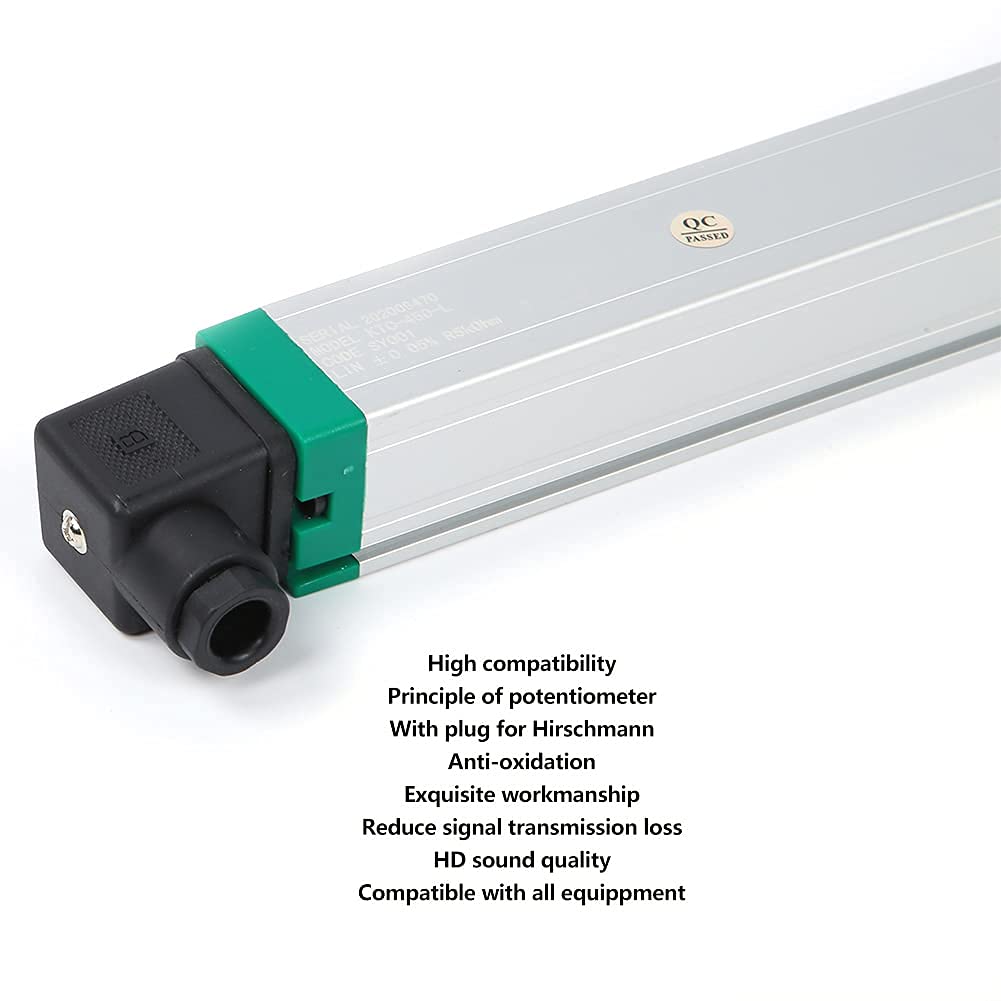

• ANTIOXIDANT TREATMENT: The injection molding electronic ruler adopts plug for Hirschmann to resist oxidation, corrosion, and durability; the displacement sensor is exquisite workmanship, which can reduce transmission loss.
• MULTI-DEVICE COMPATIBLE: This displacement sensor supports high-definition sound quality, is compatible with all devices, has a wide range of uses, and has strict performance requirements through the precise processes of many experts.
• GOOD PERFORMANCE: The sensor has high compatibility, adopts the potentiometer principle, and will change with displacement when the given input voltage is 0-100%, with stable performance and fast response.
• PRODUCT PARAMETERS: The product is made of stainless steel, not easy to rust, long service life, the maximum load of the rod can reach 50KG, can be widely used according to demand

Specification: Item Type: Electronic ruler Product Material: Stainless steel Product Model: KTC-450 / KTC-650 (optional) Electrical Stroke: Range + 3mm Resolution: Infinite uninterrupted analysis Repeatability: 0.01mm Normal Working Current of Sliding Brush: ≤10μA The Maximum Current of Sliding Brush When Causing Fault: 10mA Maximum Allowable Working Voltage: 42V Effective Temperature Coefficient Ratio of Output Voltage to Input Voltage: Usually 5ppm / K Insulation Resistance (500VDC, 50Hz): ≥10MΩ Insulation Strength (500VAC, 50Hz): ≤100μA Shell Length (A): Range + 78.5mm Mechanical Stroke (B): Range + 8mm Maximum Load of Pull Rod: 50KG Work Force: Horizontal Direction: <10N Vertical Direction: ≤10N Vibration Resistance Standard: 5 ... 2000Hz, Amax = 0.8mm, amax = 20g Damper Resistance Standard: 50g, 11ms Operating Temperature Range: -60 ... + 150 ℃ Life:> 100 × 10 ^ 6 times Maximum Operating Rate: 10m / S, maximum operating acceleration 10m / s² Level: The highest IP67 (DIN40500 / IEC529) Package List: 1 x Displacement Sensor 1 x Plug 3 x Accessory 4 x Screw
