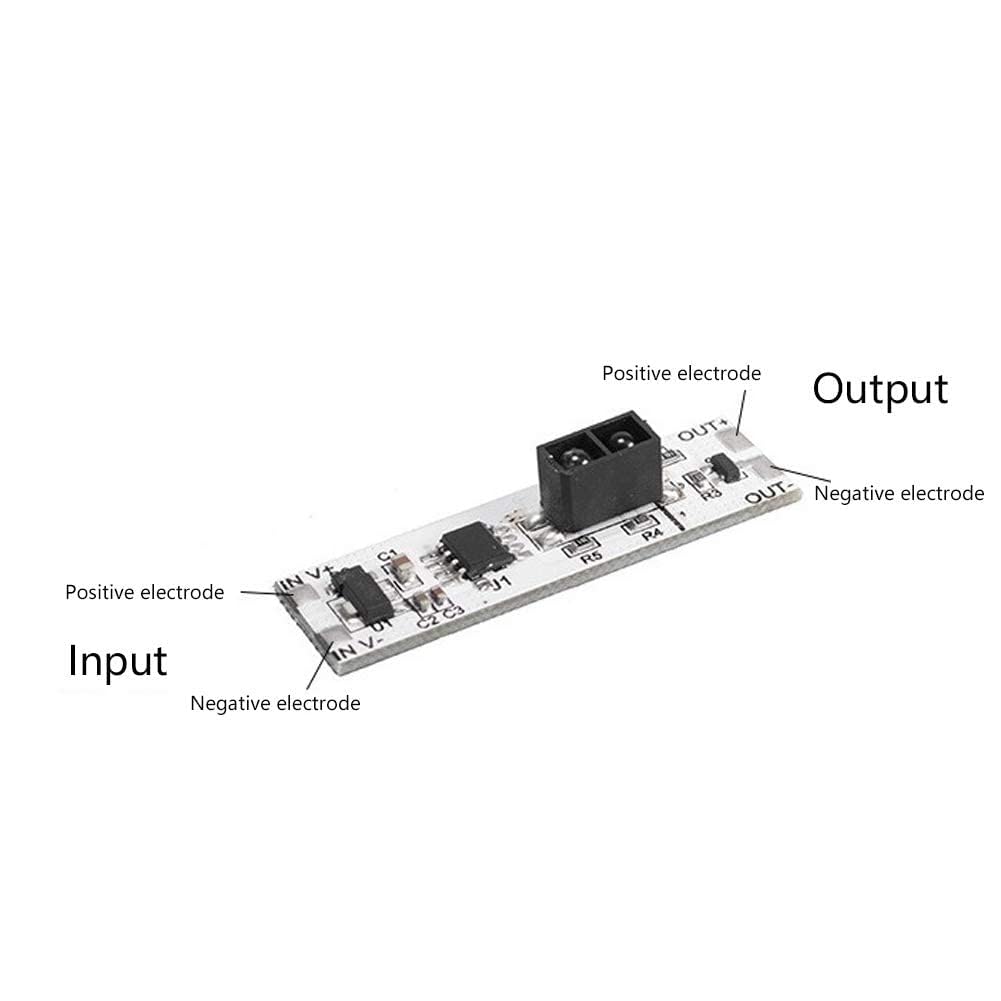

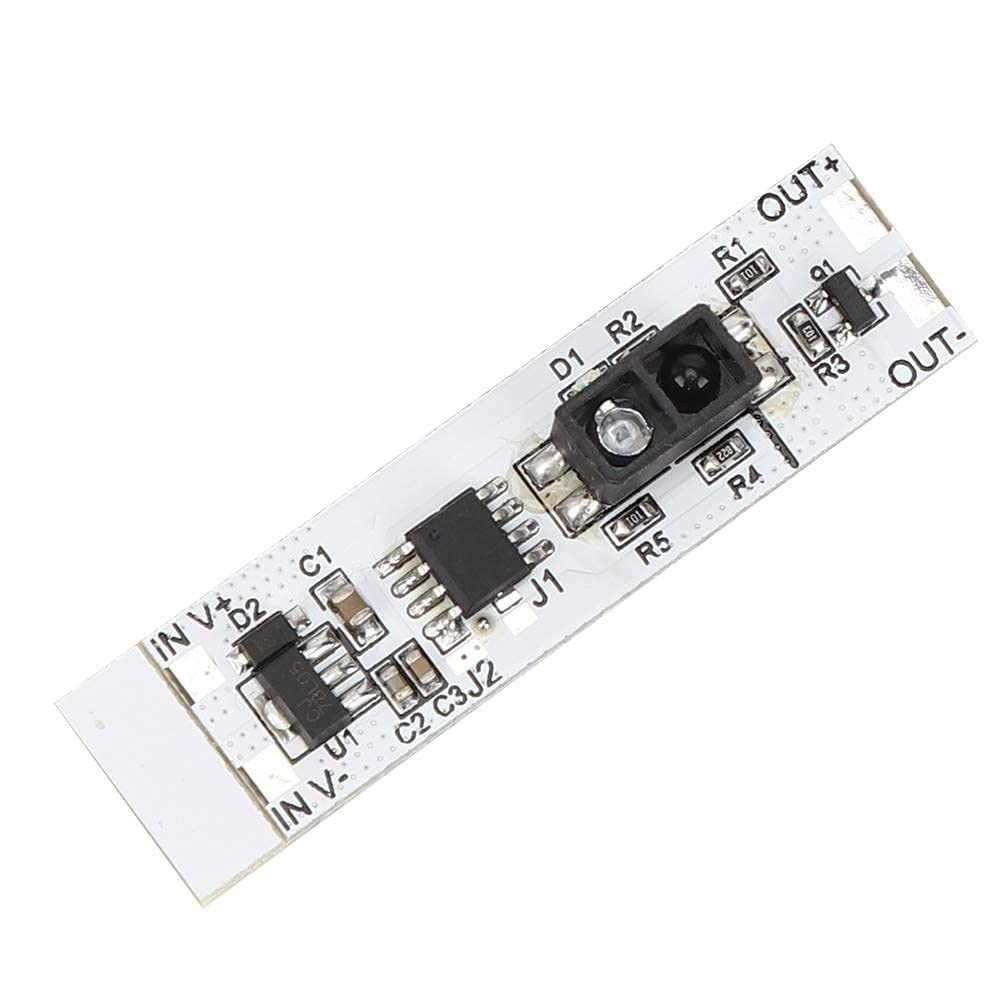

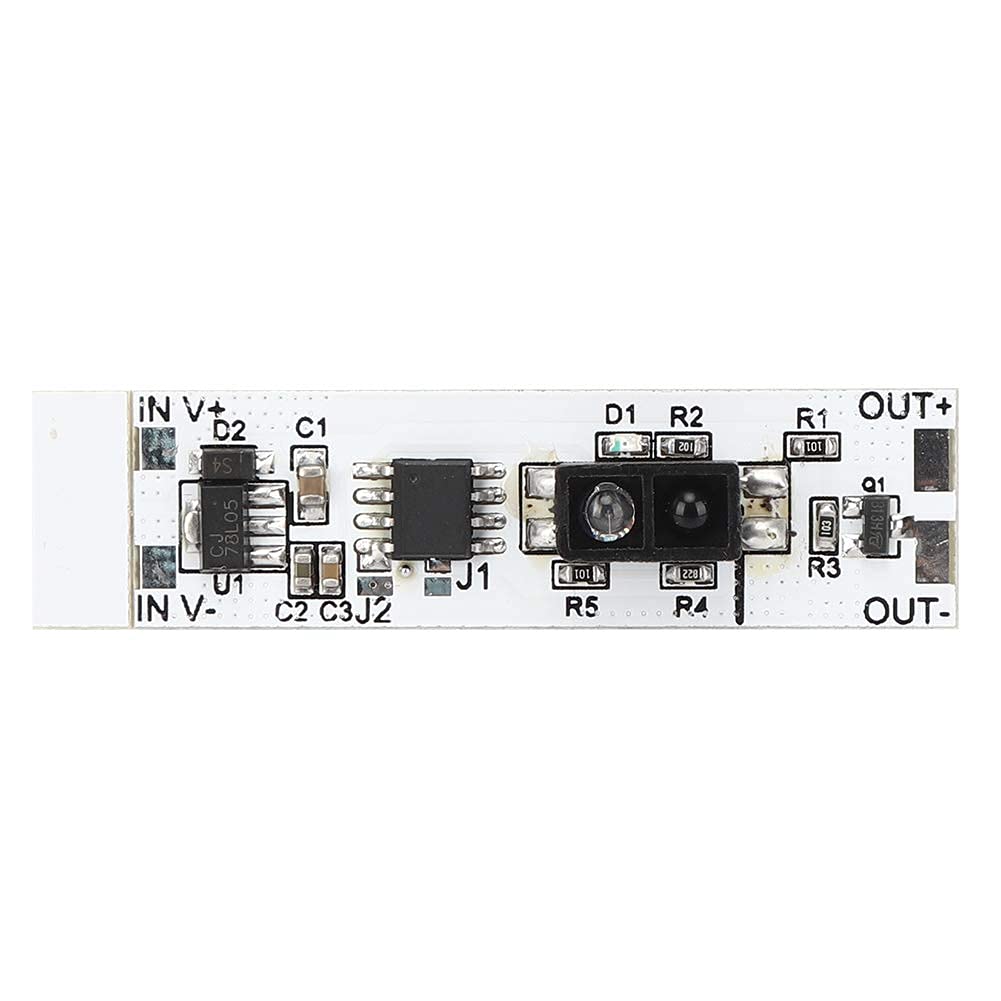

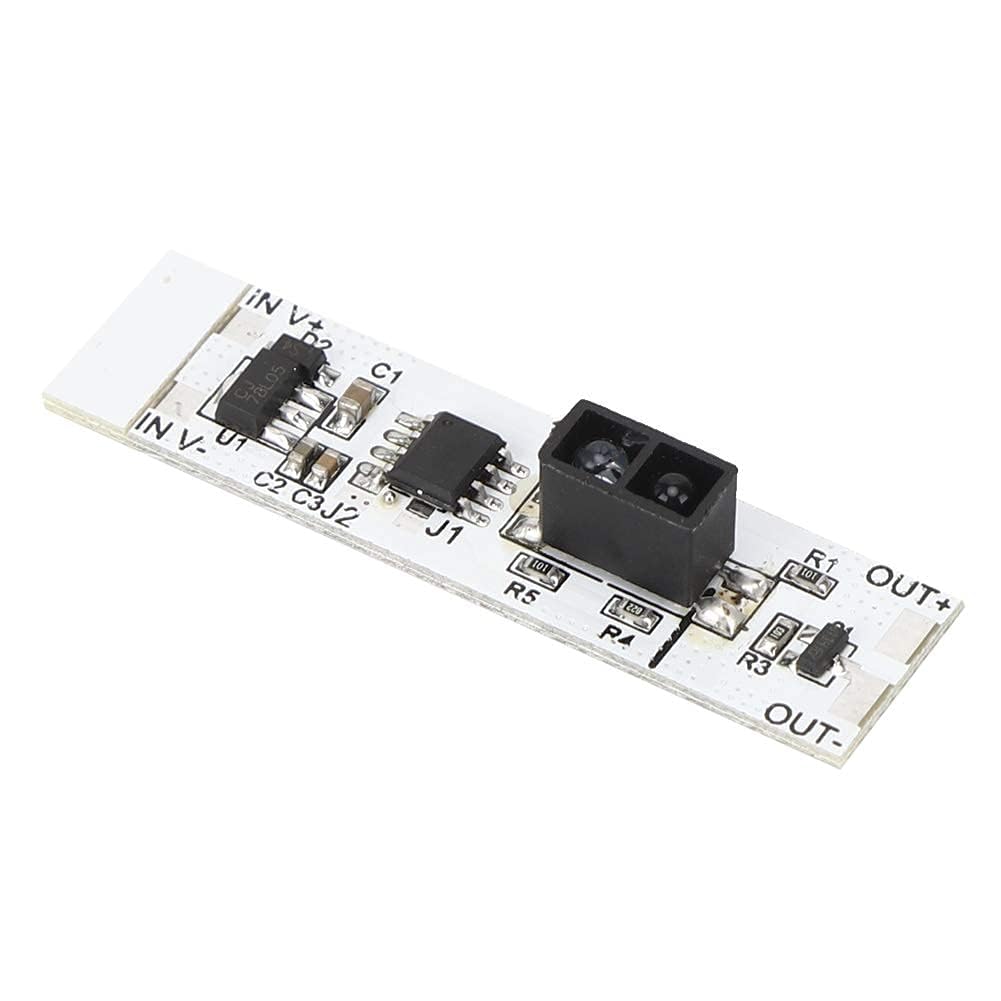

Infrared Reflection Sensor Switch Module Hand Sweep Function Infrared Tracking Sensor Motion Sensor Switch Module for LED Cabinet Lamp DC 5V-12V for 8A MOS Tube

• 【Material】The infrared reflective switch module is made of high-quality materials, easy to operate, and long service life
• 【Design】The design has sufficient margins to prevent the built-in aluminum groove lamp housing and avoid short circuit caused by the components touching the lamp housing

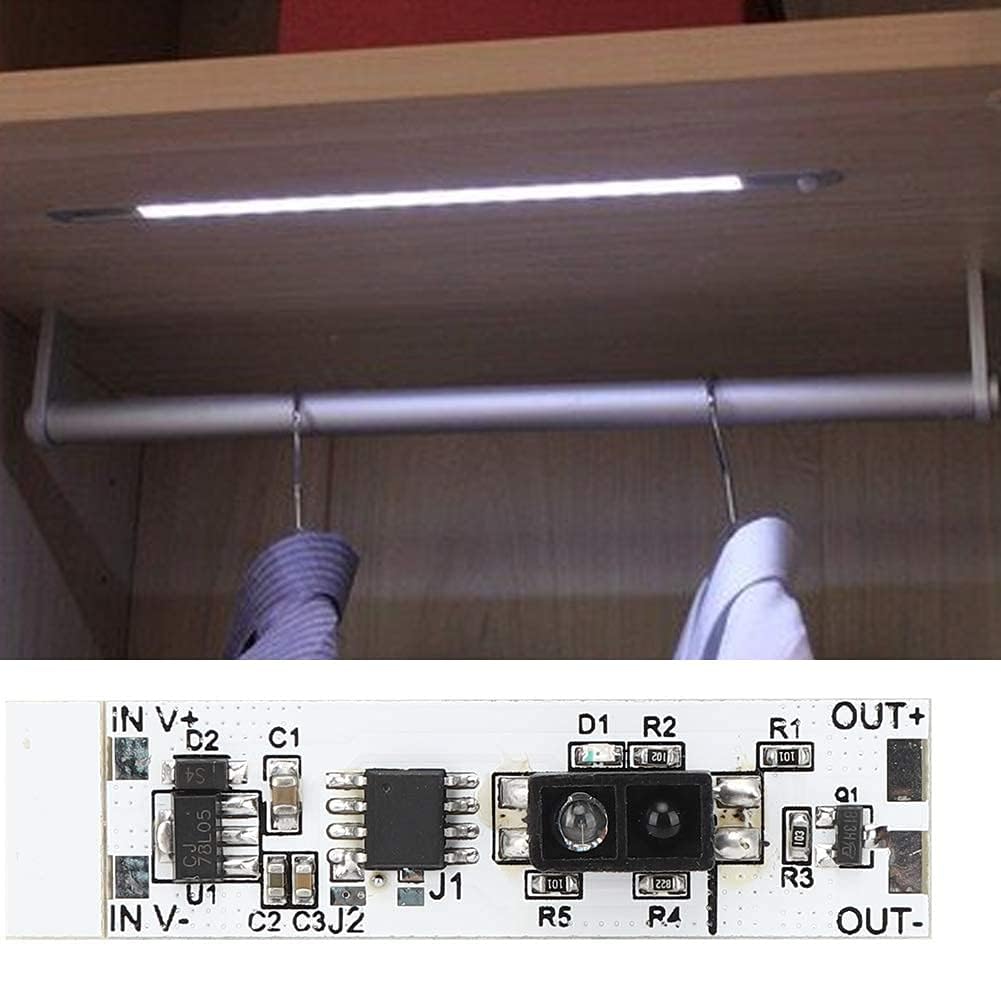

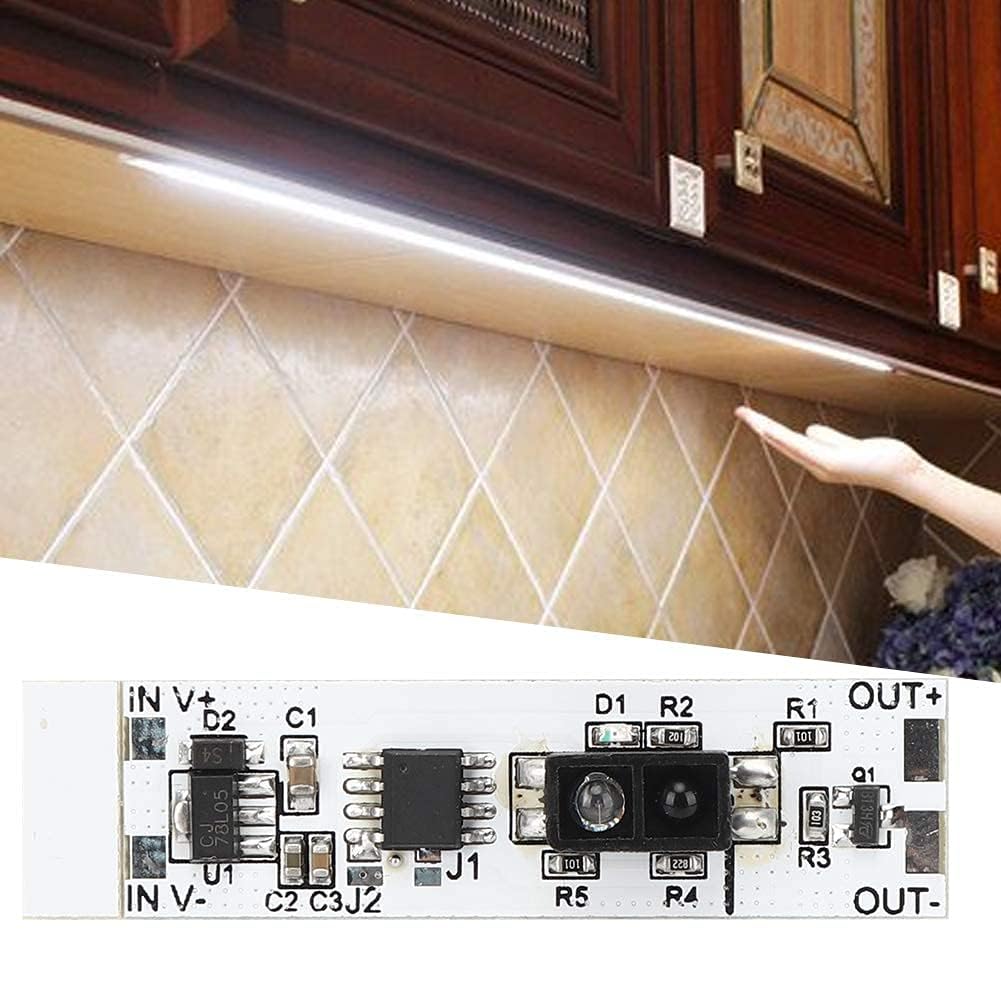

• 【Features】This inductive switch module is small in size, light in weight and safe, suitable as a switch for household LED cabinet lights

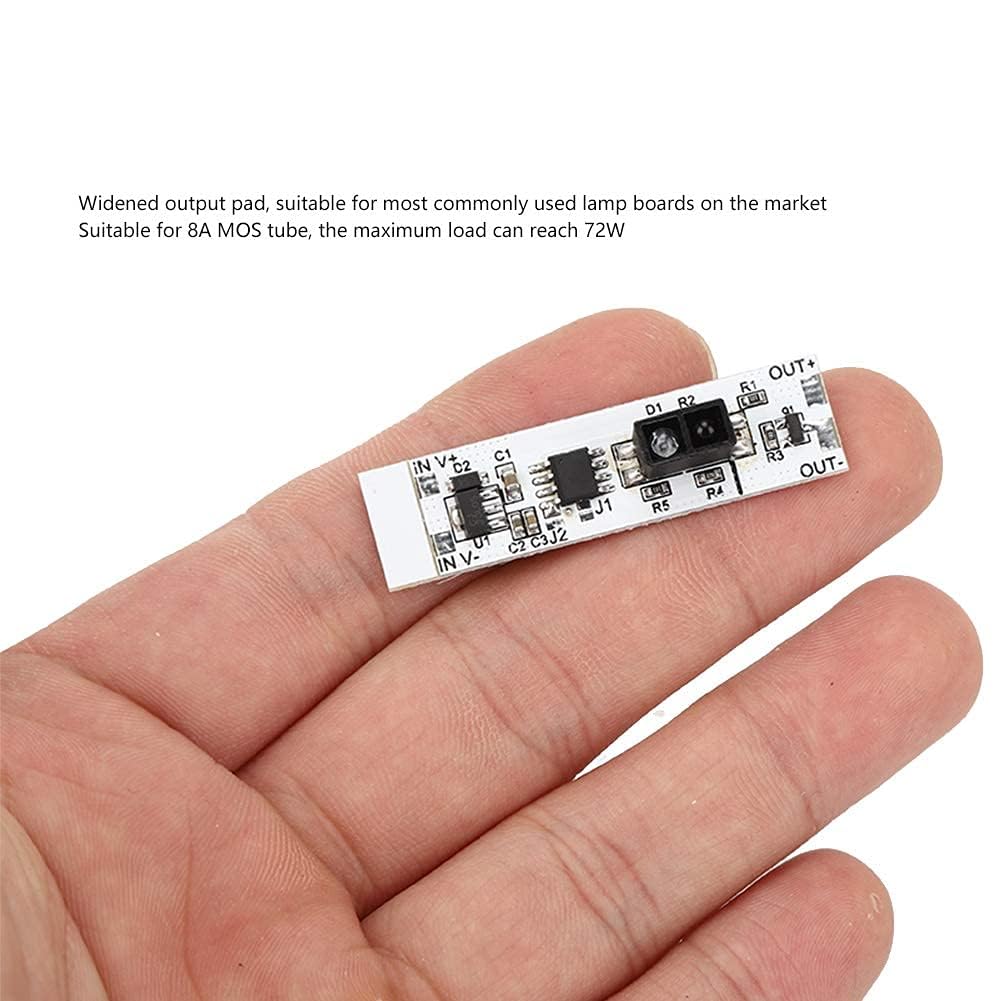

• 【Practicality】This sensor switch module is equipped with a widened output pad, which is suitable for the most commonly used light boards on the market and has strong practicability
• 【Application】The infrared reflection sensor switch is suitable for 8A MOS tube, the maximum load can reach 72W, and the applicable range is wide

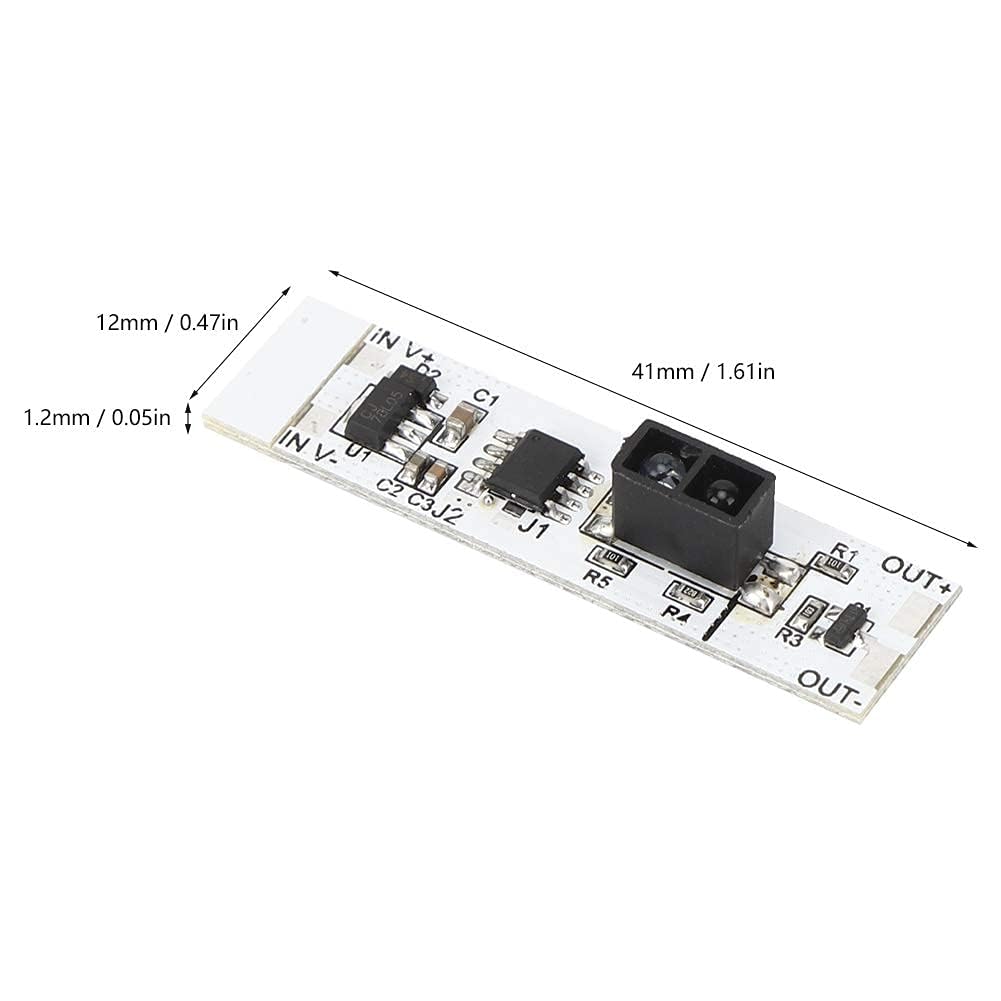

Specification: Item Type: Sensor Switch Module Model: LZG-H-VG Name: Infrared reflection sensor switch (hand sweep/block) Working Voltage: DC 5V-12V universal Effective Sensing Distance: 18cm High Sensitivity Distance: 5cm Dimming Level: Not dimmable Features: MOS tube 30V 8A Maximum Load: The maximum load can reach 8A, it is recommended to use within 5A Working Principle: Infrared photoelectric reflection (once off / on once by hand sweep) This module has two functions: 1. The default order is the hand sweep function 2. The shorting of the J1 solder joint is the blocking functionSize: Approx. 41 x 12 x 1.2mm / 1.61 x 0.47 x 0.05in Package List: 1 x Switch Module 1 x User Manual
