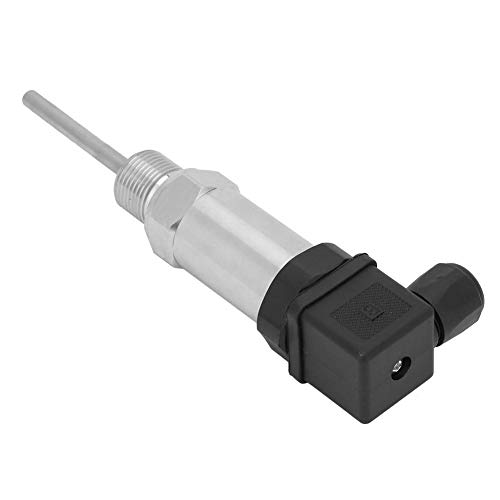

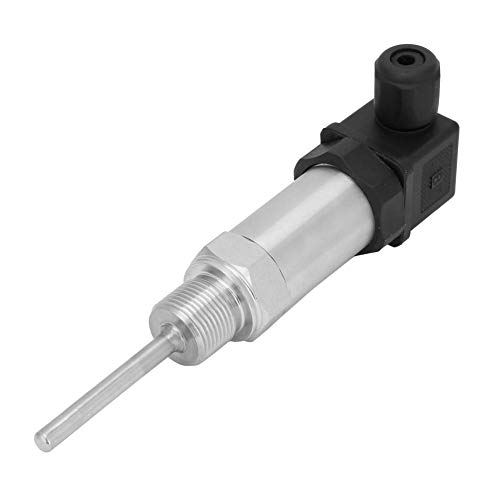

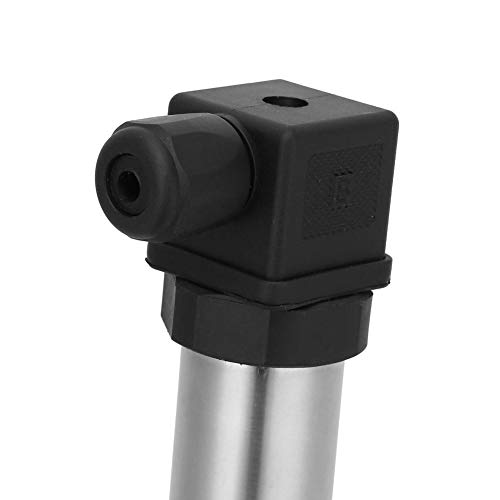

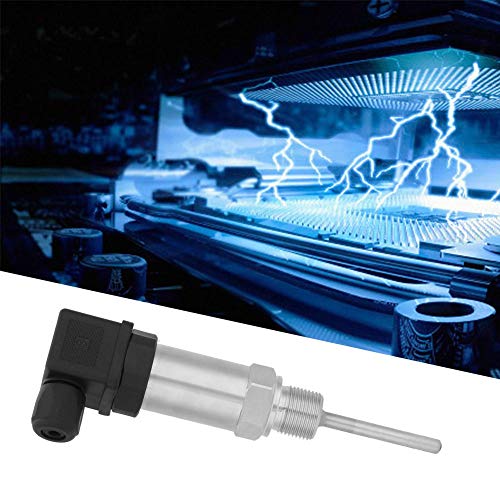

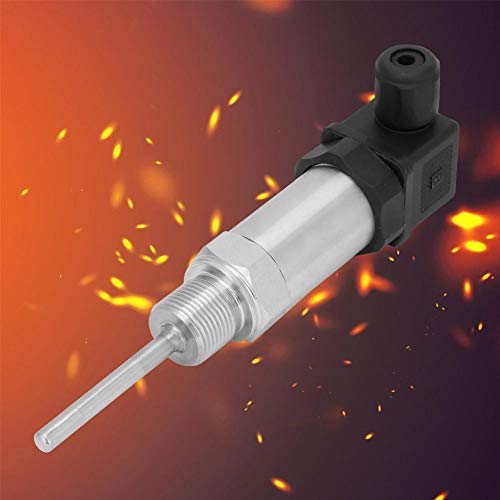

Industrial Temperature Transducer，-25~+80℃，4~20mASignal Output,±0.5% FS High Accuracy Sensor Transformer

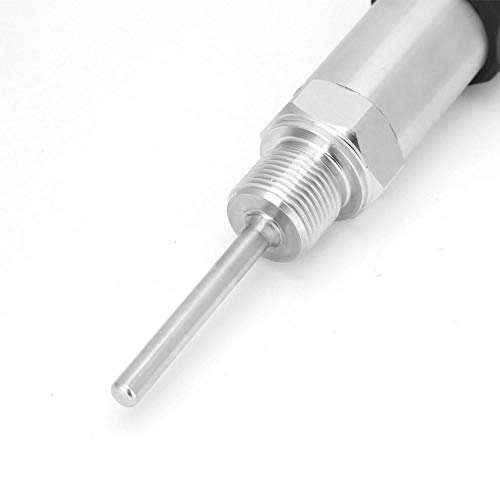

• The high temperature sensor has stainless steel internal thread base shock resistance, high pressure resistance
• Safety and stability: Industrial Temperature Transducer is high precision resistor chip has good stability and strong anti-interference ability.High strength stainless steel shell, light weight, thermal resistance sensor, short response time
• Architecture: The temperature transmitter is provided multiple connection modes, multiple output signals, OEM customized structure
• Multifunctional: Temperature Sensor's Measuring medium has gas and liquid compatible with stainless steel. Tin-plated copper wire can resist high temperature, water and oil
• Application: Working Temperature of High Precision Sensor is -50-300 degrees Celsius, Continuous Measurement of Coal Mine Environmental Temperature and Mechanical and Electrical Equipment Axis/Oil Temperature

Industrial Temperature Transducer，-25~+80℃，4~20mASignal Output ,±0.5% FS High Accuracy Sensor Specification: Input: thermal resistance ALS-XQWD-1MF, Cu50, Cu100(two-wire/three-wire/four-wire) Thermocouple K, E, S, B, T, J, N(two-wire) Intelligent input signal and range can be set by PC or hand controller. Output: the output of 4~20mA dc signal within the range can be linear with the output resistance signal of the thermal resistance thermometer and the input temperature signal of the thermal resistance thermometer; Linear with the input millivolt signal of the thermocouple or with the input temperature signal of the thermocouple thermometer. Basic error:±0.2%,±0.5% Transmission mode: two-wire system/three-wire system/four-wire system The working power supply voltage of the transmitter :24V. Load: the ultimate load resistance is calculated according to the following formula RL(Max)=50X(vmm-12), that is, the load resistance at 24V can also be selected in the range of 0-6000) rated load 250 days. Note: the adjustable range transmitter, the zero point and full degree need to be adjusted repeatedly when changing the range: the electric couple transmitter must be preheated for 30 minutes before debugging. Environmental temperature affect≤0.05%1°C Normal working environment A, environmental temperature:-25~80℃ B. Relative humidity: 5%-95% C, mechanical transfer≤55Hz amplitude <0.15mm Weight: 160 g / 5.6 oz(approx.) Package list: 1 x Temperature Transducer 1 x manual
