10 x 1000 kg Cargo Load Rings Lashing Rail Fitting Single End Fitting Airline Rails

• 10 pieces End fitting 1000 daN / kg with ring and aluminium base body for airline rails
• Our most popular end fitting for airline rails. These can be found e.g. in motorhomes, vans, trucks or trailers

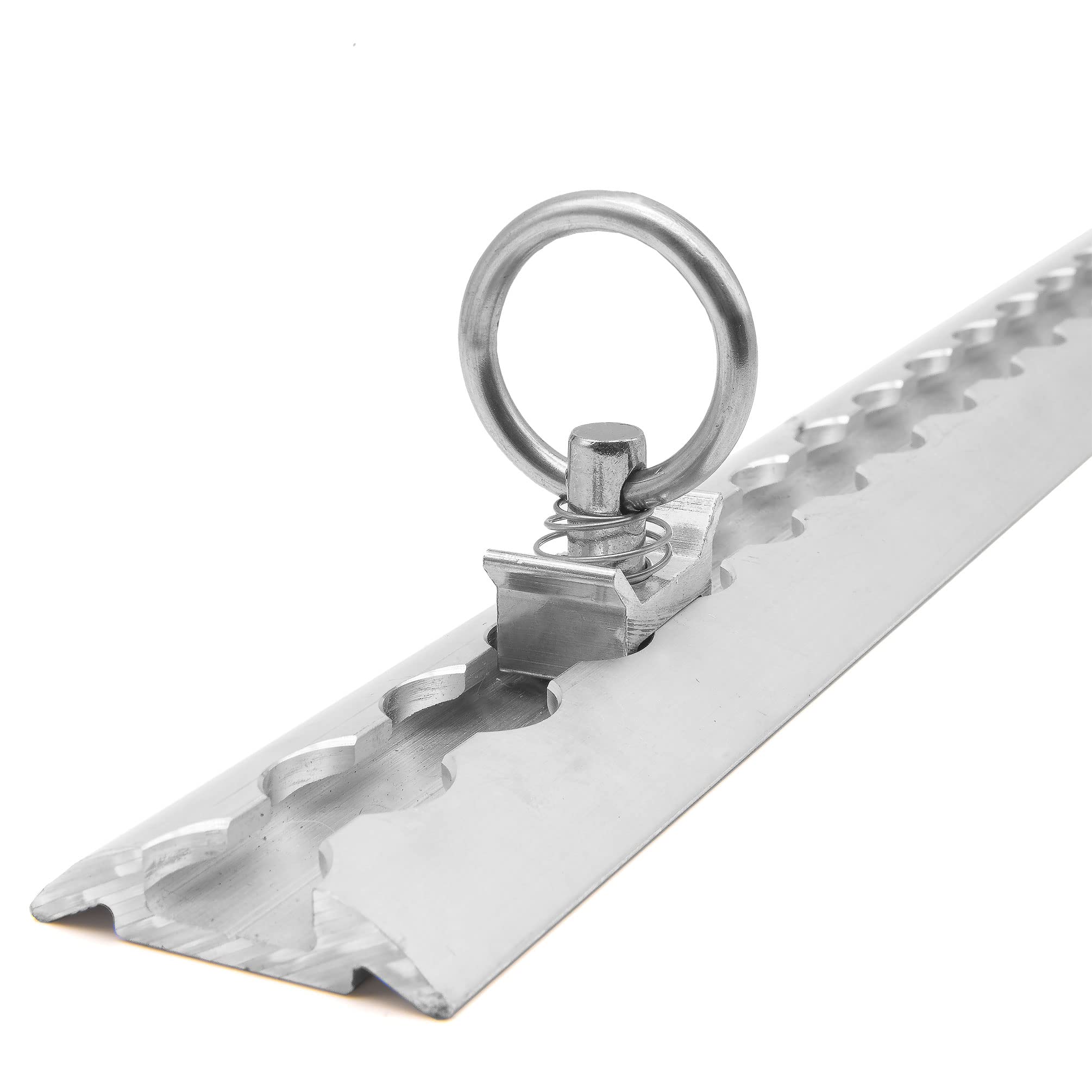

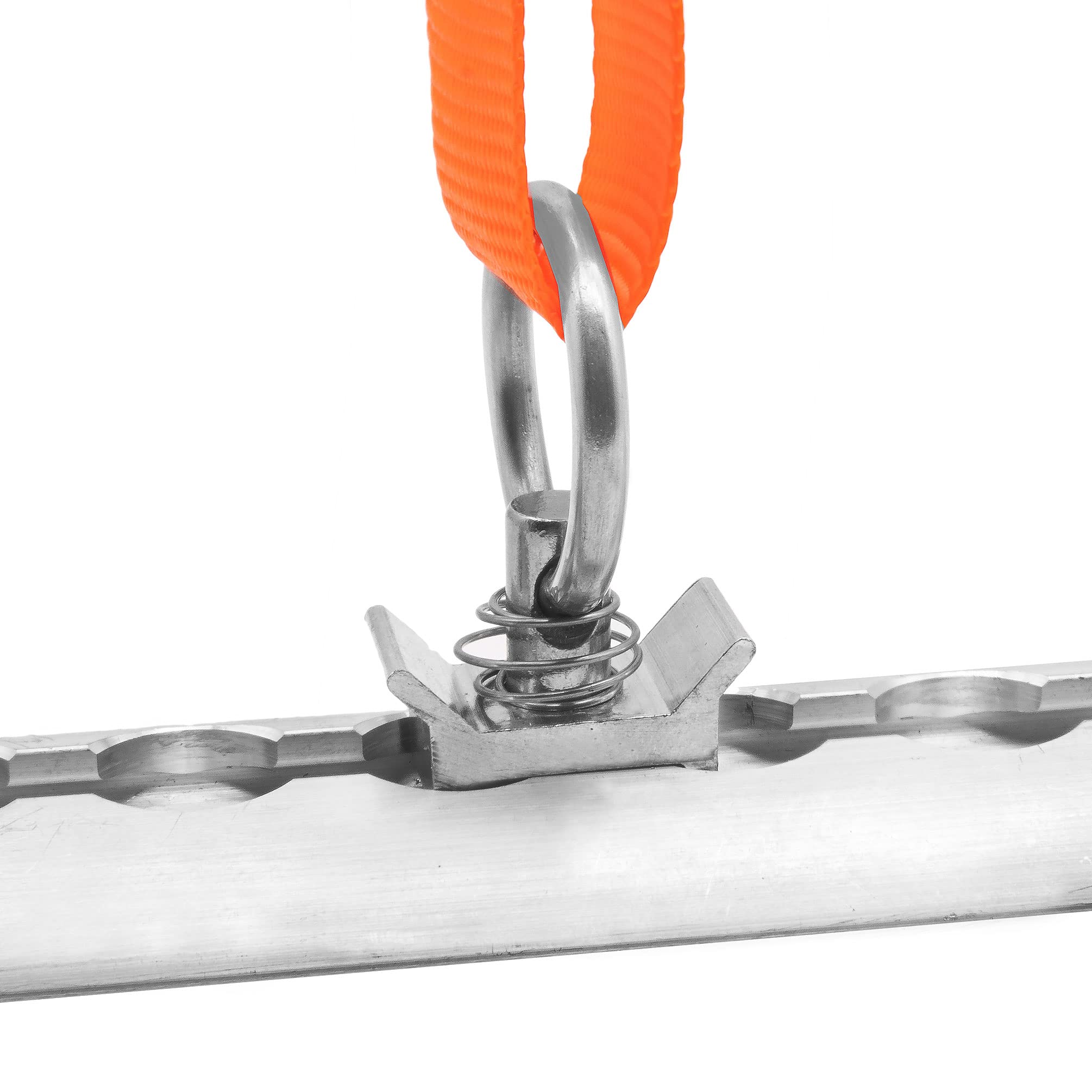

• The fitting is inserted into the lashing rail and locked by releasing the bolt with spring. Then hooks of lashing straps can be hooked into the ring. It is also possible to loop through belt straps
• The end fitting can easily be moved in the rail within the hole pattern. A very useful tool
• Industrie PLANET stands for load securing with responsibility: Whether you are a camper caravan driver or a haulage contractor or a truck driver, you will always receive very good and consistent quality from us

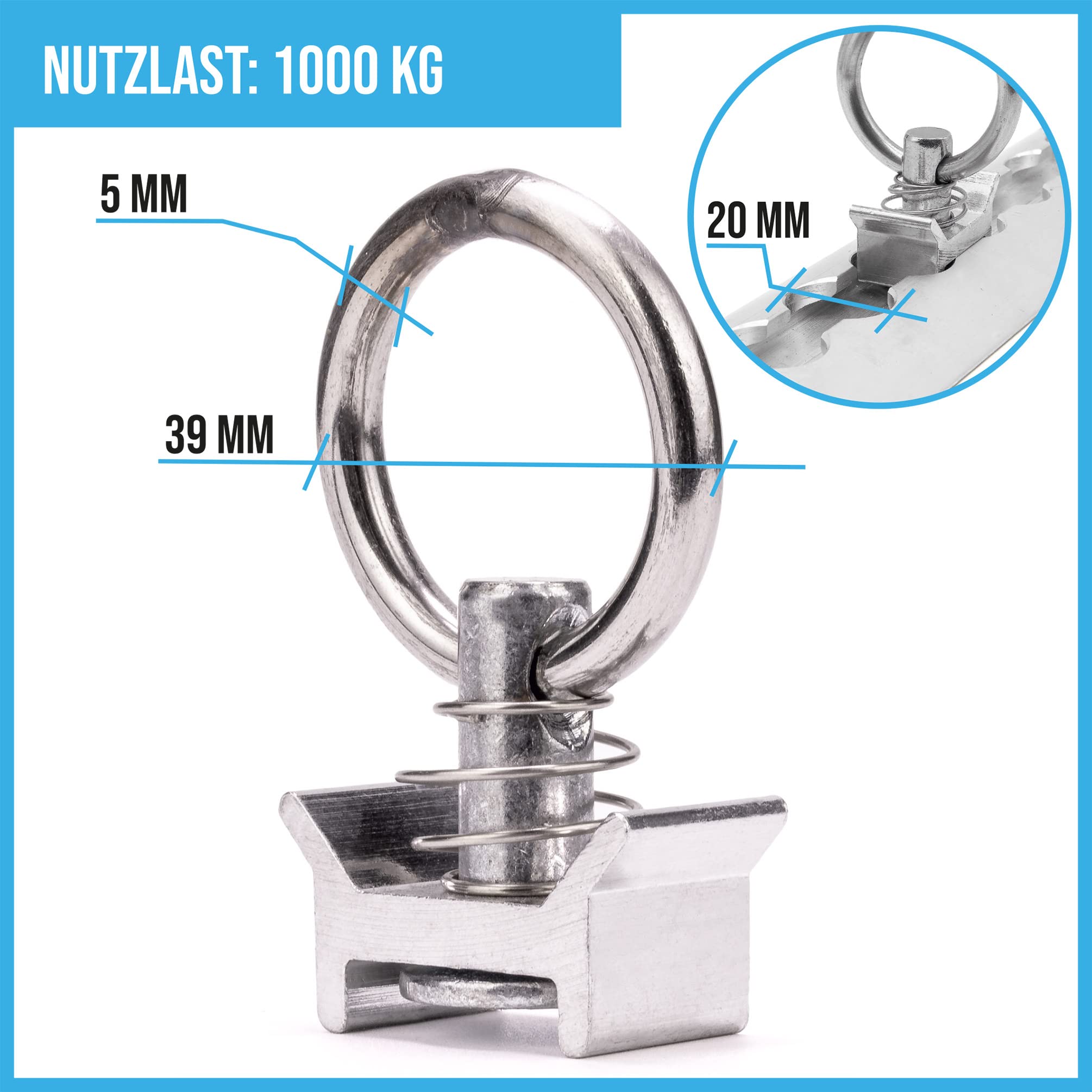

10 pieces End fitting Load capacity: 1000 kg / 1000daN / 1t Socket pin with return spring (stroke 11mm) Ø plate bottom side: 19,30 mm Ø ring outside 29 mm / inside 28 mm ring thickness: 5 mm Base body aluminium Ring Steel Weight: 0,05 kg / 50 g Dimensions base element bottom edge: 26.35 x 12.50 mm Dimensions basic element upper edge: 33,70 x 12,50 mm Required hole diameter of the airline rail 20mm For airline rail e.g. in truck / trailer / van The spring mechanism prevents slipping in the rail In the ring you can hook in tension belts with hooks or loop through the belt strap for load securing
