InduSKY 10pcs 3.5mm Mini Stereo Female Jack Socket Plug With Nuts 3.5mm Stereo Panel Mount Jack Solder Connector Headphone Audio Video Vertical Socket 4 Pole Gold Plated

• 【High Quality】Made of premium nylon and metal, full gold-plated, exquisite workmanship and durable, high temperature resistant and good insulation.
• 【Application Widely】The 3.5mm Female Stereo Panel Mount Jack suitable for MP3 / MP4 players, communications, CD players, wireless phones, digital laptops, DVD, digital cameras, etc.
• 【No Loss to Sound Quality】The four pins are full gold-plated to enable high-quality transmission of audio signals.
• 【Cheap and Cheerful】 Suitable for DIY enthusiasts to make audio projects. It works well with inexpensive amplifier projects, it's also great for DIY project boxes and repair 3.5mm jacks and many other devices that use a stereo connection.
• 【Package Content】10 x 3.5mm Stereo Jacks Panel Mount Solder Connectors.

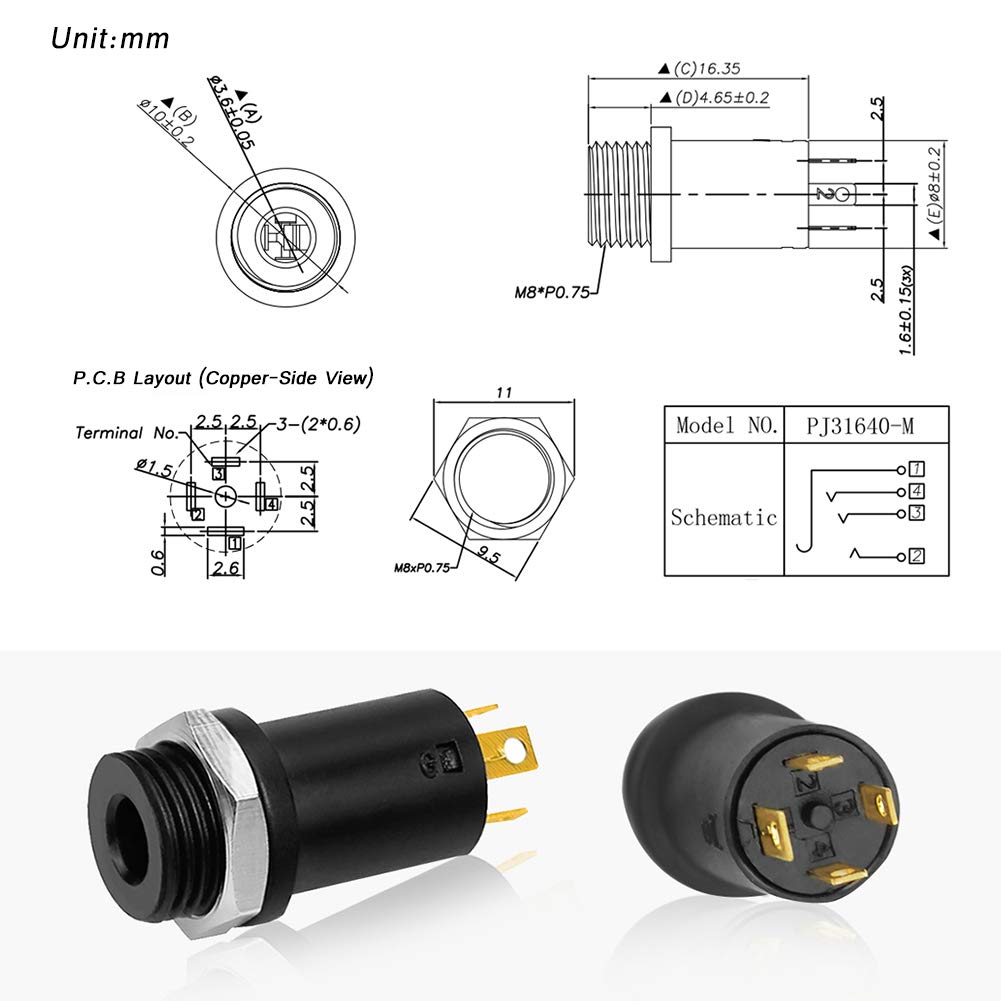

Specification: --- Great for DIY projects to replace an existing 3.5mm jack. --- Wiring connection: PIN 1- Ground; PIN2- microphone; PIN3- Left Audio; PIN4- Right Audio; (Note: number 1, 2, 3, 4 is marked on the solder pins and the plastic socket ). --- The Pin is finished with holes which could provide ample room for tinned wires to loop through to make solid connection. 1. Product Model: PJ-31640-4P 2. Voltage Rating: 30V AC,DC 3. Current Rating: 0.5-3A 4. Rated load: DC 30V 0.5A 5. Contact Resistance: ≤30mΩ 6. Insulation Resistance: ≥100mΩ (500VDC) 7. Withstand Voltage: 500VAC 8. Insertion and Extraction force: 3N~30N 9. Life Test: 10000cycles 10. Operation Temperature Range: -20°C ~70°C 11. Preservative Temperature Range:-40°C ~85°C Product List: 10 x 3.5mm Stereo Female Headphone Audio Video Jack Socket Plugs
