Induction Loop Amplifier

• Suitable for hearing aids fitted with a "T" switch
• Mic/line level switch for each input
• Phantom power switch for each input
• Tamper proof channel volume, bass & treble and loop current level controls
• Adjustable metal loss correction

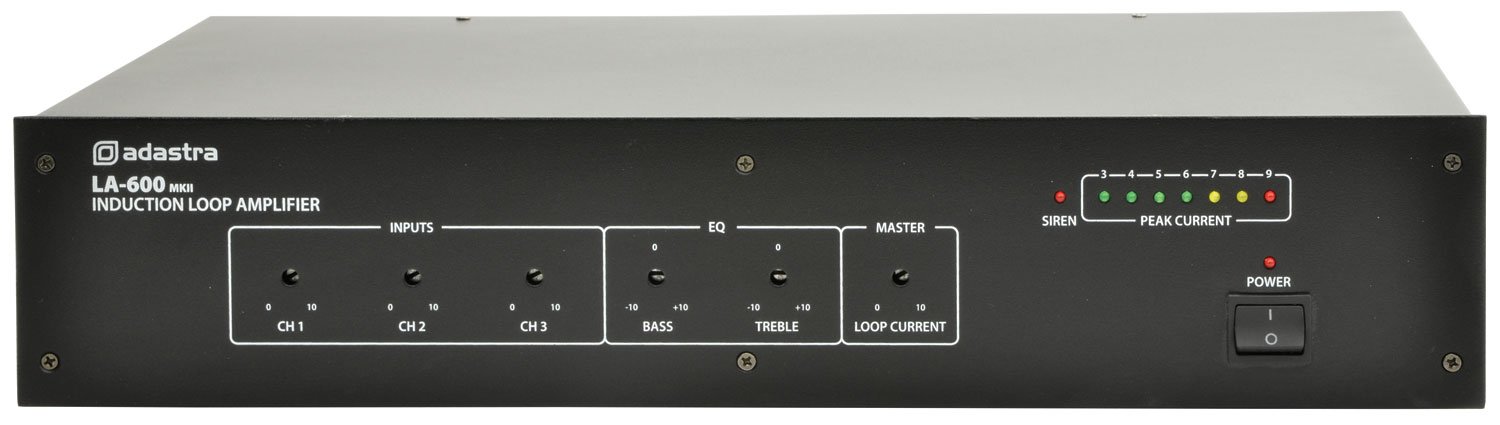

Product Description An induction amplifier for driving a cable loop around a room to provide assisted listening for hearing aid users. Front panel controls are adjusted using a screwdriver including level controls for the 3 mic/line channels, bass, treble and loop current. Designed to provide hearing assistance in public and commercial buildings. Suitable for hearing aids fitted with a "T" switch Mic/line level switch for each input Phantom power switch for each input Tamper proof channel volume, bass and treble and loop current level controls Adjustable metal loss correction Alarm contacts for built-in siren Priority switchable for channel 1 Peak current LED indication 19" rack mountable SPECIFICATION: Power supply 110/240Vac, 50/60Hz (IEC) Frequency response 50Hz - 5kHz (±3dB) Input sensitivity : line -6dBu/6k Ohms Input sensitivity : mic -56dBu/2k Ohms Signal to noise ratio 75dB (line), 60dB (mic) THD <1% Rack height 2U • Area coverage 600m² max. Dimensions 483 x 235 x 88mm Weight 5.95kg Box Contains 1 x Induction Loop Amplifier
