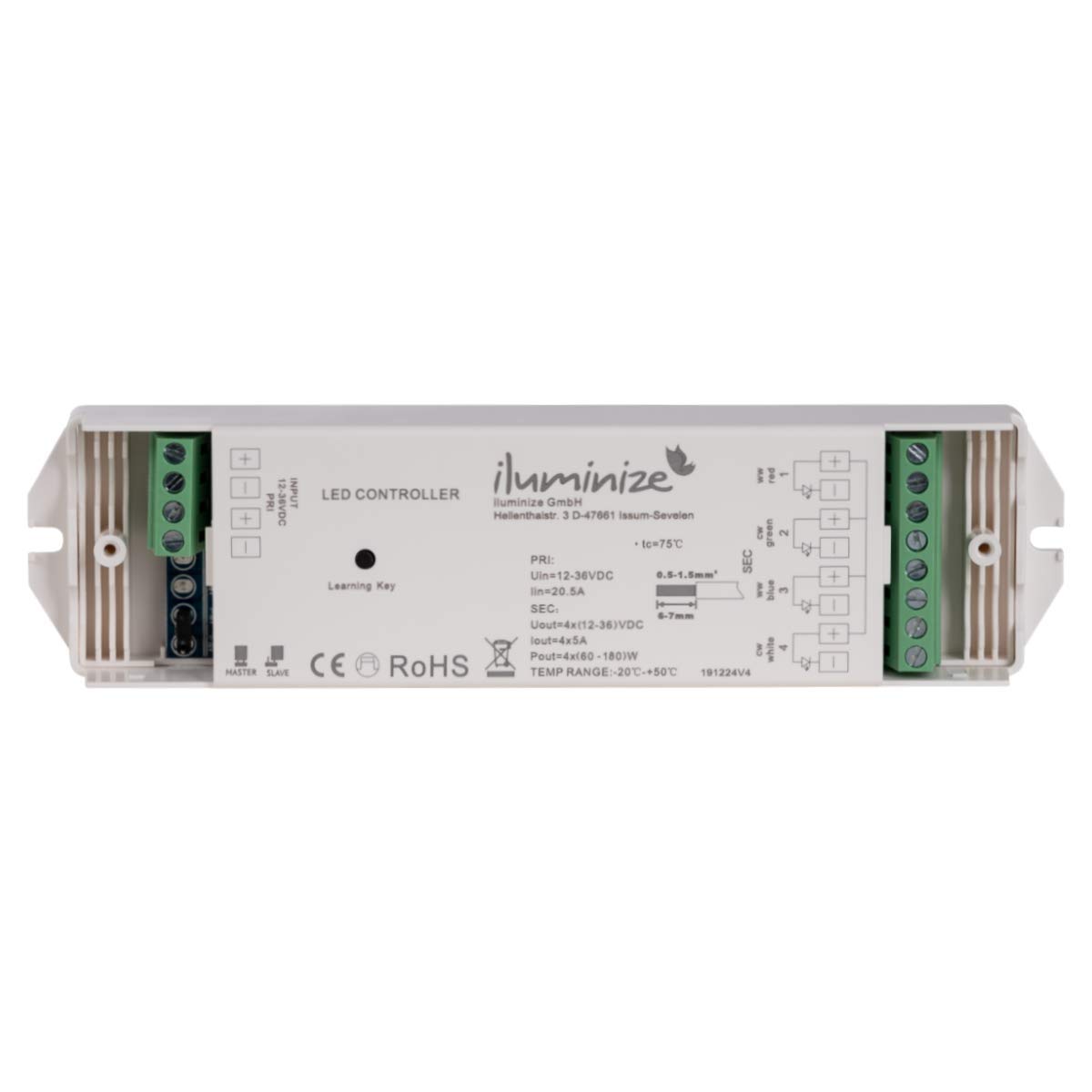

iluminize LED Controller, 750 Hz (flicker-free), 4 x 5 A, for white/duo-white/RGB/RGB+W/RGBW LEDs, 12 V-36 V constant voltage, Corded Electric, RGBW model 500.001, 120.0 grams

• ILUMINZE LED SYSTEM: Part of the iluminize LED system with compatible hand-held remote controls, desk dimmers, wall dimmers and/or WiFi. There is a wide variety (see attached image). Please always order together with one of our wall or desk dimmers, hand remote controls or the WiFi bridge, without these devices, the controller has no function.
• Varied control: depending on the selection of the paired remote controls, allows four different colour modes: RGBW RGB+W / RGB / duo-white (CCT) (setting the colour temperature) / white.
• Achieves 16 million colours: many functions, high-quality workmanship and long service life. Does not come with connection cable, the light/LED strip is attached to the screw terminals.
• Control via radio / WIFI: control via 868 MHz radio signals, with our WiFi bridge can also be controlled via our free app for iOS or Android (more than 3 control devices in the household, this is the cheaper version compared to the LED WiFi controller).
• INCONNECTED LIGHT CONSUMPTION: Are you planning a light installation? Please contact us and take our advice offer by email or phone (0049 2835 782 37 - 00, Mon-Fri 9 - 5 pm) Please feel free to send us sketches or floor plan of your planning.

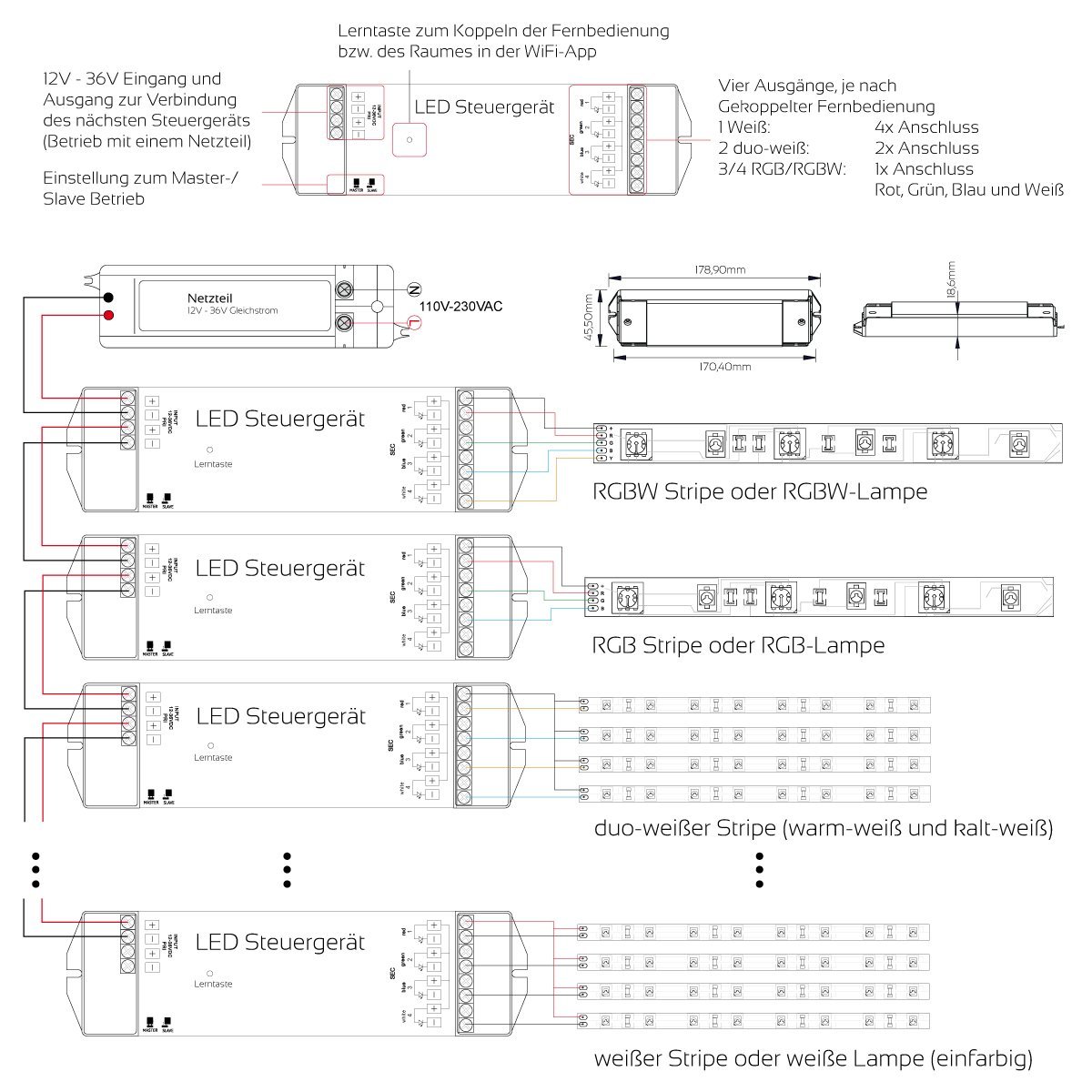

LED controller for operating LED lights & lights. It is used to convert the power from the power supply (e.g. 24 V constant voltage) for the connected LEDs, so that they can be adjusted or dimmed. The LED controller is paired with any of our wireless (RF) hand remote controls, wall dimmers, desk dimmers or via WiFi (via the WiFi bridge). This decides on the respective colour mode and the assignment of the 4 outputs. The LED controller adjusts the colour and brightness selected on the remote control via the respective power parts. Channel assignment. With an RGBW remote control, all 4 outputs are independent; red, green, blue and white will switch as printed on the device. If a RGB remote control is paired, blue and white outputs are used. With a remote control with duo-white, the 4 outputs are switched in pairs for warm white and daylight white. White LEDs can be connected to any of the 4 outputs or to all 4. As only the brightness is adjusted, one channel is sufficient. All 4 channels are switched the same. In the photos is a circuit diagram showing how this LED controller is integrated into the circuit. Notes: The LEDs are connected to the negative pole and have a common positive pole. If the LED controller is disconnected from the mains or the power falls out, it "remembers" the last setting. Advice Are you planning a larger installation and need larger quantities in different lengths or with longer cables? Please contact us and use our non-binding advice by email or phone (+49 2835 782 37 - 00). You can also send us sketches or basic plans of your planning.
