iHaospace LCD2004 I2C IIC 2004 20x4 2004A Blue Screen Serial LCD Module for Arduino Character LCD/w IIC/I2C Serial Interface Adapter Module

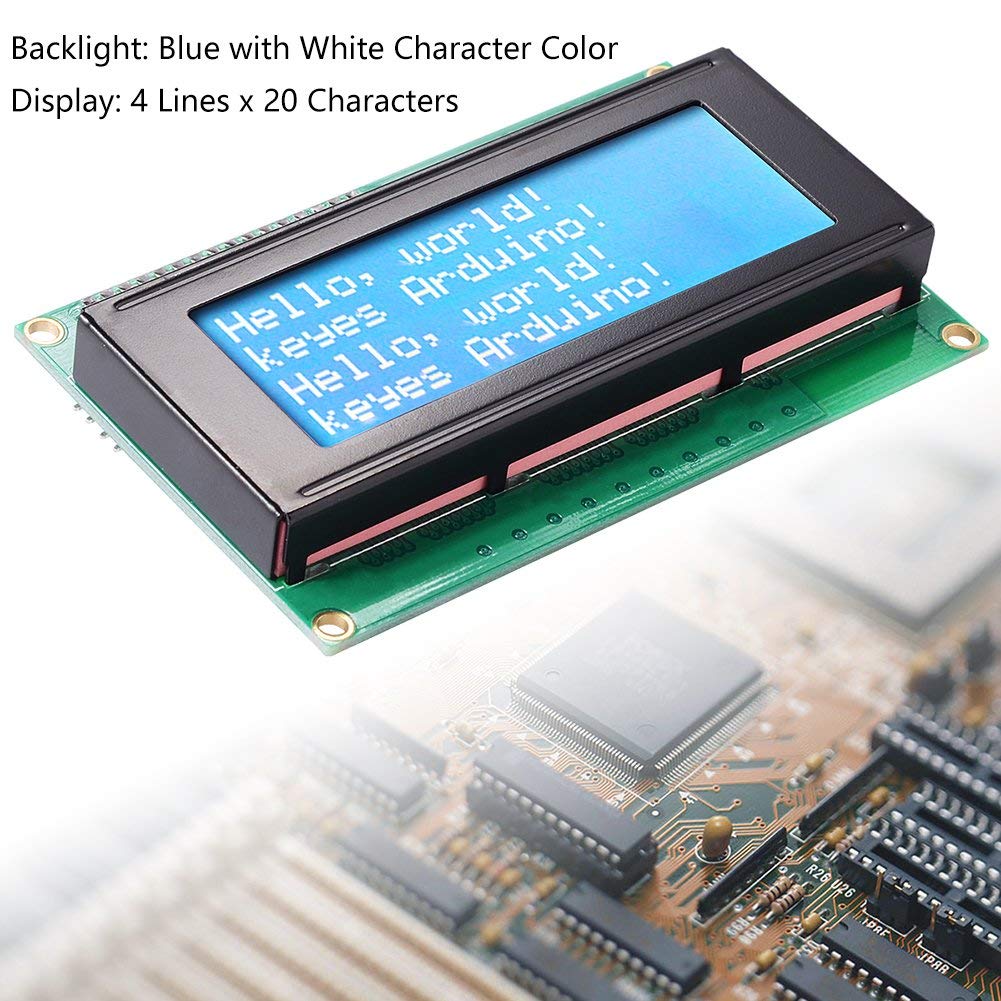

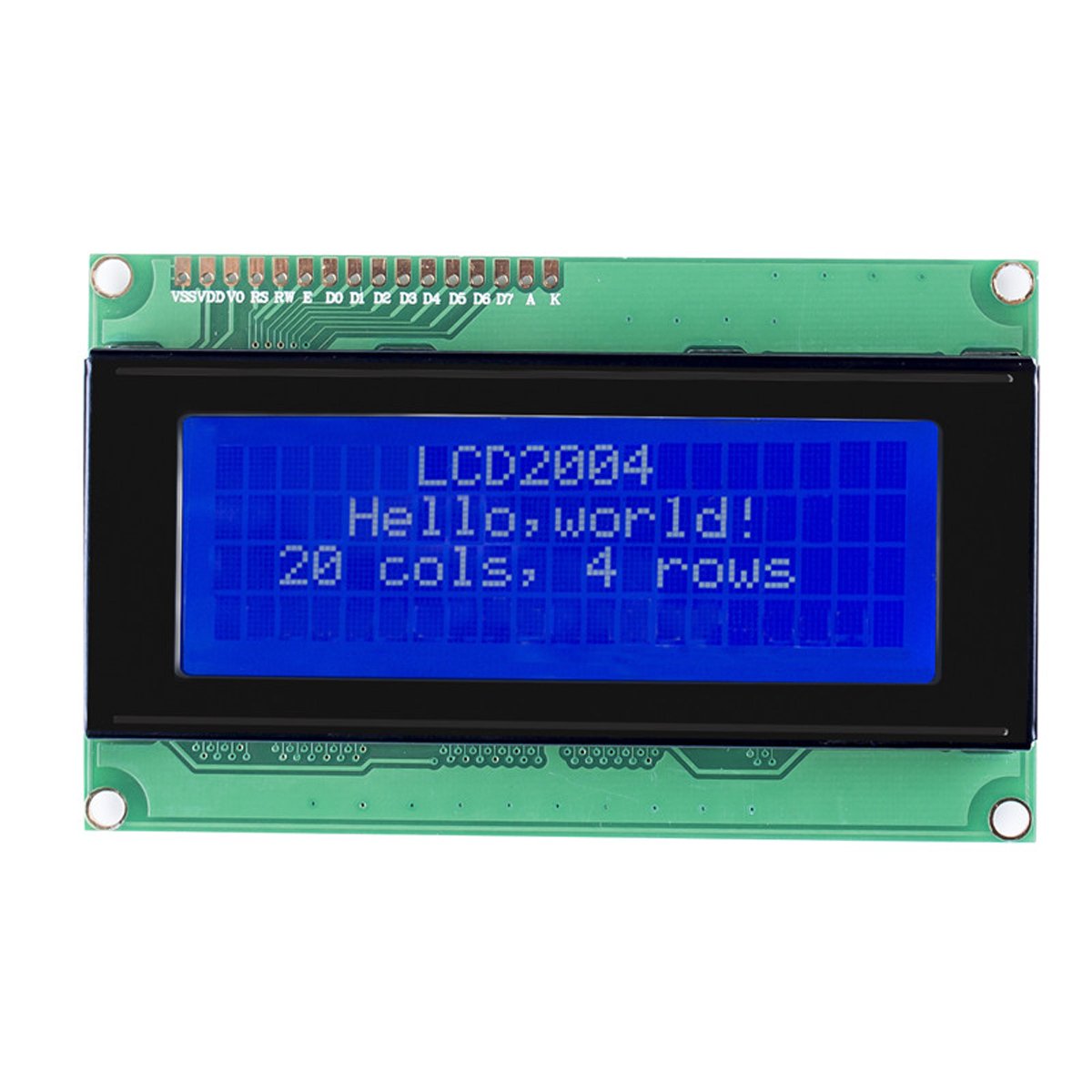

• iHaospace I2C LCD 2004 displays characters of 4 rows with 20 characters in each.
• Working voltage: 5V DC; Dimension: 60×99x22 mm.
• IIC/I2C interface; only takes two I/O ports ，I2C Address: 0x27 or 0x3F.

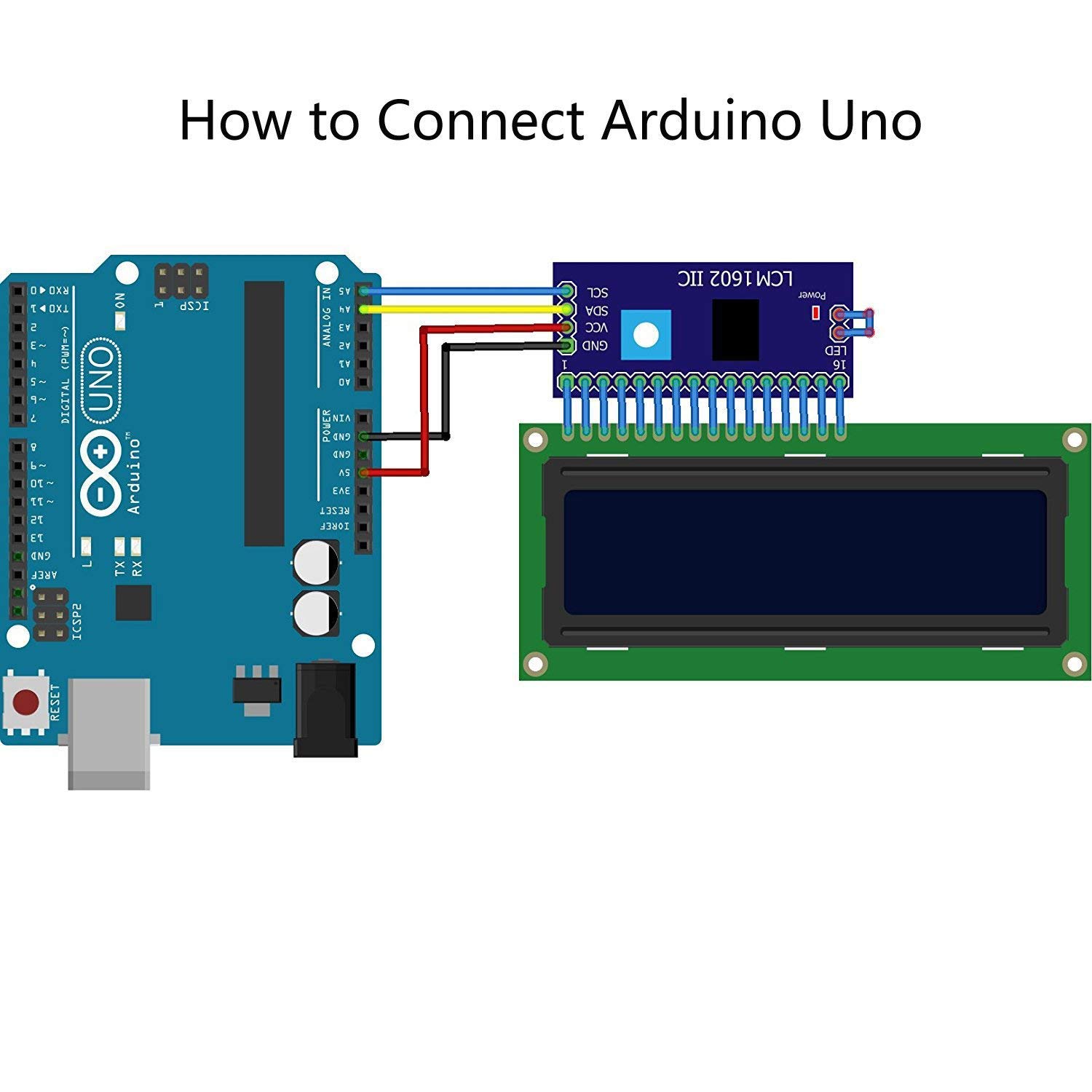

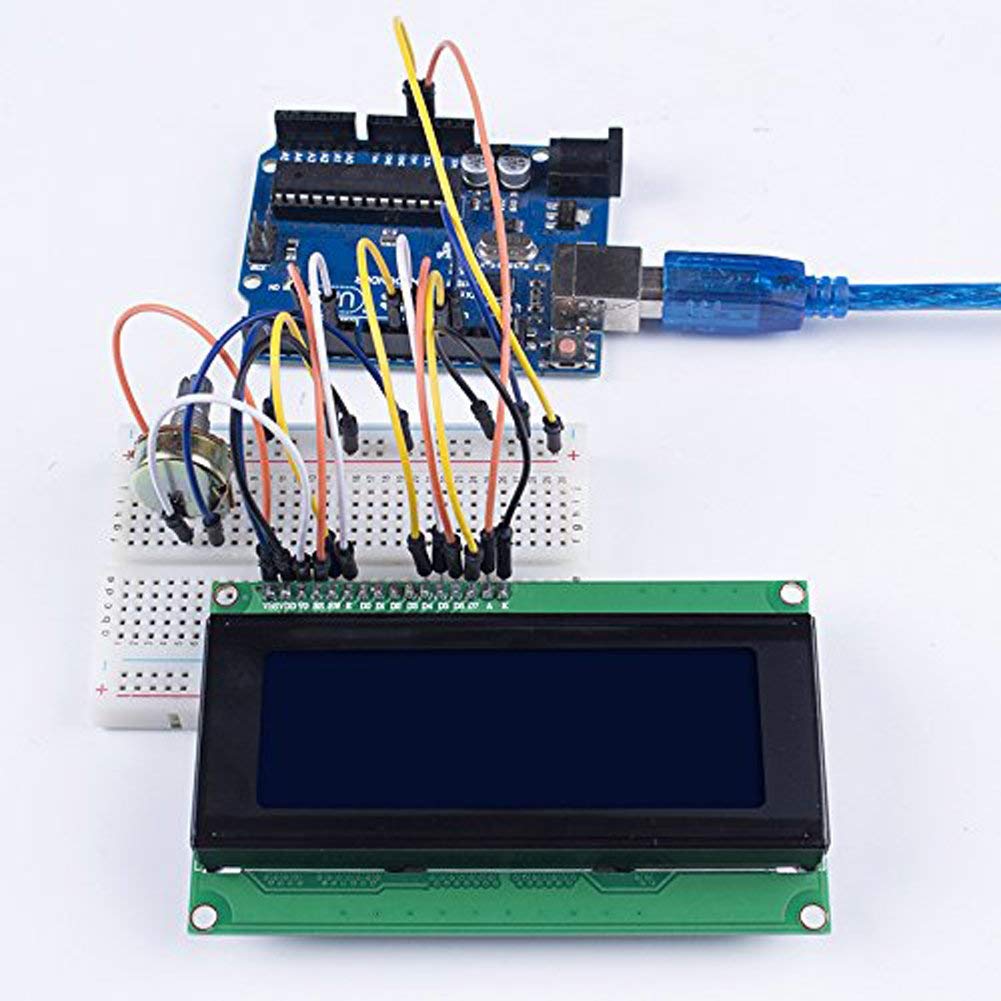

• Compatibility: used for connecting Arduino and Raspberry pi and it can be used to display real time clock, temperature, humidity etc. (A potentiometer is also necessary to adjust the contrast. Working Voltage: Only 5V )
• Compatibility: used for connecting Arduino and Raspberry pi and it can be used to display real time clock, temperature, humidity etc. (A potentiometer is also necessary to adjust the contrast. Working Voltage: Only 5V )

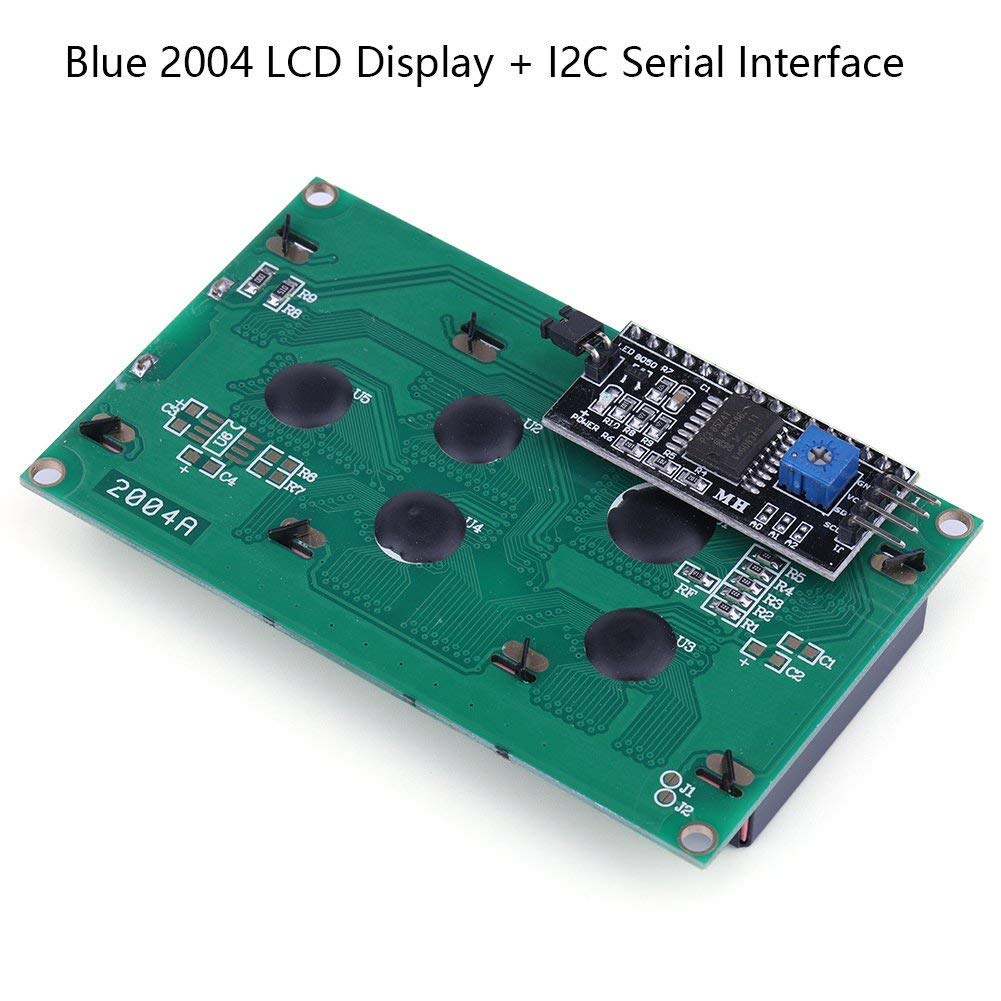

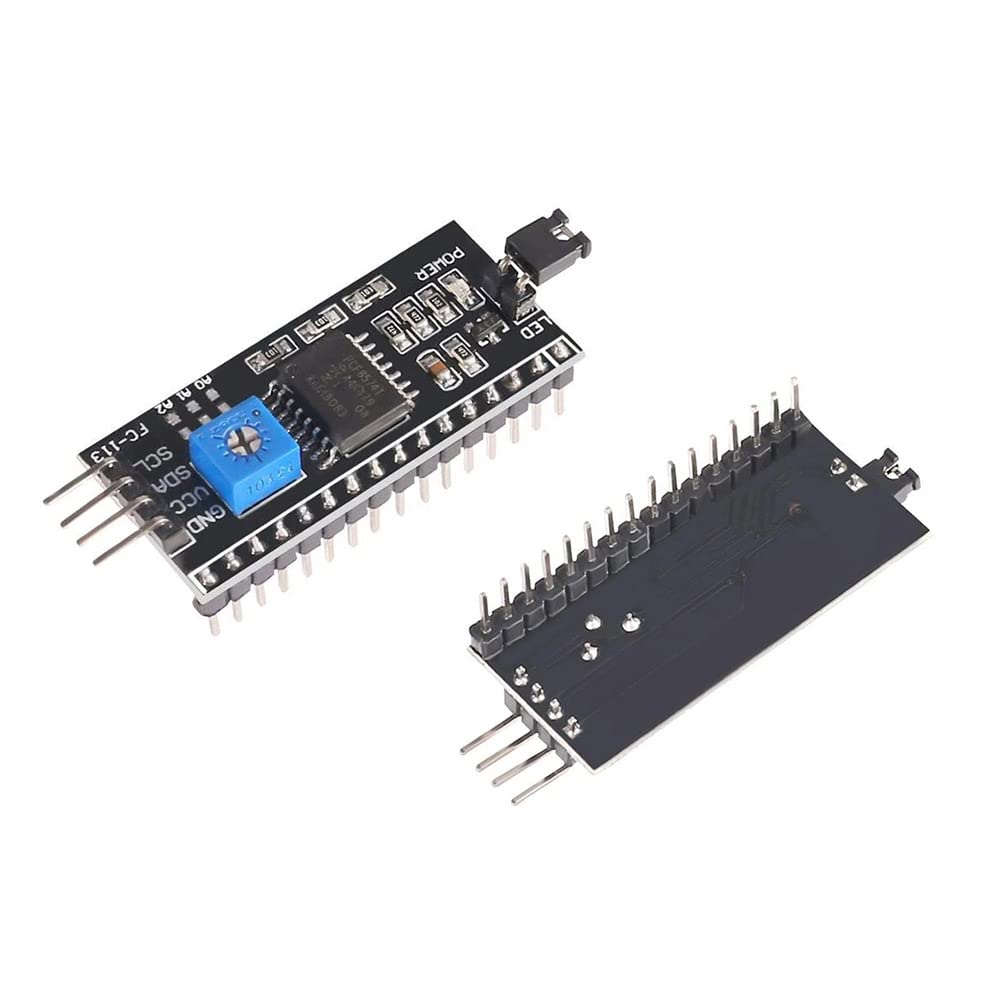

Description: The IIC 2004 LCD display module is a 4 line 20 character LCD module not only set the contrast control knob selector switch also has a backlight and IIC communication interface. For Ar-du-ino beginners, not for the cumbersome and complex LCD driver circuit connection and a headache, the real significance of this LCD module will simplify the circuit, this module directly into the Ar-du-ino Sensor Shield V5.0 sensor expansion board IIC device interface can, GM 4P sensor connection cable, programmed through the Ar-du-ino controller, you can easily identify the slogan, sensor data records. Specification: Supply voltage: 5V Interface: I2C I2C address: 0x27 or 0x3F Pin definition: GND, VCC, SDA, SCL Contrast adjust: potentiometer The module is a low-power consumption character LCD module with a built-in controller The module can be easily interfaced with a MCU Display format: 20 Characters x 4 lines Fully assembled and tested serial LCD 20 x 4 module White text, blue backlight It is fantastic for Ar-du-ino based project Size: 9.8 x 6 x 1.2mm
