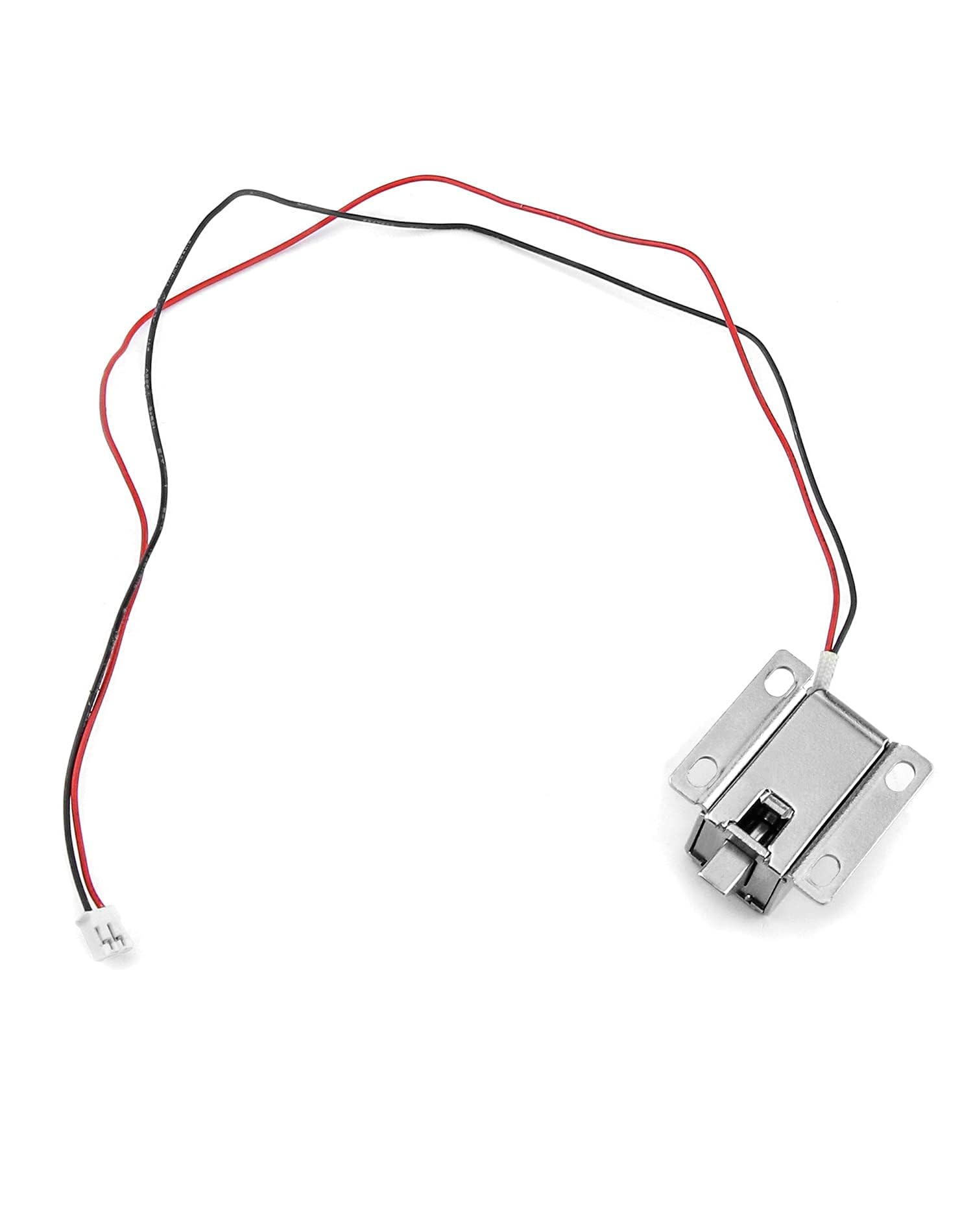

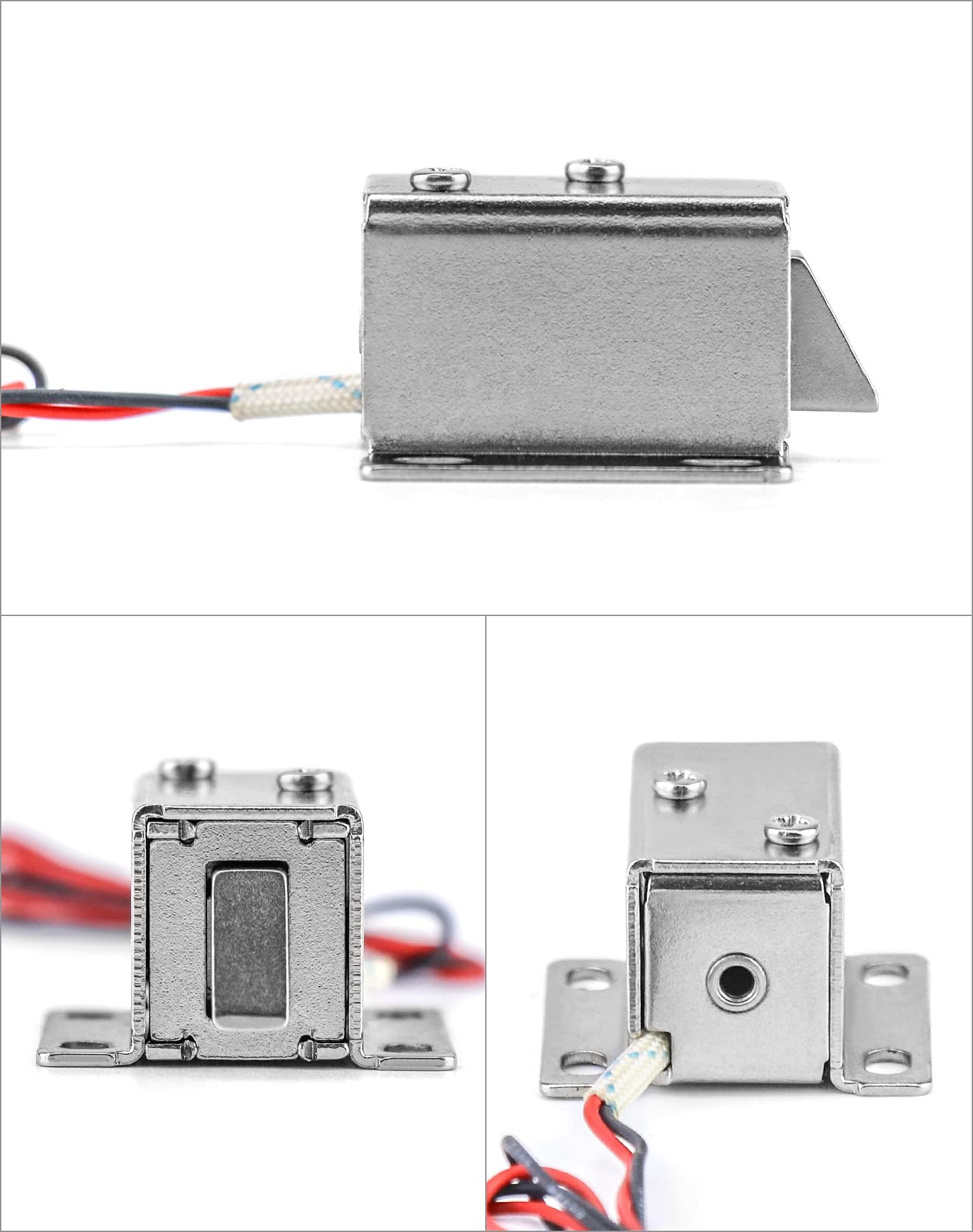

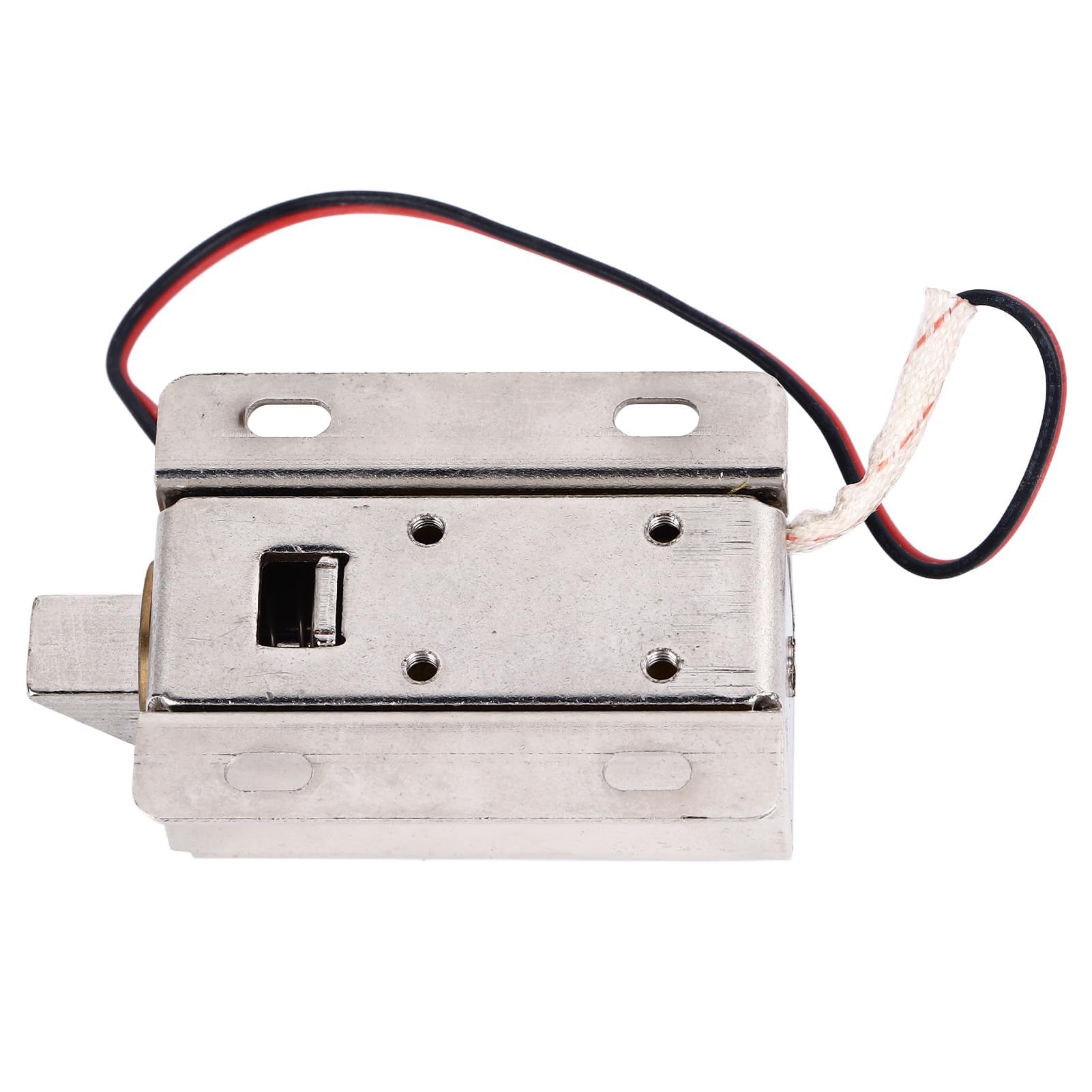

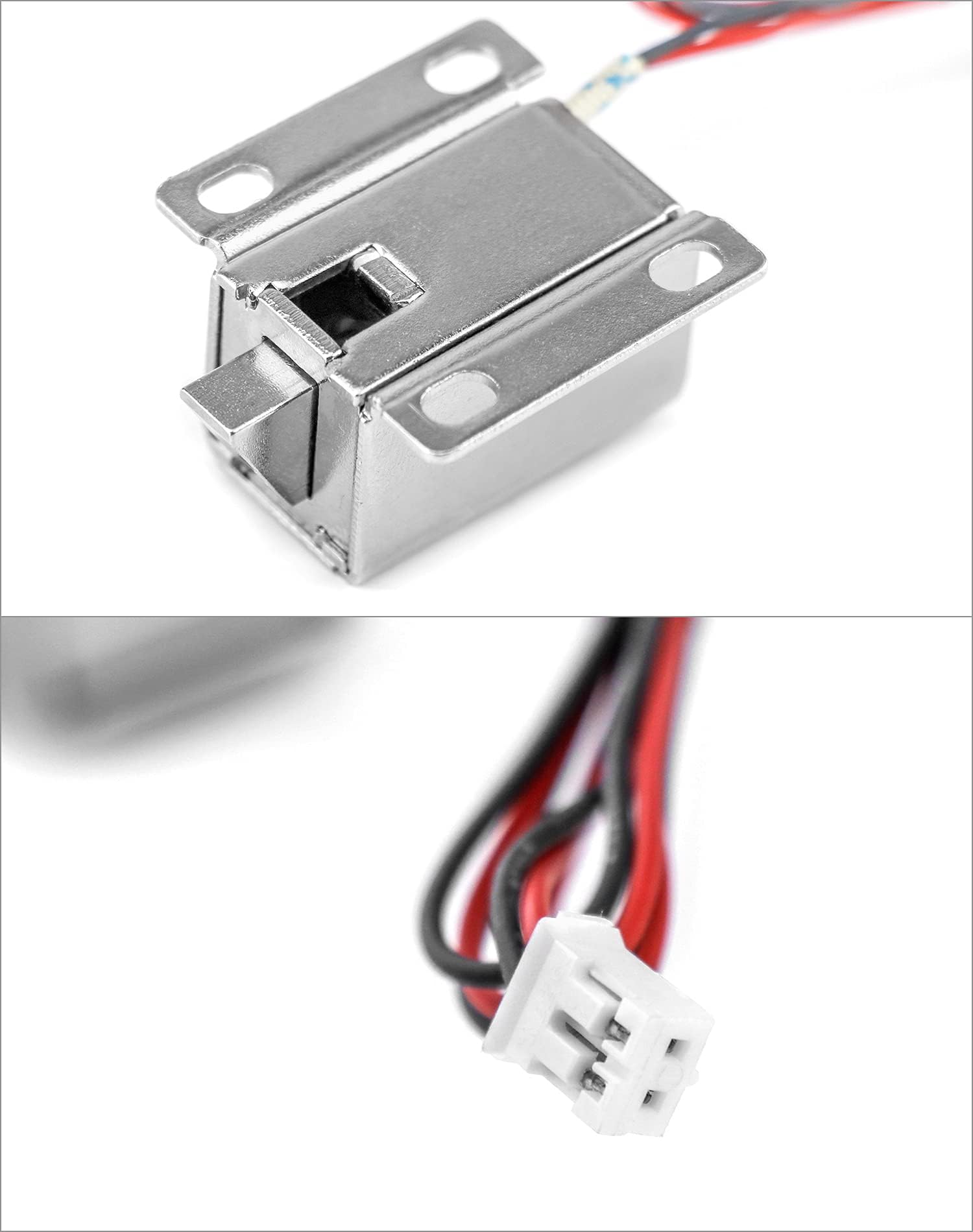

ieron DC 12V 350mah Mini Electromagnetic Lock Cabinet Drawer Intelligent Solenoid Electric Lock Access Control for Door Cabinet Drawer

• Voltage / current: DC 12 V / 350 mA

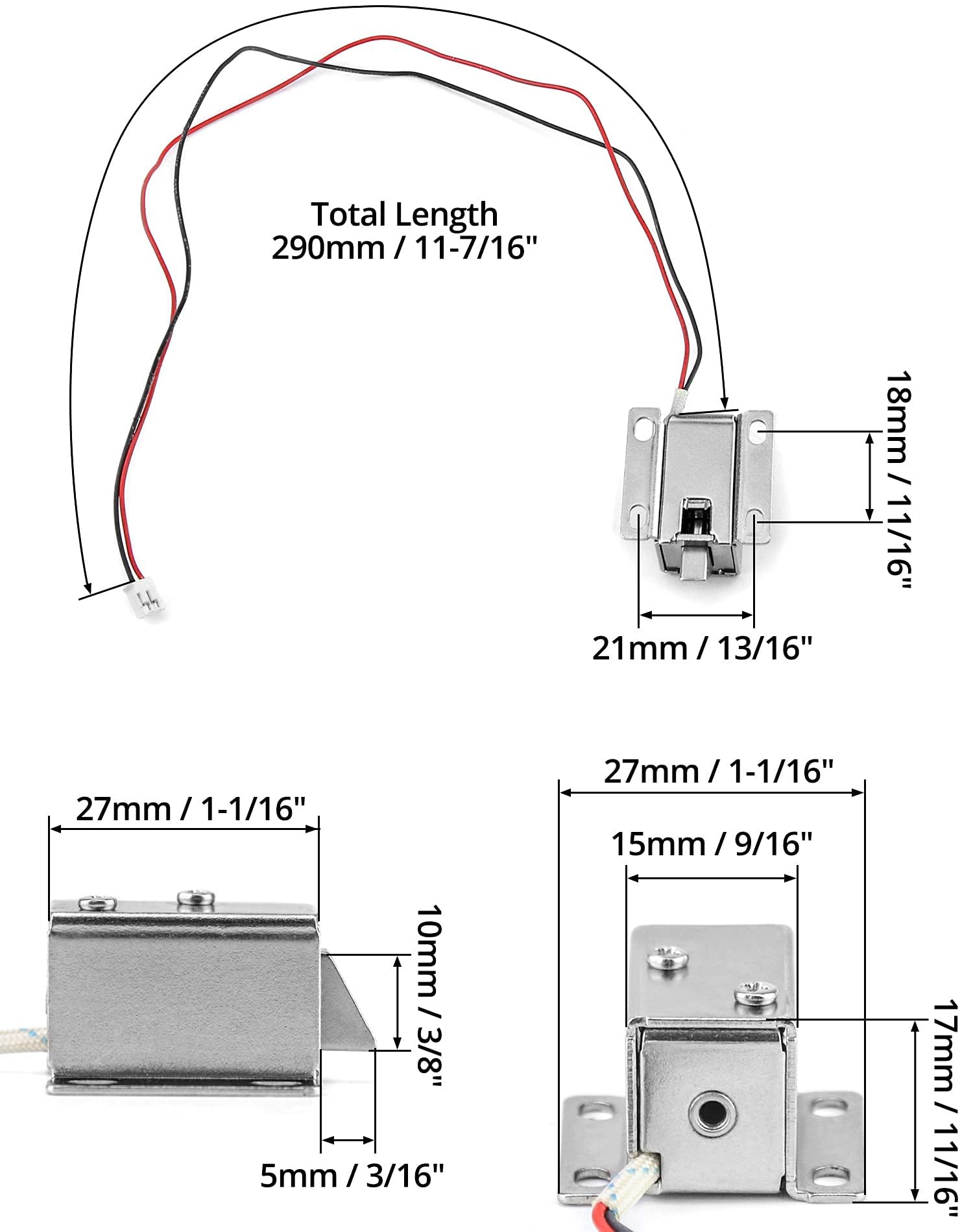

• Size--- 27 x 27 x 16 mm / 1.06 x 1.06 x 0.62 inches,weight:36.35g
• Material---Mainly made of high quality iron, which is strong and durable, safe and protected
• Easy to install---simple structure, easy to use, sturdy and durable, safe and reliable, easy to install.
• Multi-purpose---Suitable for all kinds of doors, windows, boxes, cabinets, such as storage cabinets, safes and money cabinets, etc.

Specifications: Voltage: DC 12 V Current: 350mah Size: 27 x 27 x 16 mm / 1.06 x 1.06 x 0.62 inches. Working principle: (the lock is opened when the device is turned on seconds). 1: Locking tongue protrudes when power is off - door closed 2: Locking tongues contract when switched on - door open. Disassembly steps: 1. Remove the screws on the cover with a screwdriver. 2. Take off the cover. 3. Using the screwdriver, remove the E-clip between the spring and the locking screw. 4. Take out the locking bolt and align it. Then insert the E-clip again. 5. Replace the cover and screws to complete changing the locking screw Box Contents: 1 * ieron electromagnetic closure.
