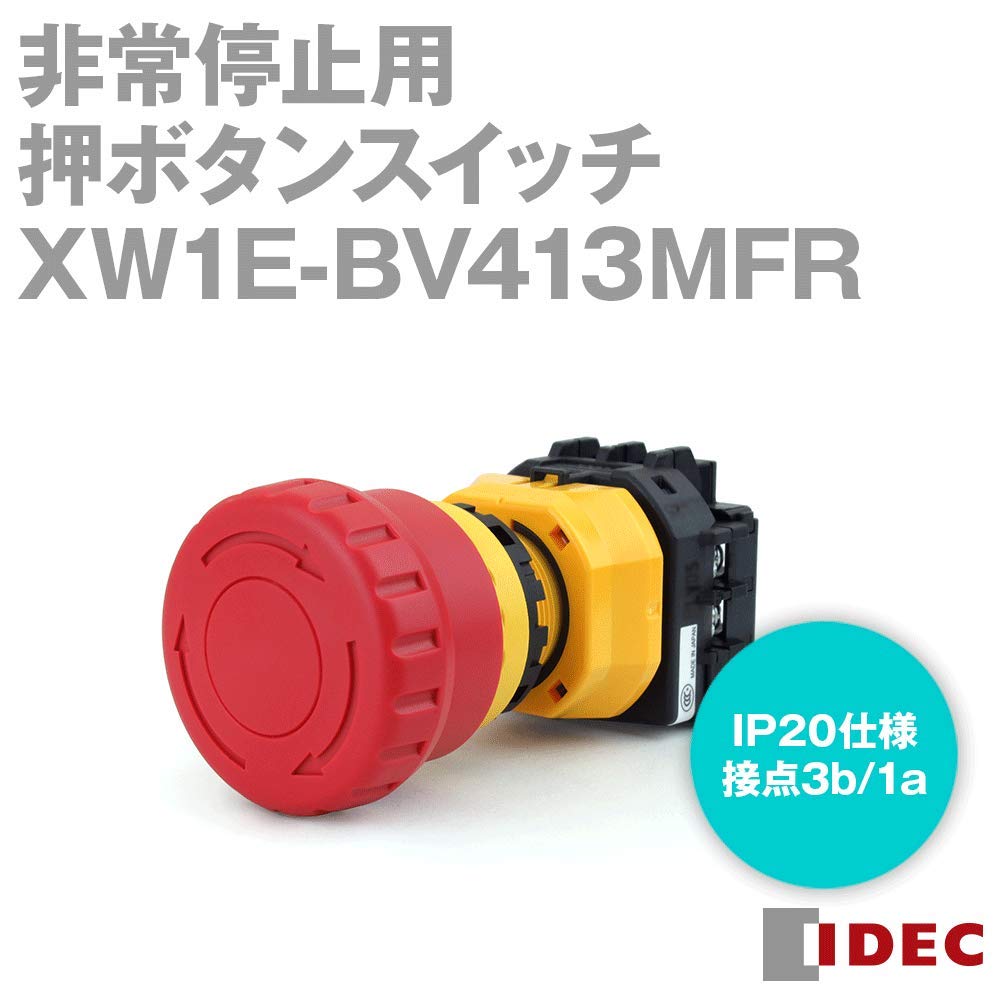

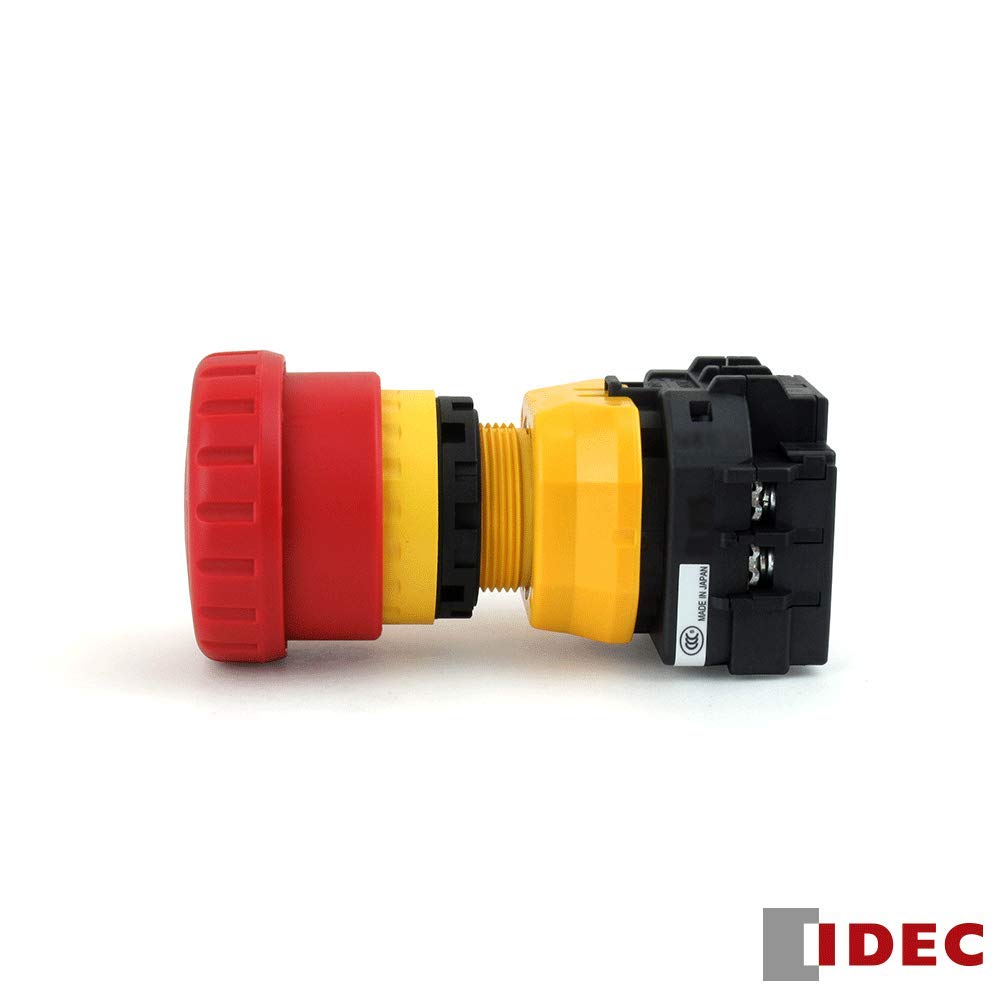

IDEC XW-22mm Emergency Stop Switch 40mm Mushroom 1NO-3NC XW1E-BV413MFR

• Contact Configuration: 1NO 3NC
• Panel Cut-Out: 22mm
• Terminal Type: Screw
• Protection Level: IP65
• Product Series: XW

The XW1E-BV413MFR is a 22mm E-stop switch manufactured by IDEC, featuring a 40mm mushroom head and 1NO-3NC contacts. The switch features a fail-safe design with safe break technology which ensures all NC contacts are open if the contact block is separated. The switch meets major certifications and is suitable for a wide range of safety applications requiring a high quality emergency stop switch. IDEC X-series switches use "Safe Break Action," a unique reverse energy structure that disconnects normally closed contacts, guaranteeing stuff-off even if the emergency switch is damaged or the contact blocks separate. 1NO-3NC contacts 22mm panel hole diameter IP65 protection level Screw terminals 40mm mushroom head 5A 250VAC rating UL, c-UL listed, EN compliant
