iCubeSmart DIY Electronic LED Canton Tower Model Kit, Hand Soldering Project Kit, 64 LED Circles, Height 1 Meter (GZT-64)

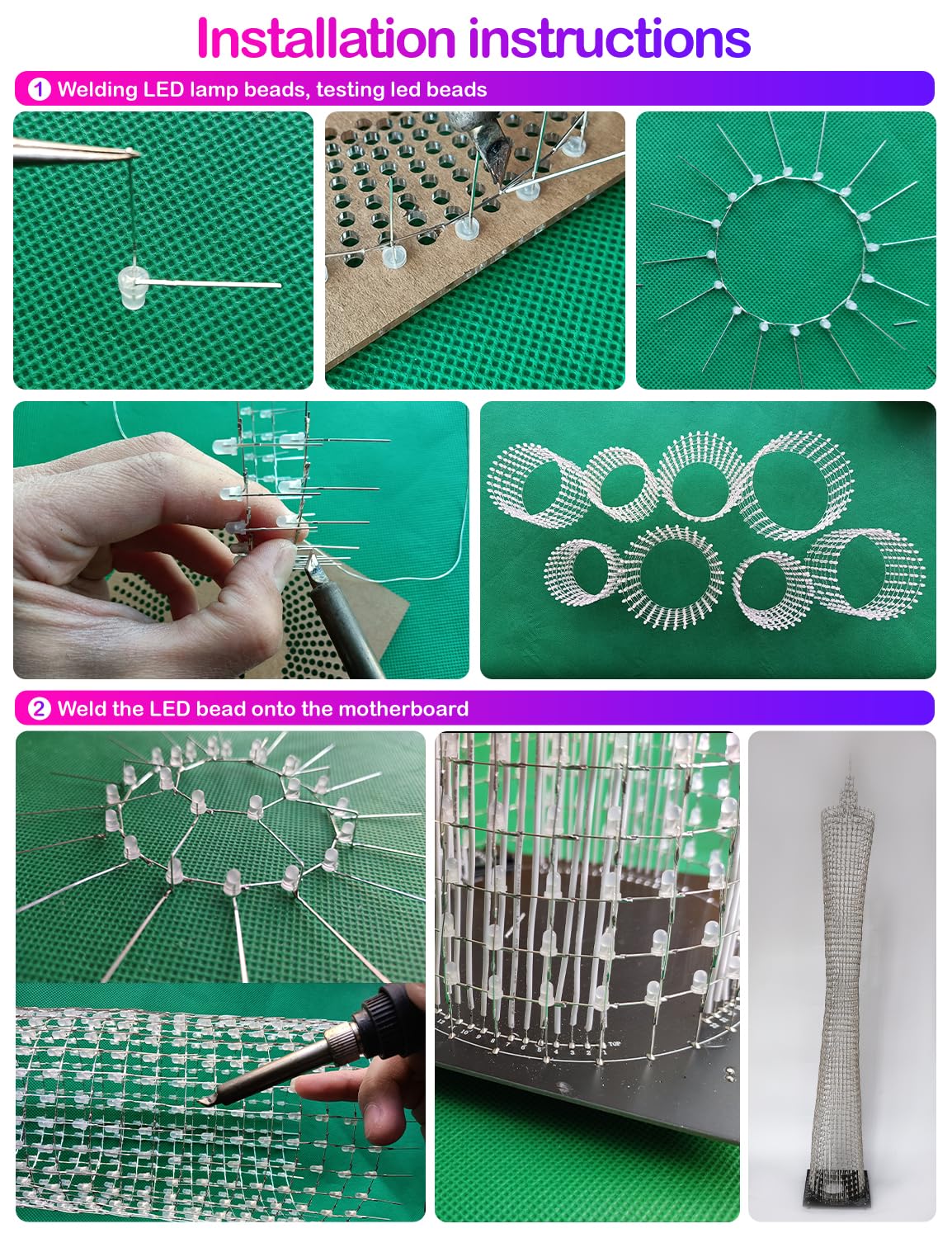

• (To Be Welded By Users) It requires users to weld 2112 LED lamps. Users need to be skilled in welding. Of course, we also provide standby LED lamps. Its mainboard is welded and tested and users only need to weld the lamps together. For LED welding, we have provided auxiliary molds, printed installation tutorials and video guide.

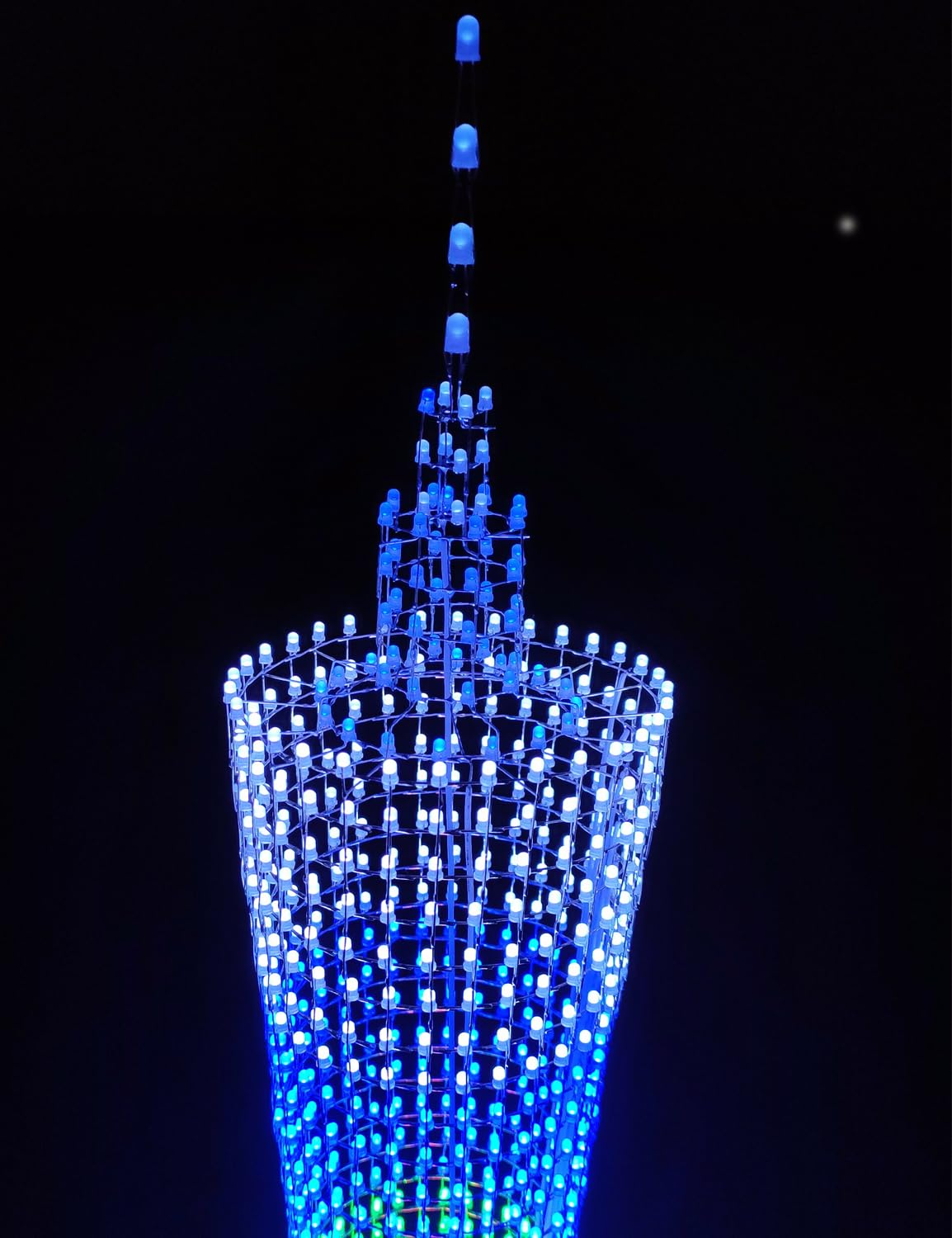

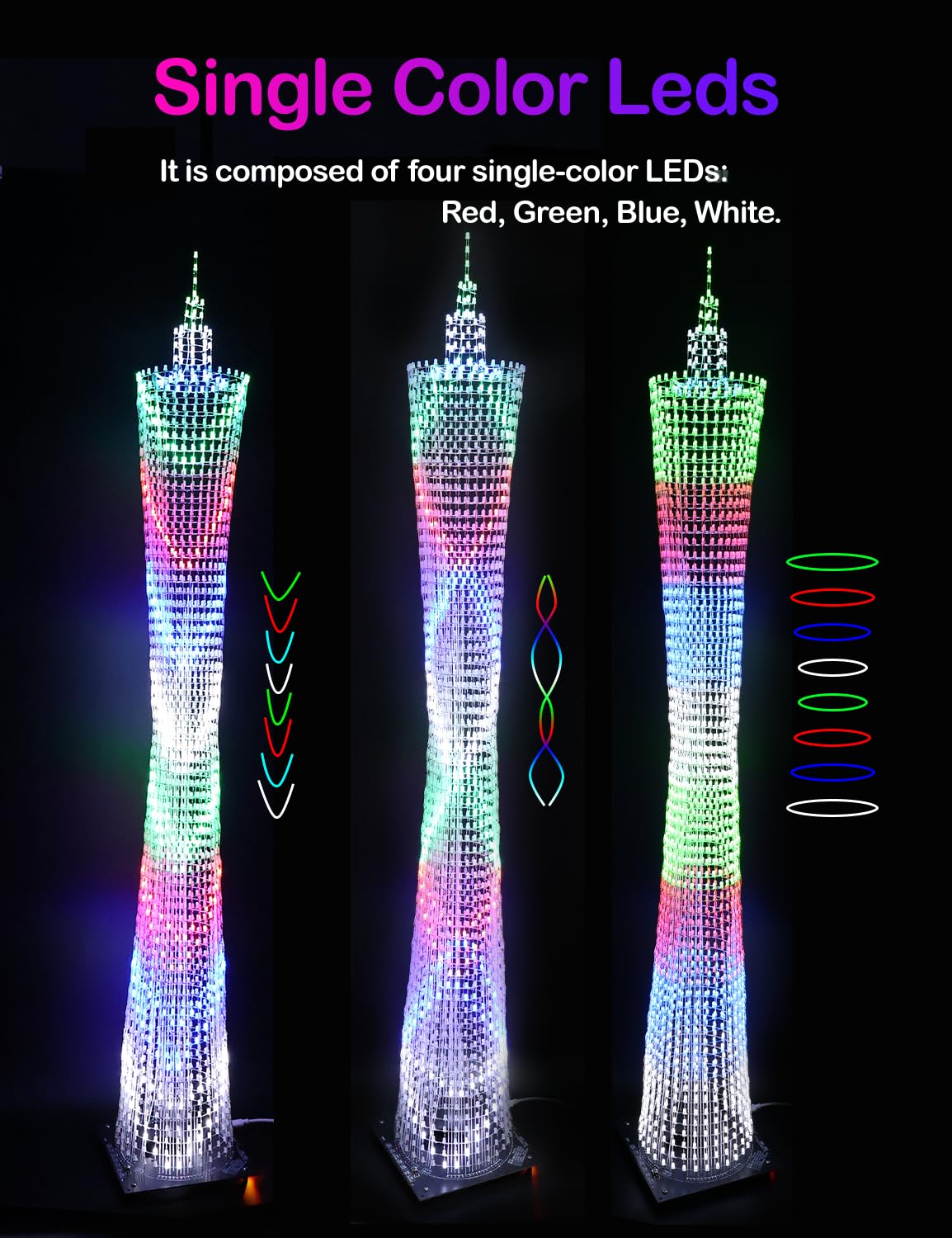

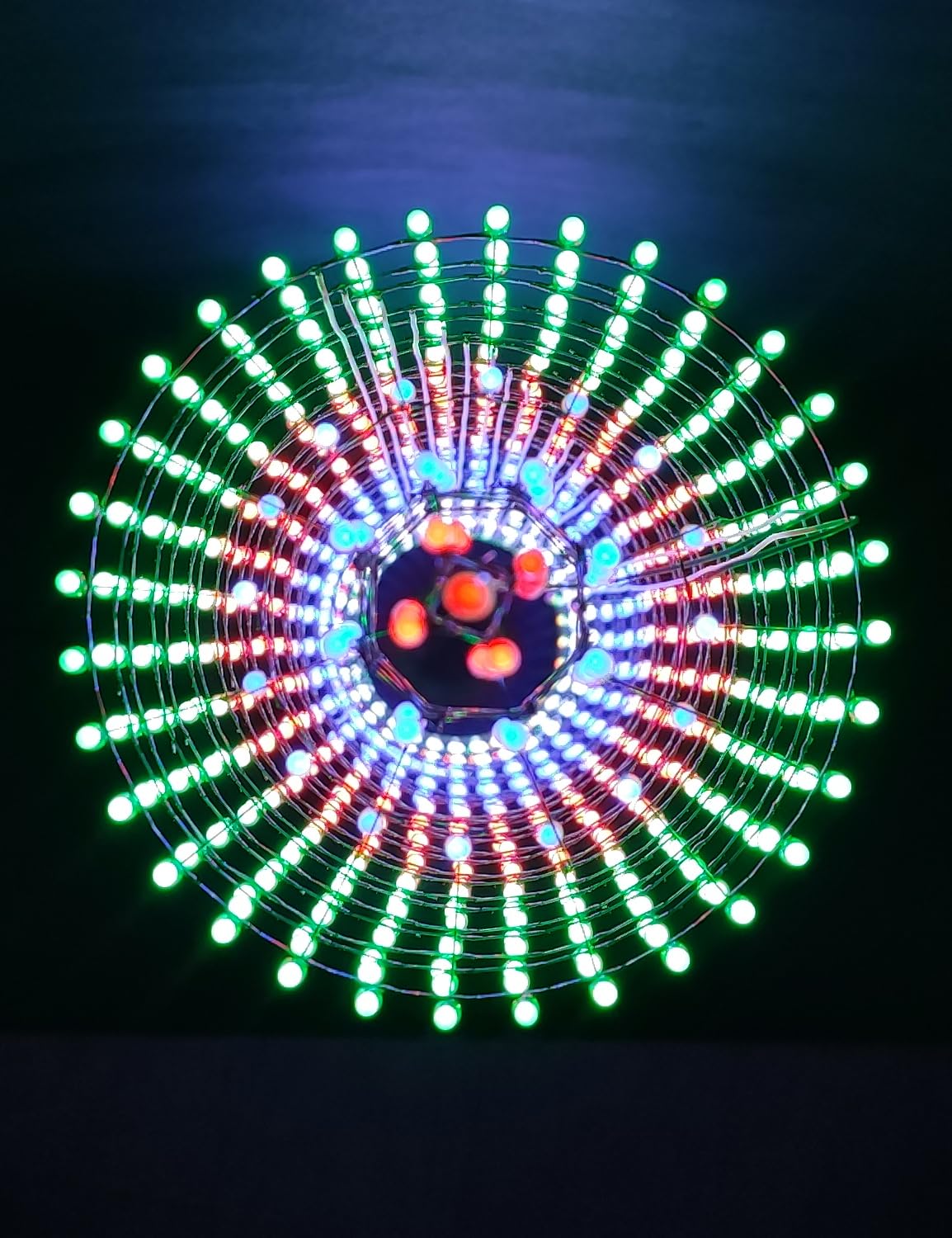

• (Hardware Structure) It uses four kinds of monochrome LEDs (red, green, blue and white). There are 32 LEDs in each loop and more than 64 loops of LEDs from top to bottom. It uses an STM32F103 high-speed SCM (single chip microcomputer).

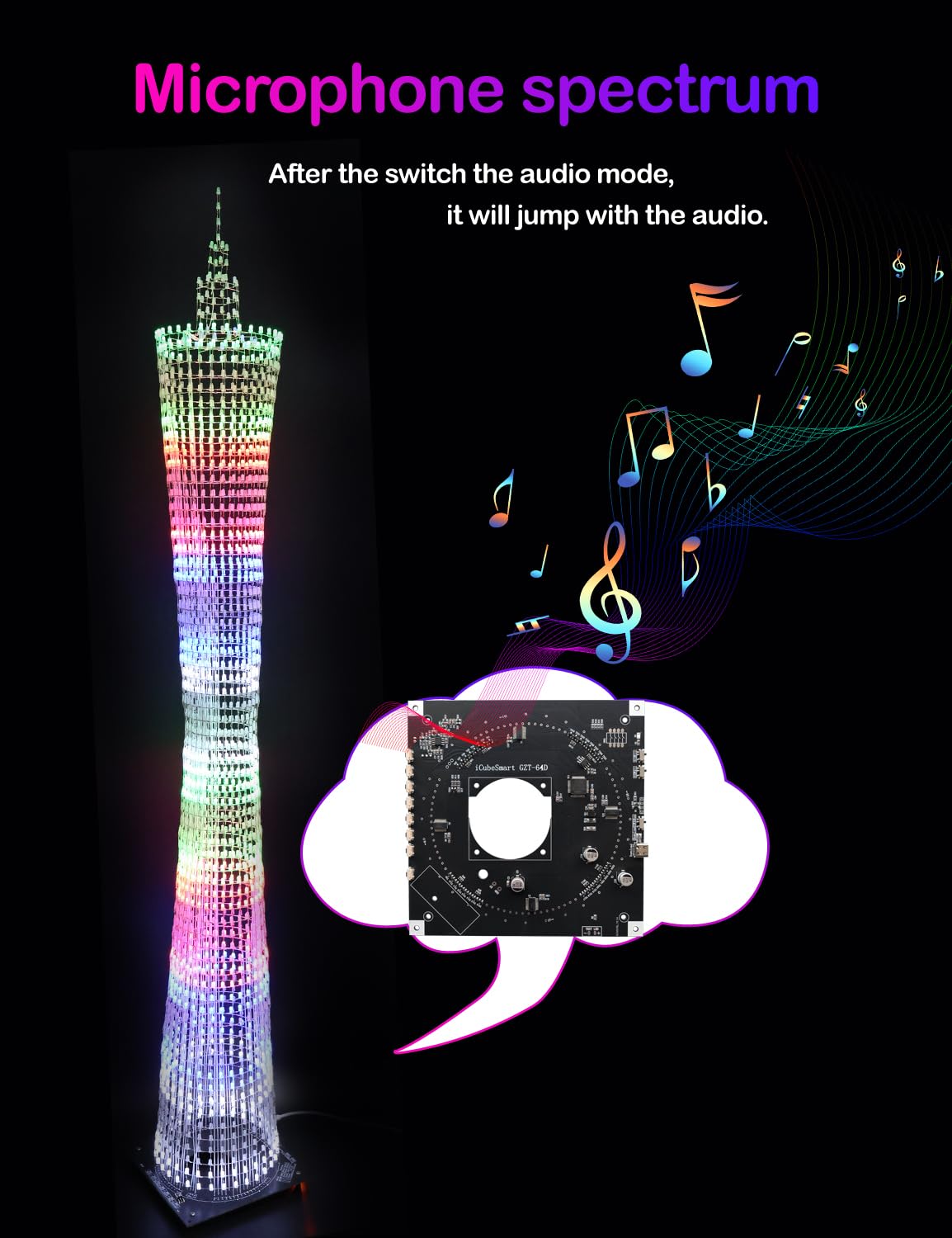

• (Features) The mainboard is 15x15cm in size. There are 6 keys provided on the mainboard to adjust the dynamic effects. There is a microphone module on the mainboard to collect sound. Users can switch the audio dynamic mode by pressing the keys. The current dynamic effect will jump up and down with the music.
• (Professional services) iCubeSmart have various electronic DIY products. If you receive the product and do not k how to make it, or the component is broken during production or if you need help to modify the animation, you can leave us a message. We offer life-long technical support services for our DIY products. If you need other products, please search for the brand name: iCubeSmart

Product description Hardware Composition: Microcontroller: STM32F103RET6 Driver chip: MBI5024 + SS8550, the horizontal 64 layers are LED cathode and the vertical 32 columns are LED anode. The mainboard is powered by 5V USB; There are 6 keys on the mainboard to switch animation modes. The button functions: 1, Reset: Reset to the first dynamic effect 2, Mode: Dynamic effect/Audio effect 3, Loop: Single dynamic / Full dynamic cycle 4, Previous: Previous dynamic effect 5, Next: Next dynamic effect 6, Pause: Start / Pause the dynamic effect Audio Mode: There is a microphone module on the motherboard, which can collect sound signals. Use the mode button to switch the audio mode. After that, the dynamic effect will jump up and down with the music signal. Package Include: 1, Soldered and tested mainboard (size: 15x15cm) x1 2, Soldered and tested core board(Yellow board) x1 3, Soldered and tested audio board(Green board) x1 4, USB download tool +Dupont Line x1 5, USB cable x1 6, White electronic line x 1 7, Plastic mold for auxiliary welding x1 8, Foggy highlight 3mm LED lamps, each led is provided for standby. 3mm Short Pin Red Leds x600(used 512) 3mm Short Pin Green Leds x600(used 512) 3mm Short Pin Blue Leds x600(used 552) 3mm Short Pin While Leds x600(used 512) 3mm Long Pin Blue Leds x50(used 24) For the arrangement method of the LEDs, please refer to our welding instruction document. Directions 1. Reset to the first dynamic effect by pressing button 1. 2. Switch between dynamic effect and audio effect by pressing button 2. 3. Choose single dynamic or full dynamic cycle by pressing button 3. 4. Navigate through dynamic effects by pressing buttons 4 (previous) and 5 (next). 5. Start or pause the dynamic effect by pressing button 6. 6. To use the audio mode, switch to audio effect using button 2, and the dynamic effect will jump up and down with the music signal collected by the microphone module. Safety Warning Welding required. Warning! Not suitable for children under 14 years.
