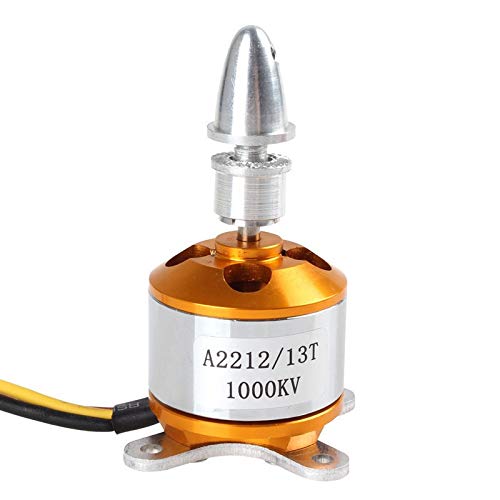

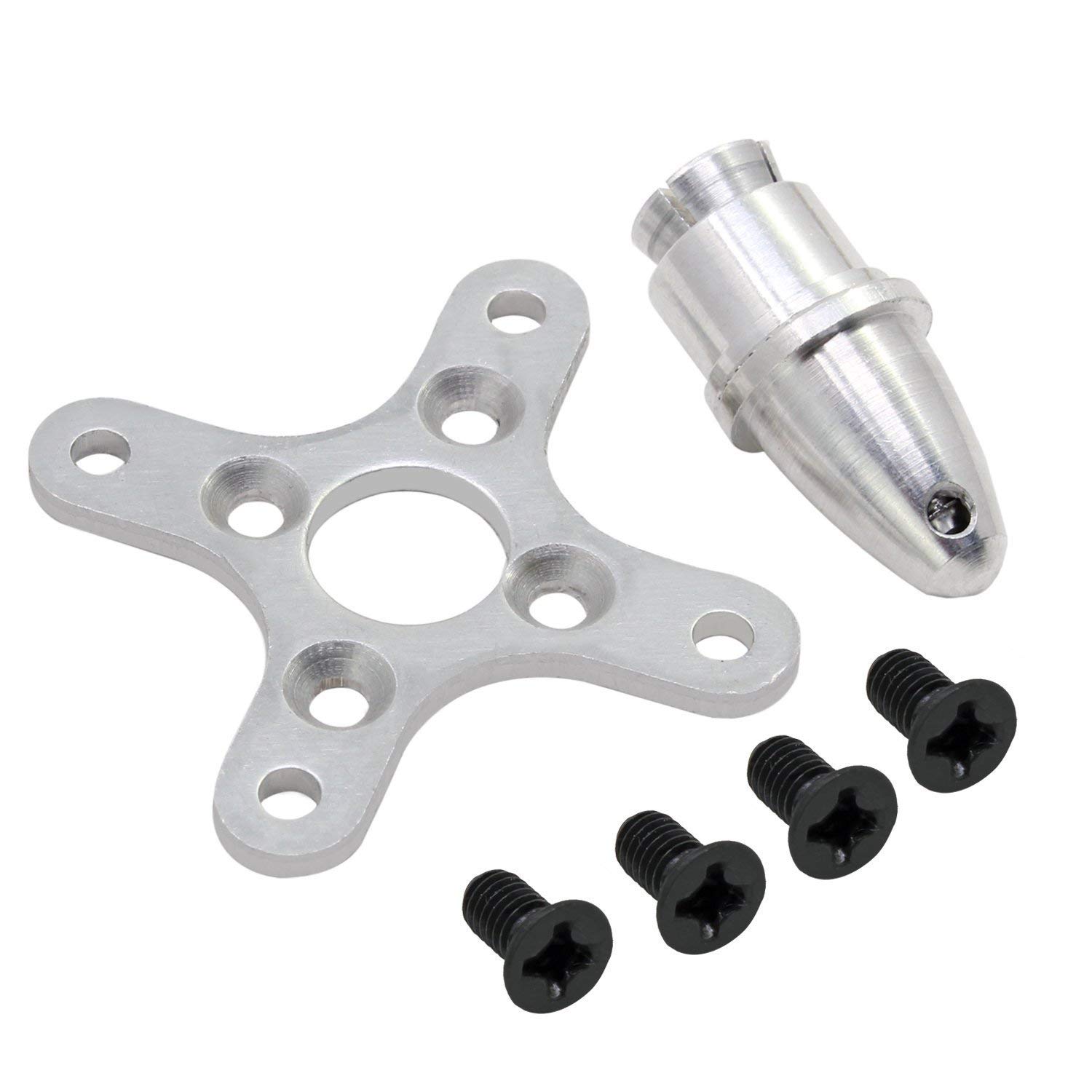

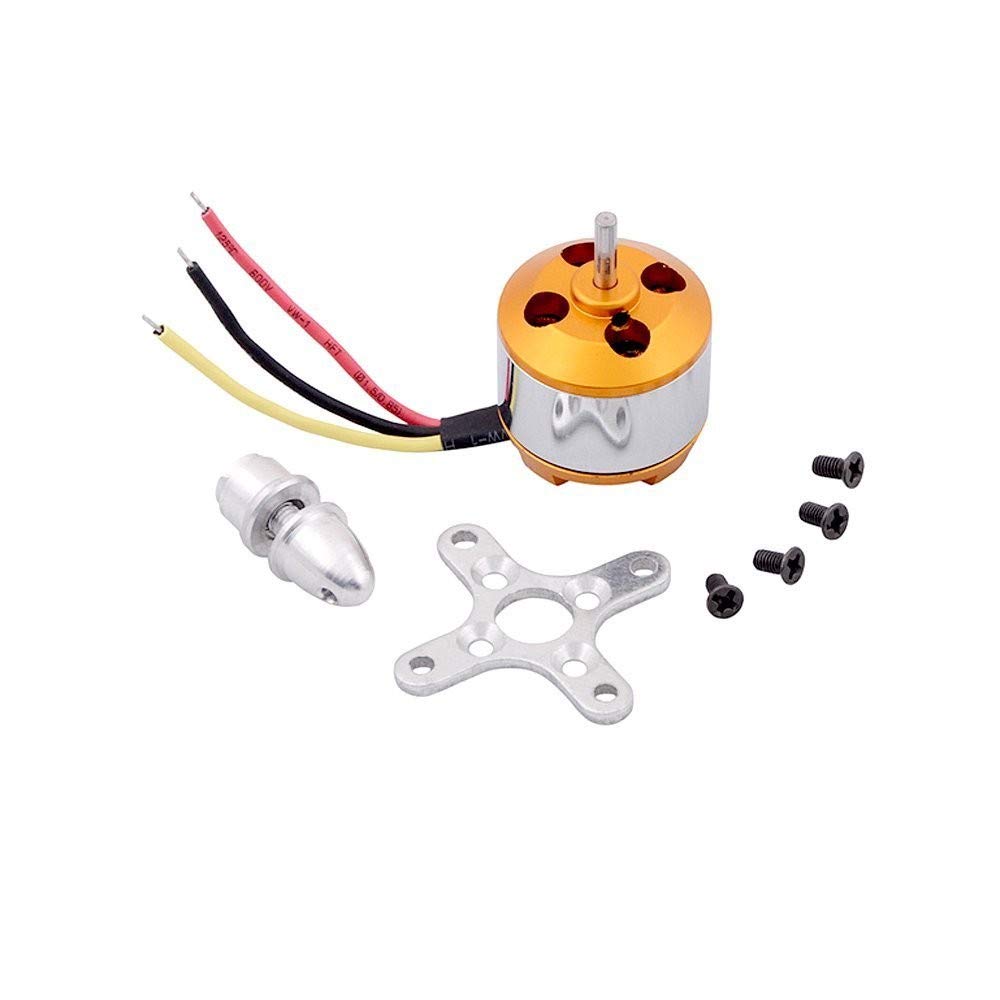

ICQUANZX RC 1000KV Brushless Motor A2212 13T with 30A Brushless ESC Set 1045 Propeller CW CCW Accessories Kit Mount for RC Plane DJI F450 550 Quadcopter (1000kv Brushless Motor Set)

• KV: 1000RPM/V
• Motor part size: 27.5 x 27 mm / 1.08 "x 1.06" (L * D); Shaft size: 3.17 mm/ 0.12"
• Max Efficiency: 80% ; Fit for ESC: 30A
• Battery: 2-4 Li-poly or 5-12 NiMH batteries
• Suitable for RC glider quadcopter helicopter aircraft copter multi-copter

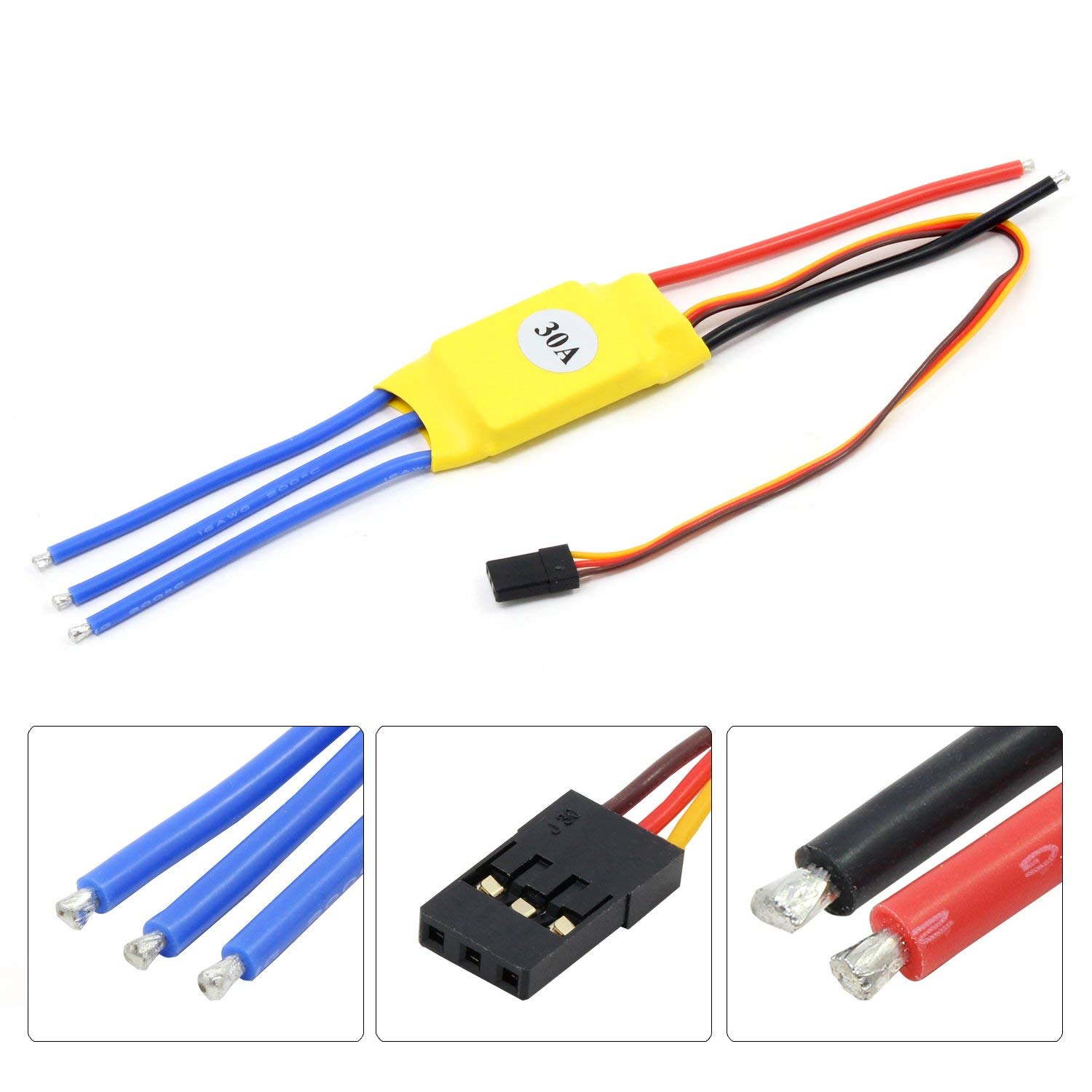

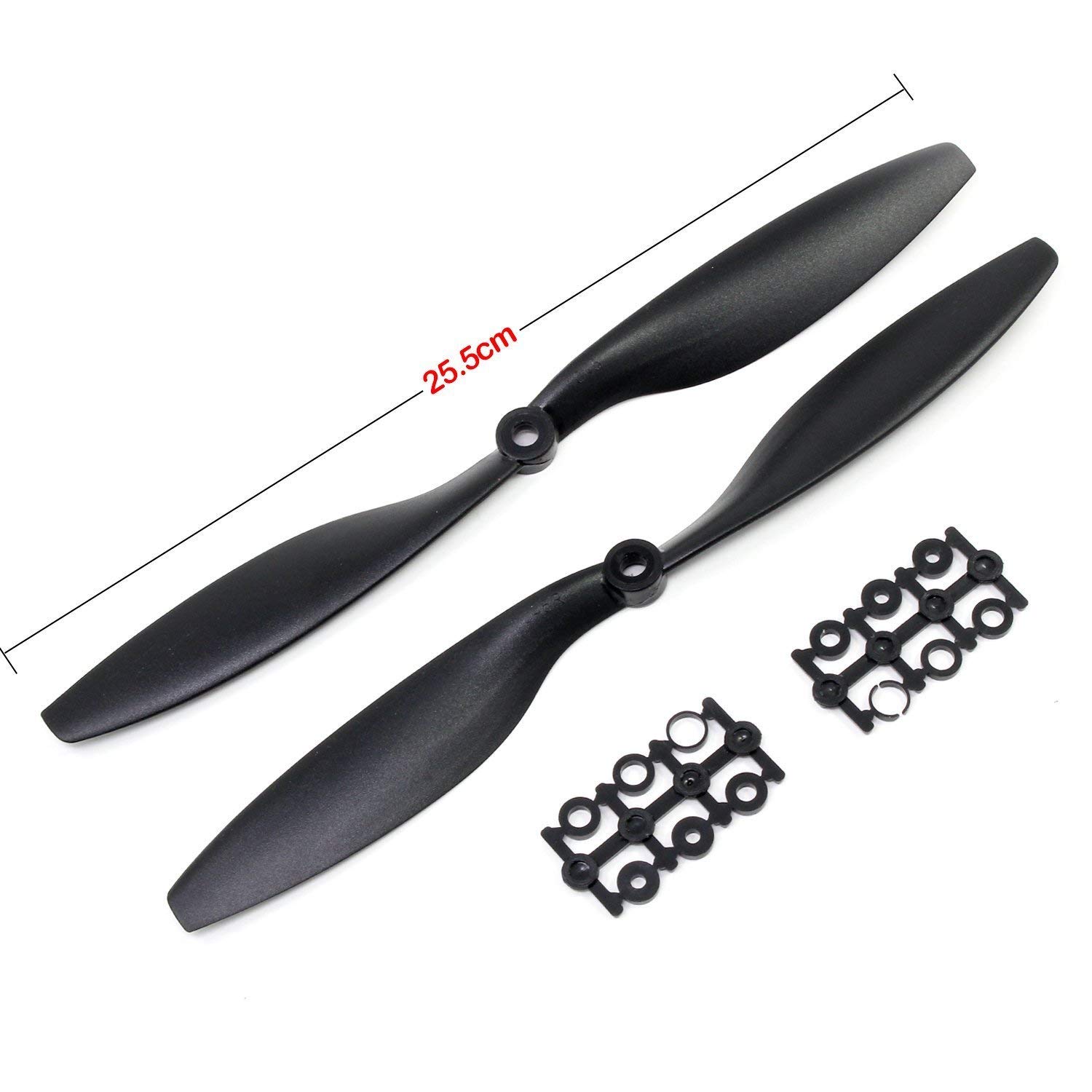

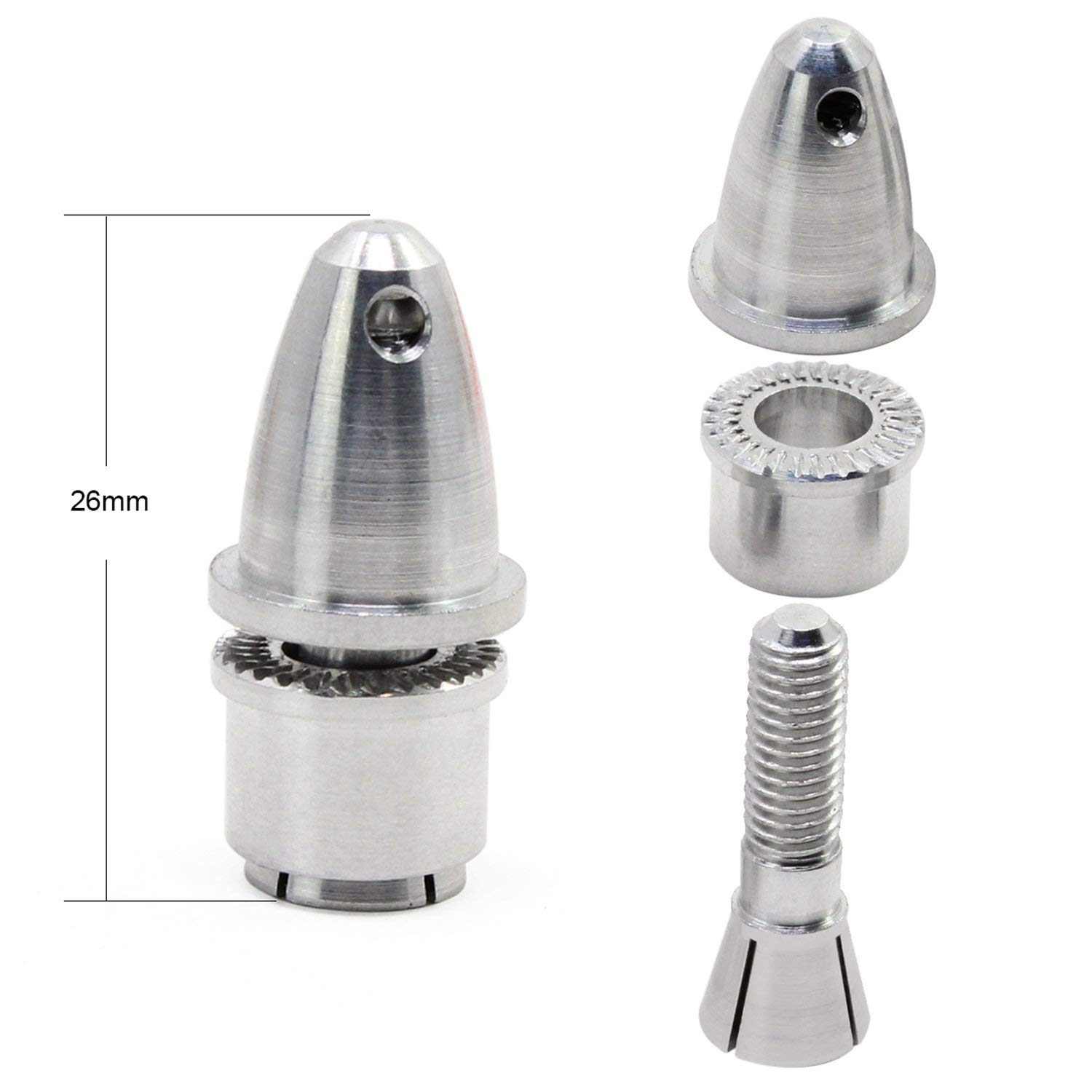

Description: A2212 1000kv Motor Specification: KV: 1000 Battery: 2-4 Li-poly or 5-12 NiMH batteries Max Speed：210,000rpm for 2 BLM poles, 70,000rpm for 6 BLM poles, 35,000rpm for 12 poles BLM. (BLM: brushless motor) 1045 Propeller： Shaft Diameter: 6mm/0.24'' Adjustable with hole adapter (3mm, 3.2mm, 4mm, 5mm, 6mm, 6.35mm, 7.95mm) 30A Brushless ESC Specification: BEC: 2A/5V(linear mode). Constant Current: 30A. Max Current: 40A burst up to 10 seconds. Low-voltage Cutoff: Auto detect. Input: 2-4 LiPo or 5/12 NiMH. Attention: when you first use this ESC and motor replacement or are not skillful or professional to play RC Plane Quadcopter Helicopter , Plese follow these steps to set your throttle stroke calibration.otherwise incorrect operating will cause ESC hot ,smoke or burn. How to set Throttle stroke calibration: 1.Connect the ESC with motor ,another end connect with receiver. 2.Turn on the remote controller and push the throttle to the highest point 3.Plug the ESC into batteries 4.There has double click sound (the highest point of the throttle confirm) 5. After get the click sound take the throttle stick to the lowest point 6.Confirm the three-click sound that means OK. Note:1.The three lines of the brushless ESC can be connected at will. If the steering is incorrect, you can adjust any two. 2.Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you purchase Package Included: 1 X A2212 1000kv Brushless Motor 1 X 30A Brushless ESC 2 X Propellers
