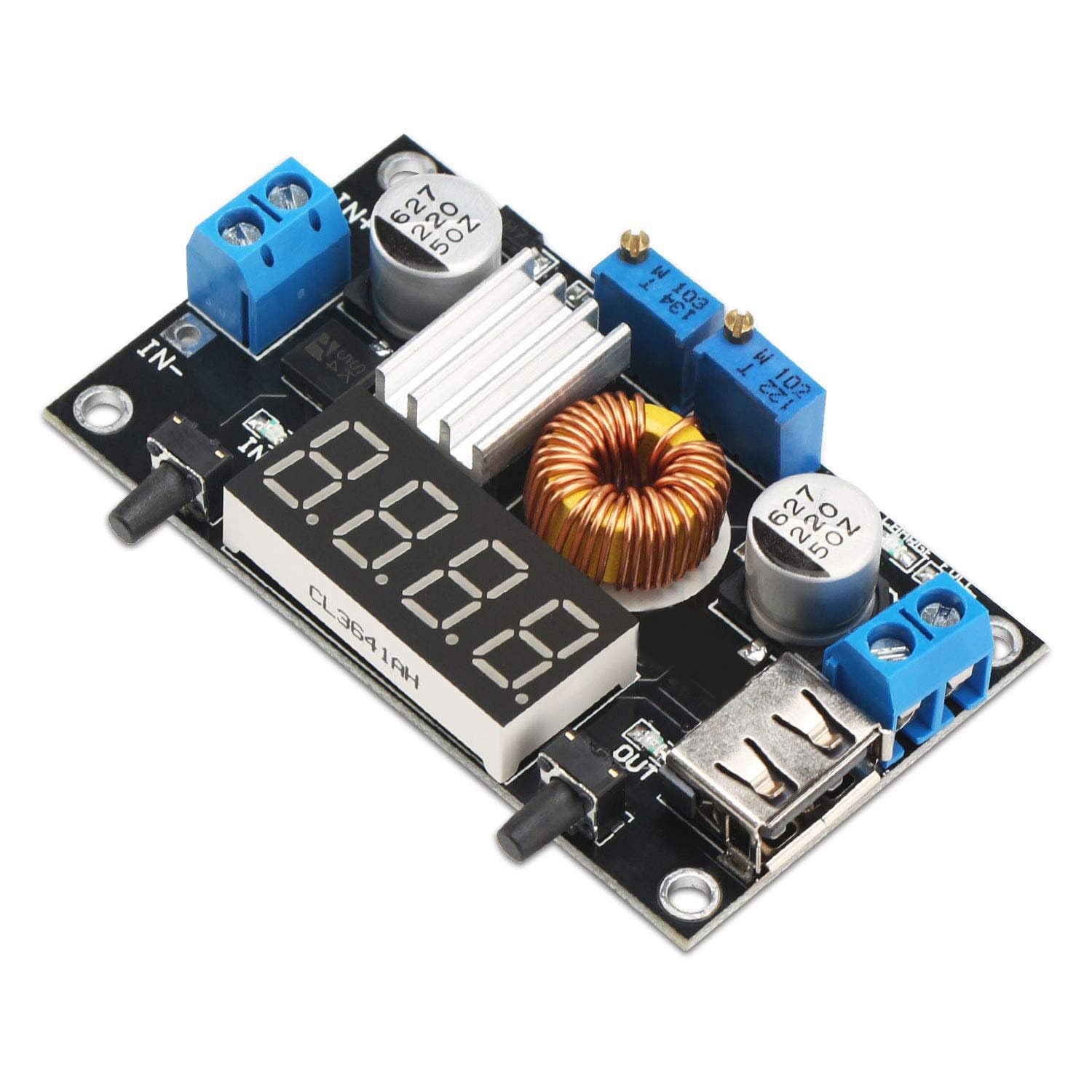

ICQUANZX Power Supply Module LM2596 DC Converter 5V-36V to 1.25-32V Step Down Voltage Regulator Stabilizer 3A 5A CC Volt Transformer Reducer

• Parameters: input voltage range DC 5V-36V; output voltage DC 1.25V-32V infinitely adjustable; maximum output current 5A, recommended use within 4.5A; maximum power 75W, recommended power up to 50W.
• Multimeter: detect and display voltage, current, power, can be used as a voltmeter / ammeter / power meter.
• Protection: over-current protection, short circuit protection, over temperature protection.
• CC & CV MODE --- with constant current mode & constant voltage mode.

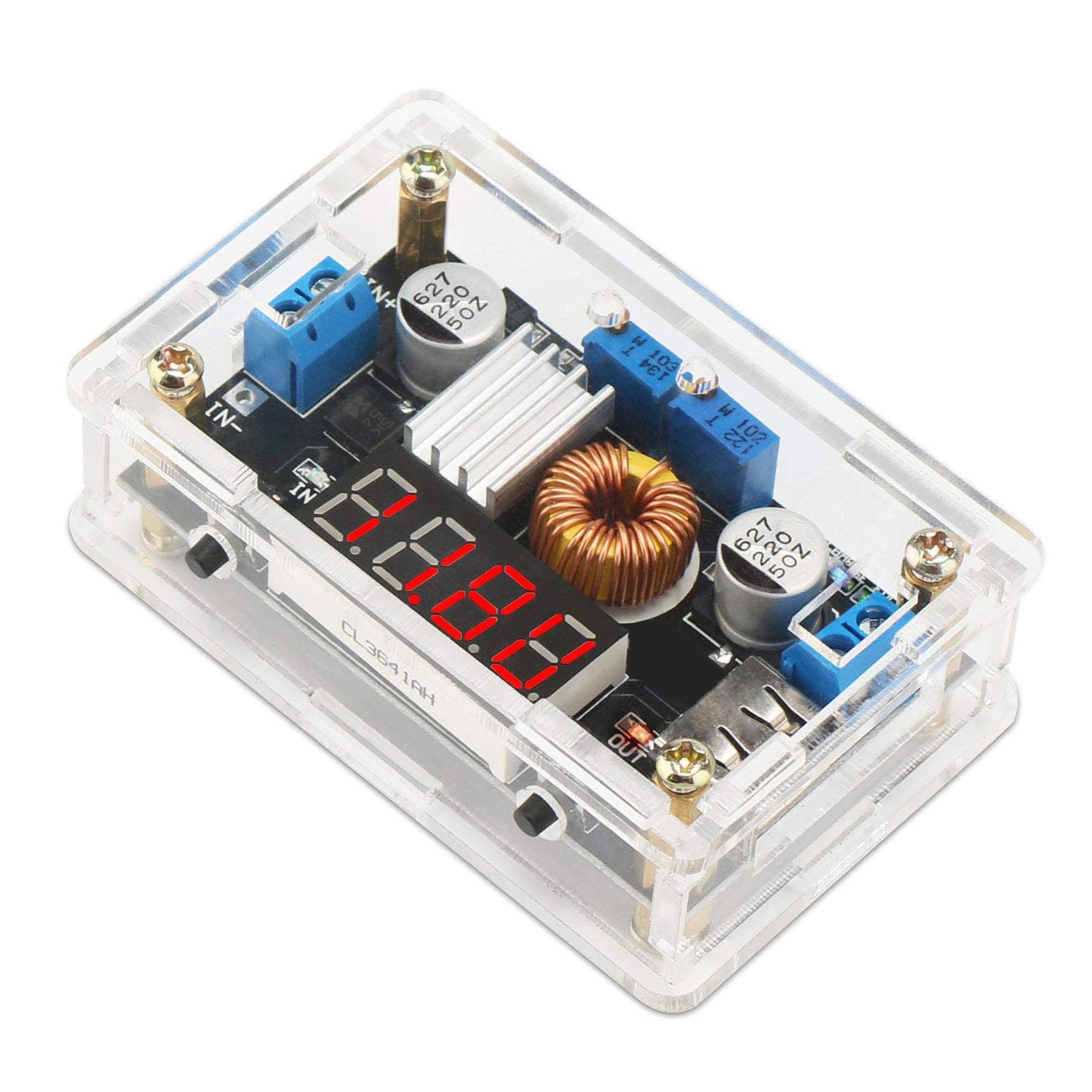

• Other functions: USB port, display for current mode and charging status, protective case, calibration function.

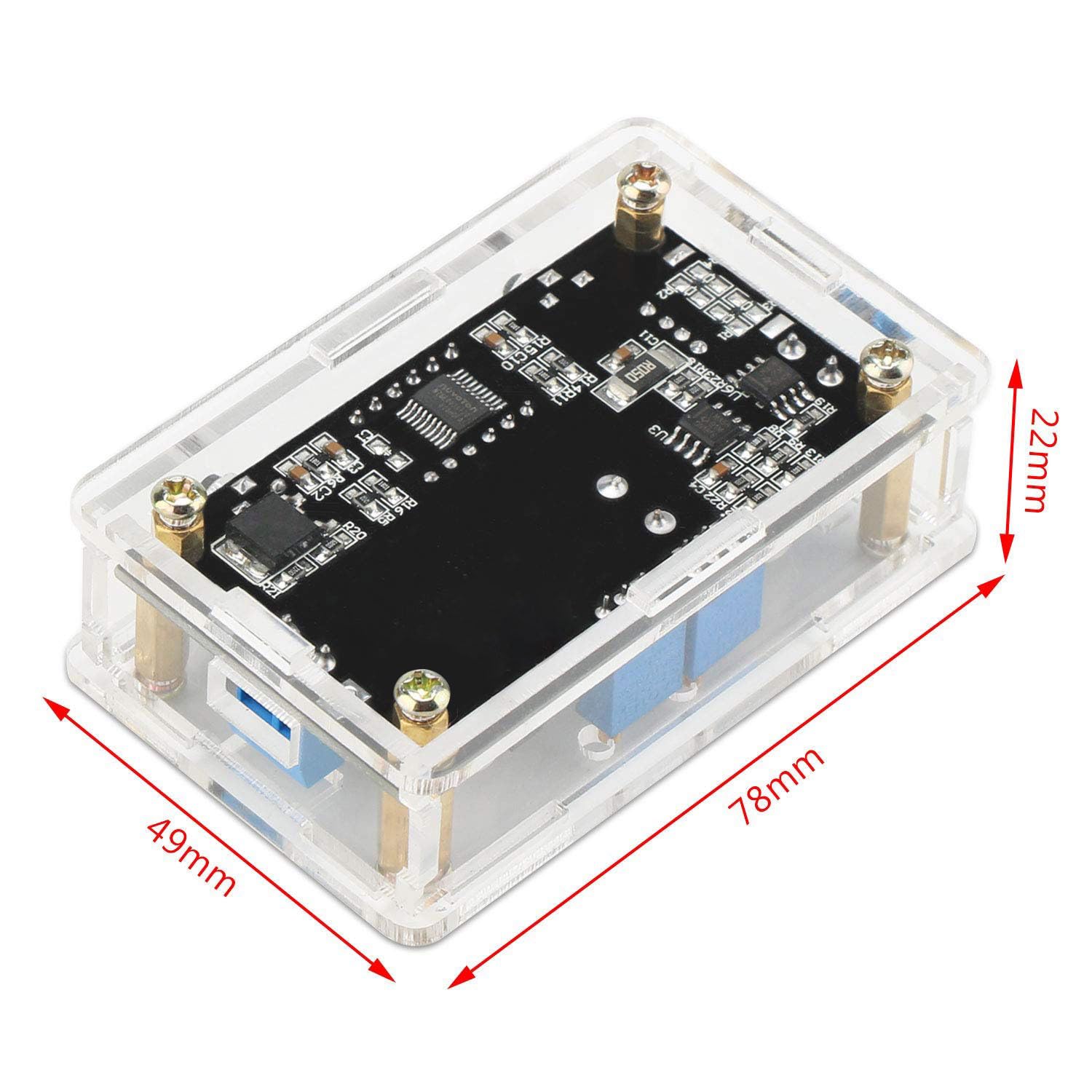

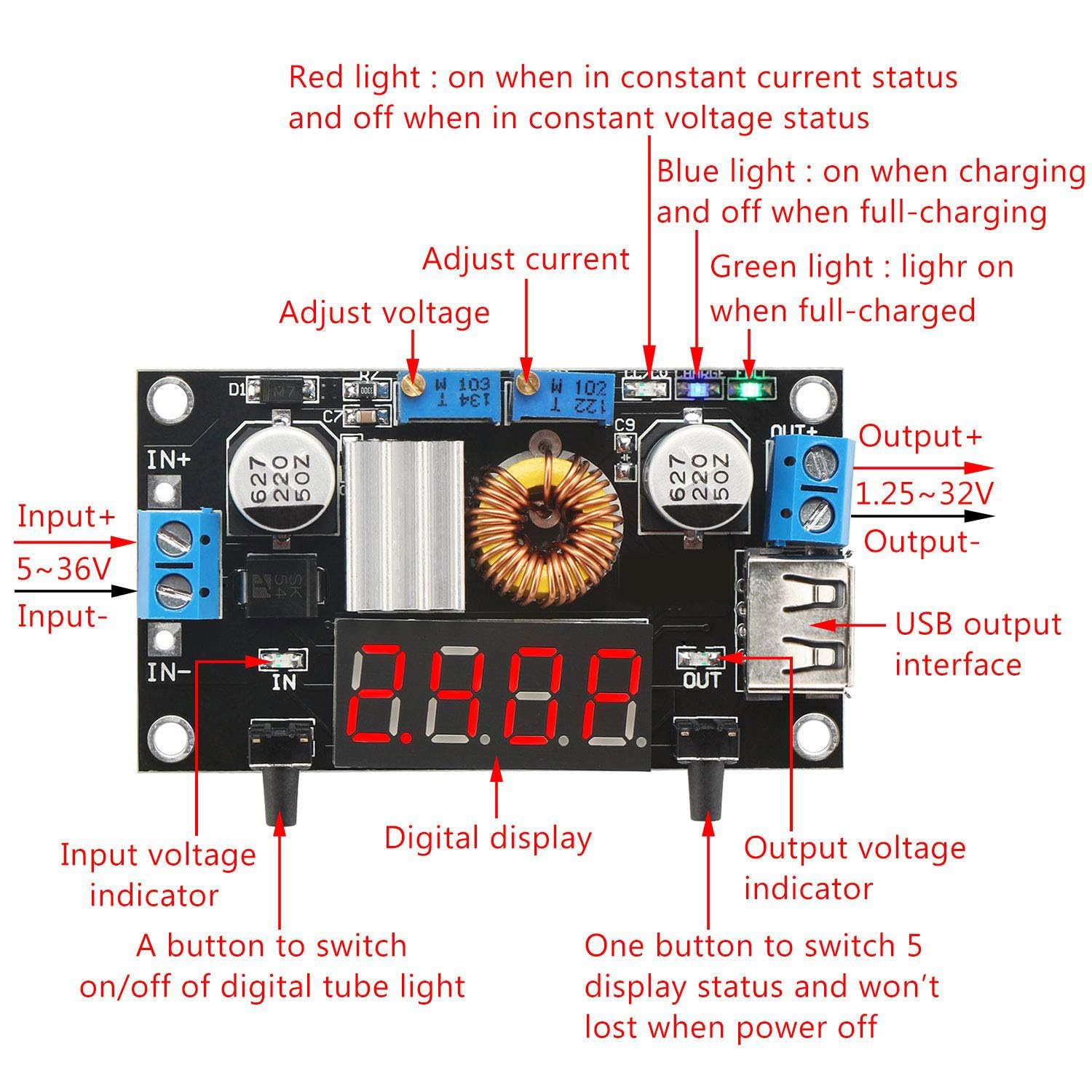

Description: Name: DC-DC power supply step-down converter module Input voltage: 5V-36V (input should be at least 1.5V higher than output) Output voltage: 1.25-32V (infinitely adjustable, preset 17V) Output current: 5 A max (recommended within 4.5 A). Output power: max. 75W (Recommended within 50W. If the voltage difference is large, reduce the power.) Operating temperature: -40 ~ + 85 °C. Operating frequency: 180 kHz. Conversion efficiency: up to 96%. Short circuit protection: yes. Over temperature protection: yes (output is automatically switched off when overheated) Input reverse polarity protection: no (please add a high current diode at the input if required) Installation note: 4 x 3 mm s. Wiring: (solder terminals) V-IN is entered, V-OUT is output. Feature: 1. With constant current and constant voltage. 2. The display of voltage, current and power can be used as a voltmeter/current meter/power meter. 3. With indicator light to indicate CC / CV mode and charging status. 4. With current limiting protection, the module will not burn even if the output is short-circuited. 5. On-board voltage and on-board current can be manually calibrated. 6. High performance, high efficiency, low ripple. 7. With USB port can charge for your digital device directly. 8. Comes with protective case. Application: 1. Used as ordinary DC step-down converter module with overcurrent protection; 2. Used as a charger (floating charging voltage and charging current can be adjusted); 3. Used as a constant current LED driver module. Box contents: 1 x DC-DC step-down converter
