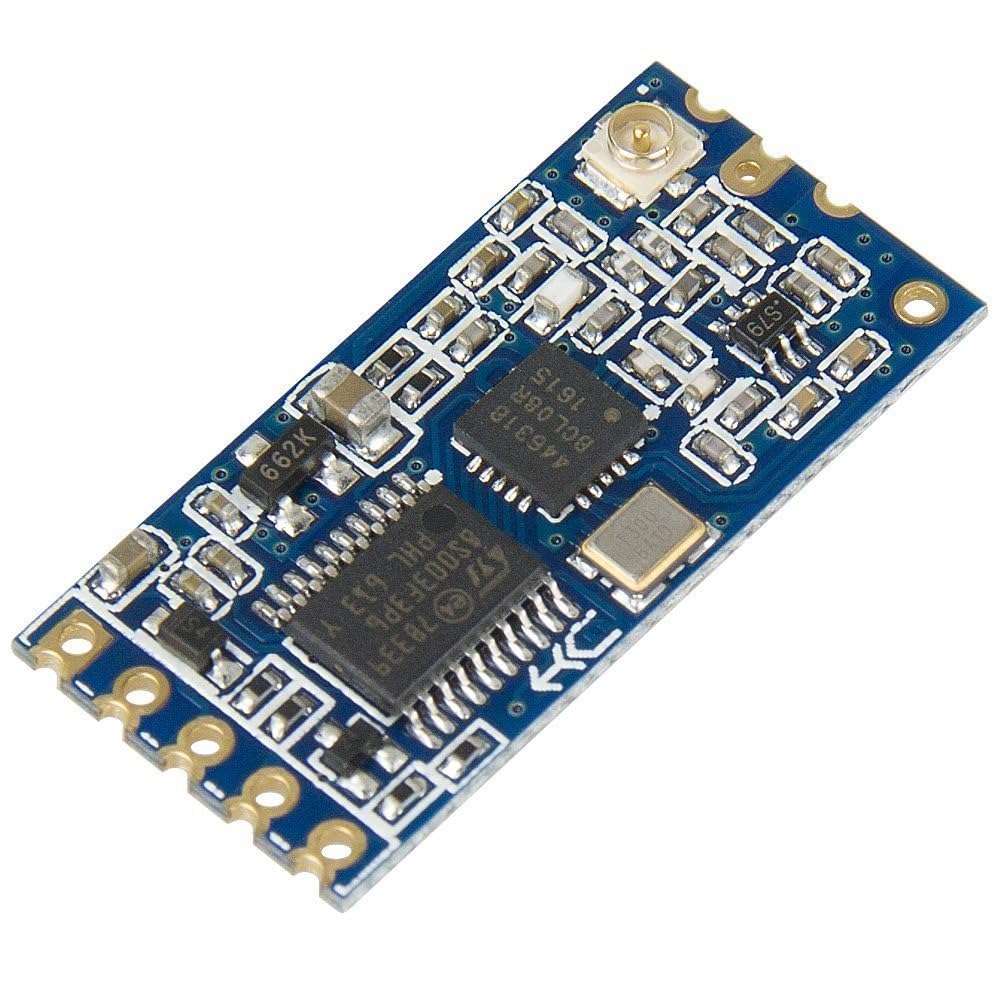

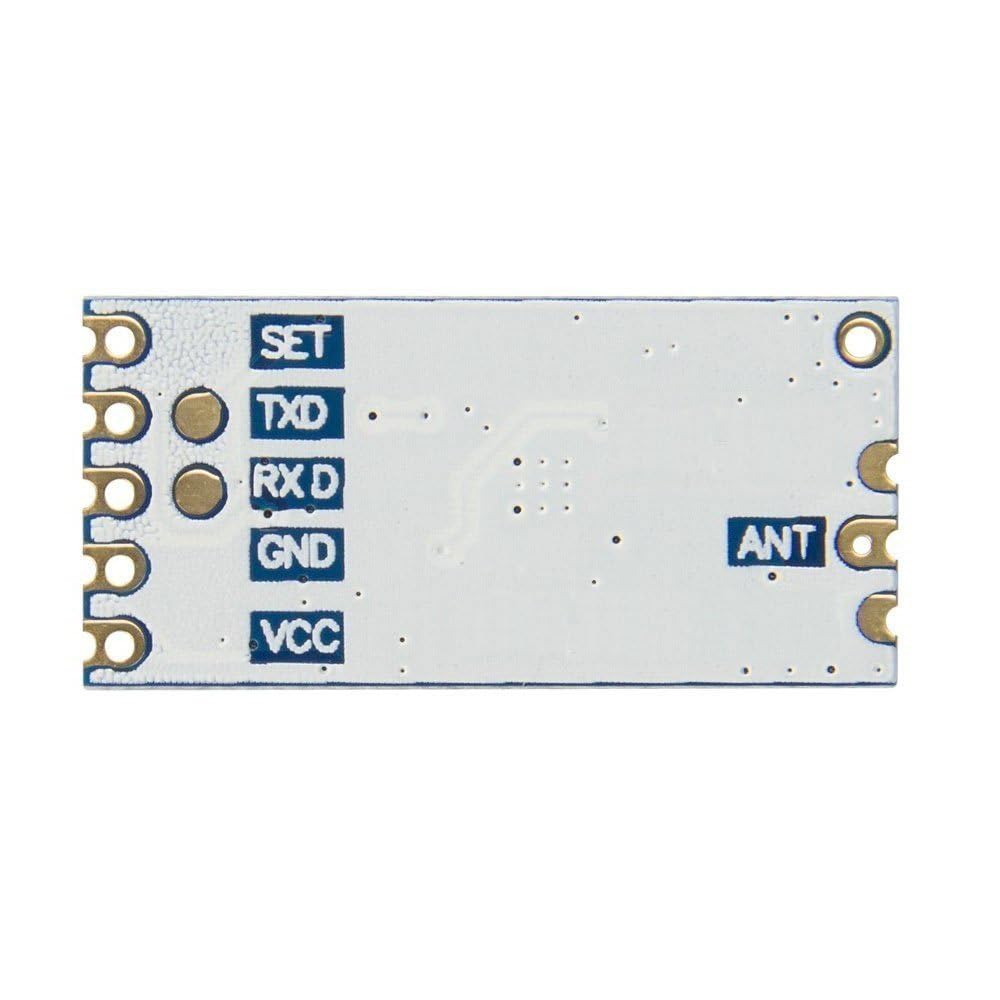

ICQUANZX HC-12 3.2-5.5V 433Mhz SI4463 Wireless Serial Port Module 1000m Replace Bluetooth

• Operating frequency range: 433.4-473.0 MHz
• Supply voltage: 3.2 V - 5.5 V. (If the modules work for a long time in emission state, it is recommended to chain a 1N 4007 diode at a supply voltage of more than 4.5 V to avoid the LDO module has a fever)
• Standard communication distance: approx. 600 m (communication distance is adjustable up to 1000 m, baud rate 5000 BPS).
• Standard no-load current: 16MA (modules in different working modes of different current)

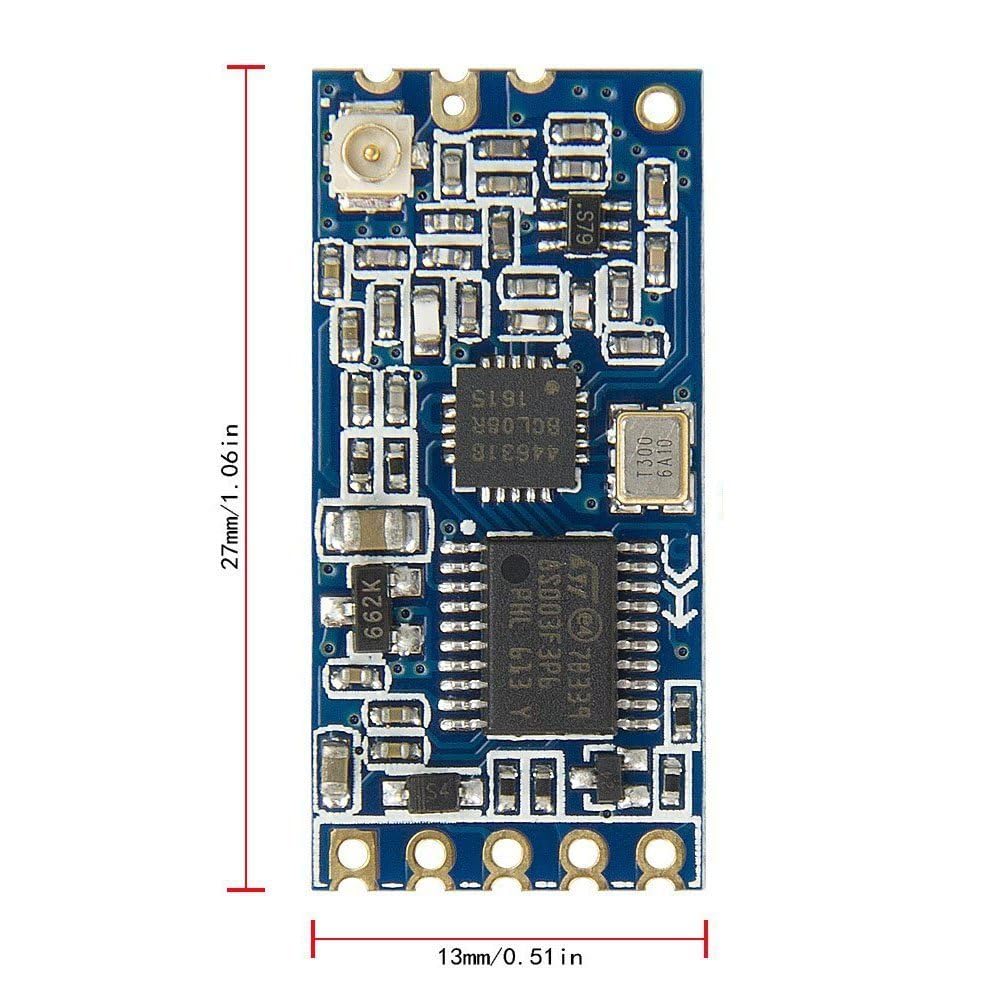

• Mini size, only 27.8 mm x 14.4 mm x 4 mm.

HC-12 SI4438 16mA 433.4-473.0MHz Wireless Transceiver Module SCM Serial Port Module Remote Control 1000M Replace Bluetooth Description: Puuli HC-12 SI4438 433Mhz Wireless SCM Serial Interface Module Remote Control 1000M Replace Bluetooth Features: Supply voltage: 3.2 V-5.5 V. Standard communication distance (open test): approx. 600 m (maximum communication distance is adjustable, range 1000 m, air baud rate 5000 bps). Factory factory setting: FU3 operating mode, baud rate 9600 bps, communication channels CH001 (433.4M). Operating frequency range? 433.4 - 473.0 MHz. Module size: 27.8mm × 14.4mm × 4mm The standard no-load current: 16MA. Box contents: 1 x HC-12 SI4438 16mA 433.4-473.0 MHz Wireless Transceiver Module SCM Serial Port Module Remote 1000M Bluetooth Replace
