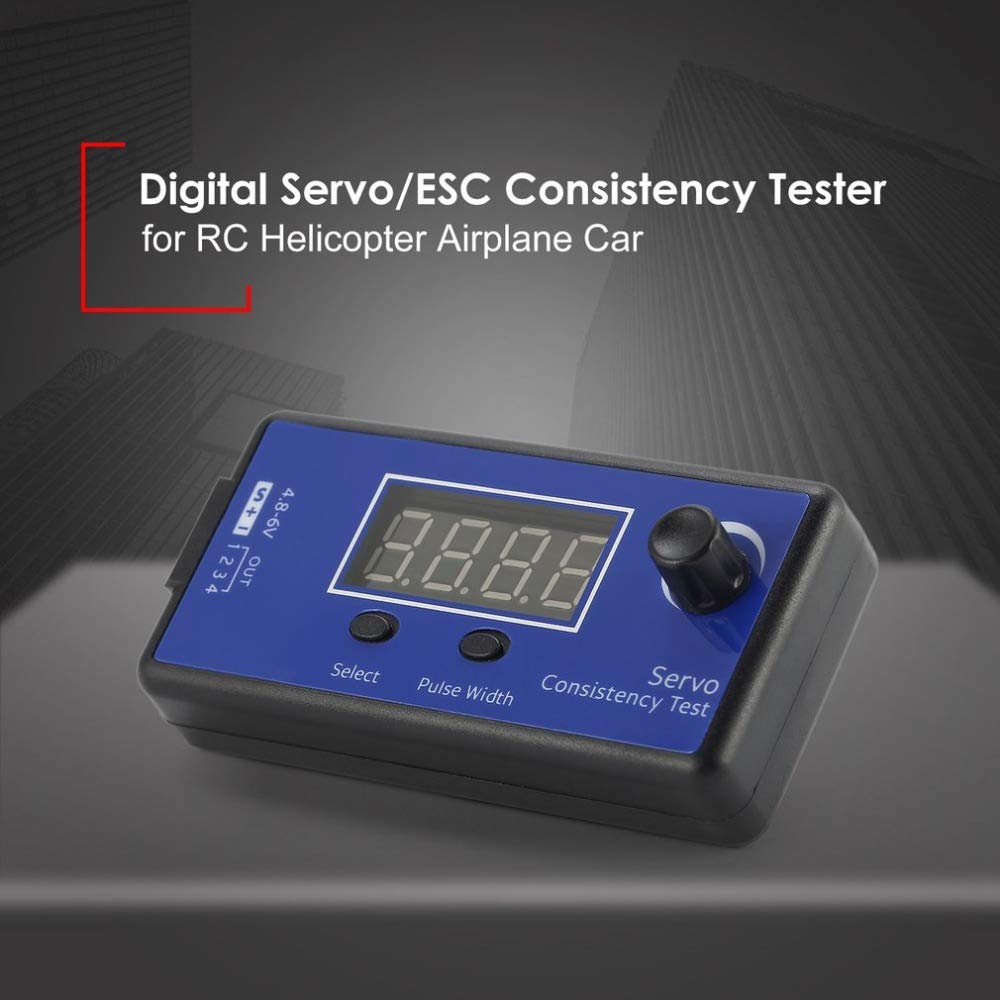

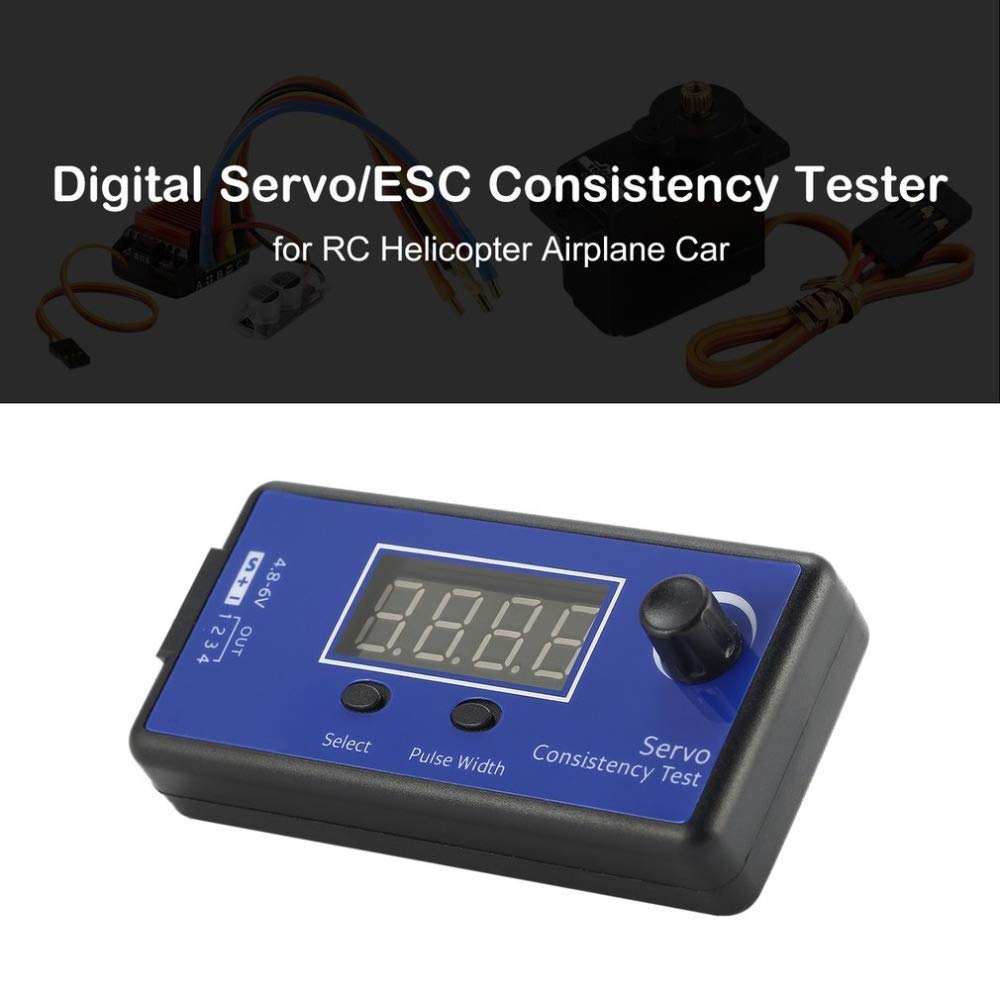

ICQUANZX Digital Servo Tester/ESC Consistency Tester for RC Helicopter Airplane Car Motor Throttle Display

• 4 Channel Tester Servo: 4 servos can be controlled simultaneously
• Input voltage: DC5-6V
• Can be synchronised output control 4 servos and used to compare the performance steering gear control of the steering servo output signal, can be accurate to 2us

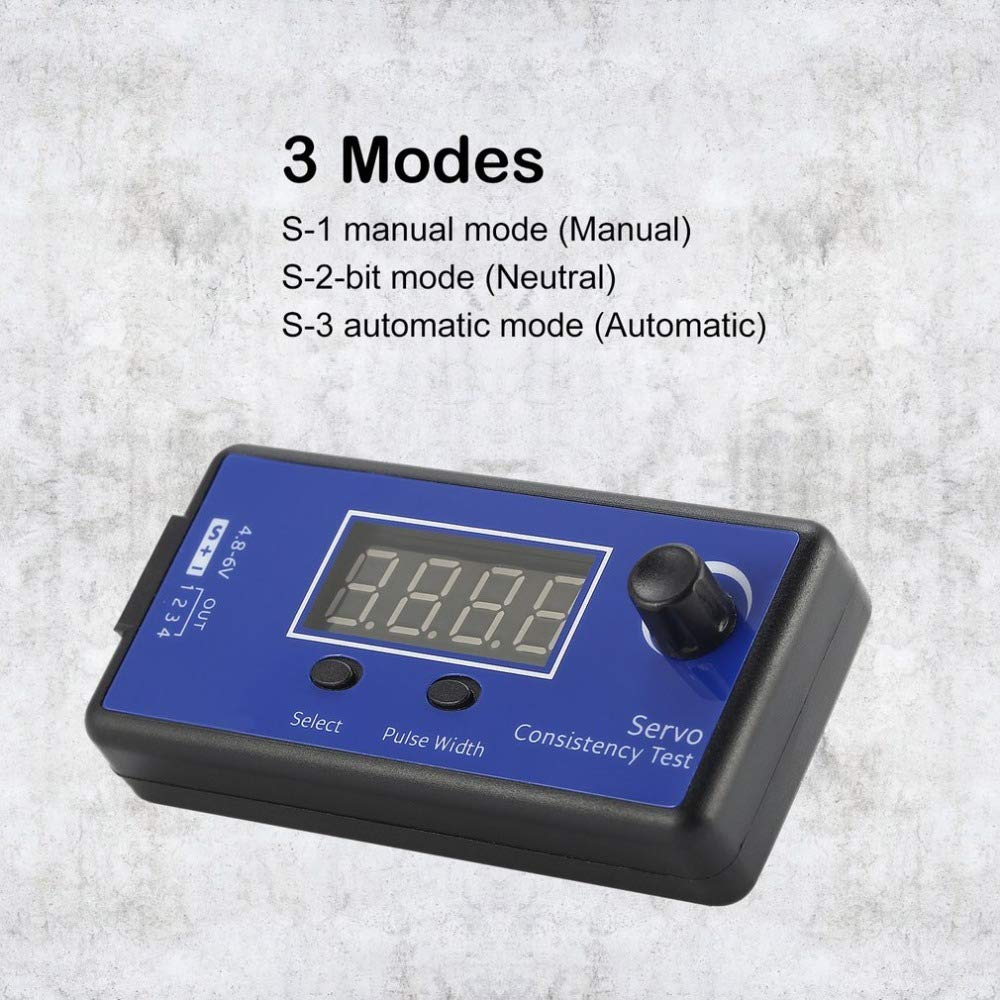

• Button function: manual S-1 mode (manual), S-2 bit mode (neutral), S-3 automatic mode (automatic) key pulse width

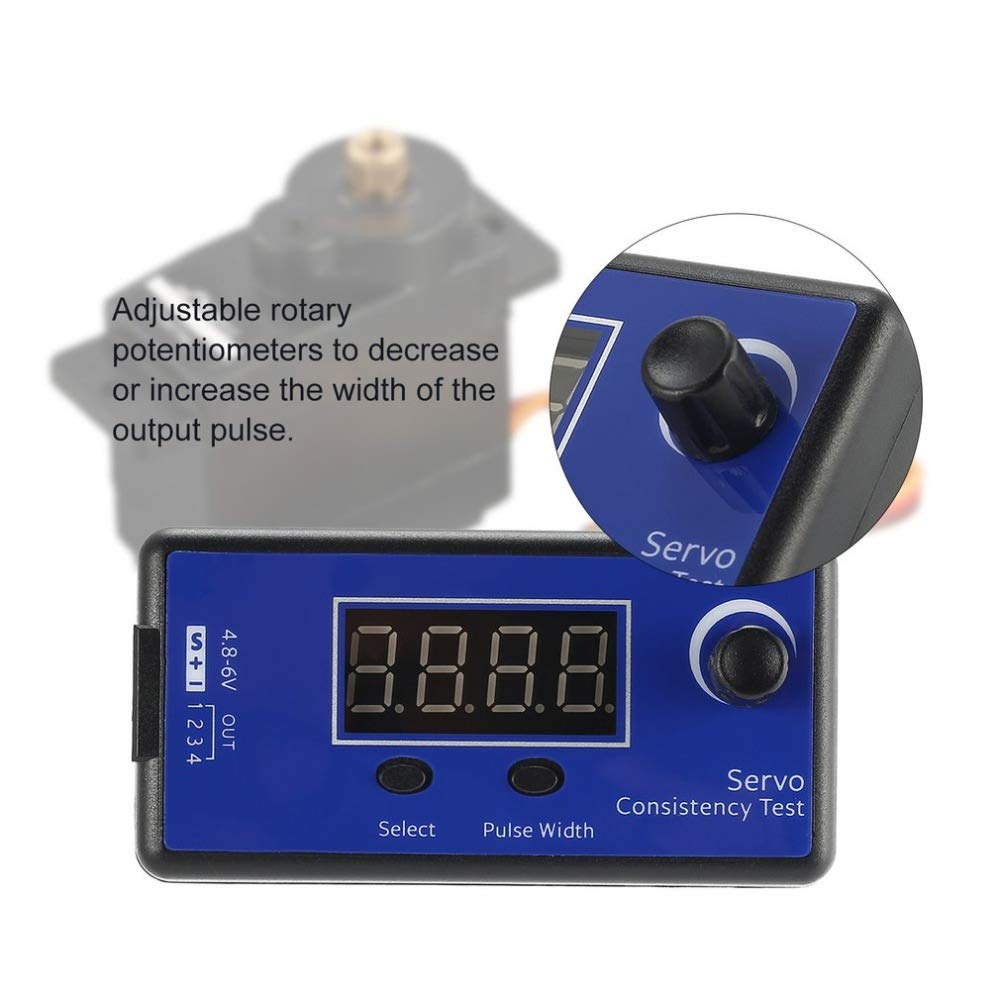

• With the PPM signal test function in the display, the input PPM signal changes, while the PPM signal output to the servo is synchronized, powered and automatically switches to manual mode (manual). 20us 50H analogue servo signal cycle, frequency 50Hz, rotary potentiometer to reduce or increase the width of the output pulse.

Descriptions: Can be synchronised power control 4 servos and used to compare the performance steering gear control of the steering servo output signal can be accurate to 2us (1 millisecond = 1000 microseconds), you can test the steering gear is able to react to subtle changes with PPM signal test function in the display, the input PPM 1.3 - 1.the input PPM signal automatically activates the synchronization output to the servo (manually). 20us 50H analogue servo signal cycle, frequency 50Hz, rotary potentiometer to reduce or increase the width of the output pulse. Button the selection (note: the key switch function, circulation pattern). 1. S-1 manual mode (manual). 2. S-2-bit mode (neutral). 3. S-3 automatic mode (automatic) buttons. Pulse width: 1. 50H analogue servo signal cycle 20us frequency 50Hz. 2. 125H, the steering gear digitizes a signal cycle 8us frequency 125Hz 3. 250H digital servo signal cycle 4us frequency 250Hz Specifications: Material: plastic. Colour: blue and black. Input voltage: DC 5 ~ 6 V. Output signal width: 800~2200us Package size: 14 x 10 x 3 cm / 5.5 x 3.9 x 1.2 inches. Package weight: 39 g Package list: 1 x digital servo tester/ESC consistency tester
