ICQUANZX DC Motor Speed Control Driver Board 3V-35V 5A PWM Controller Stepless DC 3V 6V 12V 24V 35V Variable Voltage Regulator Dimmer Governor Switching Build with LED Indicator and Switch Function

• Min. DC motor controller, but also applies to LED dimming
• Wide voltage DC motor speed controller, PWM duty cycle: 1%-100%
• By screwing the potentiometer, you can turn off the power supply output
• Resettable high current and high current fuse, over-current shutdown, shutdown for a few seconds, automatic recovery
• Standard shutdown of the short circuit point, applicable to 5-35V input voltage, when the short circuit point is connected, it is suitable for low voltage 3-15V input

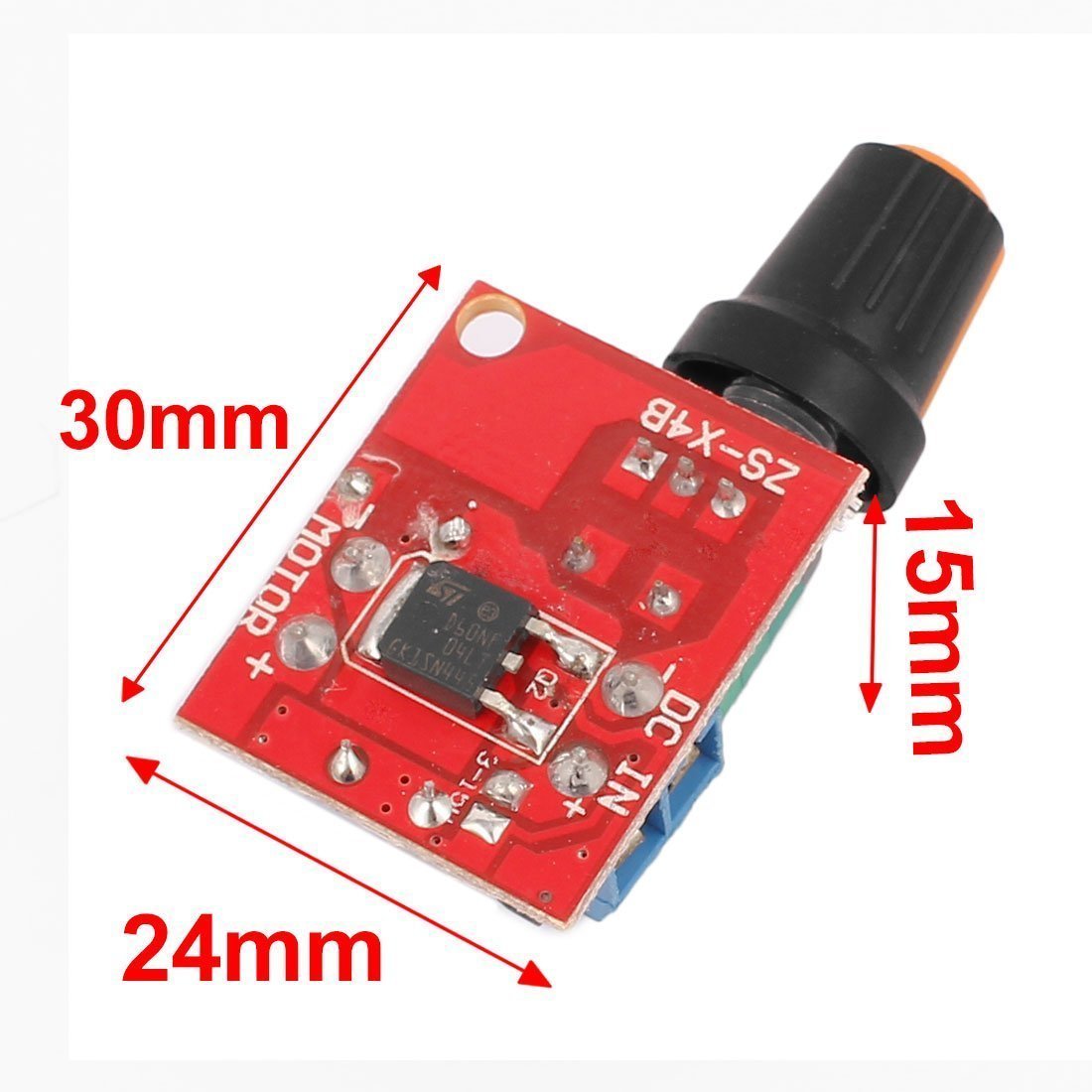

Specifications: 1. Operating voltage: DC3V-35V. 2. Control power: maximum 90 W. 3. Standby current: 0.01 A. 4. PWM working cycle: 1% -100%. Frequency 5. PWM: 10 kHz. Model: ZS-X4. Size 7. Shell: 30 mm x 24 mm (without handle), total height is 15 mm. 8. Net weight: 0.015 kg Note: The input voltage selection is divided into two boxes. Medium short contact and 3-15V short contact for connection to low voltage 3-15V input, intermediate and short contact 5-35V for connection to high voltage 5-35V. The standard product is 5-35V. Package includes: 1 x PWM speed controller.
