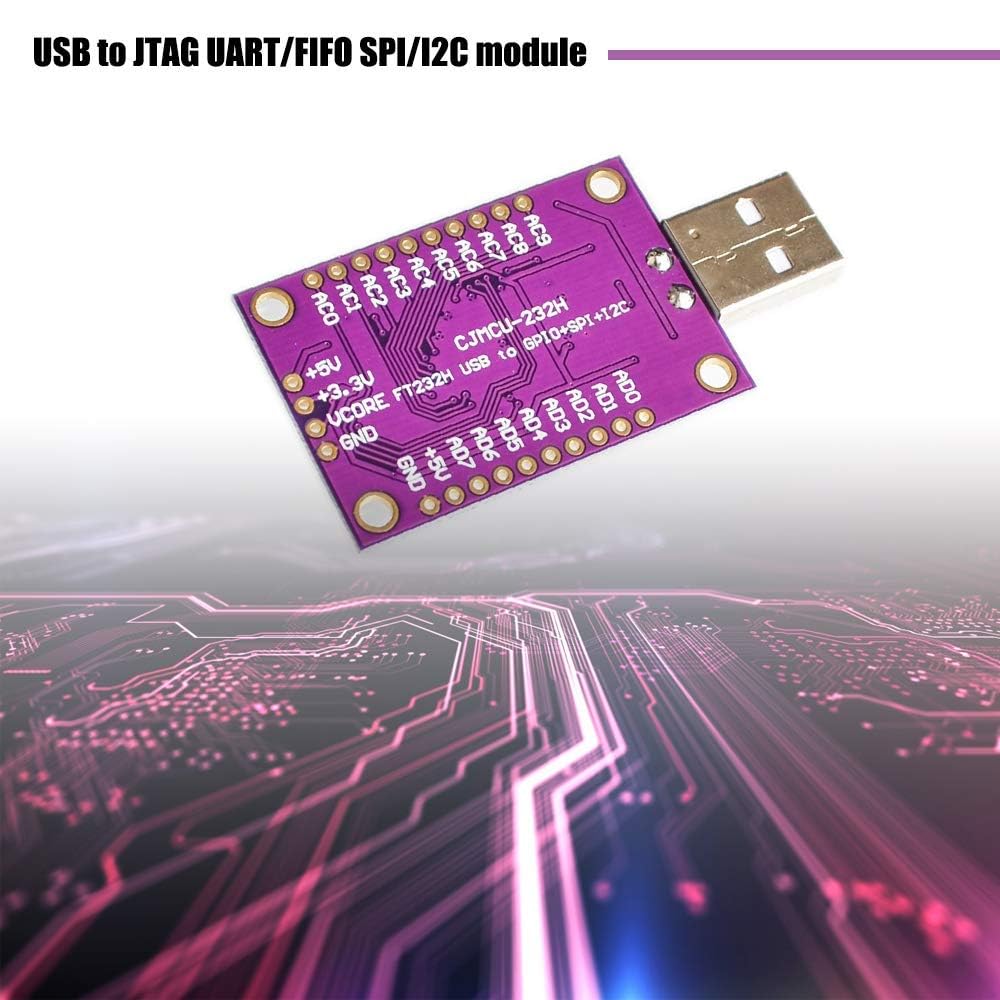

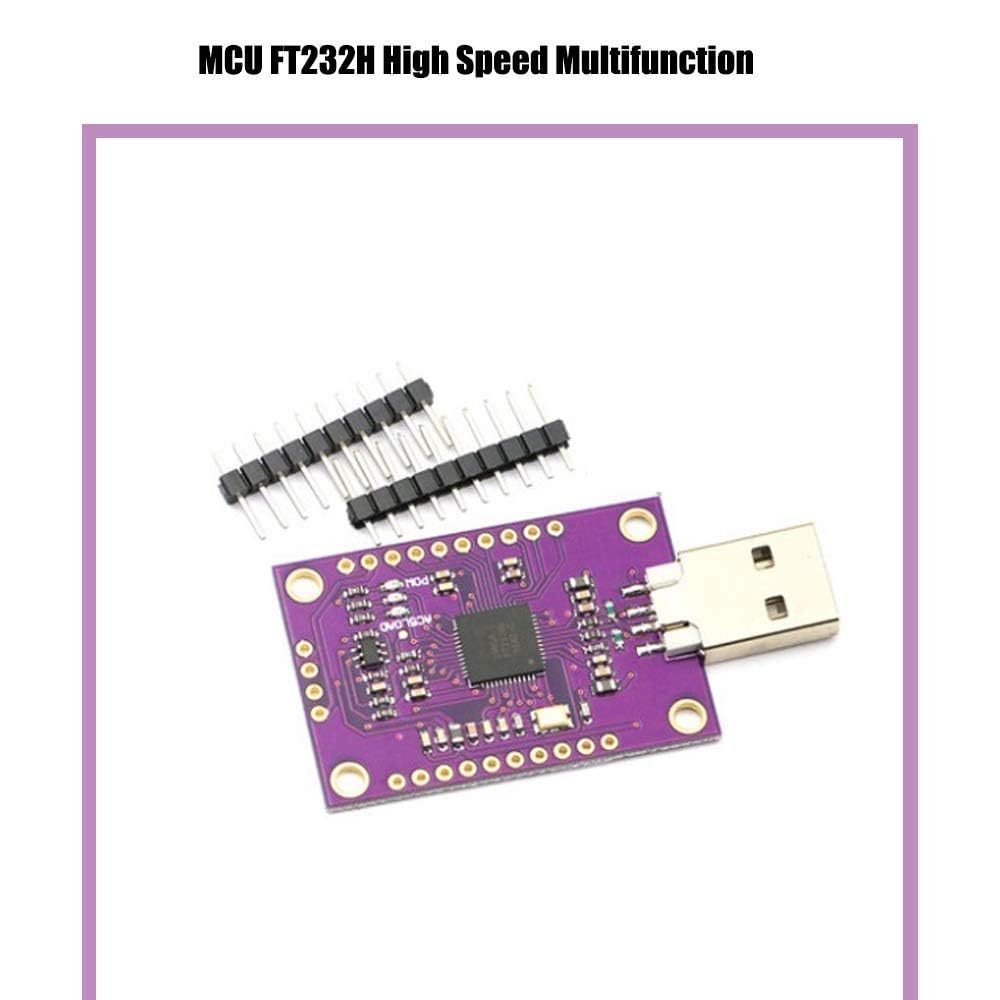

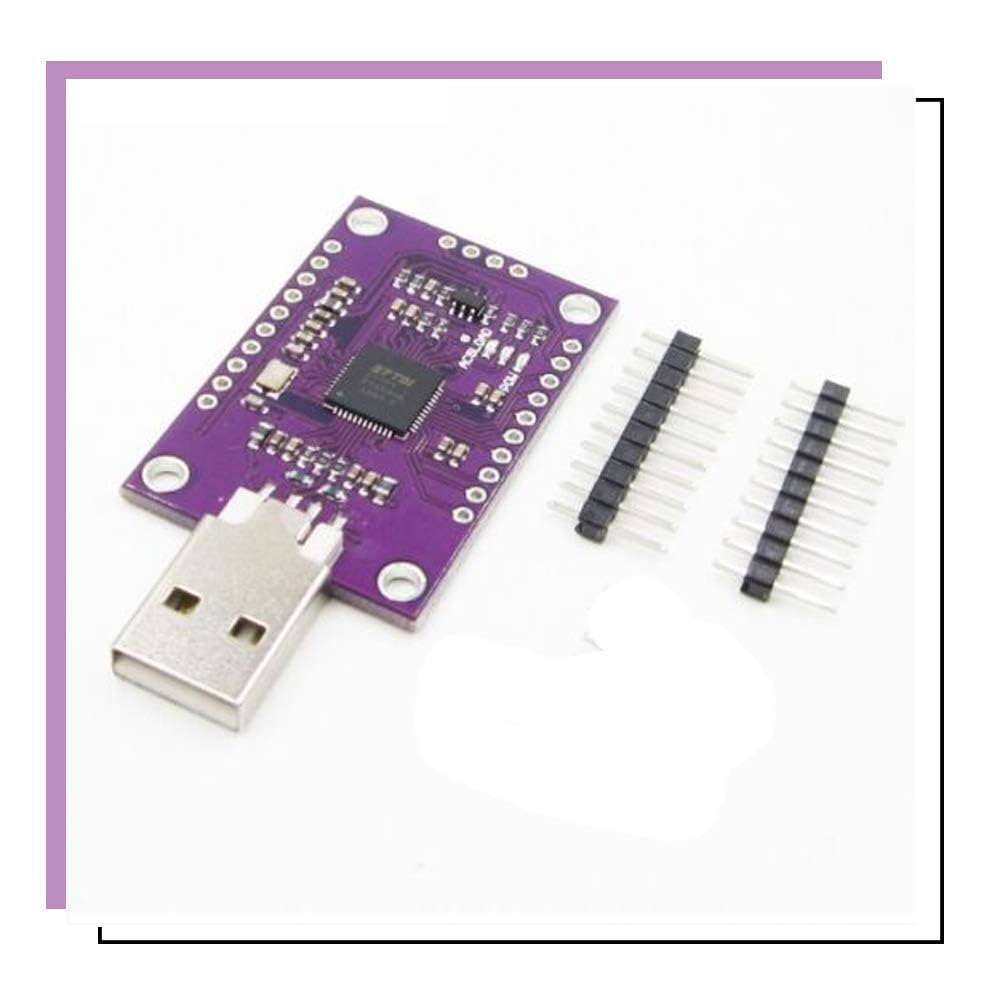

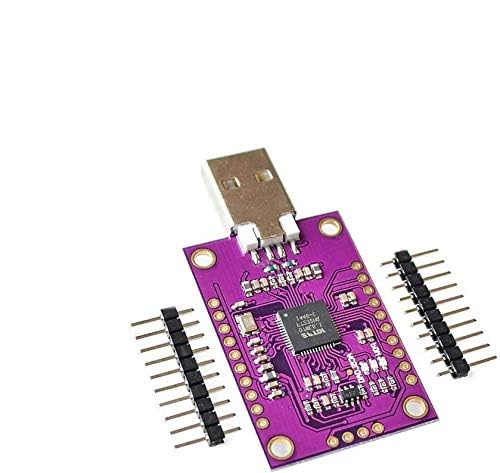

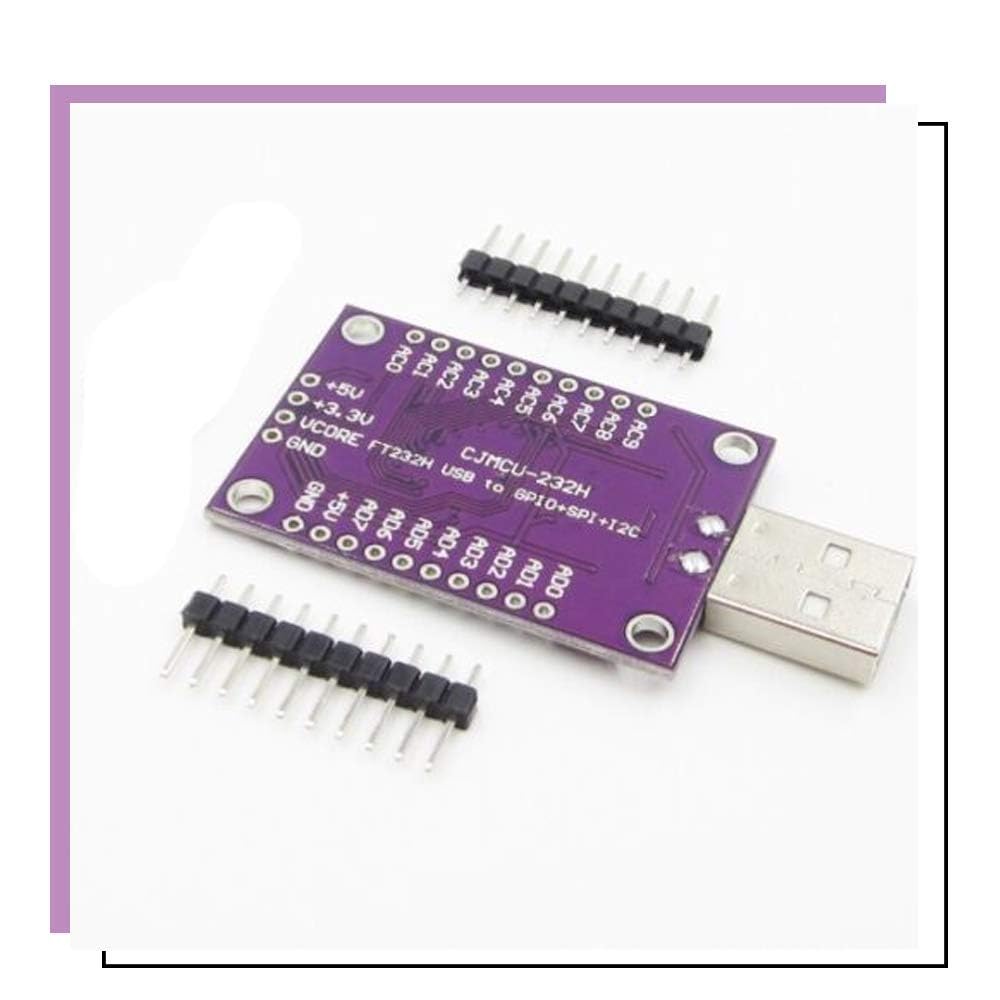

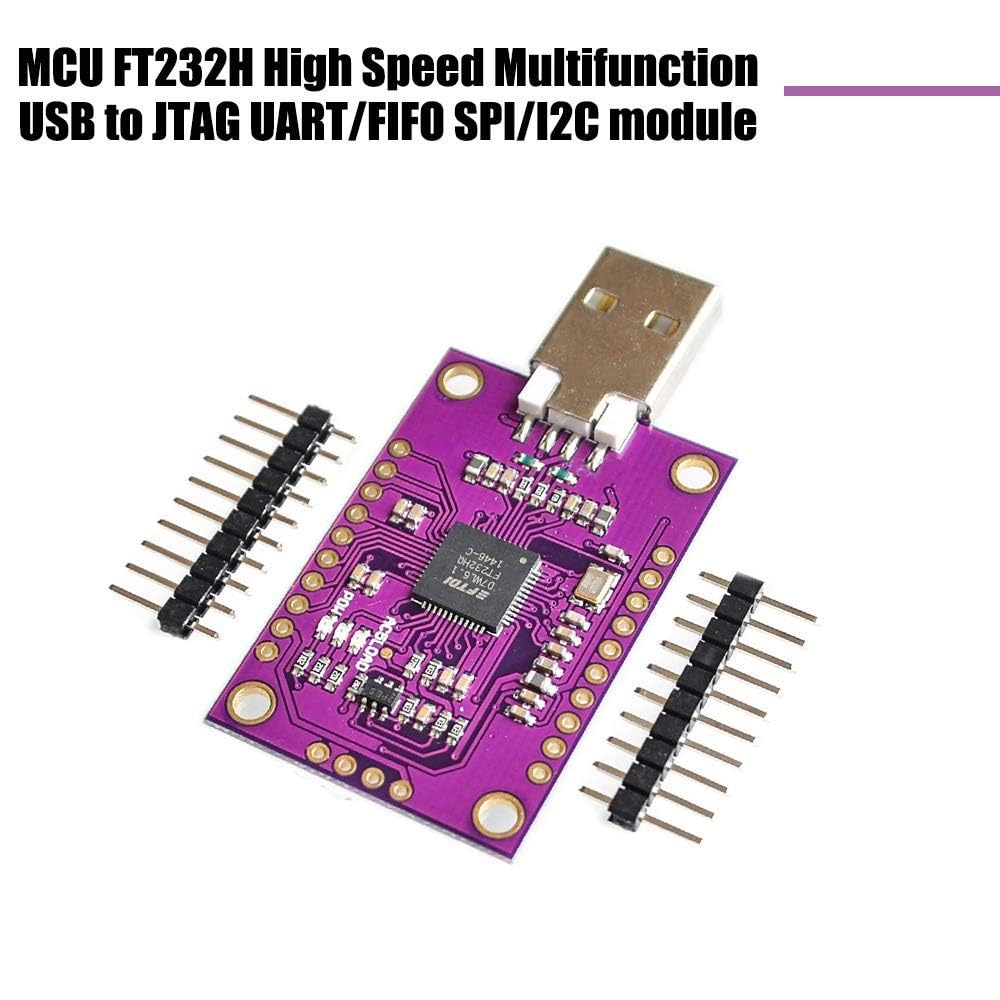

ICQUANZX CJMCU FT232H High Speed USB to JTAG UART/FIFO SPI / I2C Module

• CJMCU-FT232H supports USB 2.0 high speed single channel (480Mb/s) to UART / FIFO IC.High speed USB 2.0 (480Mbits/sec) and support full speed (12Mbits/second).
• It has the ability to be configured on a variety of industry-standard serial or parallel interfaces.
• Full USB protocol handled on the chip. No USB specific firmware programming is required.
• Multiprotocol Synchronous Serial Engine (MPSSE) to simplify synchronous serial protocol design (USB to JTAG, I2C, SPI (MASTER) or bit-bang).
• UART data transfer rate up to 12Mbaud. (RS232 data rate limited by external level shifter).

Budget: USB to asynchronous FIFO mode 245 for data transfer rate up to 8 Mbyte/sec. USB to 245 parallel FIFO synchronous mode for transfers up to 40 Mbytes/sec. It supports a proprietary FT1248 half-duplex interface with a configurable width (1, 2, 4 or 8 bit wide) bi-directional data bus. CPU-style FIFO interface mode simplifies CPU interface design. Fast Serial Interface Option. FTDI's royalty-free virtual (VCP) and direct (D2XX) port controllers eliminate the requirement for USB driver development in most cases. Adjustable reception buffer timeout. Typical Applications: Only USB to UART chip (RS232, RS422 or RS485) USB to FIFO USB to FT1248 USB to JTAG USB to SPI USB to I2C USB to Bit-Bang Fast USB to Serial Interface USB to CPU target interface (as memory) Package includes: 1 x module
