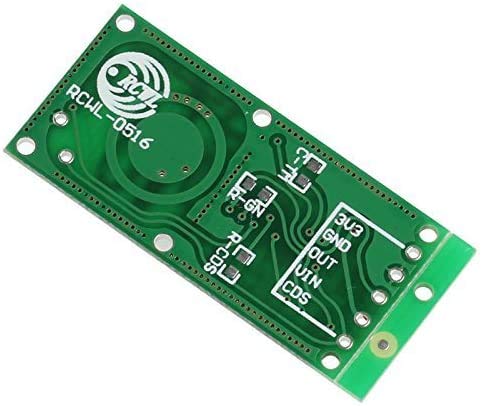

ICQUANZX 5PCS Microwave Radar sensor RCWL-0516 Switch Module Human Induction Board Detector

• Using Doppler radar technology, this is a microwave sensor module specially designed for detecting moving objects and the human body.
• The module has many advantages such as high sensitivity, long range, large detection angle, high reliability, wide operating voltage range.
• Widely used in human body light sensor system, anti-theft alarm system

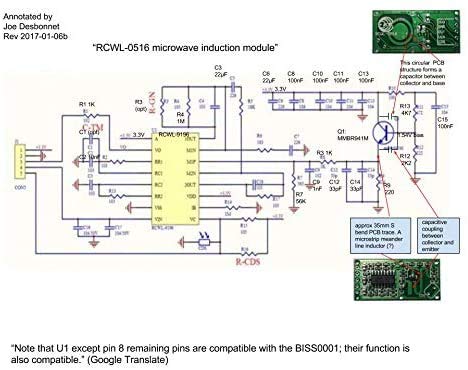

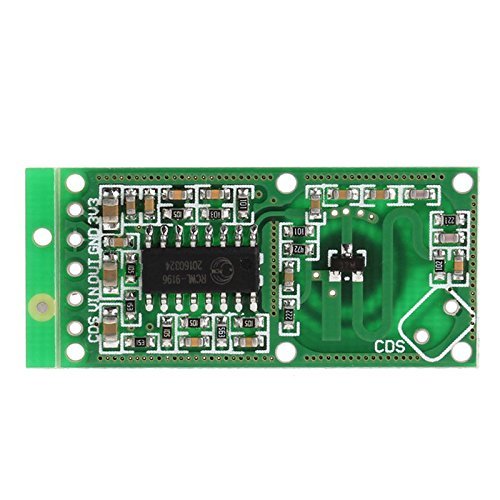

• Transmission signal processing control chip RCWL-9196, wide operating voltage range: 4.0-28.0V.
• Compared with the traditional infrared sensing PIR, with the penetrating detection capability

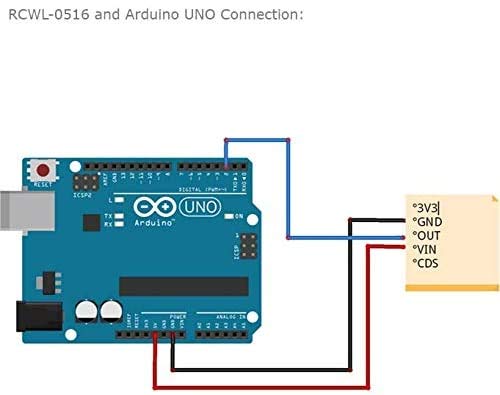

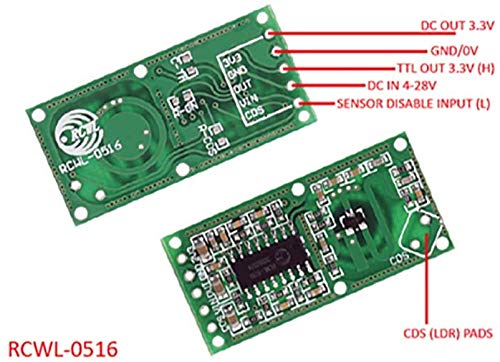

Using Doppler radar technology, this is a microwave sensor module specially designed for detecting moving objects and the human body. The module has many advantages such as high sensitivity, long range, large detection angle, high reliability, wide operating voltage range. Widely used in human body light sensor system, anti-theft alarm system. Features: - Operating voltage: 4-28VDC. - Operating current: less than 3 mA. - Output voltage: 3.3V (from 3V3 pin) - Output current: 100 mA max. - Detection range: less than 120 degrees cone angle within 7 metres. - Trigger mode: Repeat trigger - Delay time: 2 seconds (the default value) by soldering capacitor in different capacities on C-TM pads to adjust it - Active level: high (when a moving object is detected). - Output interface: 3V3 (3.3V power supply output), GND (power earthing), OUT (output signal), VIN (power input), CDS (the detection can be switched off during the day by soldering an external photoresistor to ground). Use only GND / OUT / VIN in general applications. - Application: automatic lighting, smart home, DIY projects Packing list: 5 x microwave radar motion sensor module
