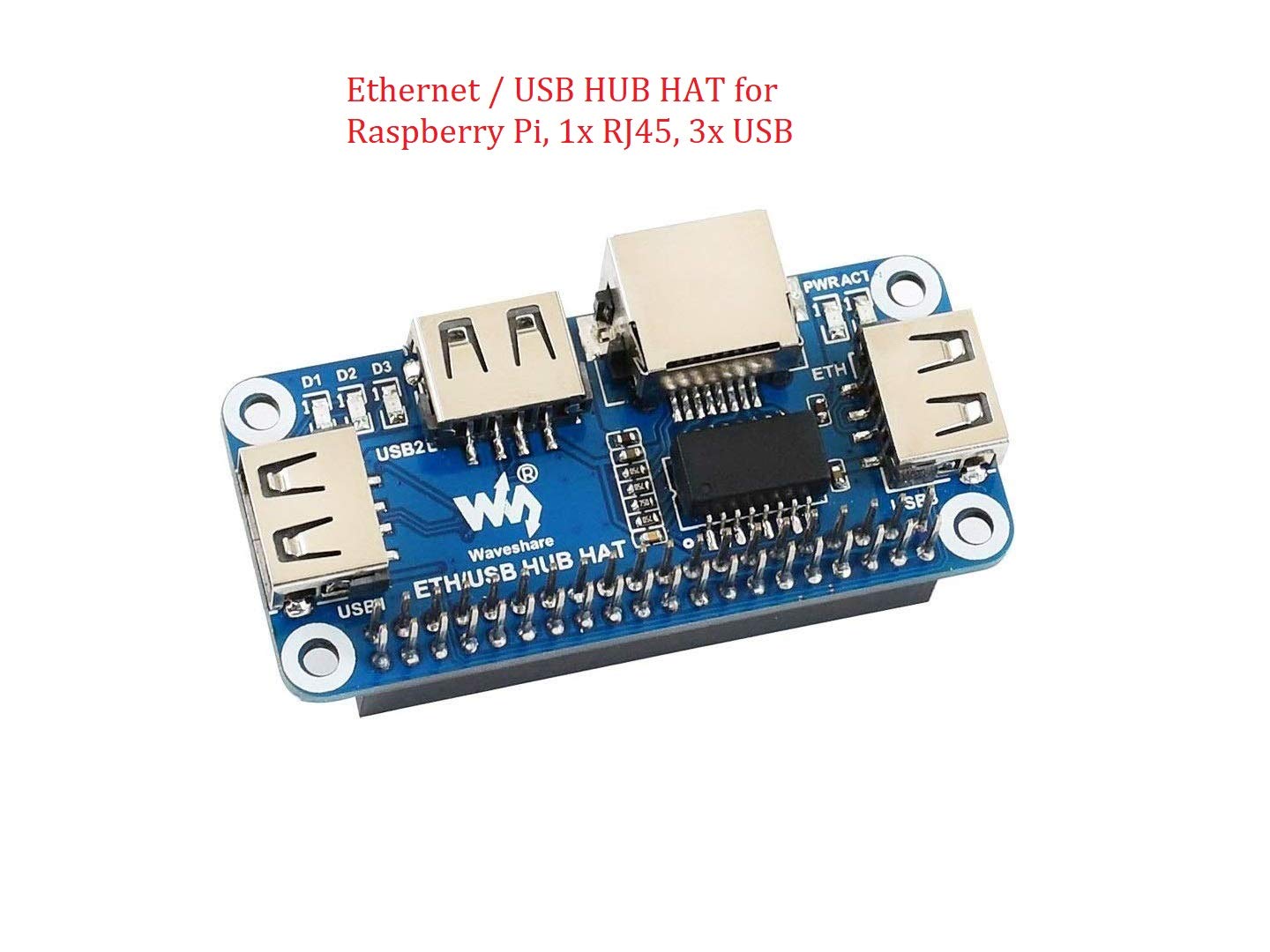

Ethernet/USB HUB HAT for Raspberry Pi 3 B+/3 B/2 B/Zero/Zero W/Zero WH/Zero 2 W Expansion Board, 1x RJ45 Ethernet Port,3x USB Ports Compatible with USB2.0/1.1

• This is a Ethernet / USB HUB HAT for various versions of the Raspberry Pi, including Raspberry Pi 3 Model B+/ B, 2 Model B,and the size of the board is designed to perfectly fit the Zero / Zero W / Zero WH.
• The Raspberry Pi hub HAT provides more USB capability to your Pi, plus a RJ45 Ethernet port, which is great when you need a stable wired Ethernet connection.
• 3x USB ports, compatible with USB2.0/1.1
• 1x RJ45 10/100M port, based on the RTL8152B Ethernet chip
• Onboard multi indicators, for monitoring the status of power, Ethernet, and each USB port

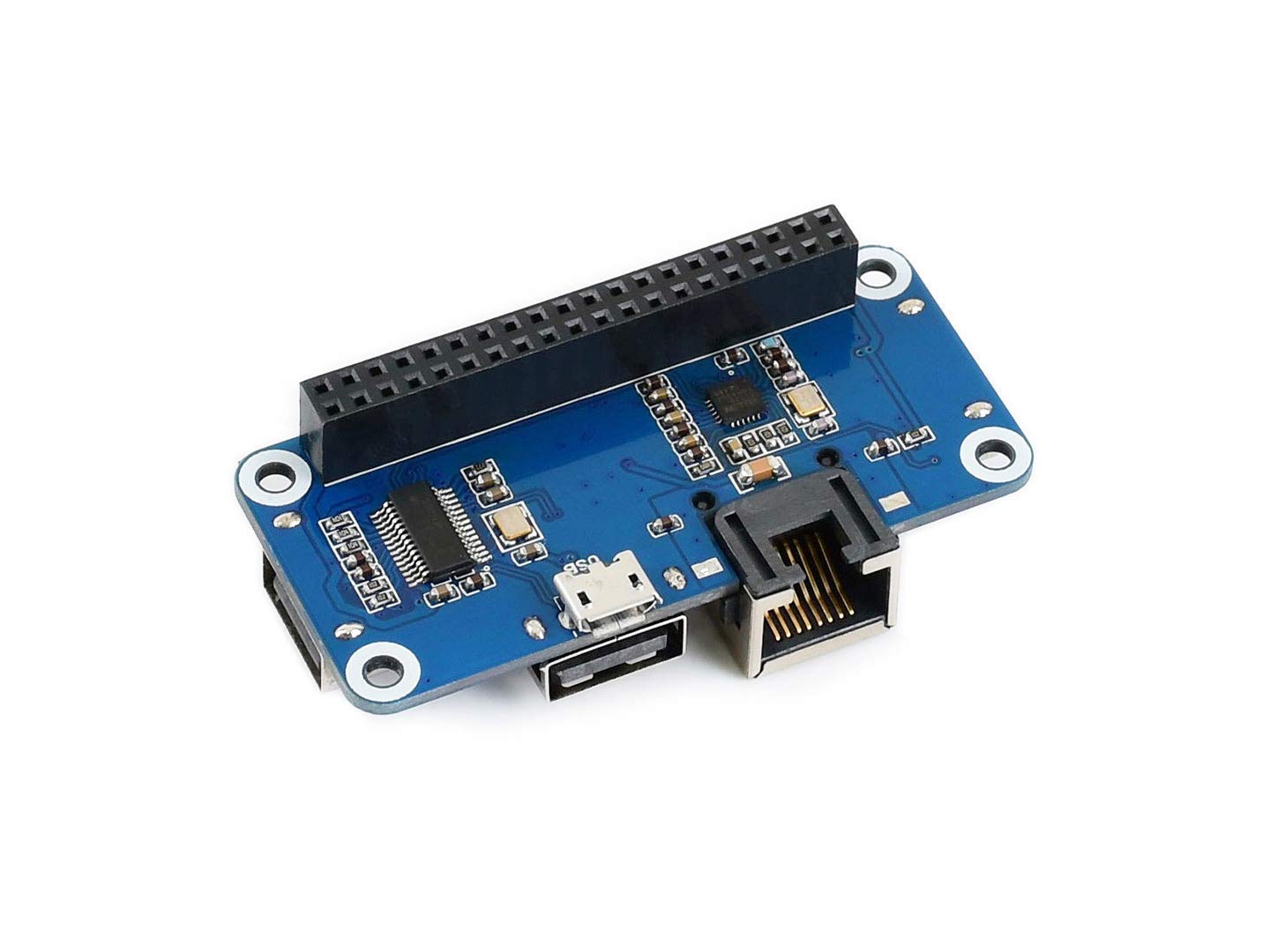

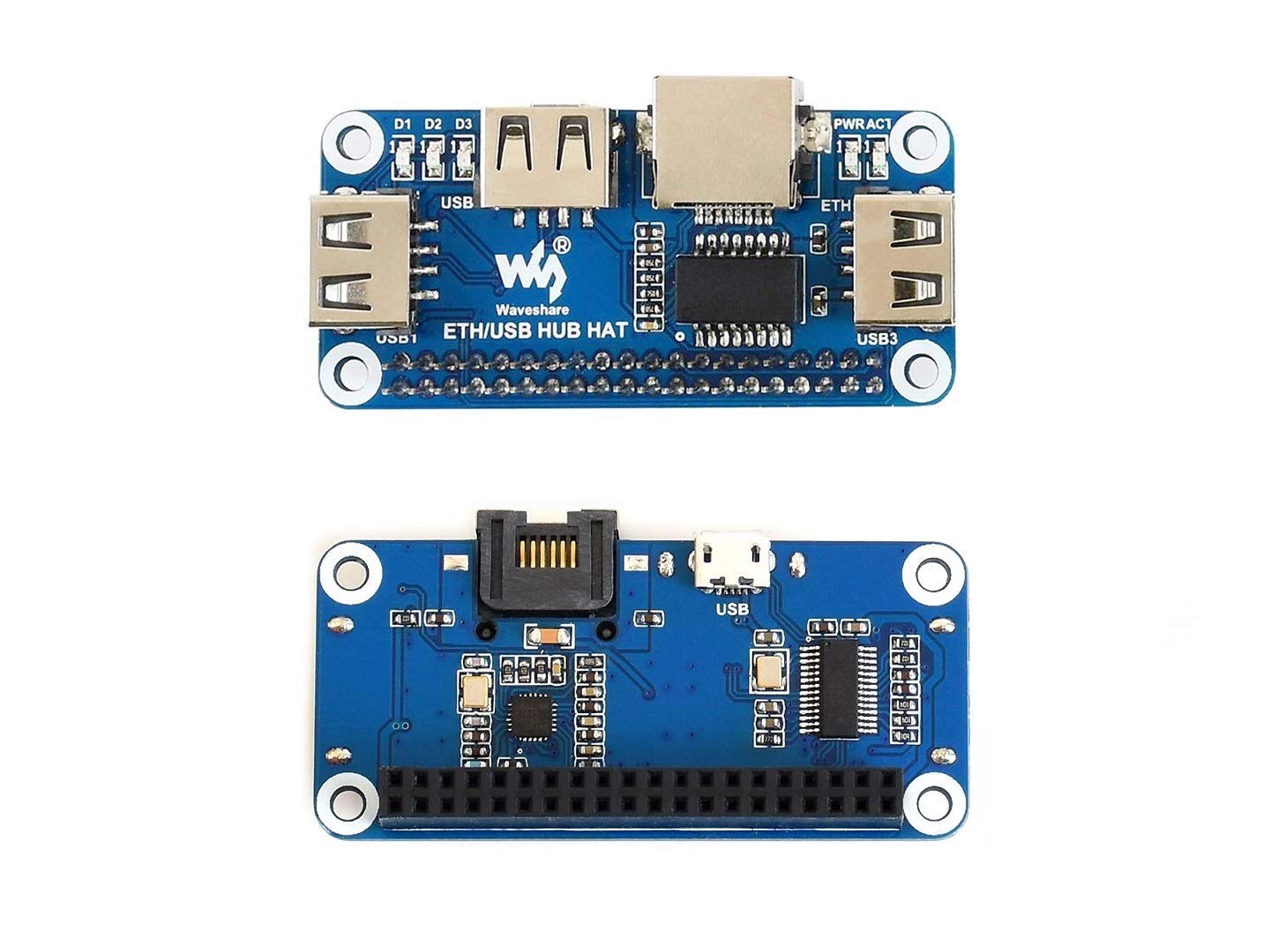

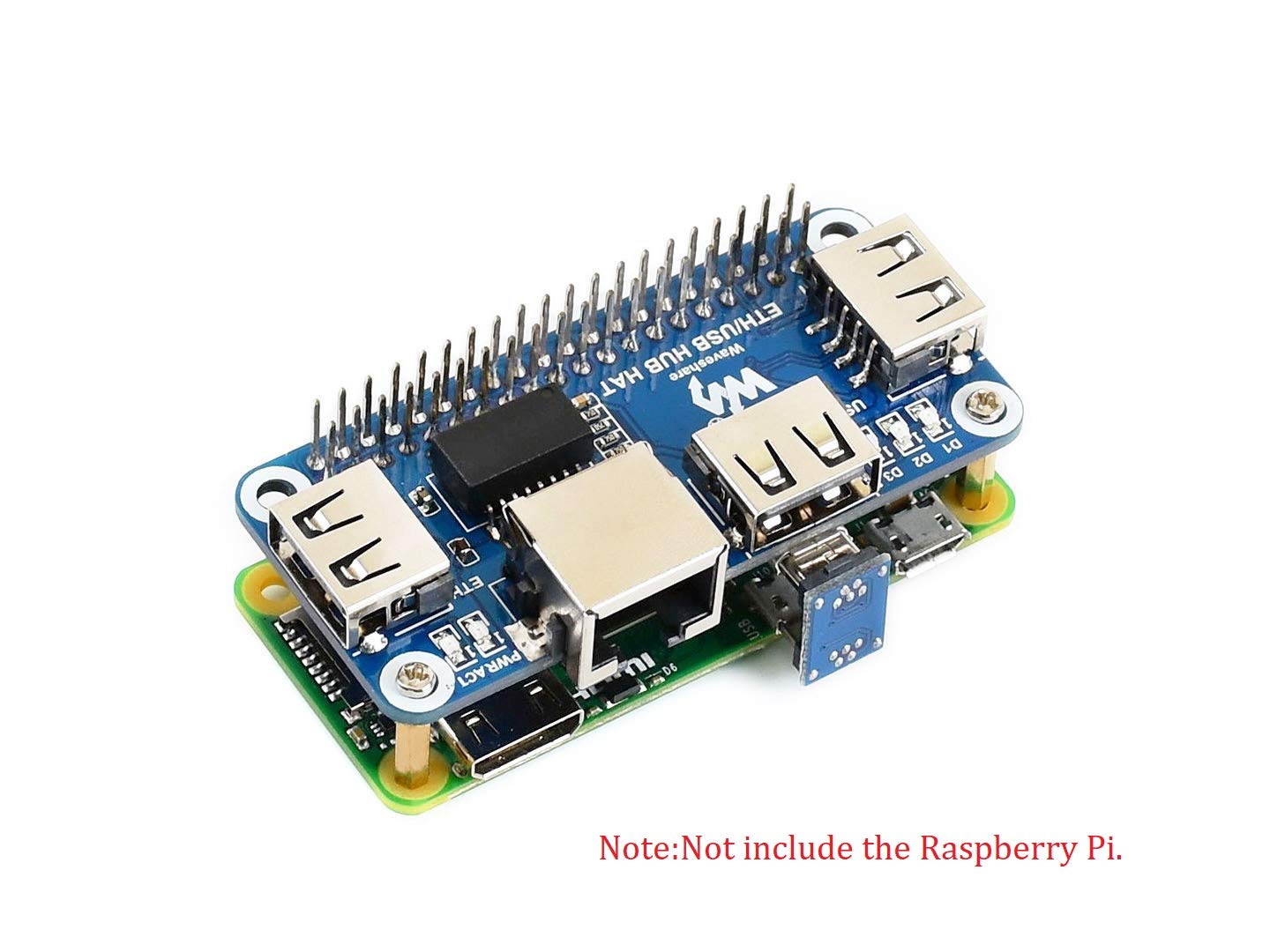

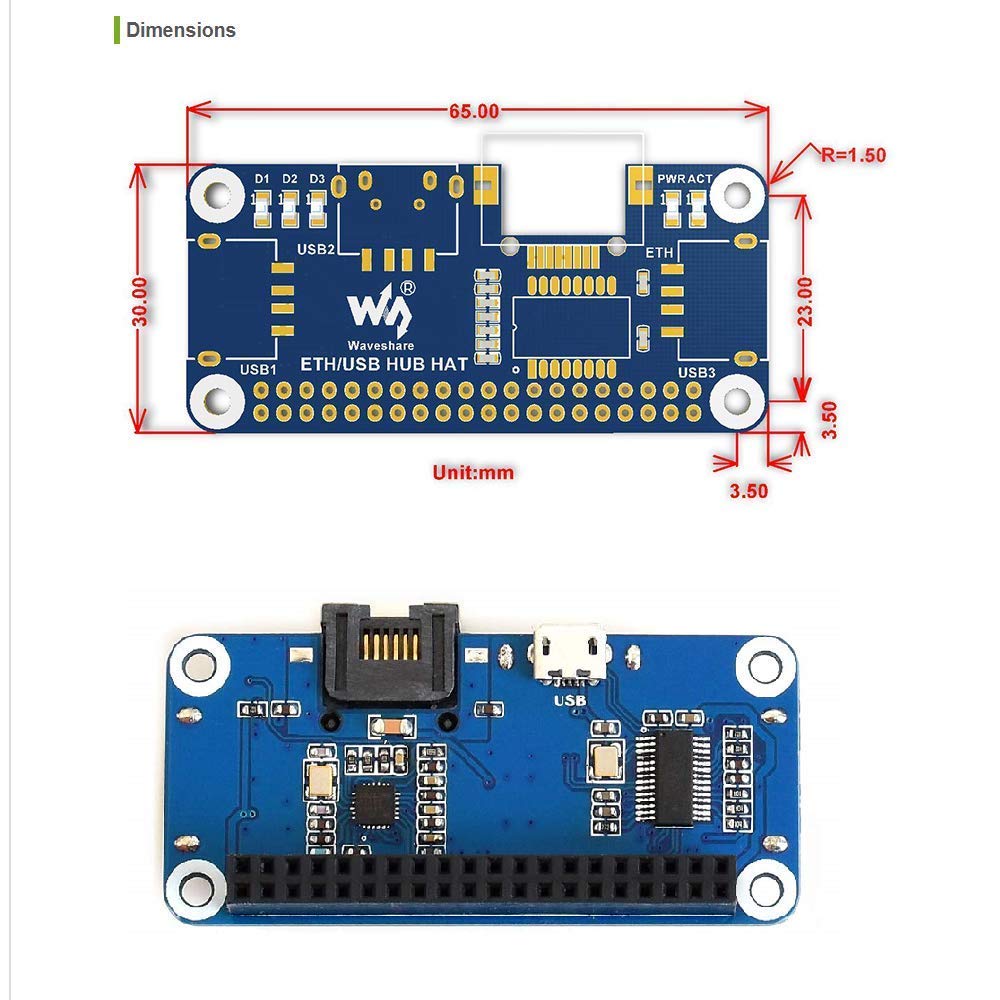

Ethernet/USB HUB HAT for Raspberry Pi, 1 x RJ45 Ethernet Port, 3 x USB ports. Overview This Raspberry Pi hub HAT provides more USB capability to your Pi, plus a RJ45 Ethernet port, which is great when you need a stable wired Ethernet connection. It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W / Zero WH. Features 3 x USB ports, compatible with USB2.0/1.1. 1 x RJ45 10/100M port, based on the RTL8152B Ethernet chip. Onboard multi indicators, for monitoring the status of power, Ethernet, and each USB port. What's on Board Raspberry Pi GPIO interface:for connecting Raspberry Pi. USB extended ports: USB1~USB3. RJ45 port:10/100M Ethernet interface. USB HUB interface (bottom): for connecting the hub to the Raspberry Pi USB port. Raspberry Pi Zero / Zero W / Zero WH: connected via Micro USB connector. Raspberry Pi B+ / 2B / 3B / 3B+: connected via Micro USB cable. TS8121A: Ethernet wave filter. RTL8152B:10/100M Ethernet chip. FE1.1S: USB HUB chip. LED indicators: PWR: power indicator. ACT: Ethernet indicator D1~D3: dedicated indicator for USB1~USB3 respectively Specifications: Operating voltage: 5 V. Dimensions: 65 mm x 30 mm. Mounting hole size: 3 mm. Development Resources Wiki: www.waveshare.com/wiki/ETH/USB_HUB_HAT?Amazon Package Content ETH/USB HUB HAT x1 Micro USB connector x1 1 x Micro USB cable. RPi screws pack (2 pieces) x1
