IBest waveshare 4G / 3G / 2G / GSM/GPRS/GNSS HAT for Raspberry Pi, Jetson Nano,Based on SIM7600G-H, Support LTE CAT4, 4G Connection, Global Positioning

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano.Supports dial-up, telephone call, SMS,mail, TCP, UDP, DTMF, HTTP, FTP, etc.Supports GPS, BeiDou, Glonass, LBS base station positioning
• Onboard USB interface, to test AT Commands, get GPS positioning data, and so on.Onboard CP2102 USB to UART converter, for serial debugging
• Breakout UART control pins, to connect with host boards like Arduino/STM32.Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper.Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set).
• Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

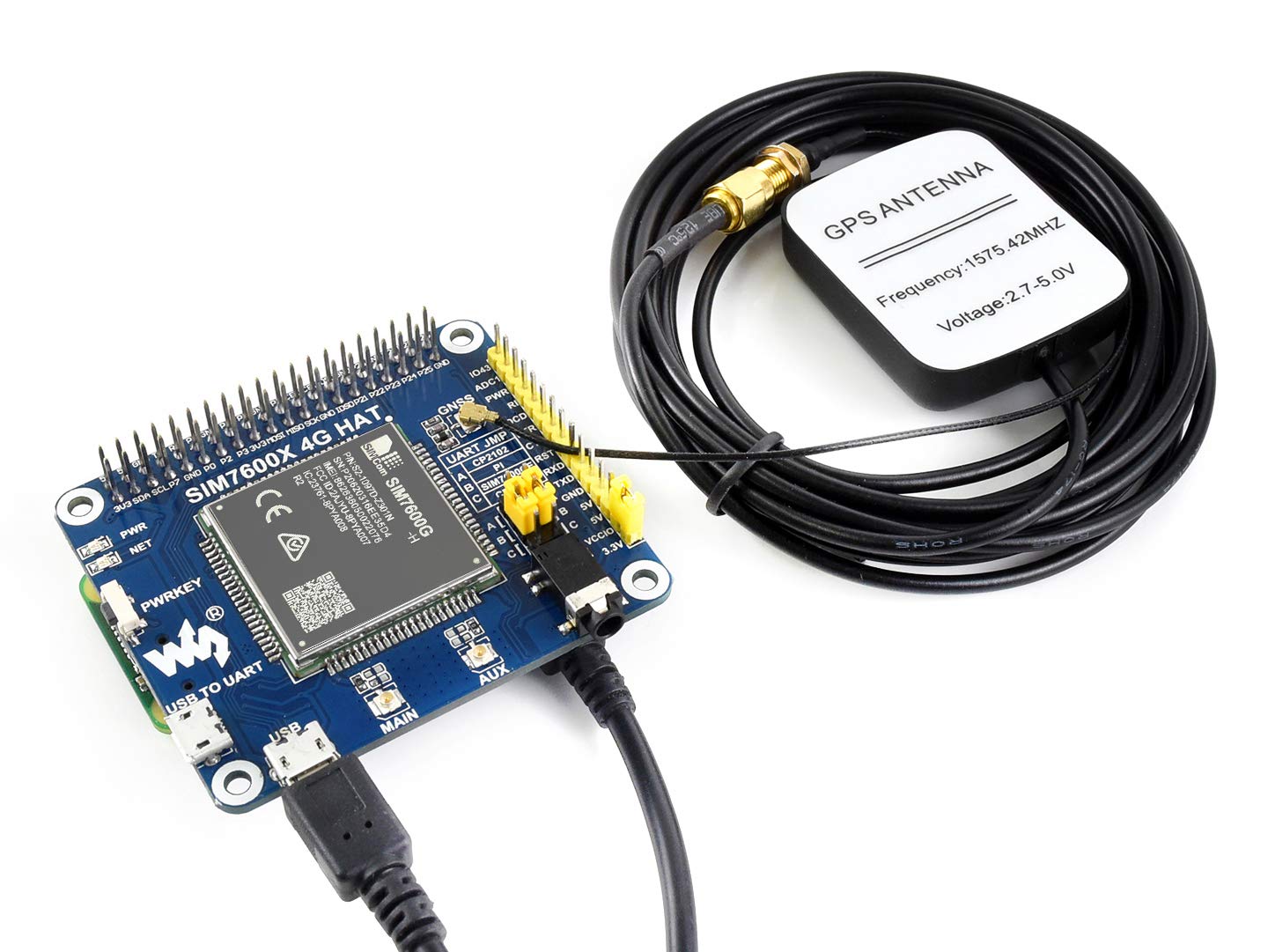

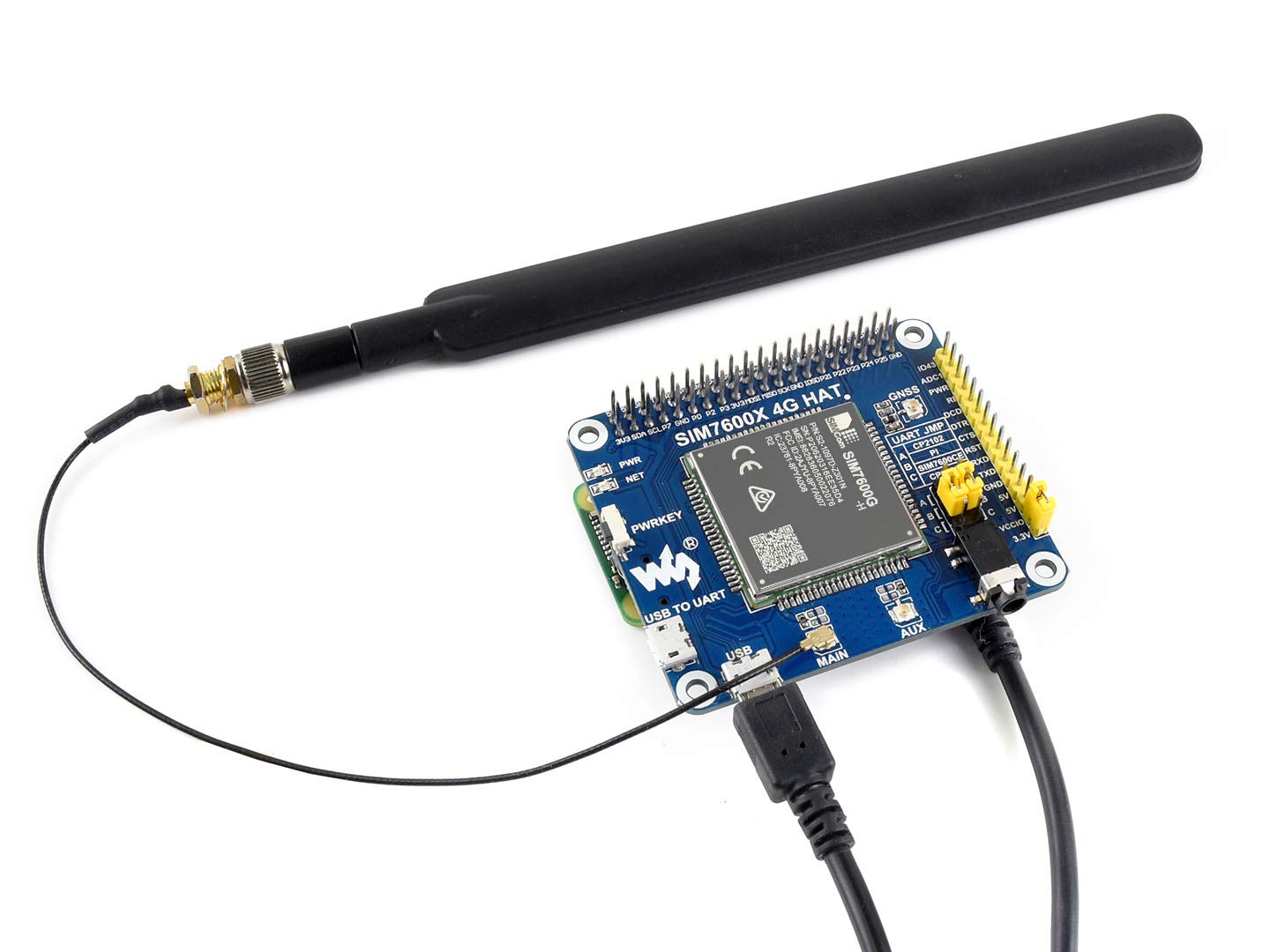

• Packing List: .SIM7600G-H 4G HAT x1;LTE Antenna x1 ;GPS External Antenna (B) x1;USB type A plug to micro plug cable x2;RPi screws pack (2pcs) x1

4G/3G/2G/GSM/GPRS/GNSS HAT for Raspberry Pi, Based on SIM7600G-H,the global version Overview The SIM7600G-H 4G HAT is a 4G/3G/2G communication and GNSS positioning module, which supports LTE CAT4 up to 150Mbps for downlink data transfer. It is pretty low power consumption. You can connect this 4G module with computer to surf the Internet, or attach it onto Raspberry Pi to enable functions like 4G high speed connection, wireless communication, making telephone call, sending SMS, global positioning, etc. >Features SIM card slot, supports 1.8V/3V SIM card. TF card slot for storing data like files, messages, etc. Onboard audio jack and audio decoder for making telephone call 2 x LED indicators, easy to monitor the working status. Baudrate: 300bps ~ 4Mbps (default: 115200bps). Autobauding baudrate: 9600bps ~ 115200bps. GNSS Specifications Receiver type 16-channel C/A Code Sensitivity Tracking: -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BD) Cold starts: -148 dBm Time-To-First-Fix (open air) Cold starts: <35s. Hot starts: <1s Accuracy Position: <2.5m CEP SMS and Audio Specifications SMS Supported types: MT, MO, CB, Text, PDU Storage: USIM card and ME (default) Audio feature. Supports Echo Cancellation Noise reduction supports Other Specifications Power supply: 5 V. Operating voltage: 5 V/3.3 V (configured via jumper). Operating temperature: -30°C ~ 80°C. Storage temperature: -45°C ~ 90°C. Dimensions: 56.2 mm x 65.2 mm.
