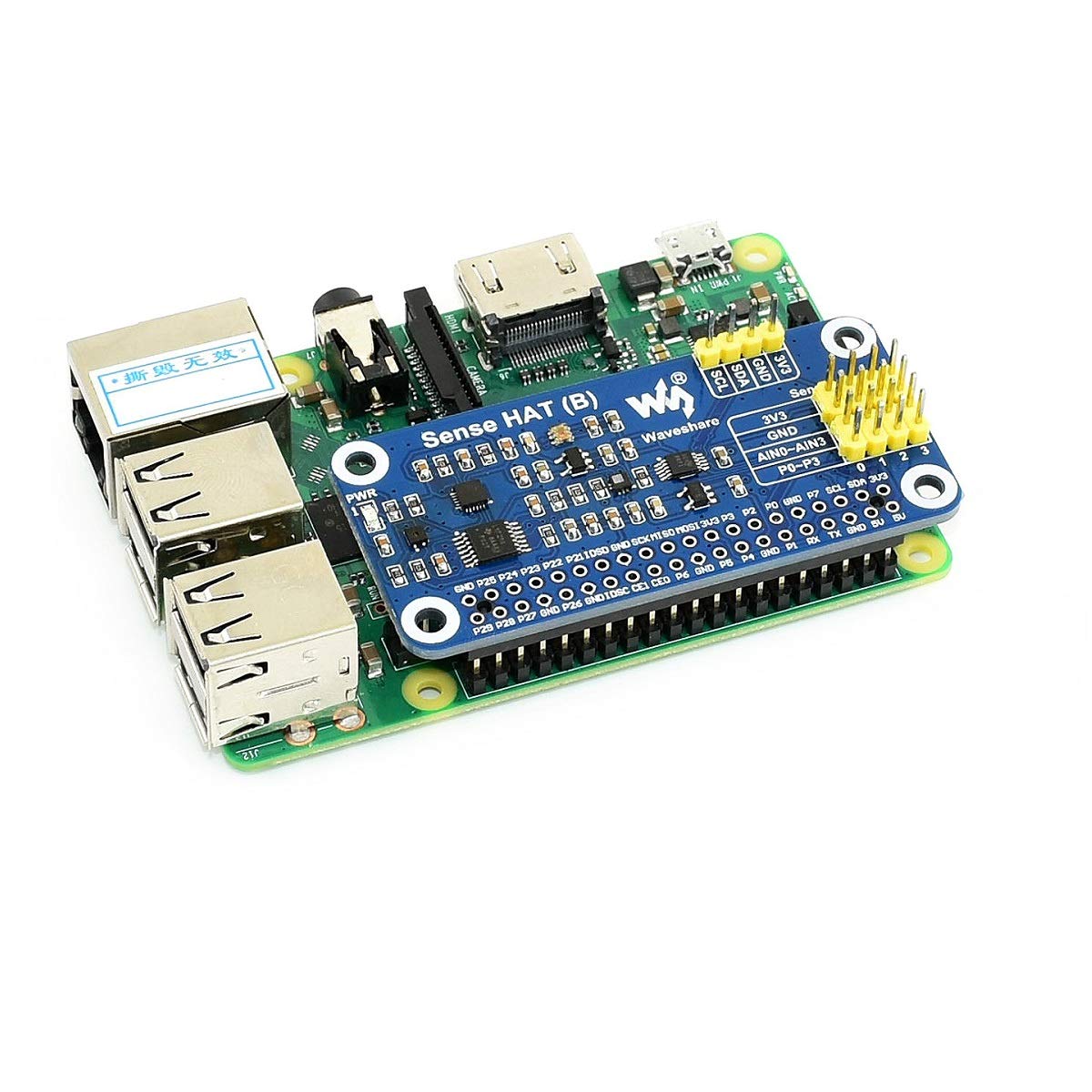

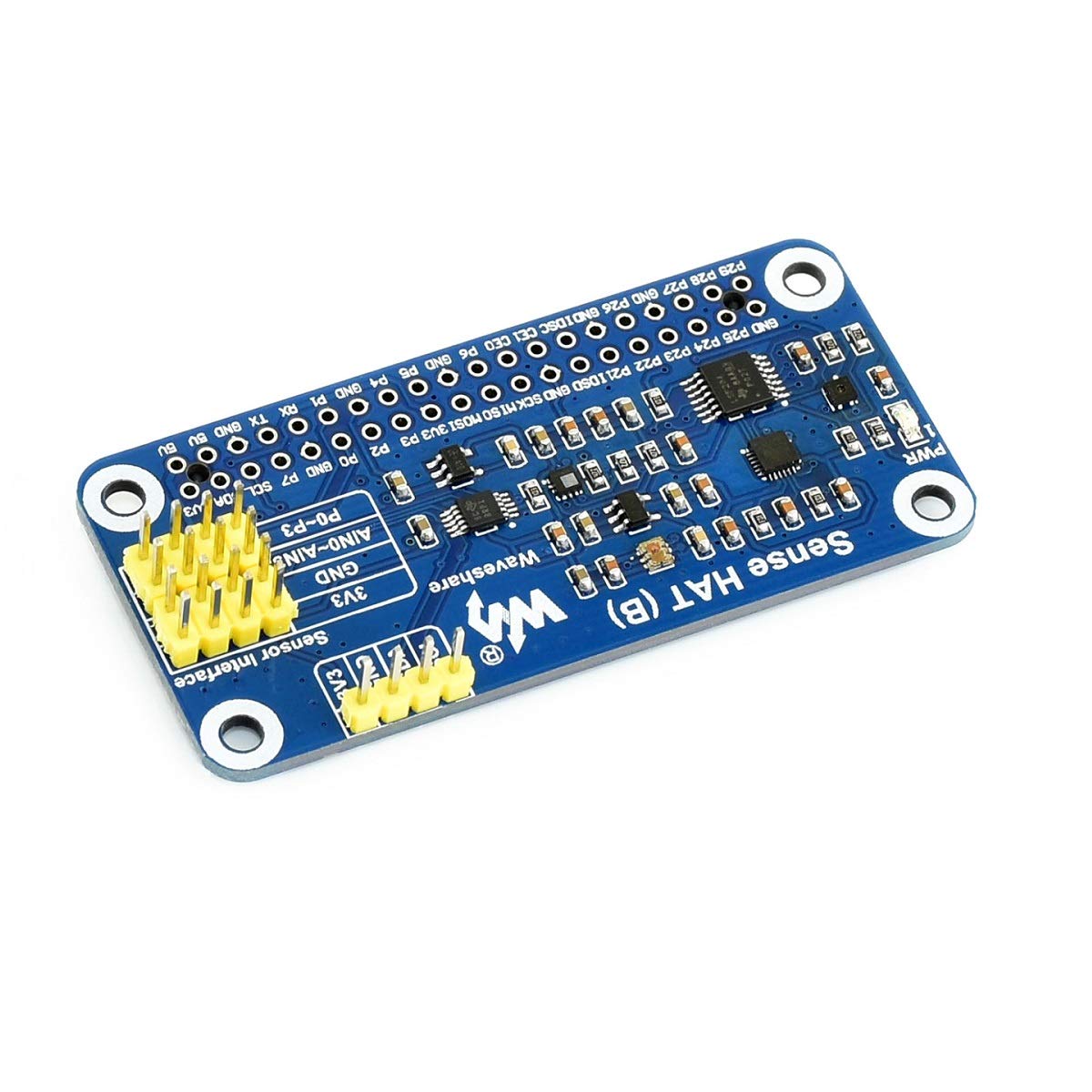

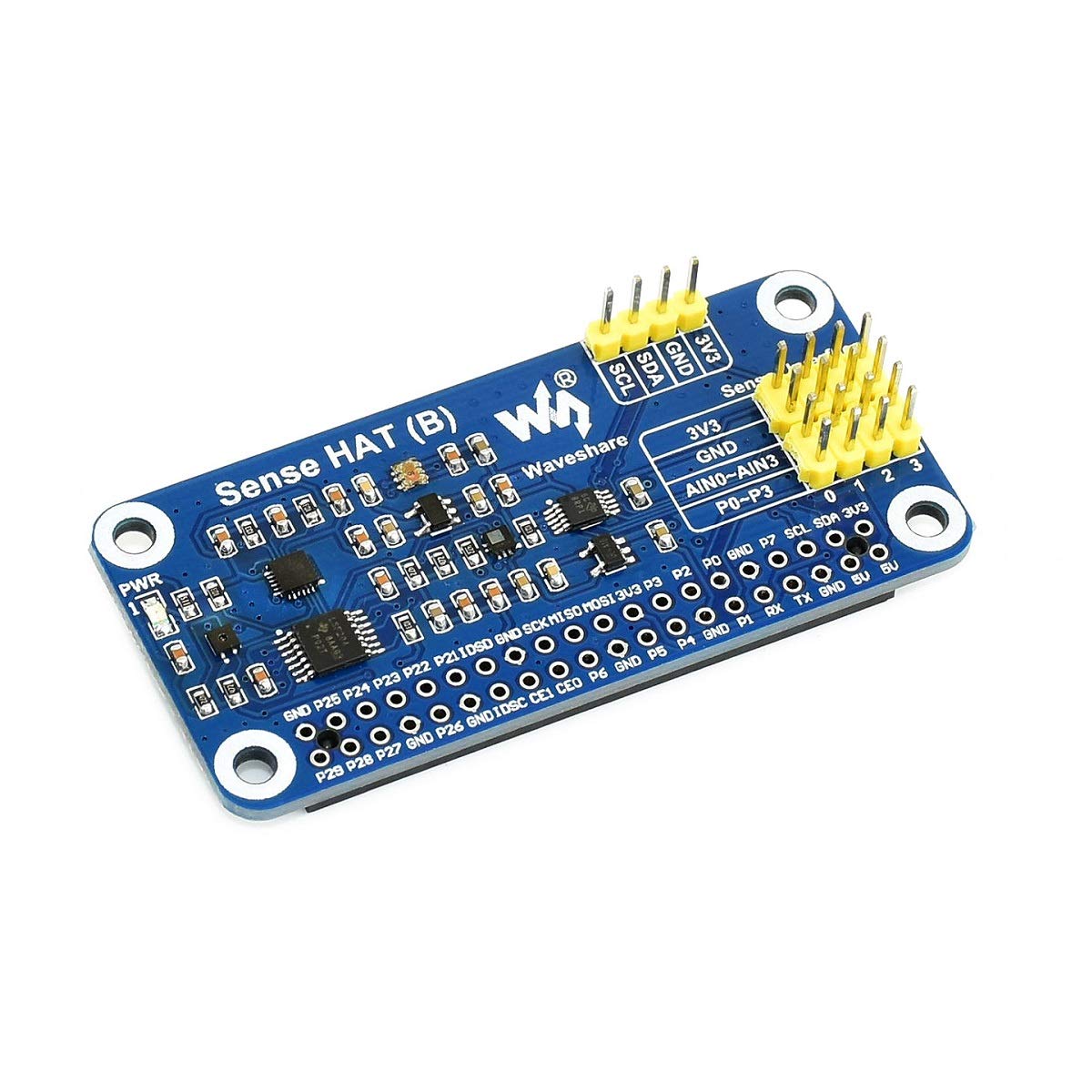

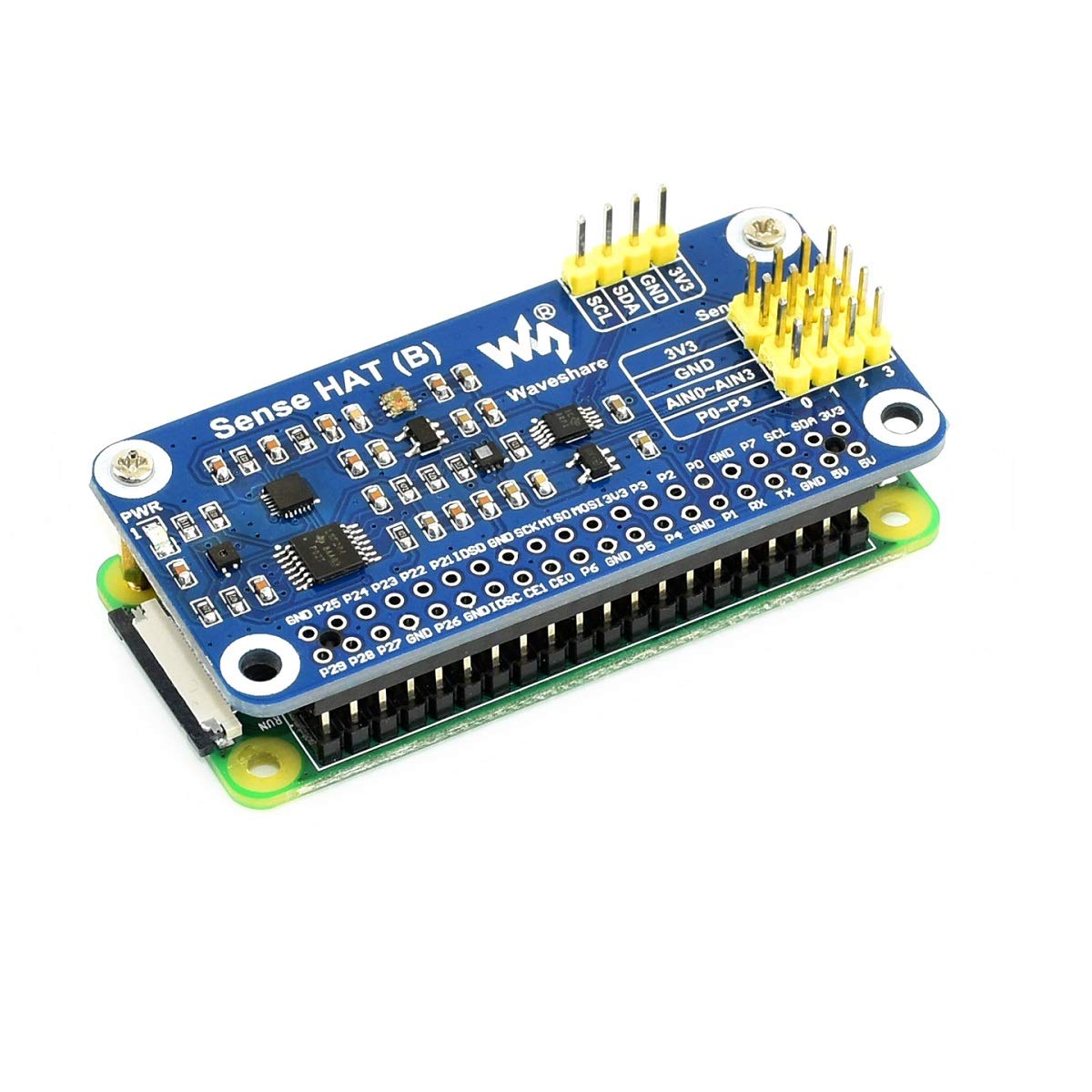

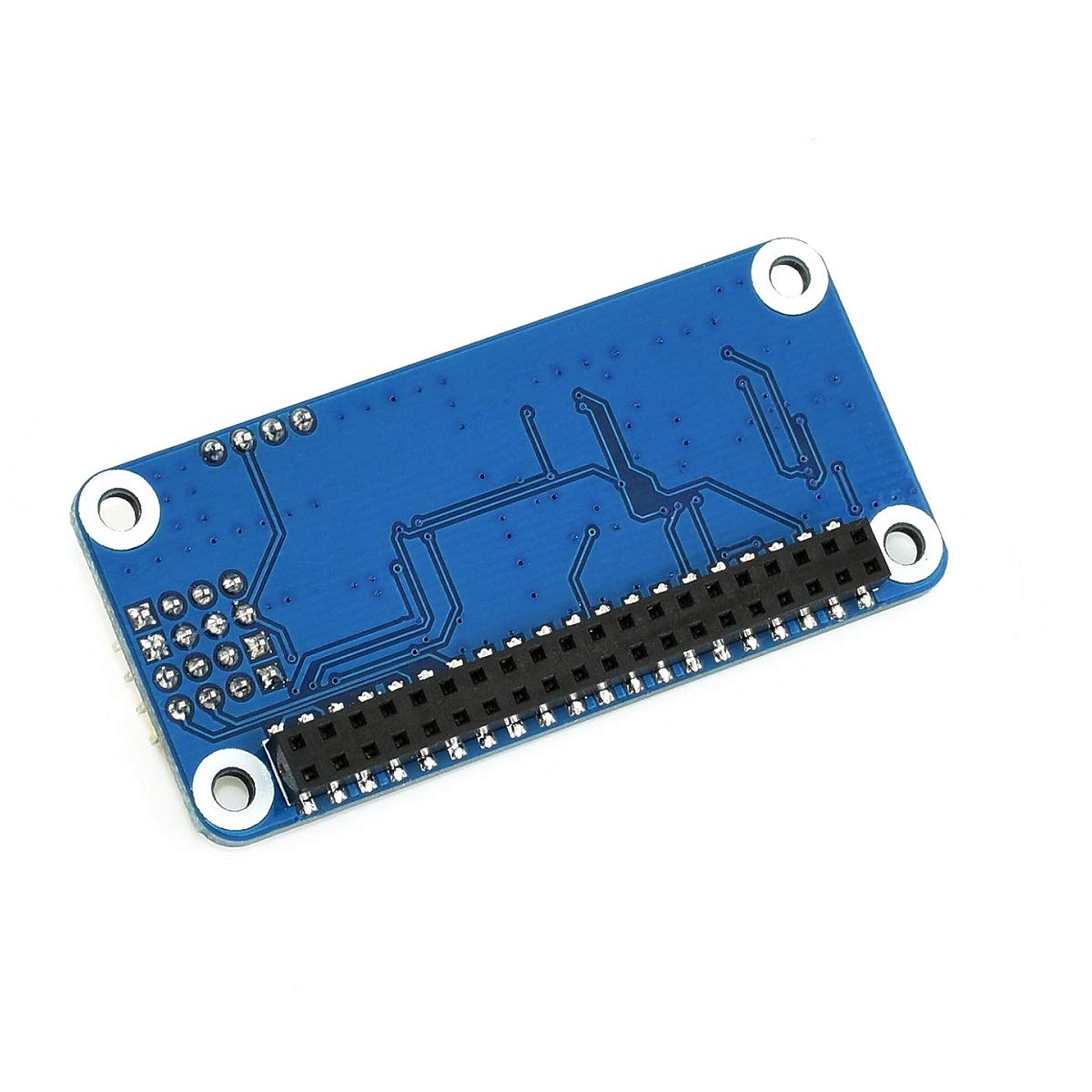

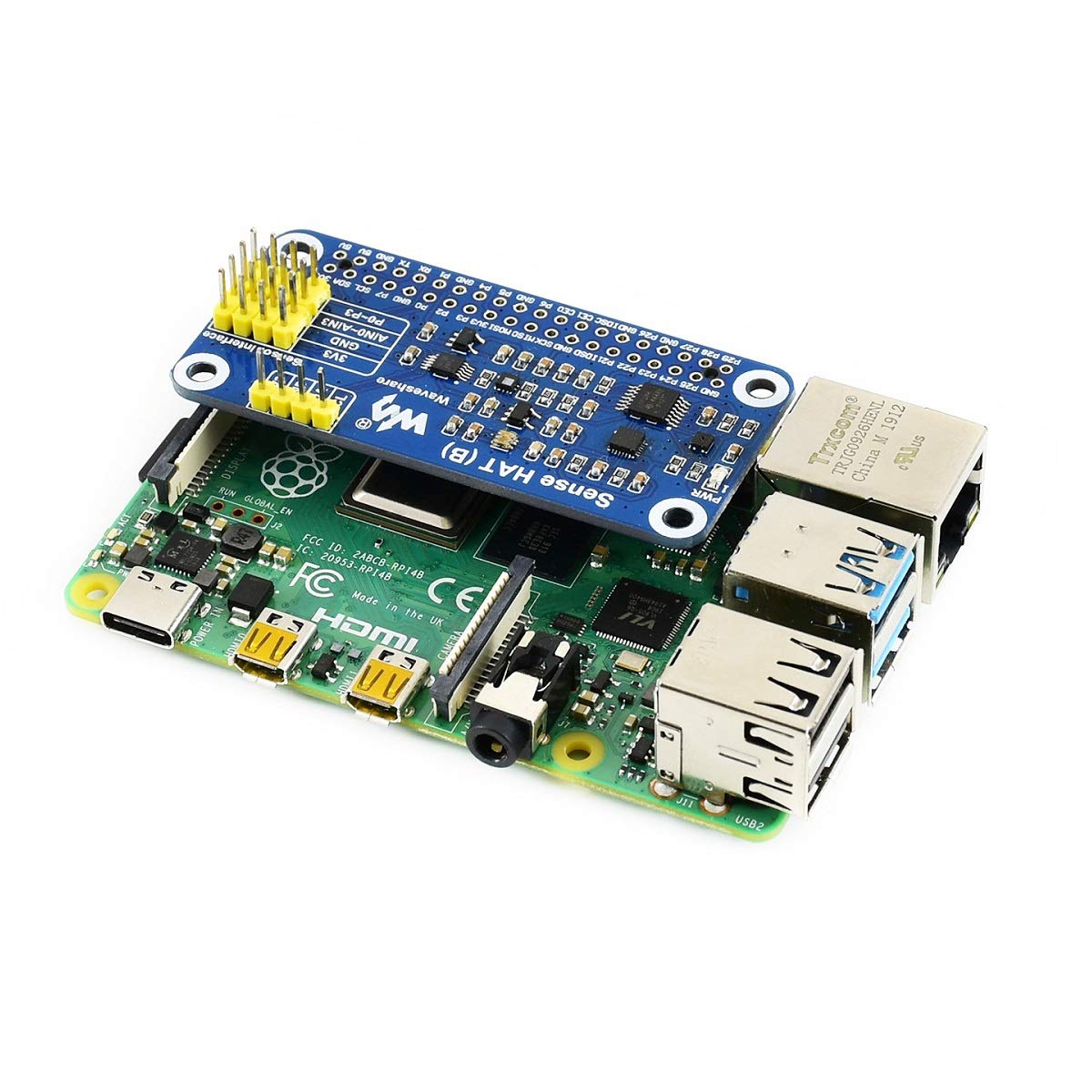

Sense HAT B for Raspberry Pi 4B 3B 2B B A Zero Zero W Onboard Gyroscope, Accelerometer, Magnetometer, Barometer, Temperature and Humidity Sensor, I2C Interface

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
• Onboard ICM20948 (3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer), detects movement, orientation, and magnetic.Onboard SHTC3 digital temperature and humidity sensor, allows monitoring the environment
• Onboard LPS22HB barometric pressure sensor, allows monitoring the environment.Onboard TCS34725 color sensor, identifies the color of nearby object
• Onboard ADS1015 ADC, 4-ch 12-bit precision, AD expansion to support more external sensors
• Brings I2C control pins, for connecting other host boards like STM32.Comes with development resources and manual (examples for Raspberry Pi/STM32)

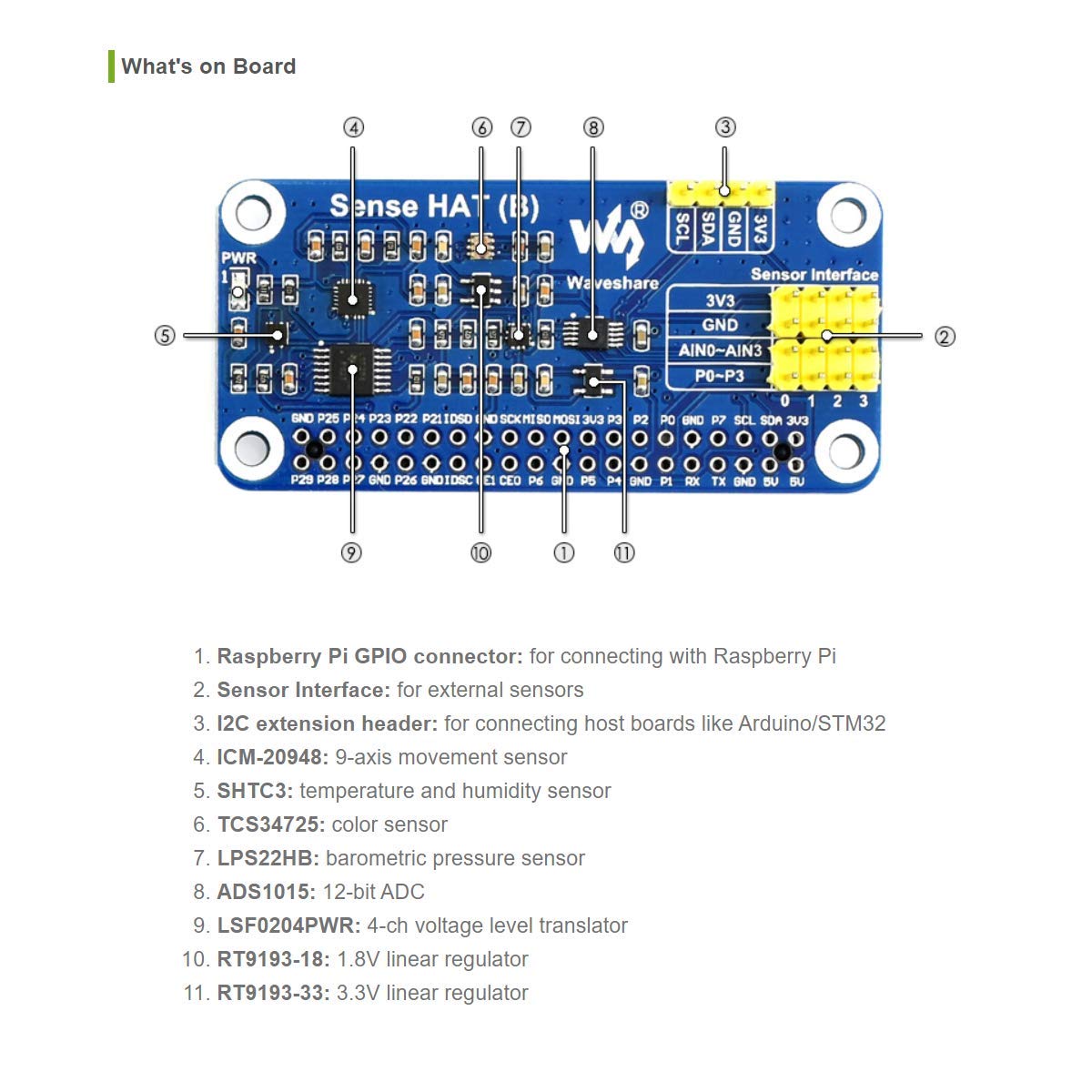

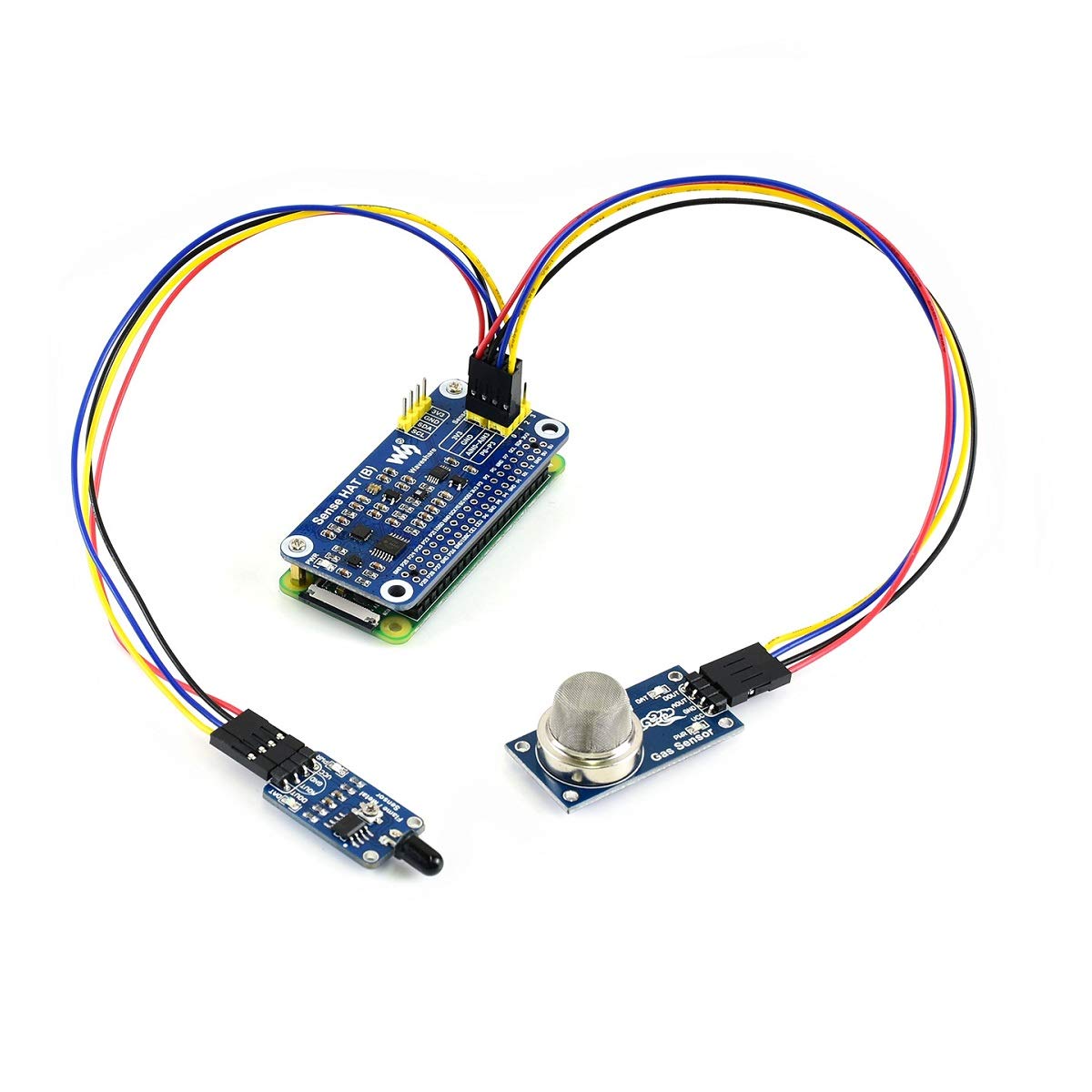

Sense HAT (B) For Raspberry Pi, Onboard Multi Powerful Sensors, Supports External Sensors Overview The Sense HAT (B) is specially designed for Raspberry Pi, integrates multi powerful sensors such as gyroscope, accelerometer, magnetometer, barometer, temperature and humidity sensor, etc. It is communicated via I2C interface, and allows to connect more external sensors if you need. Trying to make the Pi become a robot that can detect movement and orientation? Or using the Pi to collect environmental temperature, humidity, and barometric pressure data? This HAT would be your ideal choice. Specifications Operating voltage: 3.3V Communication interface: I2C Logic level: 3.3V Dimensions: 65mm x 30.5mm What's on Board Raspberry Pi GPIO connector: for connecting with Raspberry Pi Sensor Interface: for external sensors I2C extension header: for connecting host boards like Arduino/STM32 ICM-20948: 9-axis movement sensor SHTC3: temperature and humidity sensor TCS34725: color sensor LPS22HB: barometric pressure sensor ADS1015: 12-bit ADC LSF0204PWR: 4-ch voltage level translator RT9193-18: 1.8V linear regulator RT9193-33: 3.3V linear regulator Package Content Sense HAT (B) x1 RPi screws pack (2pcs) x1 2x20 PIN female header x1 Note 1.Raspberry Pi and external sensors are NOT included. 2.Please contact us via Amazon message if you have any problem.
