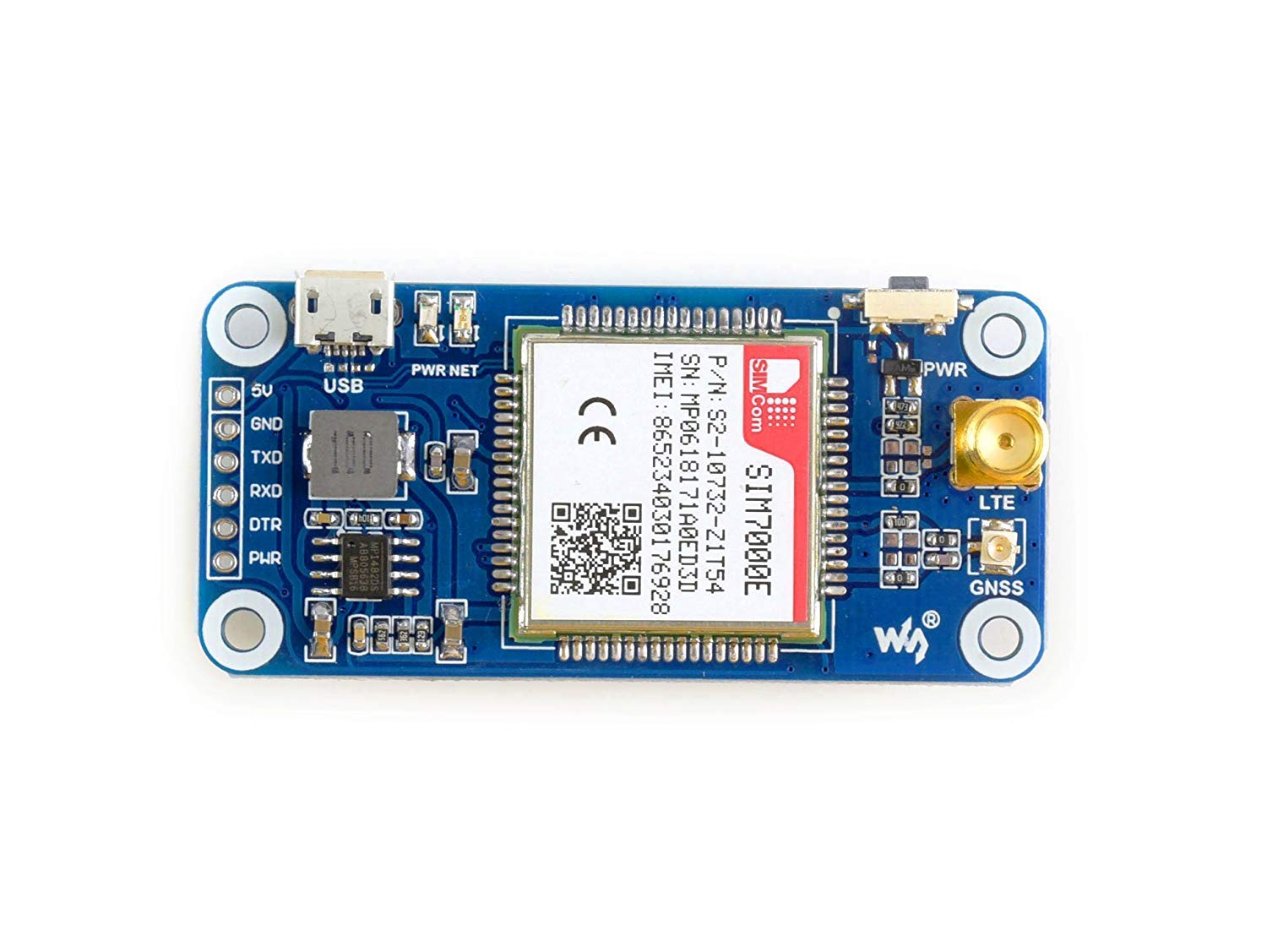

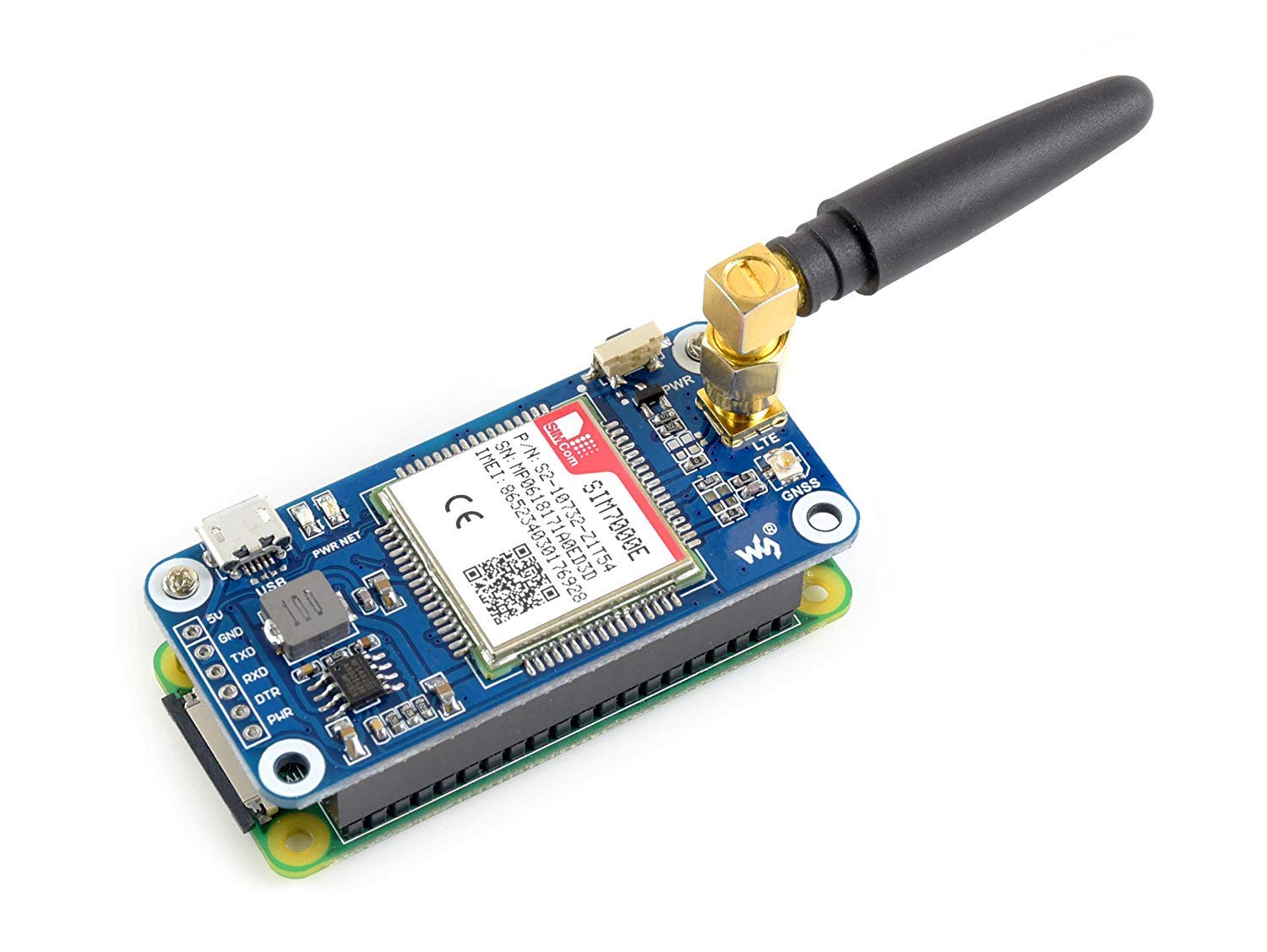

NB-IoT/eMTC/EDGE/GPRS/GNSS HAT for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+ Based on SIM7000E Support TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail,GNSS Positioning

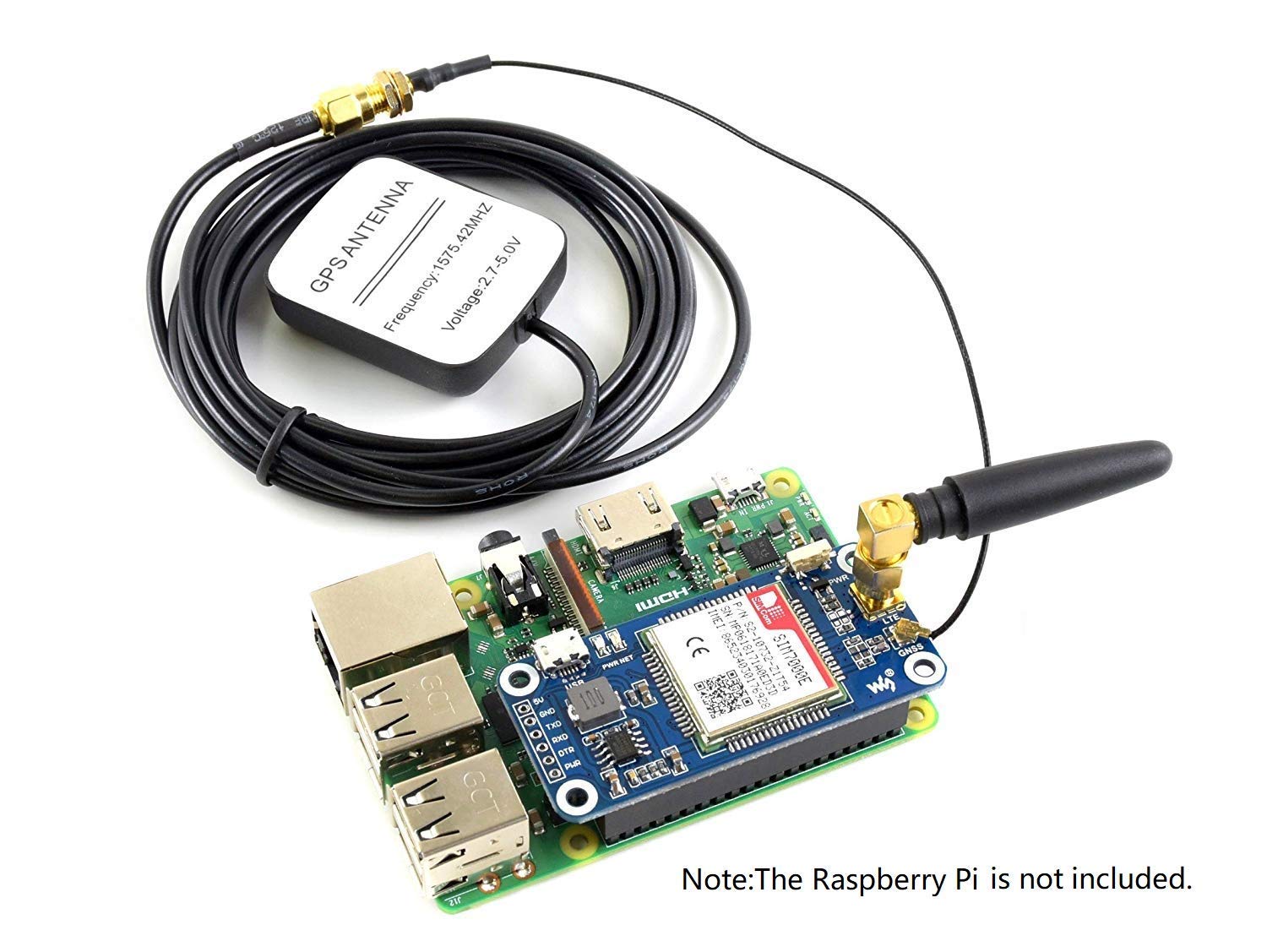

• Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+,Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
• Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc., Supports GNSS positioning (GPS,GLONASS,BeiDou and Galileo).Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT
• Onboard USB interface, to test AT Commands, get GPS positioning data, and so on.Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0Ω resistor

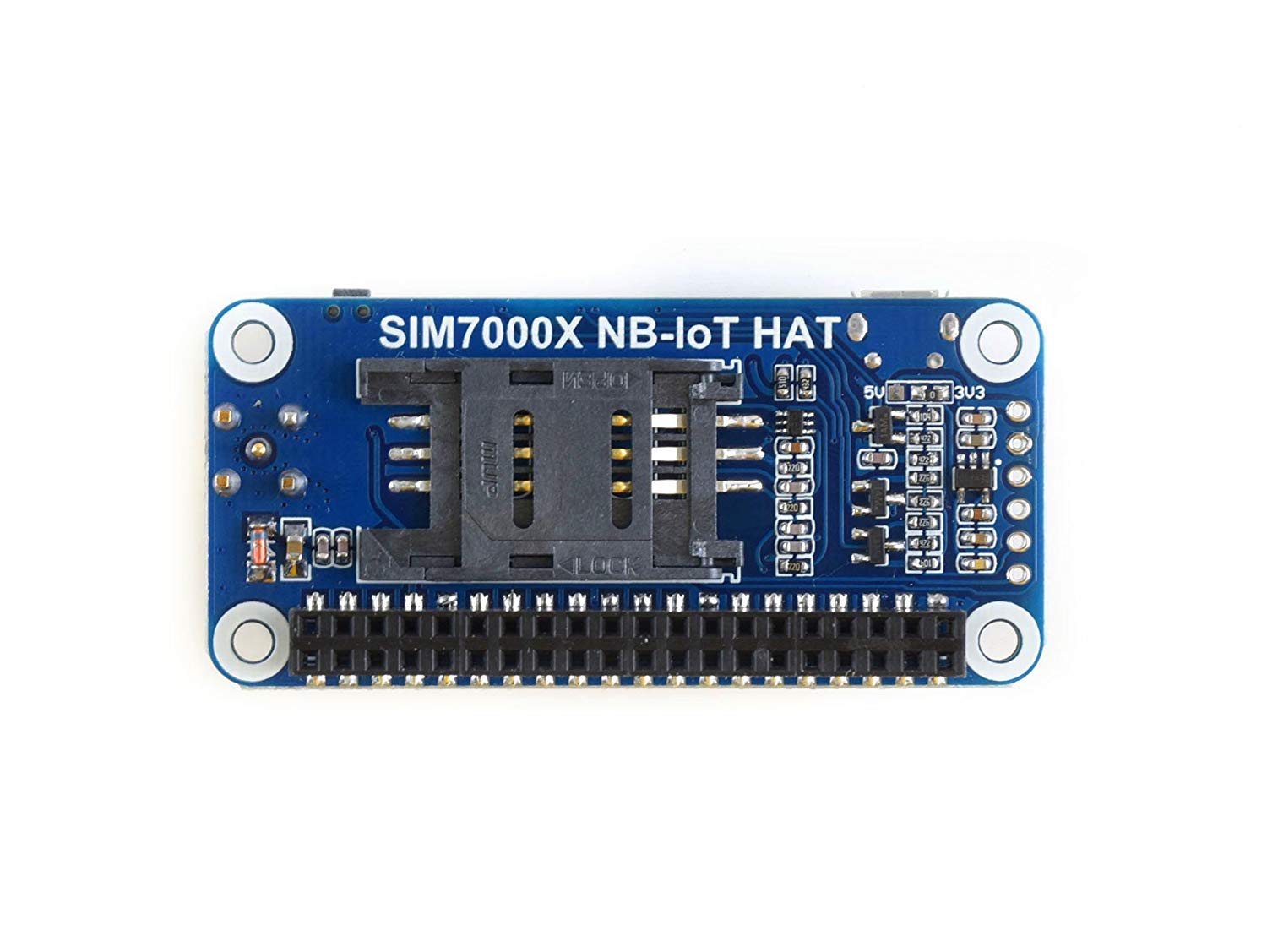

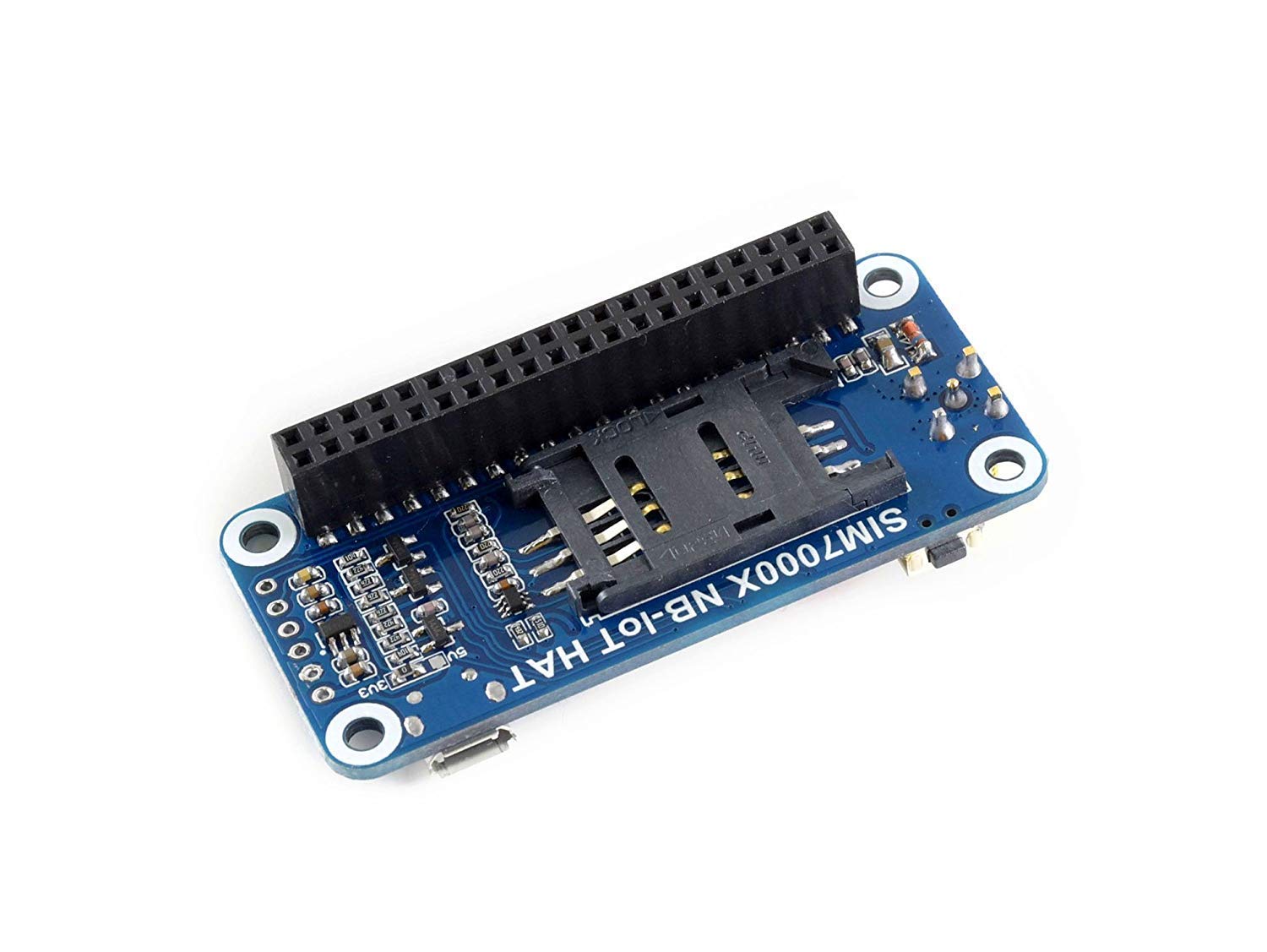

• Breakout UART control pins, to connect with host boards like Arduino/STM32.SIM card slot, compatible with both normal SIM card and NB-IoT specific card
• 2x LED indicators, easy to monitor the working status,Baudrate: 300bps~3686400bps,Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)

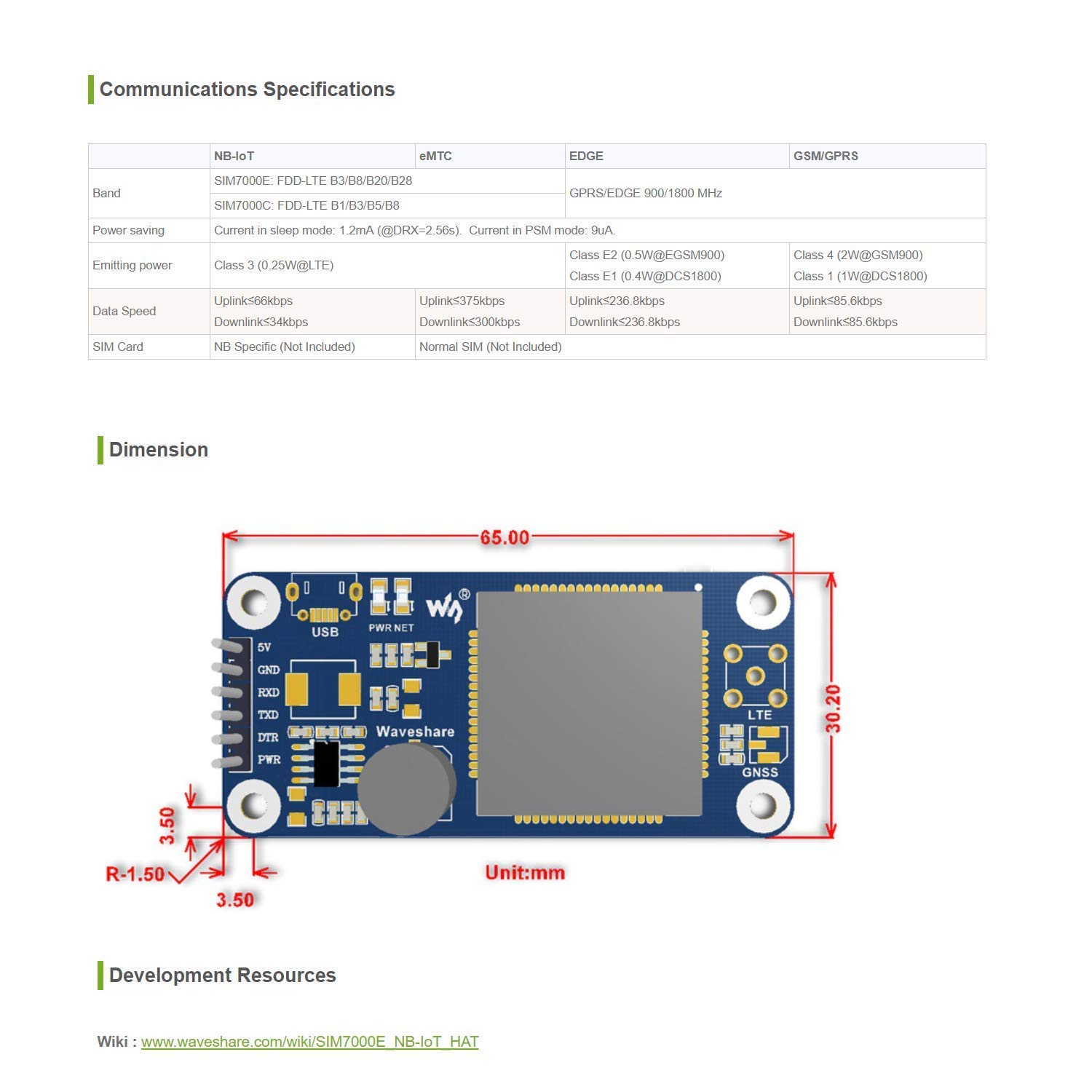

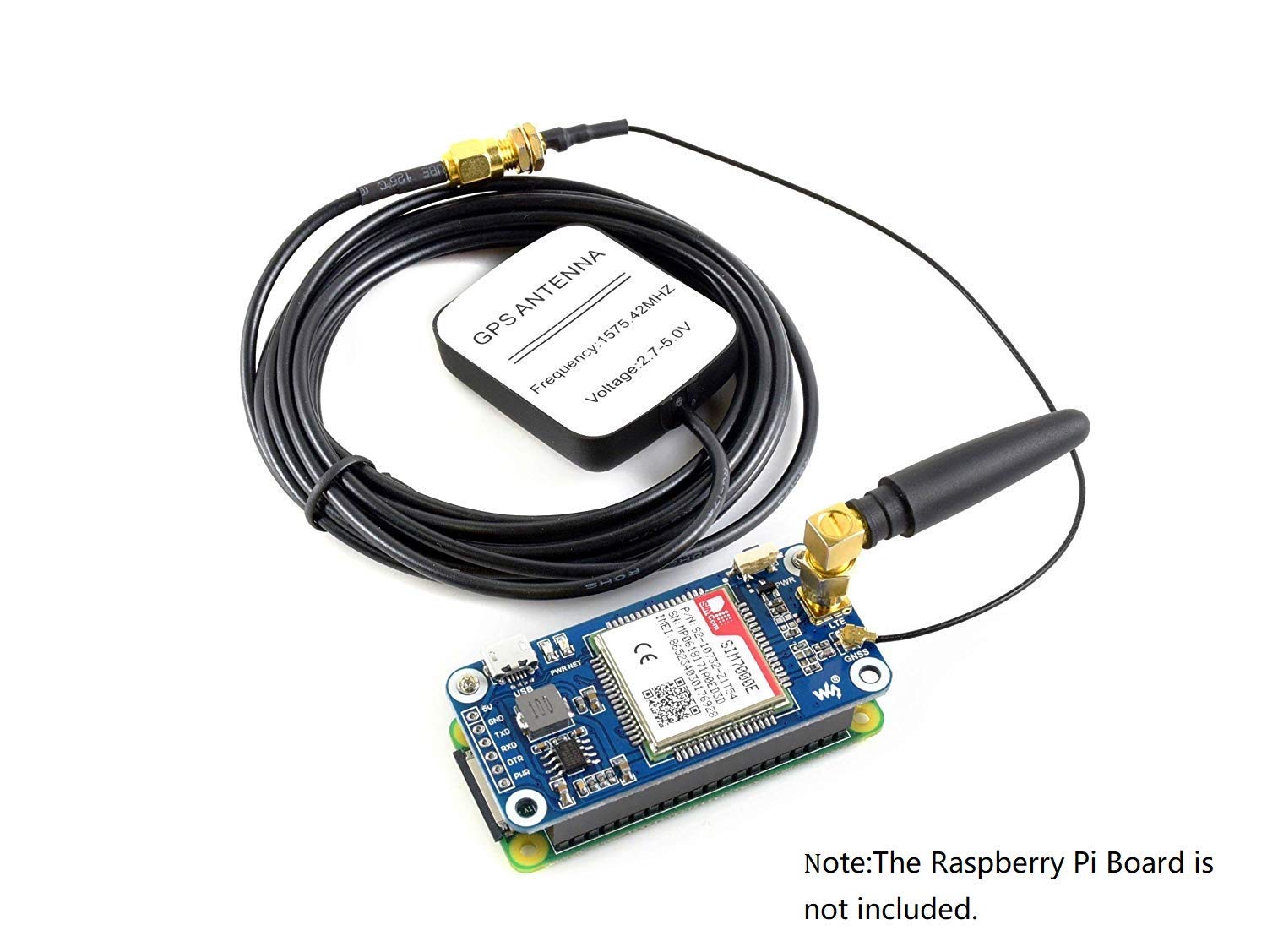

NB-IoT/eMTC/EDGE/GPRS/GNSS HAT for Raspberry Pi, Based on SIM7000E, for Europe, Africa, Australia, Southeast Asia. Overview This Raspberry Pi HAT features multi communication functionalities: NB-IoT, eMTC, EDGE, GPRS, and GNSS. The NB-IoT (NarrowBand-Internet of Things) and eMTC (enhanced Machine Type Communication) are rising IoT communication technologies evolved from LTE (4G), with advantages include low power, low cost, wide coverage, etc. They are suitable for applications such as intelligent instruments, remote controlling, asset tracking, remote monitoring, E-health, mobile POS terminals, sharing bikes, and so on. While the GSM/GPRS, and EDGE are traditional 2G/2.5G technologies capable of sending SMS or making other wireless communications. Therefore, the SIM7000E NB-IoT HAT would be an ideal choice for either evaluating new rising technologies, or simply communicating/positioning via multiple ways. GNSS Specifications Receiver Type16-channel C/A Code Sensitivity Tracking: -162 dBm (GPS)/-157 dBm (GLONASS)/TBD (BD) Cold starts: -148 dBm Time-To-First-Fix Cold starts: <35s. Hot starts: <1s Accuracy Position: <2.5m CEP Other Specifications Power supply: 5 V. Operating voltage: 5 V/3.3 V (3.3 V by default). Sleep mode current: 1.2 mA(@DRX=2.56s). Power Save Mode current: 9uA. Operating temperature: -40°C ~ 85°C. Storage temperature: -45°C ~ 90°C. Dimensions: 30.2 mm x 65 mm. Package Content SIM7000E NB-IoT HAT x1 GSM Antenna x1 GPS External Antenna (B)x1 USB type A plug to micro plug cable x1 RPi screws pack (2 pieces) x1
