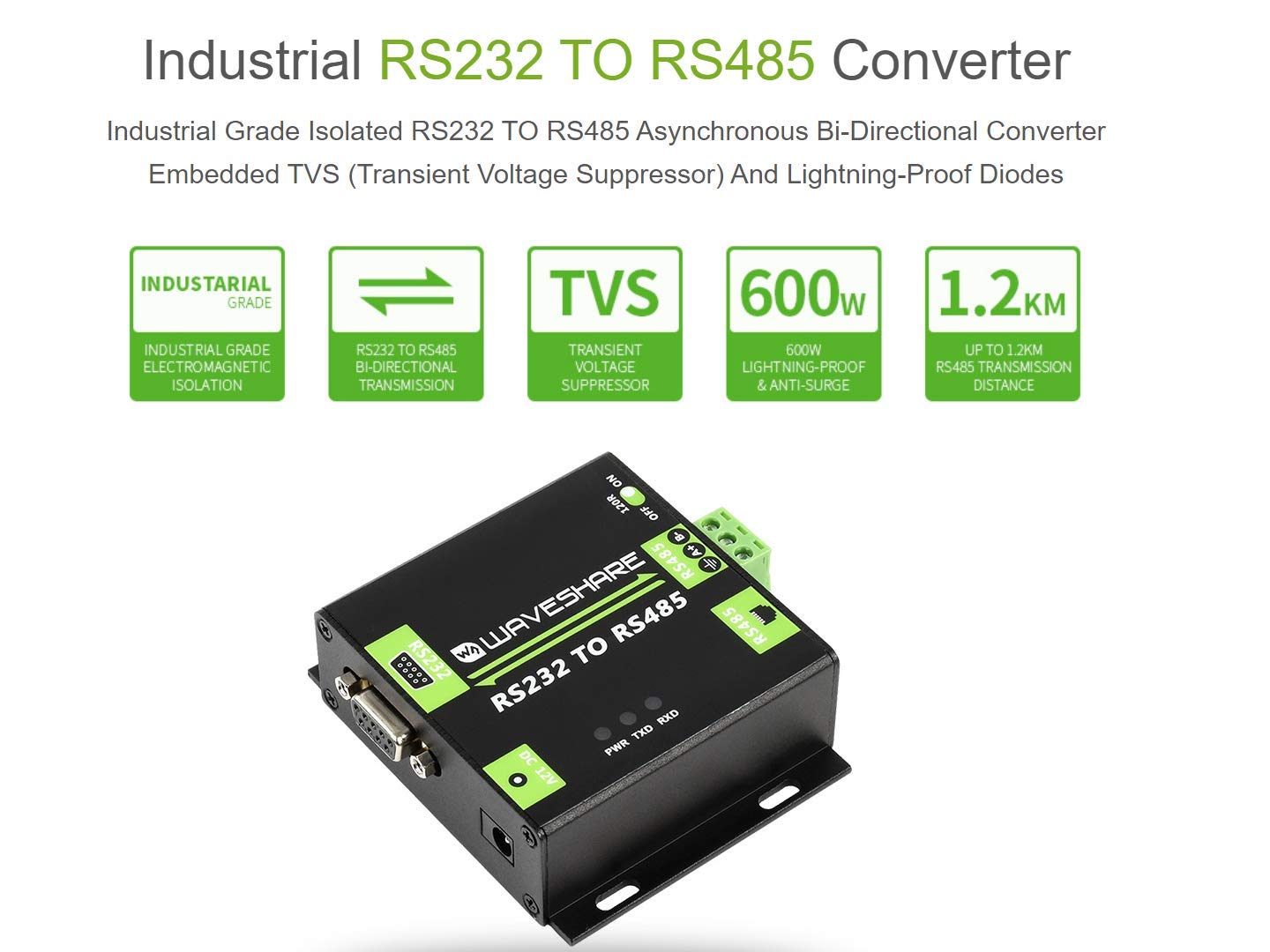

IBest Industrial Grade Isolated RS232 TO RS485 Asynchronous Bi-Directional Converter, Embedded TVS and LightningProof Diodes, ADI Magnetical Isolation, 600W LightningProof & Anti-Surge

• Industrial grade isolated RS232 TO RS485 converter Compatible with RS232/RS485 standard, converting the RS232 signal into balanced differential RS485 signal.Stable transmission on rate of 300~115200bps
• Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal.Onboard unibody ADI magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
• Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic.Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage protection, improves shock resistance

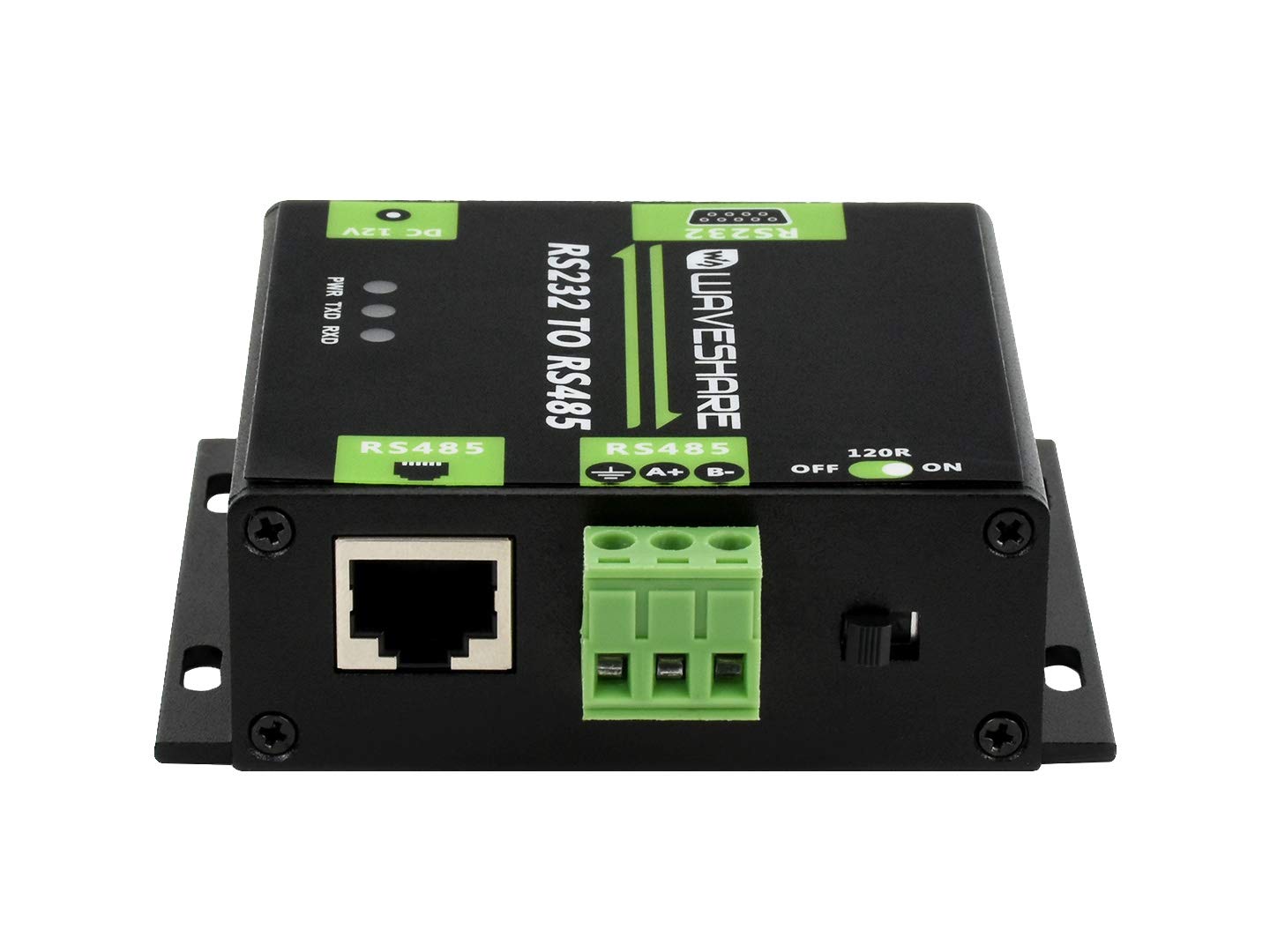

• Integrates optional RS485 output terminal 120R resistor, enabled/disabled via switch.Aluminium alloy enclosure with sand blasting and anodic oxidation, solid and durable

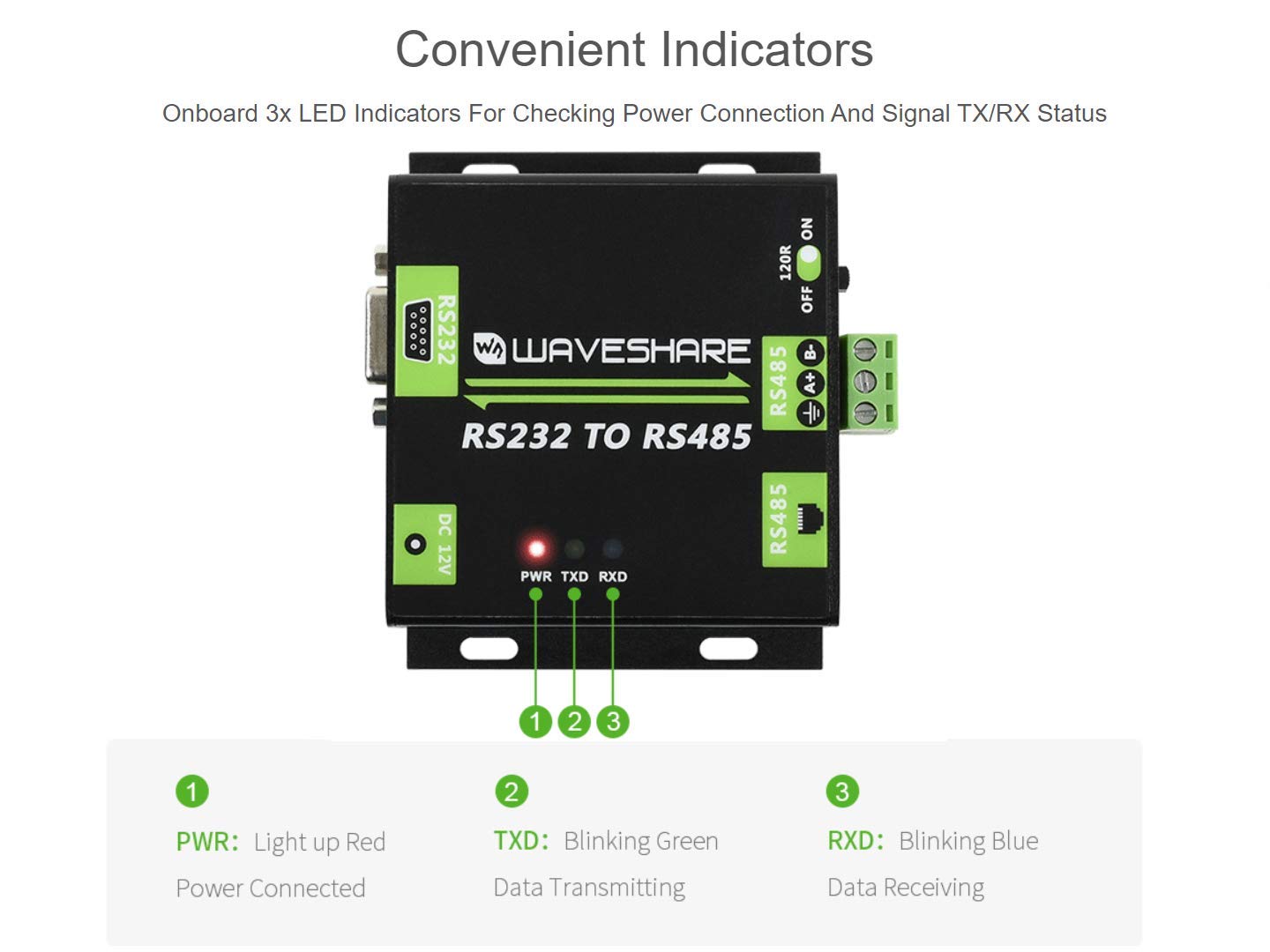

• DC-005 power jack, allows 6V~36V DC wide range input, suits different application situations.3x LED indicators, easy to check the operating status: power, transmitting, and receiving

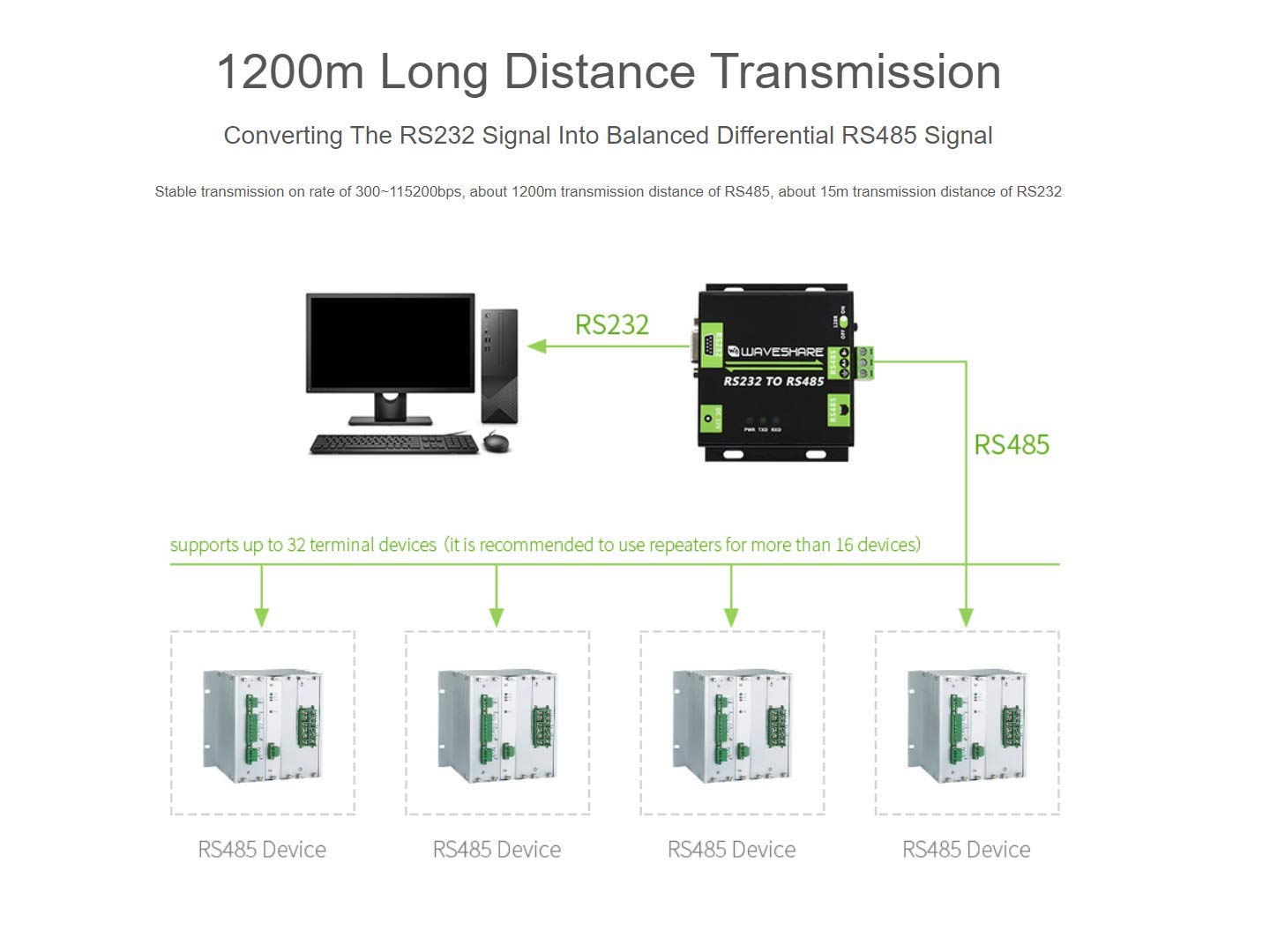

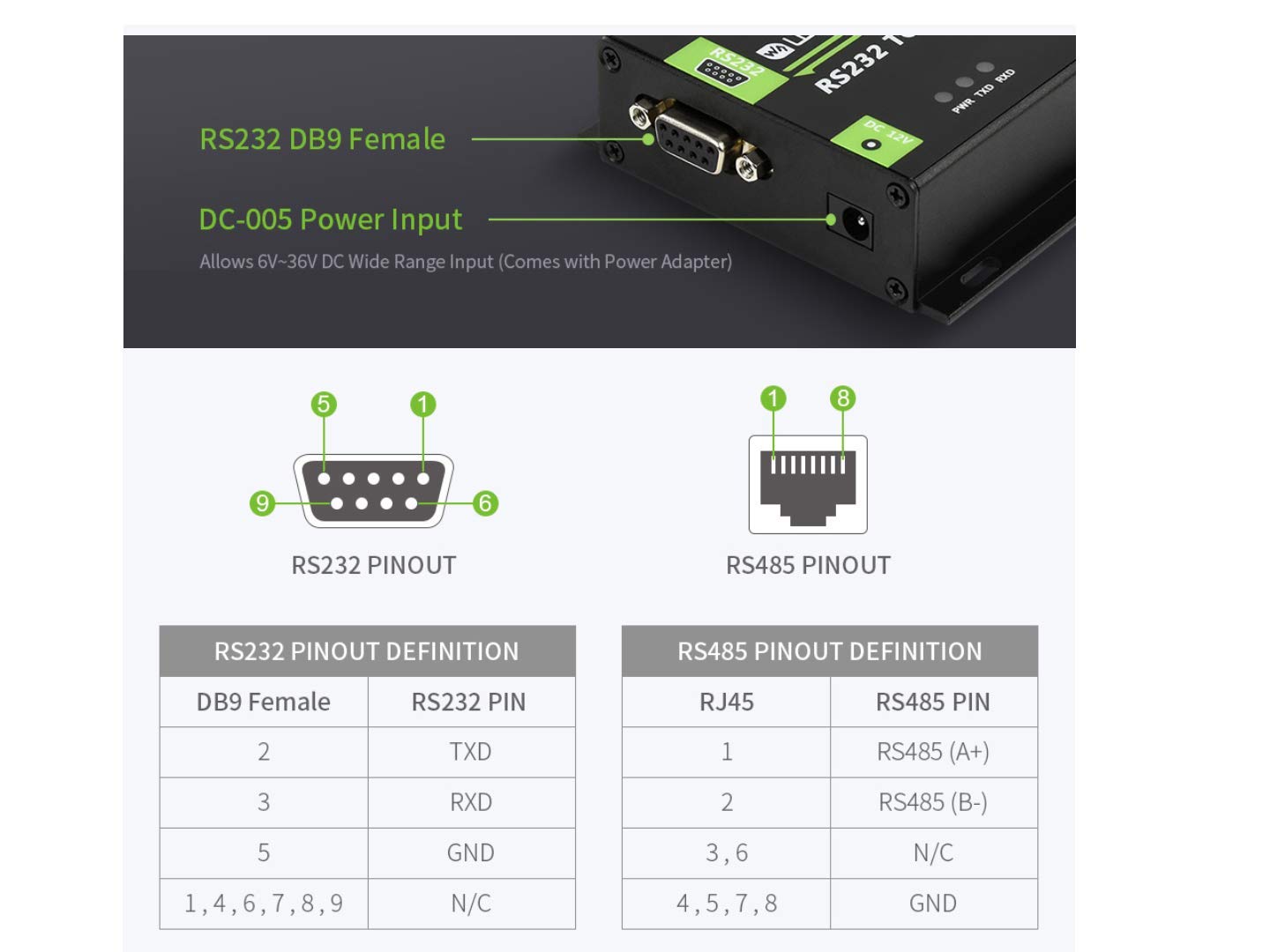

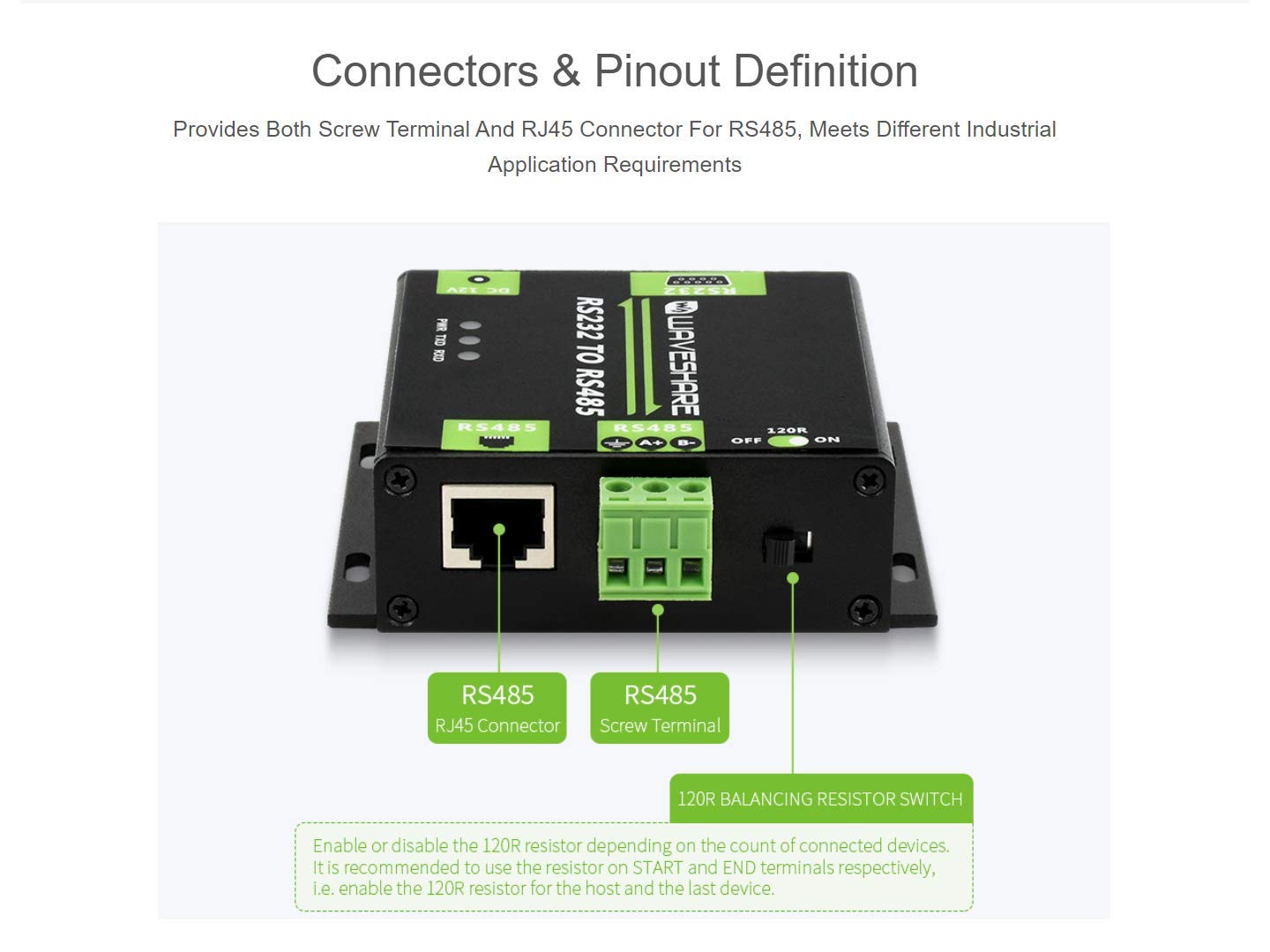

Industrial Grade Isolated RS232 TO RS485 Converter, ADI Magnetical Isolation, 600W Lightning-Proof & Anti-Surge Features Industrial RS232 TO RS485 Converter---Industrial Grade Isolated RS232 TO RS485 Asynchronous Bi-Directional Converter,Embedded TVS (Transient Voltage Suppressor) And Lightning-Proof Diodes 1200m Long Distance Transmission---Converting The RS232 Signal Into Balanced Differential RS485 Signal,Stable transmission on rate of 300~115200bps, about 1200m transmission distance of RS485, about 15m transmission distance of RS232 Connectors & Pinout Definition---Provides Both Screw Terminal And RJ45 Connector For RS485, Meets Different Industrial Application Requirements Convenient Indicators---Onboard 3x LED Indicators For Checking Power Connection And Signal TX/RX Status Aluminium Alloy Enclosure---Aluminium Alloy Enclosure With Sand Blasting And Anodic Oxidation Processing .Solid And Durable, Nice Looking Application Examples---The RS232 TO RS485 Converter Can Be Widely Used For Point-To-Point, Point-To-Multipoint, Long Distance Cascaded Communication Network Between Two Hosts, Or Between Host And MCU/Peripheral Development Resource http://www.waveshare.com/wiki/RS232_TO_RS485?Amazon Package Content RS232 TO RS485 x1 1.5m male-to-female serial cable x1 12V power adapter x1 Note Please contact us via Amazon message if you have any problem .
