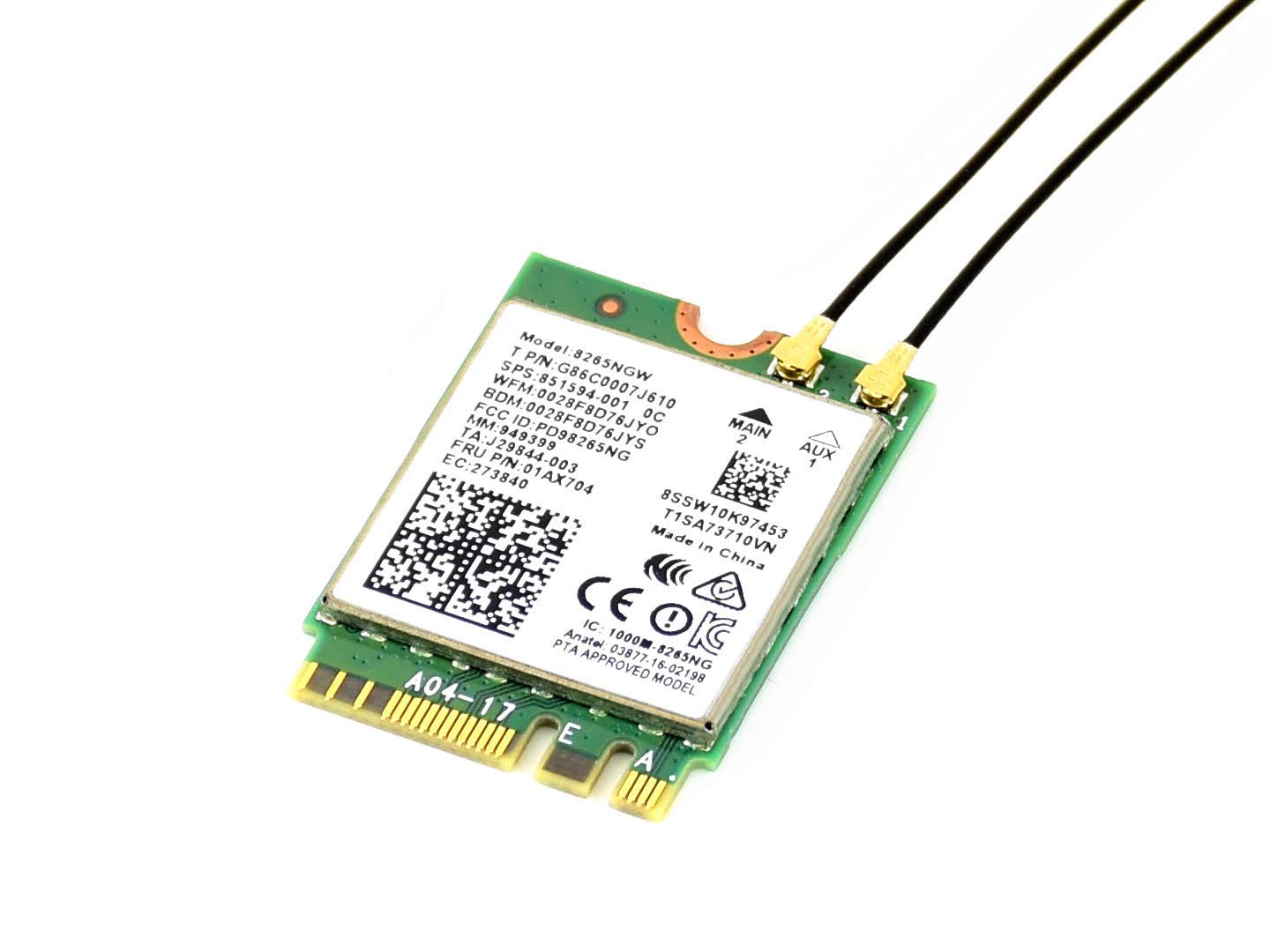

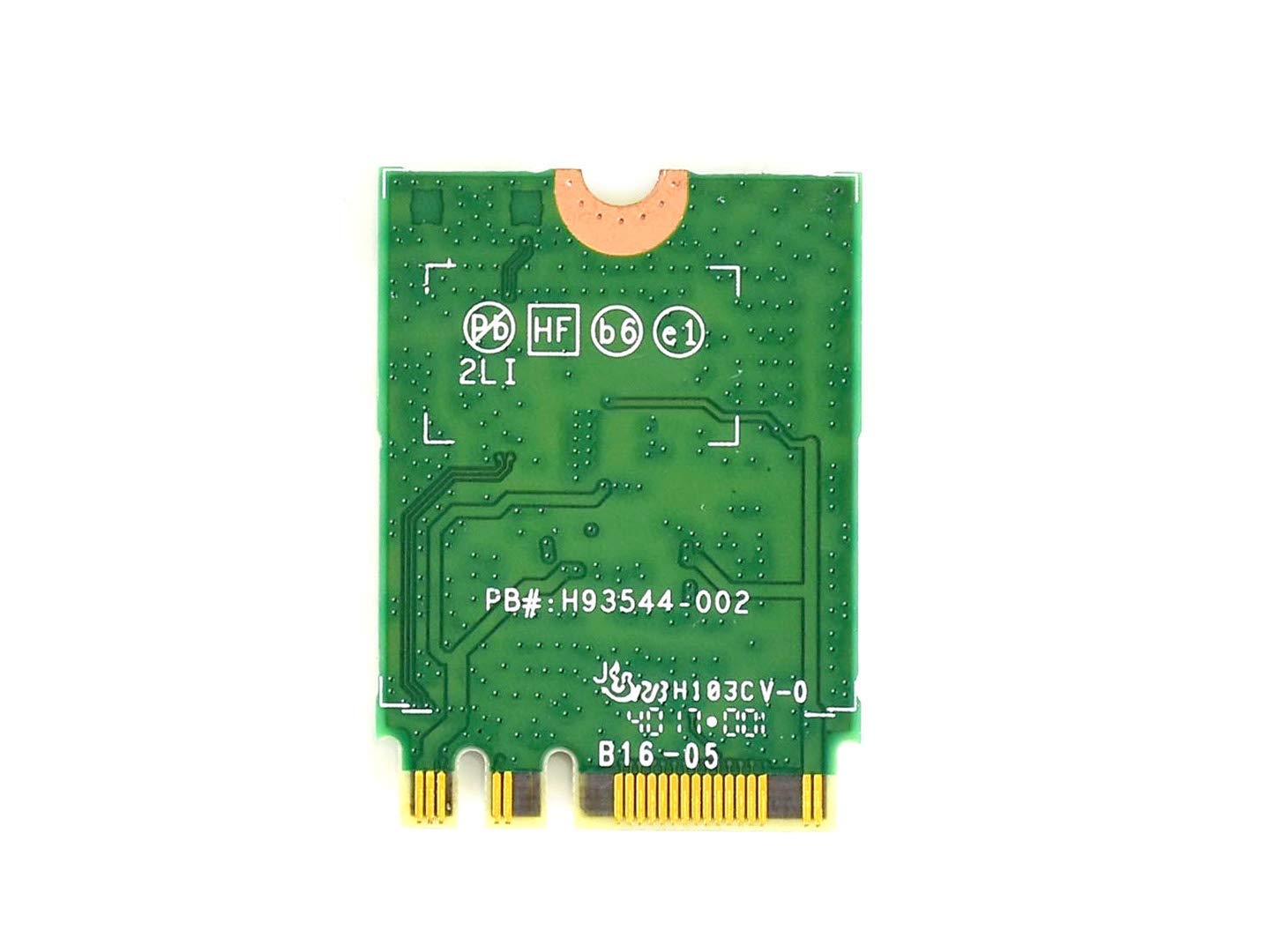

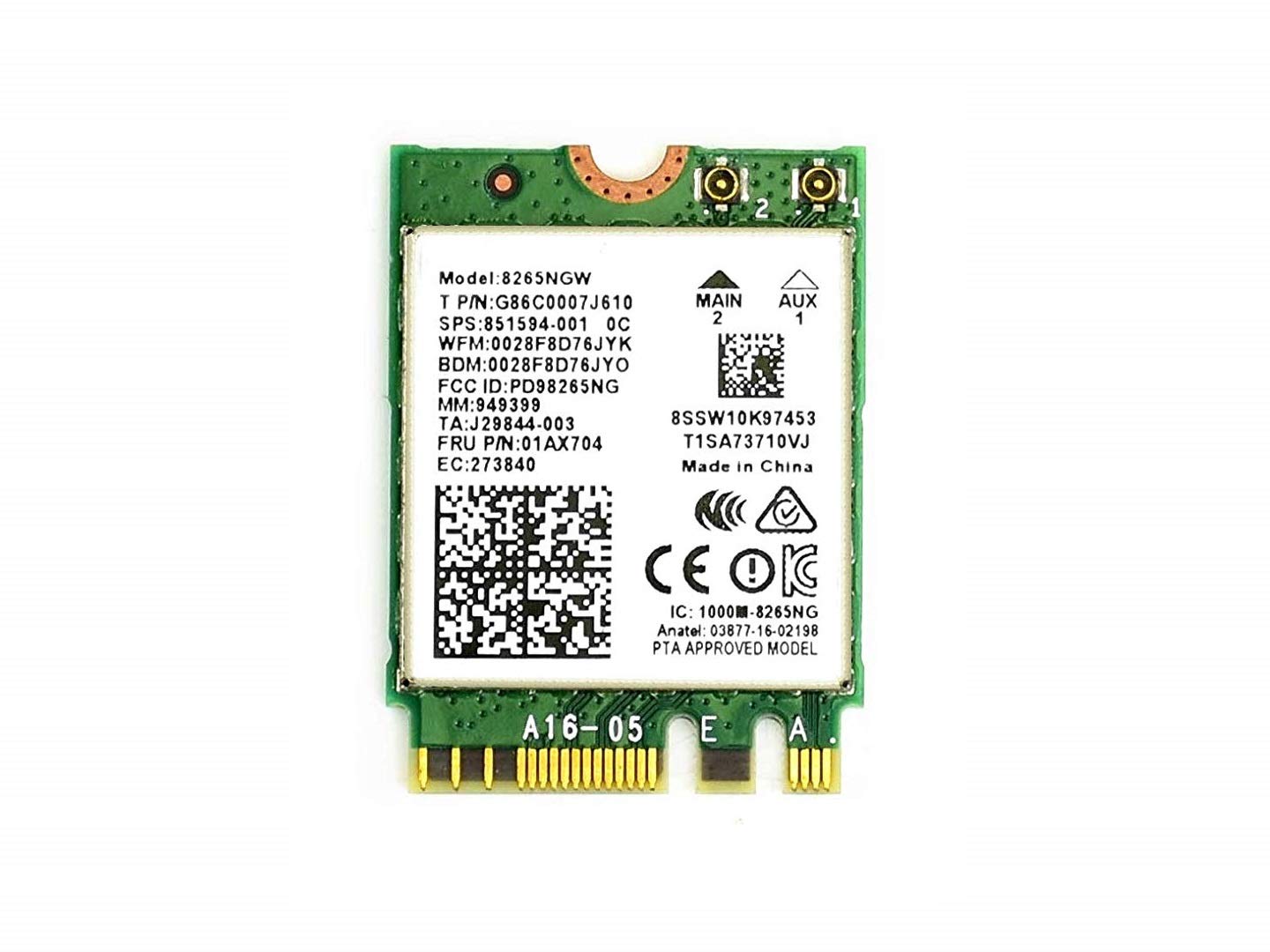

AC8265 Wireless NIC Dual Mode Wireless Card for Jetson Nano, Supports Dual Band WiFi and Bluetooth 4.2, 300Mbps / 867Mbps, Support Linux, Windows 10/8.1/8/7

• This is a dual mode wireless NIC module applicable for Jetson Nano
• Supports dual band WiFi and Bluetooth 4.2.
• NIC interface: NGFF (M.2)
• Speed: 300Mbps / 867Mbps;WiFi protocol: 802.11ac;Antenna interface: IPEX connector
• Supported OS: Linux, Windows 10/8.1/8/7

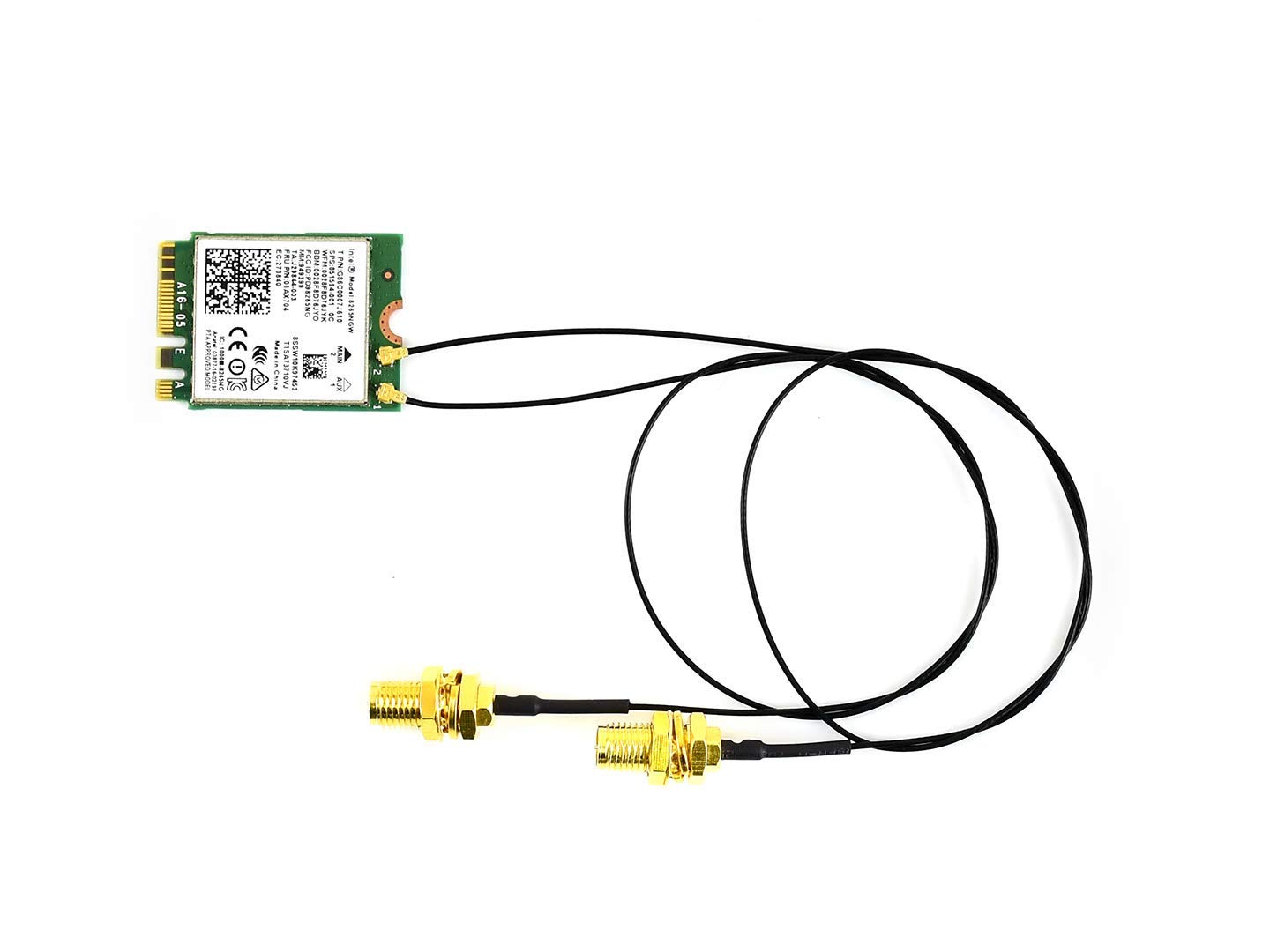

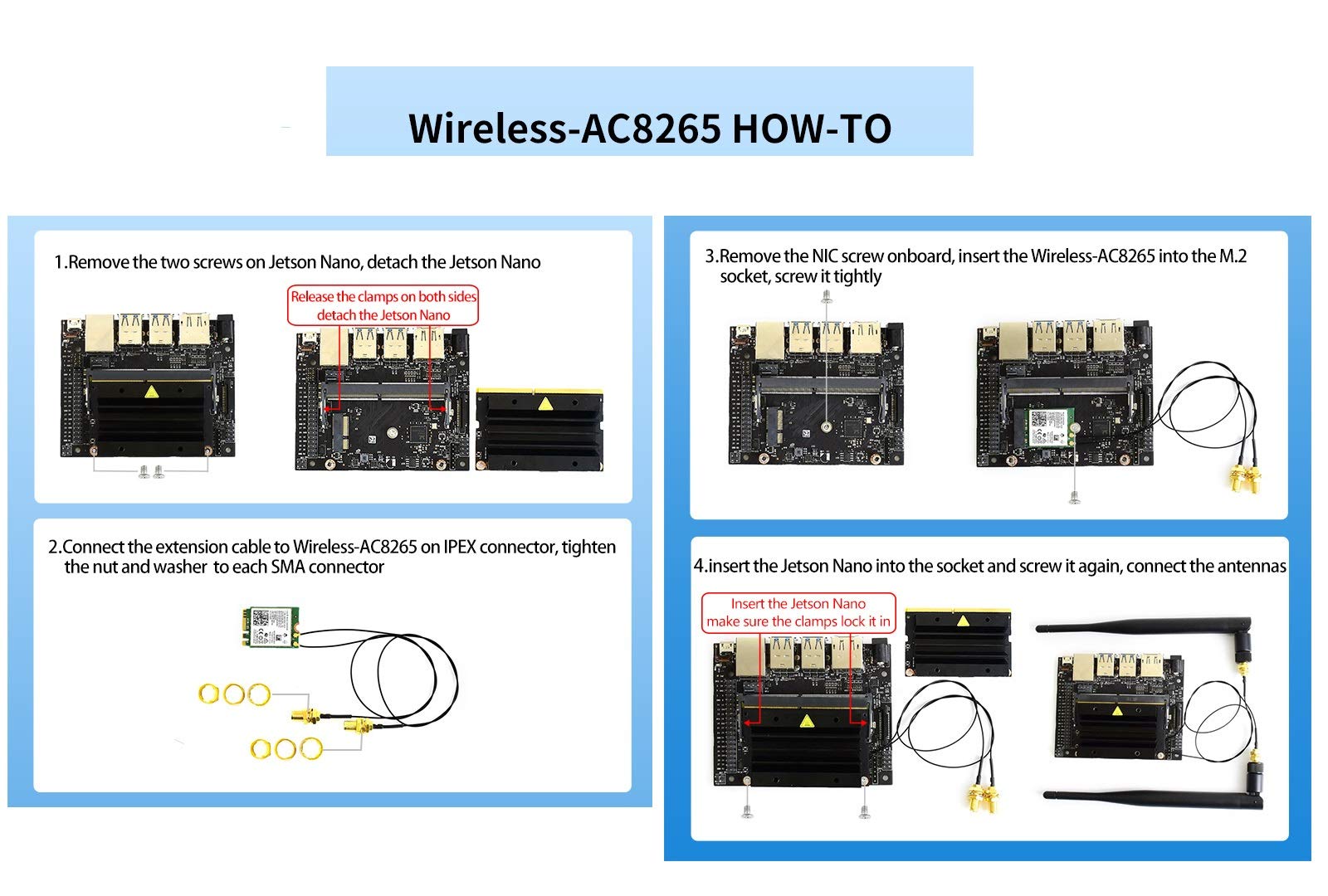

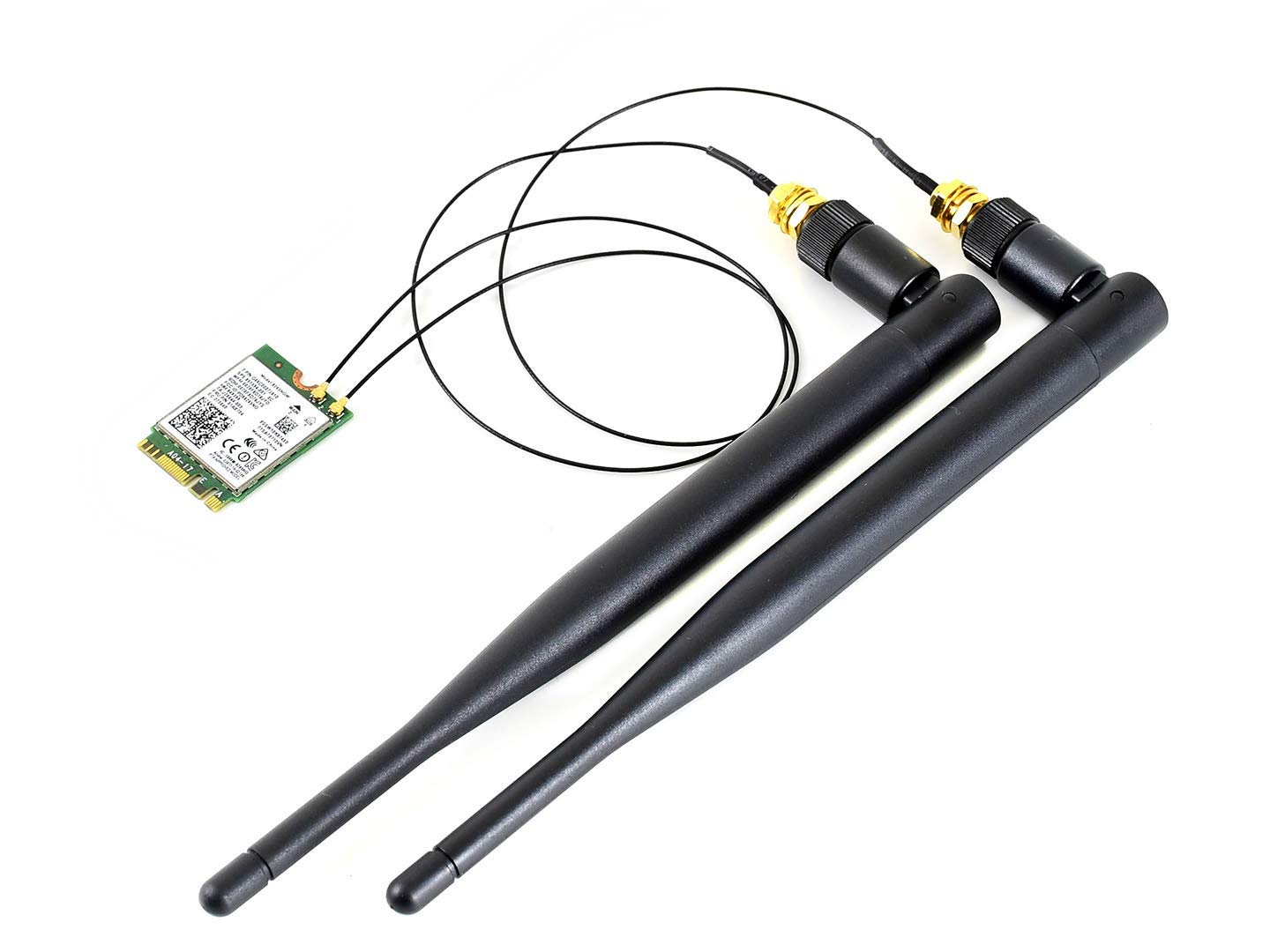

AC8265 Wireless NIC, WiFi, Bluetooth 4.2, Applicable for Jetson Nano Overview This is a dual mode wireless NIC module applicable for Jetson Nano, supports dual band WiFi and Bluetooth 4.2. Features Speed: 300Mbps / 867Mbps WiFi protocol: 802.11ac Bluetooth version: 4.2 NIC interface: NGFF (M.2) Antenna interface: IPEX connector Supported OS: Linux, Windows 10/8.1/8/7 Dimensions: 22mm × 30mm × 2.4mm How to use 1. Remove the two screws on Jetson Nano,detach the Jetson Nano 2.Connect the extension cable to Wireless-AC8265 on IPEX connector , tighten the nut and washer to each SMA connector 3.Remove the NIC screw onboard, insert the Wireless-AC8265 into the M.2 socket , screw it tightly 4. Insert the Jetson Nano into the socket and screw it again , connect the antennas Please check the detailed demonstration in the photos. Package Content Wireless-AC8265 x1 Antenna x2 IPEX to SMA cable x2
