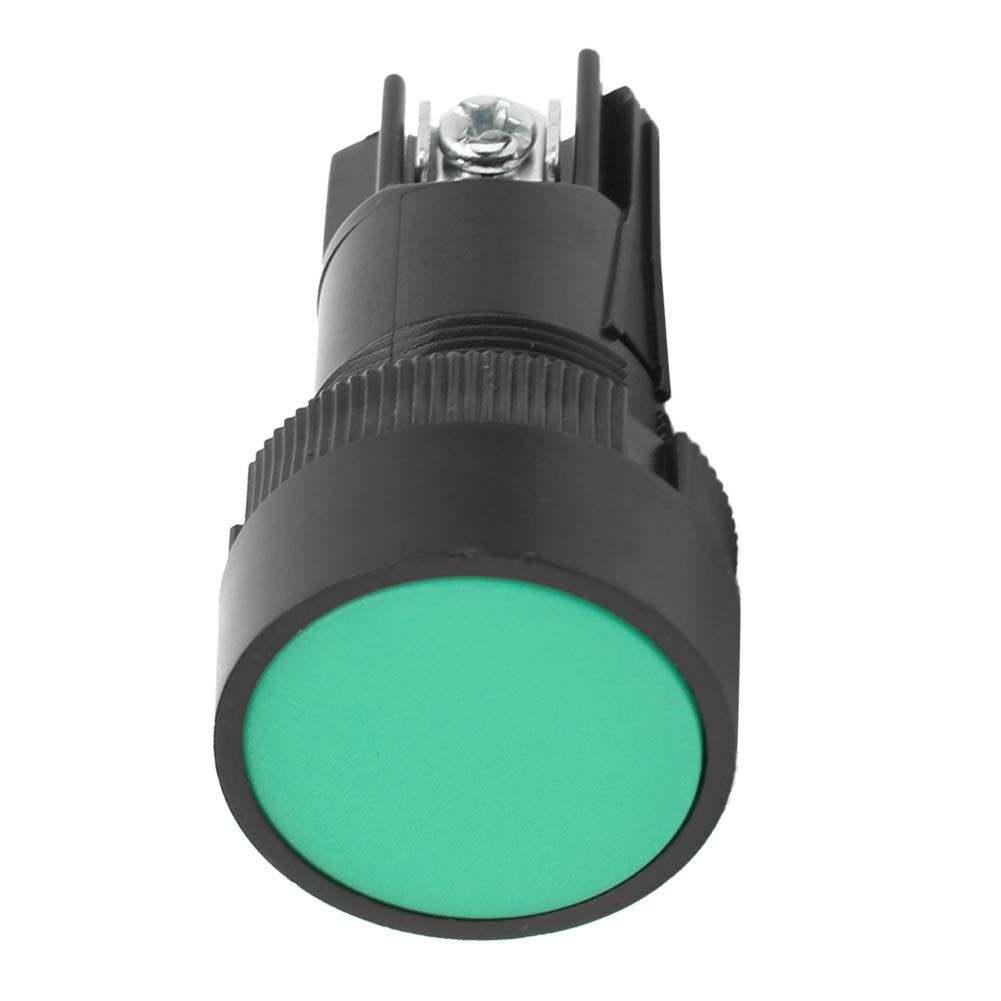

Hyuduo 10Pcs 22mm Push Button Switch Flat Head Reset Control Switch for Industrial Control, Circuit Switching & Panel Mount Applications

• To ensure reliability, all contacts have the dual function of a switching circuit and self-cleaning. When the maximum short-circuit current is 1kA, the is 16A (general purpose) and 10A (delay time).
• When the switch is working, the contact surface can be wiped clean by sliding the closure, so it can still be used at low voltage and low current (5V, 5mA). And can ensure the reliability of the contact.

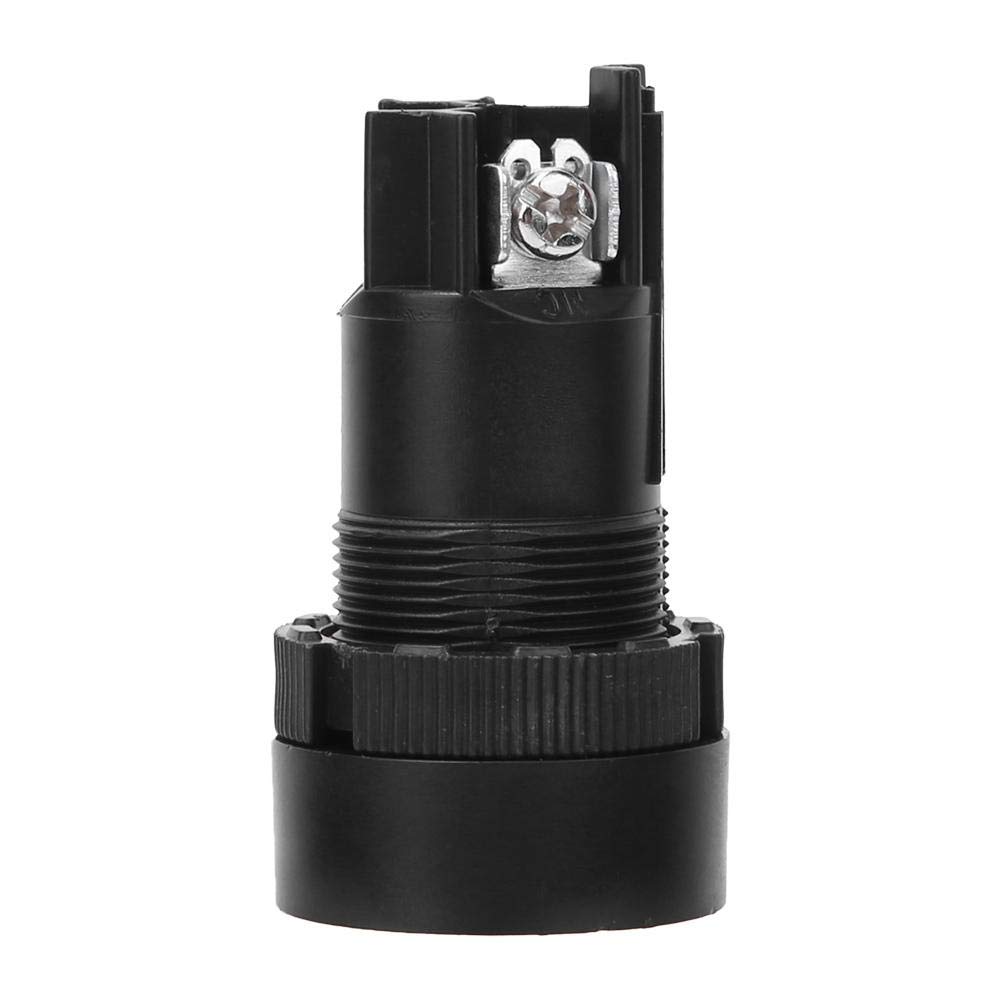

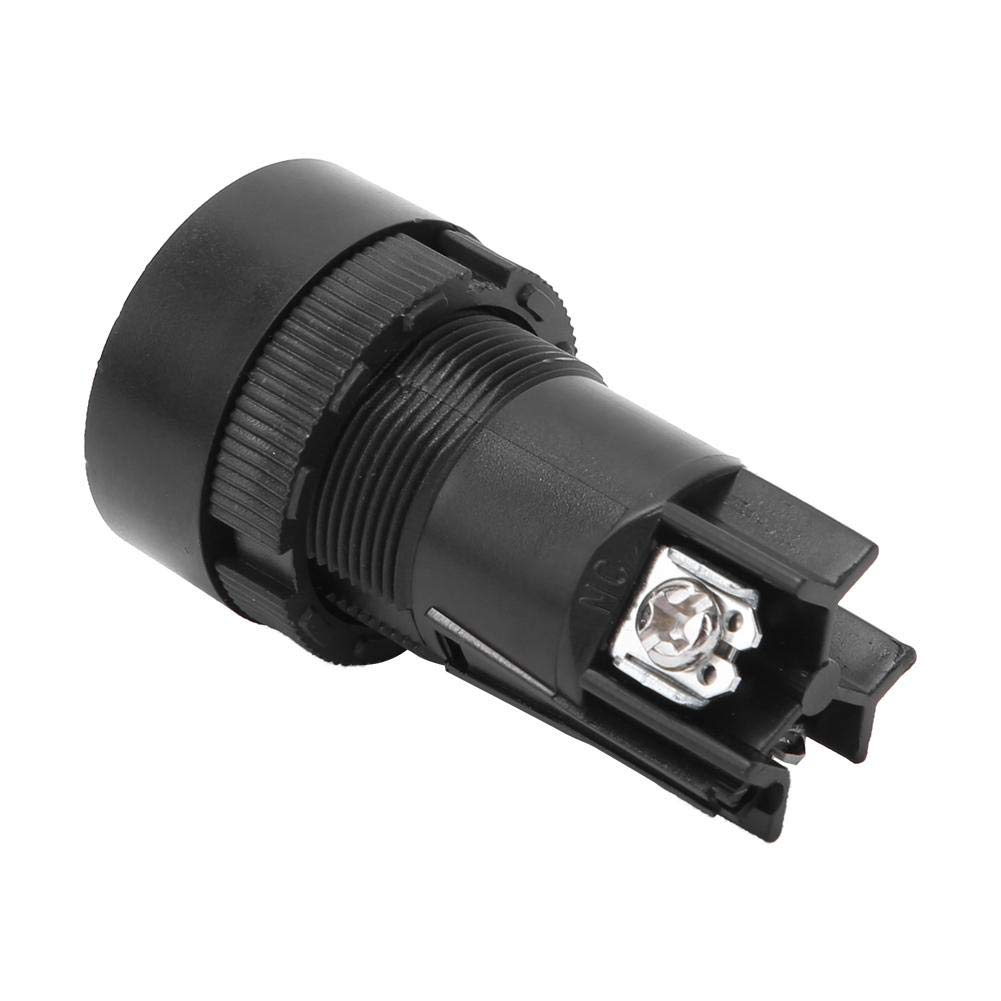

• XB2-B (E) series has built-in screw-type connection and more secure functions. It is powerful and can form a complex multifunctional control system, which is very convenient to operate.
• We strive to provide a product of the highest quality and the best customer experience, if you are not completely satisfied, do not hesitate to contact us at any time.
• Permanently, the mechanical life of the control button XB2 series is up to 10,000 times, which is the electrical life.

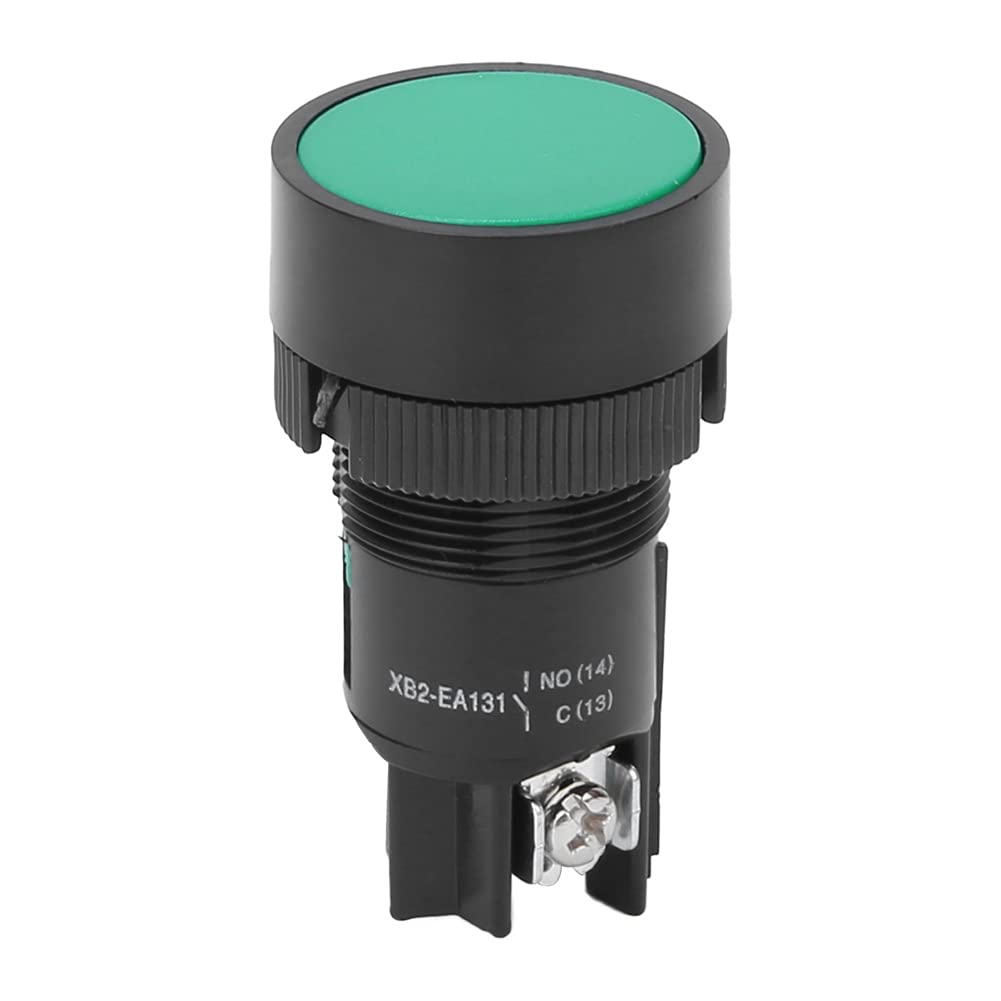

Description Specification: Item Type: Switch Options: XB2-EA131(Green, 1 normally open); XB2-EA142 (Red, 1 normally closed) Technical ParameterA)10A Electrical life: 600,000 times, other 100,000 times Rated CapacityAC-15220V/6A380V/4A660V/2A Recommended 0.9NmDC-13440V/0.3A220V/0.5A110V1A Power Frequency Withstand Voltage2500V / 60S Terminal: Suitable for IEC standard No. 2 screwdriver (+ word-shaped) and screw for DIN gasket Contact Resistance25MΩ Temperature: -25+55 °C Short Circuit ProtectionWhen the maximum short-circuit current is 1kA, the 16A (common), 10A (delay) Package List: 10 x XB2 Switch
