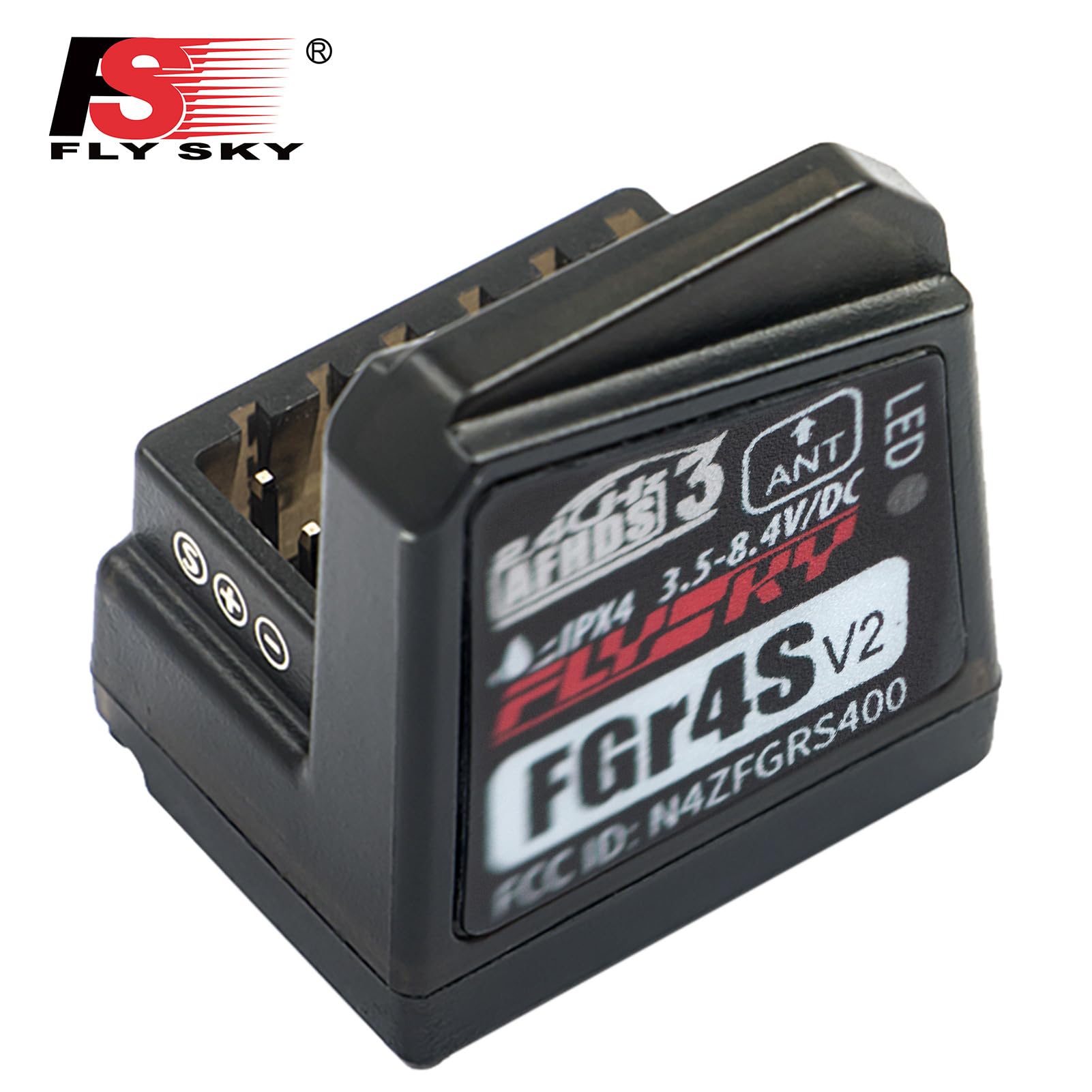

Hylukon Flysky FGR4S V2 Receiver AFHDS 3 Built-in Single-Antenna Bidirectional PWM/PPM/IBUS Output Receiver for Flysky NB4 PL18 RC Transmitter

• FGr4S adopts AFHDS 3, Flysky's third-generation automatic frequency hopping digital system. Easy to bind and very fast link-up, quick and extremely stable in performance.
• 2.4GHz 4 channel receiver is compatible with FlySky Noble FS-NB4 PL18 Transmitter, good for Rc Car and Rc Boat.
• The receiver supports PPM/i-bus/PWM data output, suitable for AFHDS3 system remote controller.
• Ultra-small size and ultra-lightweight, effectively save space and reduce item's weight-bearing.

Product description Specification: Product Model: FGr4S PWM channel: 4 Wireless frequency: 2.4GHz Wireless protocol: AFHDS 3 Mode type: RC Car / Boat Range:> 200m (ground) Antenna type: Built-in single antenna Power: 3.5-8.4V RSSI: Supported Data port: PWM / PPM / i.bus Temperature range: -10 ℃ — + 60 ℃ Humidity range: 20% -95% Online Update: Yes Dimensions: 26 * 22 * 17.3 mm Weight: 5.1g Package information: Package size: 8 * 5 * 3cm Package Weight: 13g Package list: 1 * FGr4S receiver; 1 * banding cable BinThe receiver supports PPM/i-bus/PWM data output, suitable for AFHDS3 system remote controller.ding: To ensure good signal strength, make sure the receiver antenna is as far away from any metal parts when installing the receiver. 1. Insert the binding cable into the receiver's BIND port. 2. Plug the power cable into any other port, and the receiver's LED will start to flash quickly indicating that it has entered bind mode. 3. Put the transmitter into bind mode; (See the transmitter's instruction manual for more information.) 4. Binding is successful when the receiver's LED starts to flash slowly. Remove the power and bind cables from the receiver *if the transmitter is bidirectional the reciever status indicator will not fash slowly. 5. Reconnect the power cable to the receiver. 6. Check to make sure that the transmitter and receiver are working as expected, if there are any issues or unexpected operation follow the steps above to bind again. Safety Warning no
