6PCS Concealed Floating Shelf Brackets, Heavy Duty Invisible Supports for DIY Custom Wall Floating Board Shelves (10 x 100mm)

• PERFECT HELPER: People who love life like to decorate their homes according to their own creativity. It can be used to mount bookshelves or wall shelves and the invisible design creates the illusion that your shelves are floating. Save space and make your room tidy and your life more comfortable.
• STURDY MATERIAL: Made of high quality iron, strong and durable, greatly extended service life. It has a very high load-bearing capacity. If properly installed on a suitable fixed brick wall, the holder can bear about 45 lb/20 kg.

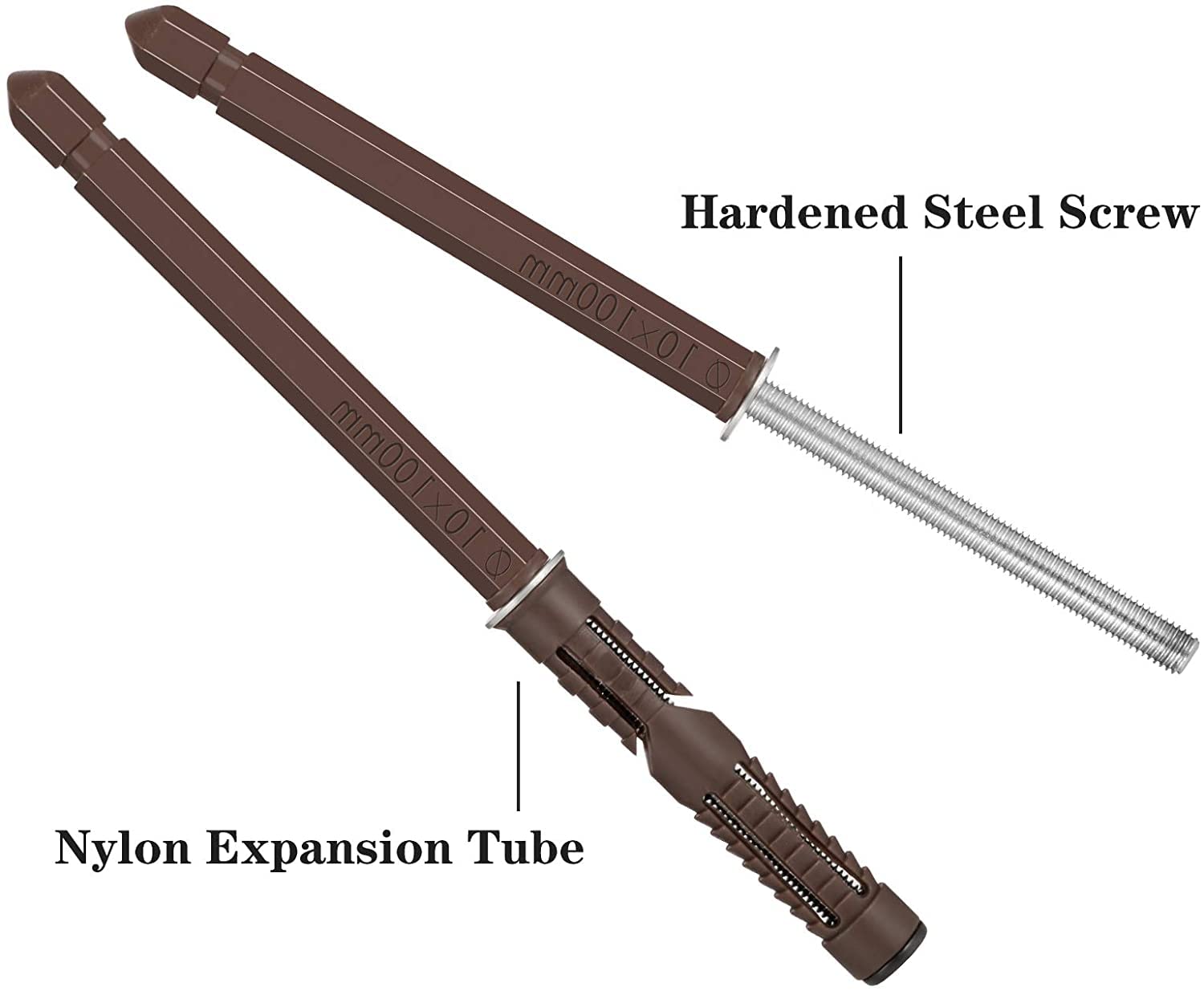

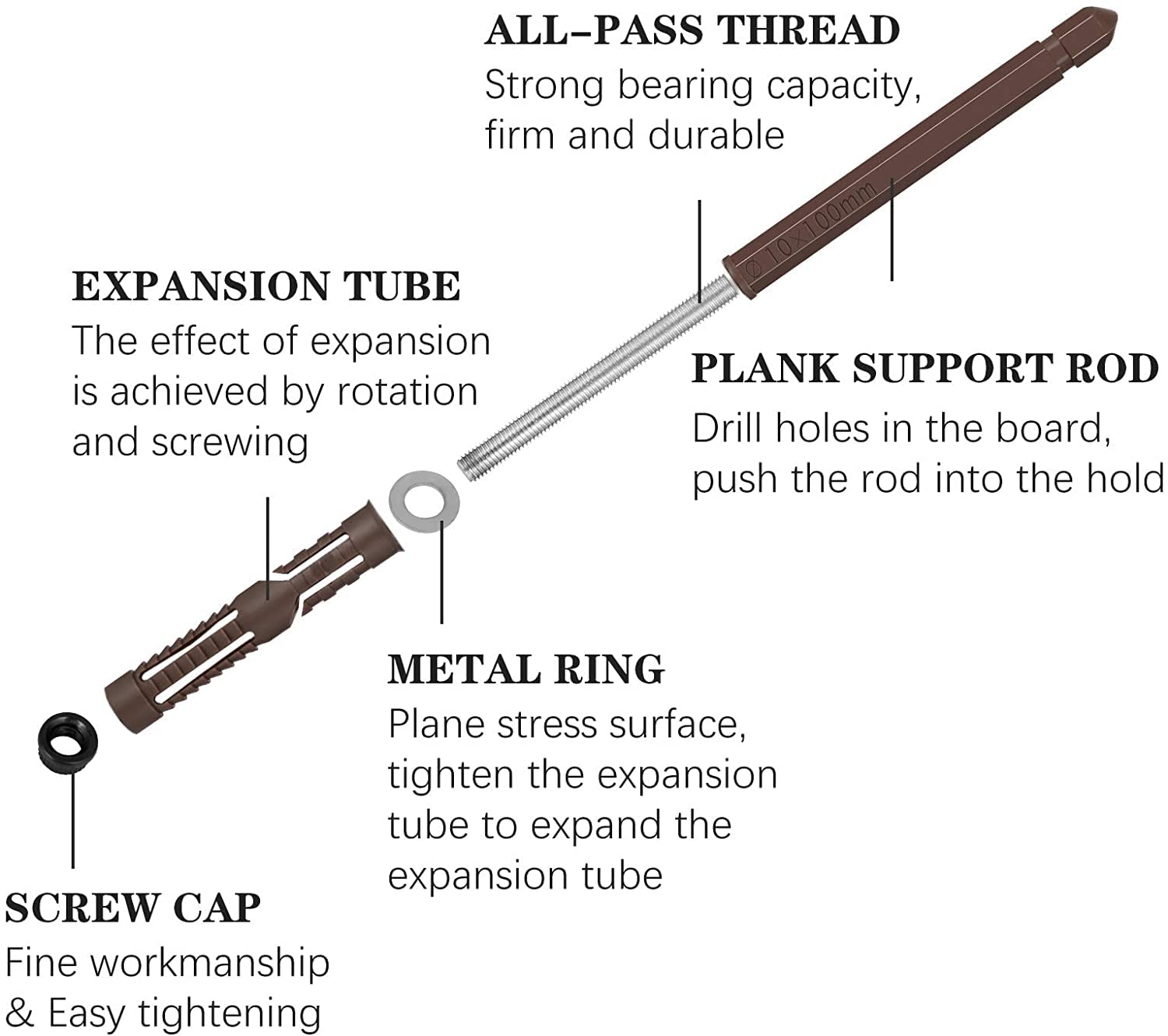

• SUPERB STABILITY: The load-bearing bar is a barbed hexagonal cylinder that increases the resistance of the wood and the wall, improves stability, and the special plastic casing protects the wall and the board from damage.
• EASY TO INSTALL: Simply insert the expansion tube into the hole you drilled in the wall, tighten the end of the hexagonal column and the screw, and insert the other end into the drilled wood hole to complete the installation.

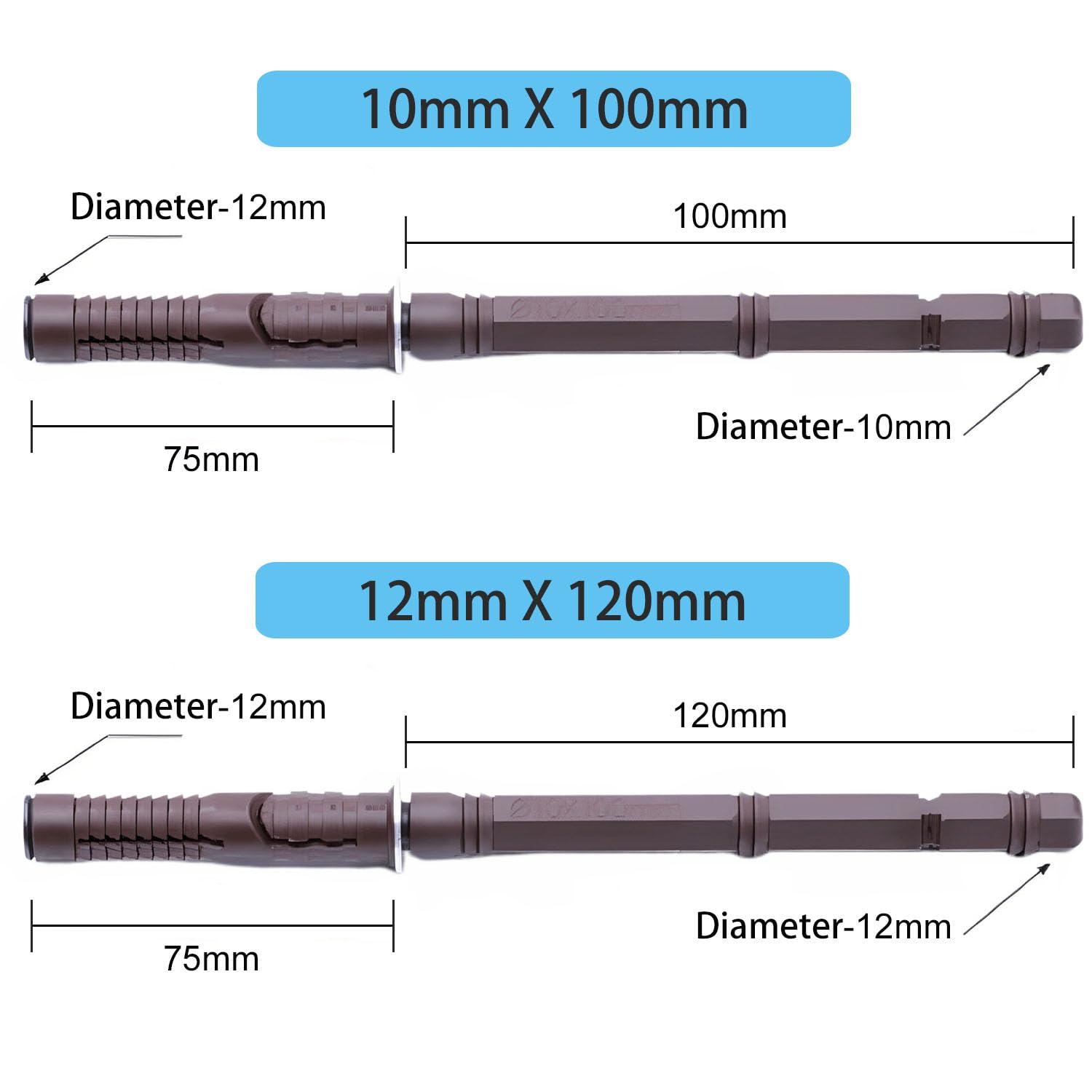

• SIZE: Total length is 175mm, the length of expansion tube is 75mm, diameter is Ø12mm, and the length of support rod is 100mm, diameter is Ø10mm.

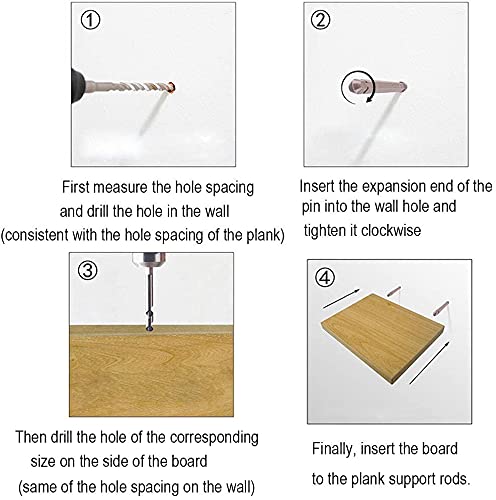

Installation steps 1. First drill holes in the wall (bore and depth are based on the size of the brackets). 2. Insert the extended end of the bracket support pin into the wall hole with the nut at the end. 3. Insert the support rod into the expansion plug of the wall hole. Place the middle metal ring on one side of the expansion tube and embed into the wall. The end of the screw is in proper contact with the screw cover and tightened clockwise, and then continue to rotate until the expansion plug on the wall expands to fully support the wall. 4. Then drill the hole of the corresponding size on the side of the board (consistent with the hole spacing of the wall). Finally, insert the board into the plank support bar and secure it completely. Note 1. Each board must have at least 2 brackets and remain in the same horizontal position. 2. If the brick wall is soft, choose a smaller drill bit appropriately. 3. The expansion pipe part should be installed to the wall entirely. Specifications: Material: High quality iron and plastic Size: Ø10 x 100mm, Ø12 x 120mm Package Includes: 6 x Floating Shelf Brackets
